Description
Xhorse Multi Prog Multi-Prog Programmer with VH24 VH29 VH30 VH31 Adapters

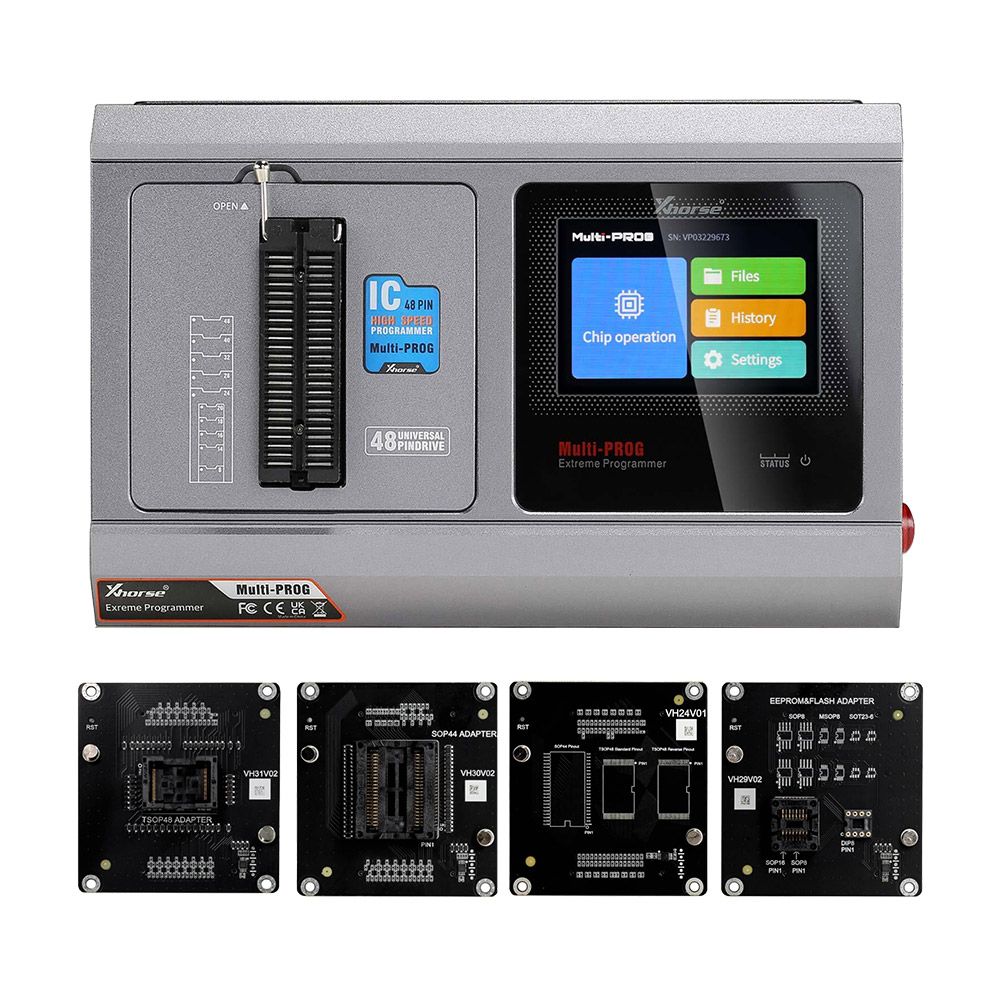

Package Includes
- Xhorse Multi Prog Pro-level ECU TCU Programmer
- Xhorse Multi-Prog Programmer Adapters:
- XDMP04GL VH24 SOP44 TSOP48
- XDMP05GL VH29 EEPROM FLASH
- XDMP06GL VH30 SOP44
- XDMP07GL VH31 TSOP48

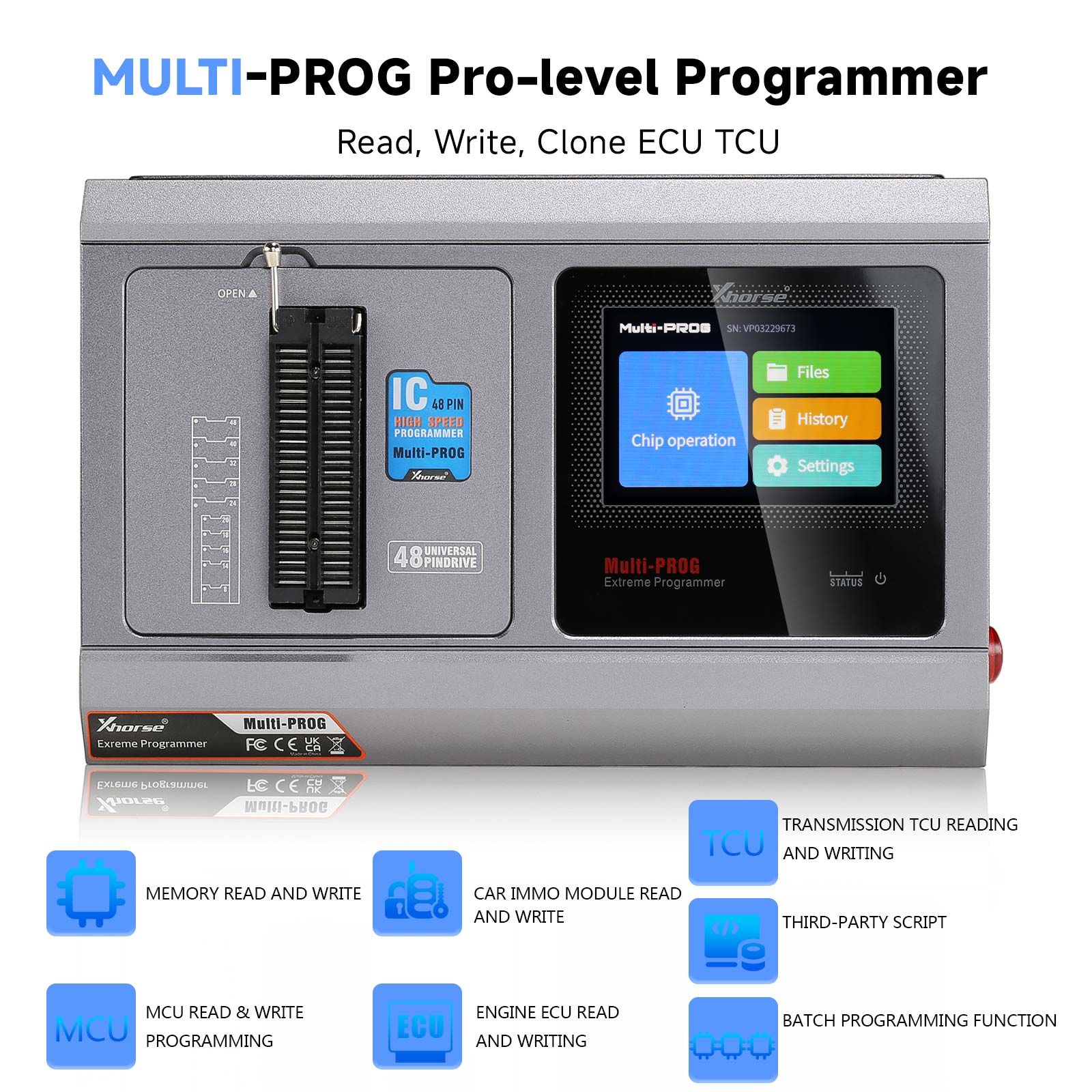

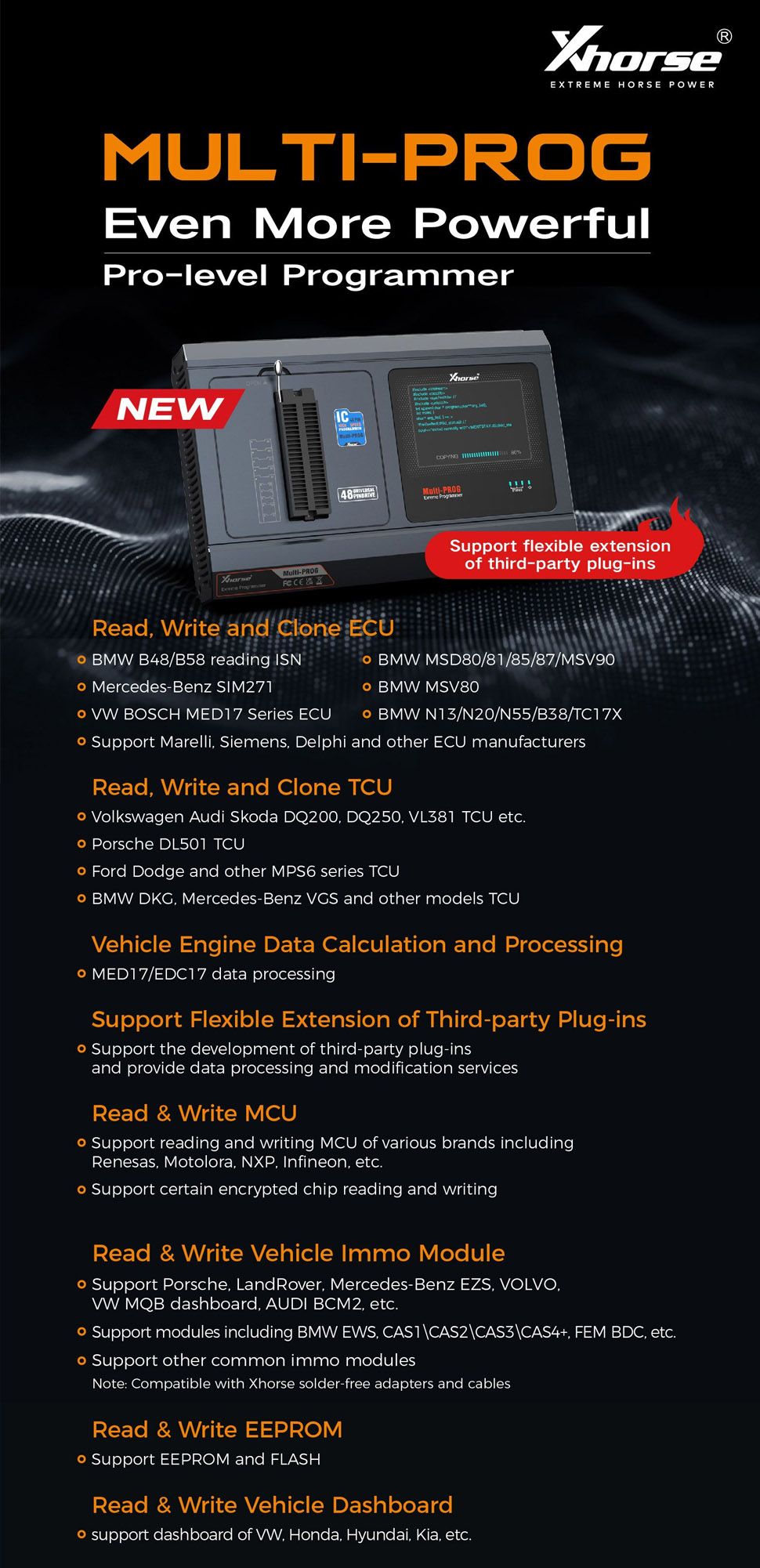

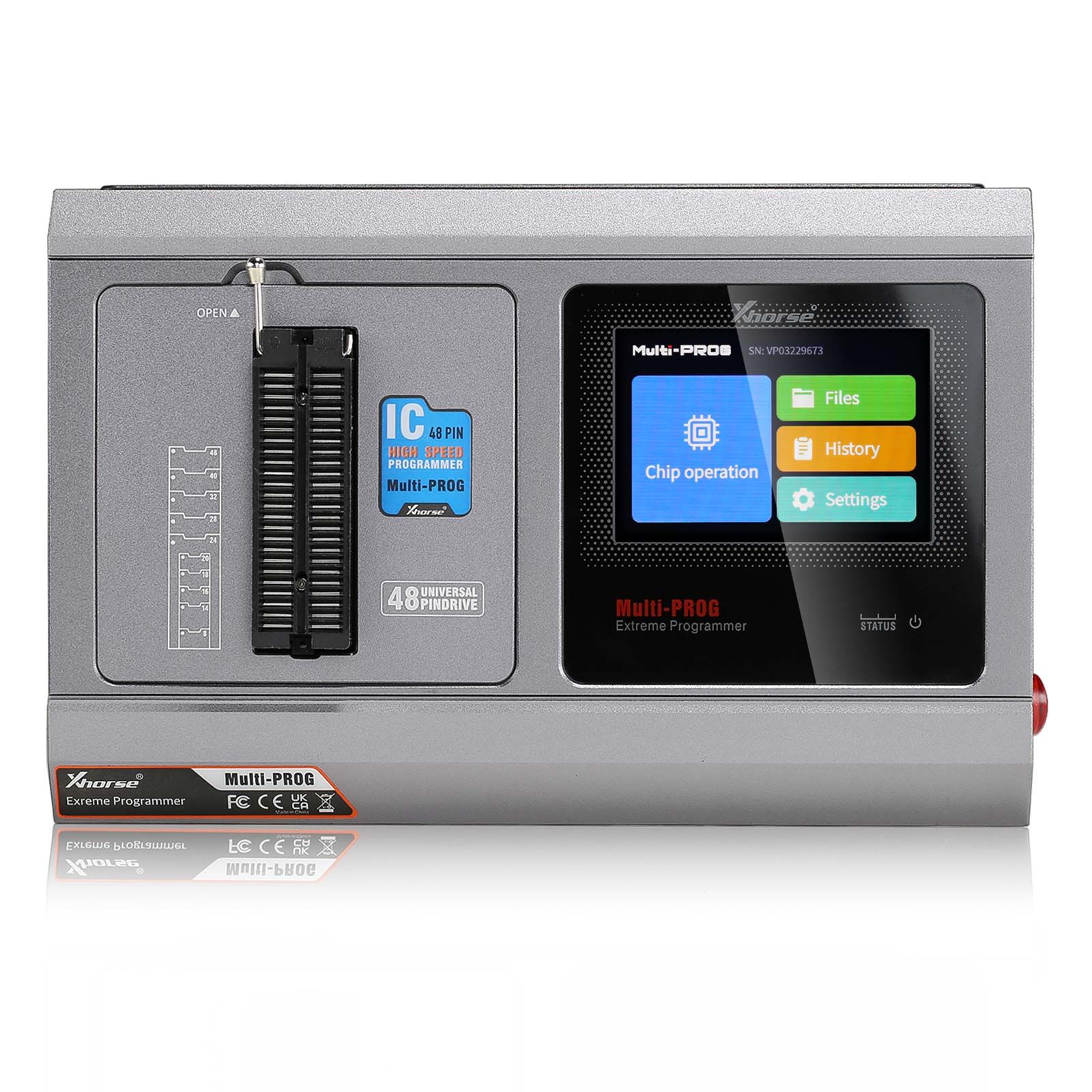

Xhorse Multi-Prog Programmer: Pro-level ECU TCU Programmer
The XDMPG0GL Multi-Prog ECU Programmer is a versatile tool meticulously designed by Xhorse to access and modify crucial data stored in a vehicle's Engine Control Unit (ECU) and Transmission Control Unit (TCU). From engine maps to transmission parameters and immobilizer settings, the XDMPG0GL ECU Programmer empowers users with unprecedented control and customization.
Key Features
- Fully Replace VVDI Prog:
Multi-Prog supports factory usage mode for batch programming of chips. In this mode, the functions of batch programming, offline programming, and file offline programming can be done easily.
The main difference between VVDI PROG and Multi-Prog: Multi-Prog has the batch programming function but VVDI PROG programmer doesn't. - With Free MQB48 License and BMW Bench Read ISN:
Bind with Xhorse VVDI2/Key Tool Plus PAD account, then your VVDI2/Key Tool Plus PAD can use MQB48 Function too. - Read, Write and Clone ECU
- Read, Write and Clone Gearbox TCU
- Read EEPROM, ECU, MCU
- Read and Write Bosch ECU ISN with new Bosch ECU adapter
- Supports Checksum correction for some EDC16/EDC17 ECUs (more to come)
- Get free BMW ISN read function and NEC, MPC, Infineon etc chip continuously update service
- With built-in free MQB48 license. Bind Multi-Prog and VVDI2 (full version) or Key Tool Plus to the same Xhorse app account to use MQB48 NEC35XX function.
- Free software and firmware update timely.
- NEW! Add VAG MQB RH850 dashboard processor (need RH850 cable for Multi-Prog)
Additional Features
- Support Read & Write lots of chips, including MC9S08 series, MC68HC(9)12 series, MC9S12 series, V850 series, H8X series, R8C series, PCF79XX series and most EEPROM chips etc.
- Support chip data verify and checkblank function
- Support data file compare function
- Free Pin code calculation service by Dump for various models
- Support Read and Write BMW N20, N55 ECU (show ISN directly)
- Stable Read and Write MC9S12XE series chips (5M48H/1N35H/2M53J/3M25J etc.)
- Support renew PCF79XX remote, currently support BMW E/F series (Please Note PCF79XX adapter is optional)
- Has the largest database of connection diagram
- Reserve Ports: For future update
- Supports Repair Porsche 12V lithium battery and BYD Lithium Battery (MC9S12XET256)
- Supports EDC17/MED17 data calculation (checksum correction)
- Support for third-party automatic HEX editing scripts
- Supports Expert mode: batch write chips. VVDI Prog only writes a single chip at a time

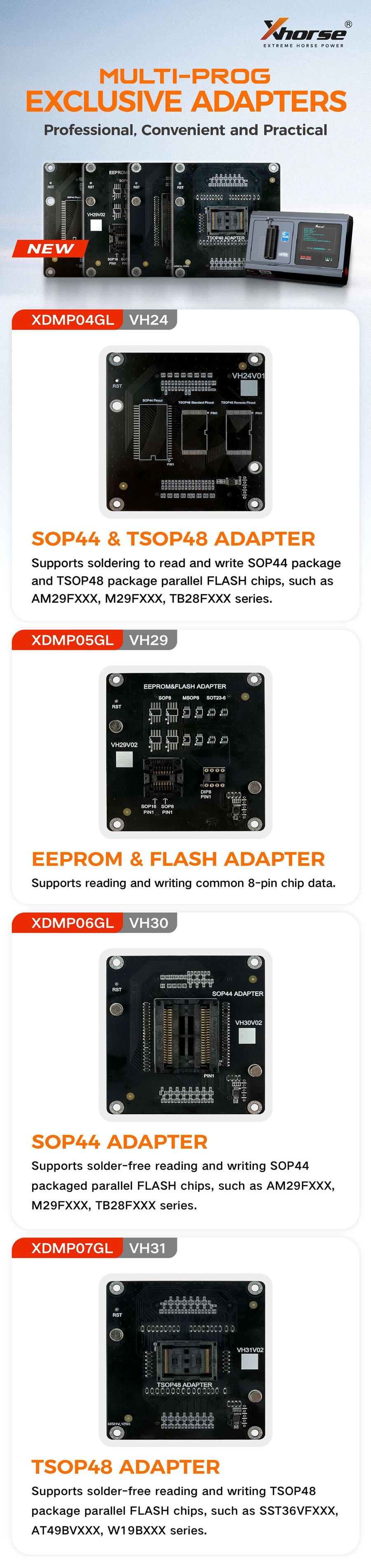

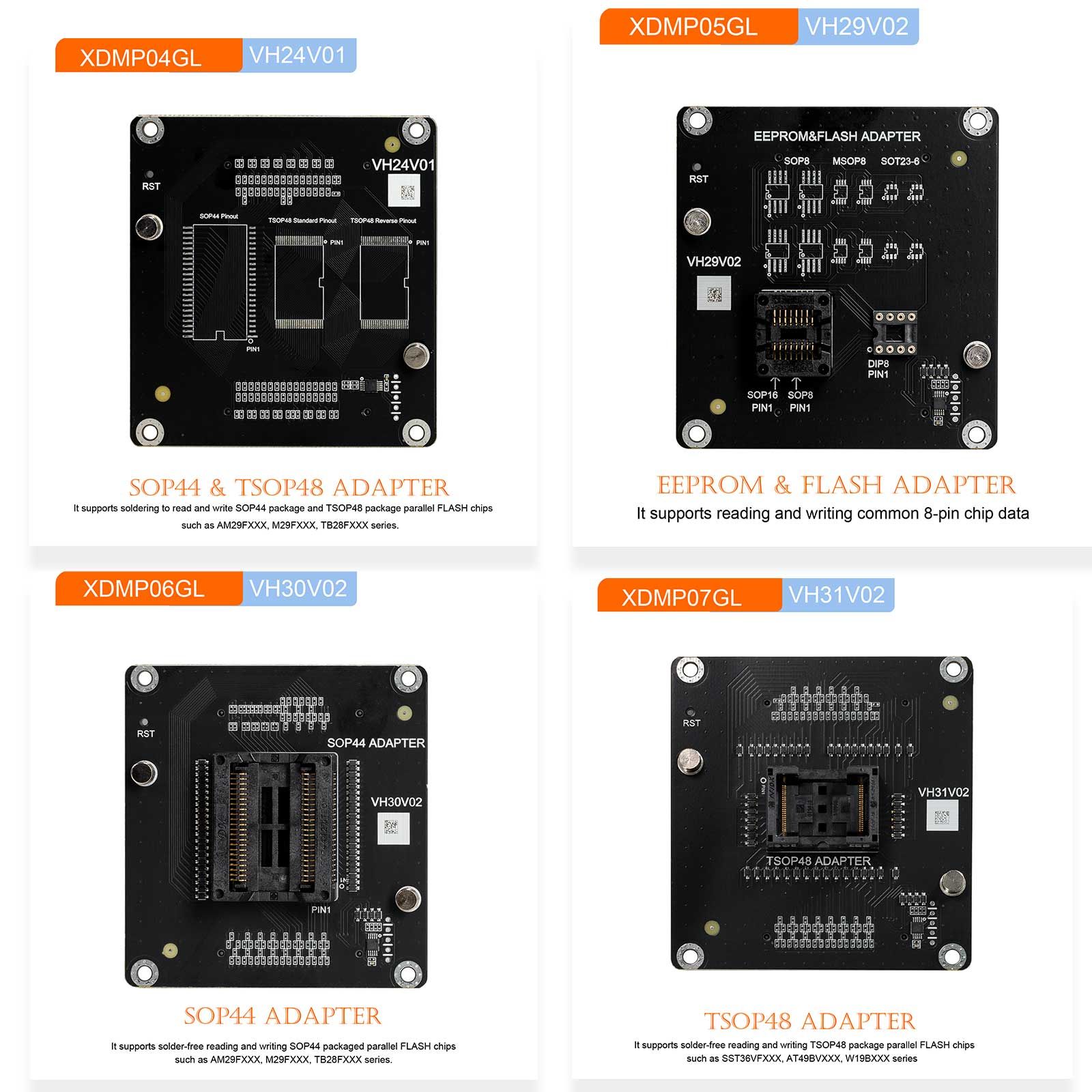

Xhorse Multi-Prog Programmer Adapters
- Supports soldering to read and write SOP44 package and TSOP48 package parallel FLASH chips, such as AM29FXXX, M29FXXX, TB28FXXX series.
- Supports solder-free reading and writing TSOP48 packaged parallel FLASH chips, such as SST36VFXXX, AT49BVXXX, W19BXXX series.
- Supports reading and writing common 8-pin chip data.
- Supports solder-free reading and writing SOP44 packaged parallel FLASH chips, such as AM29FXXX, M29FXXX, TB28FXXX series.

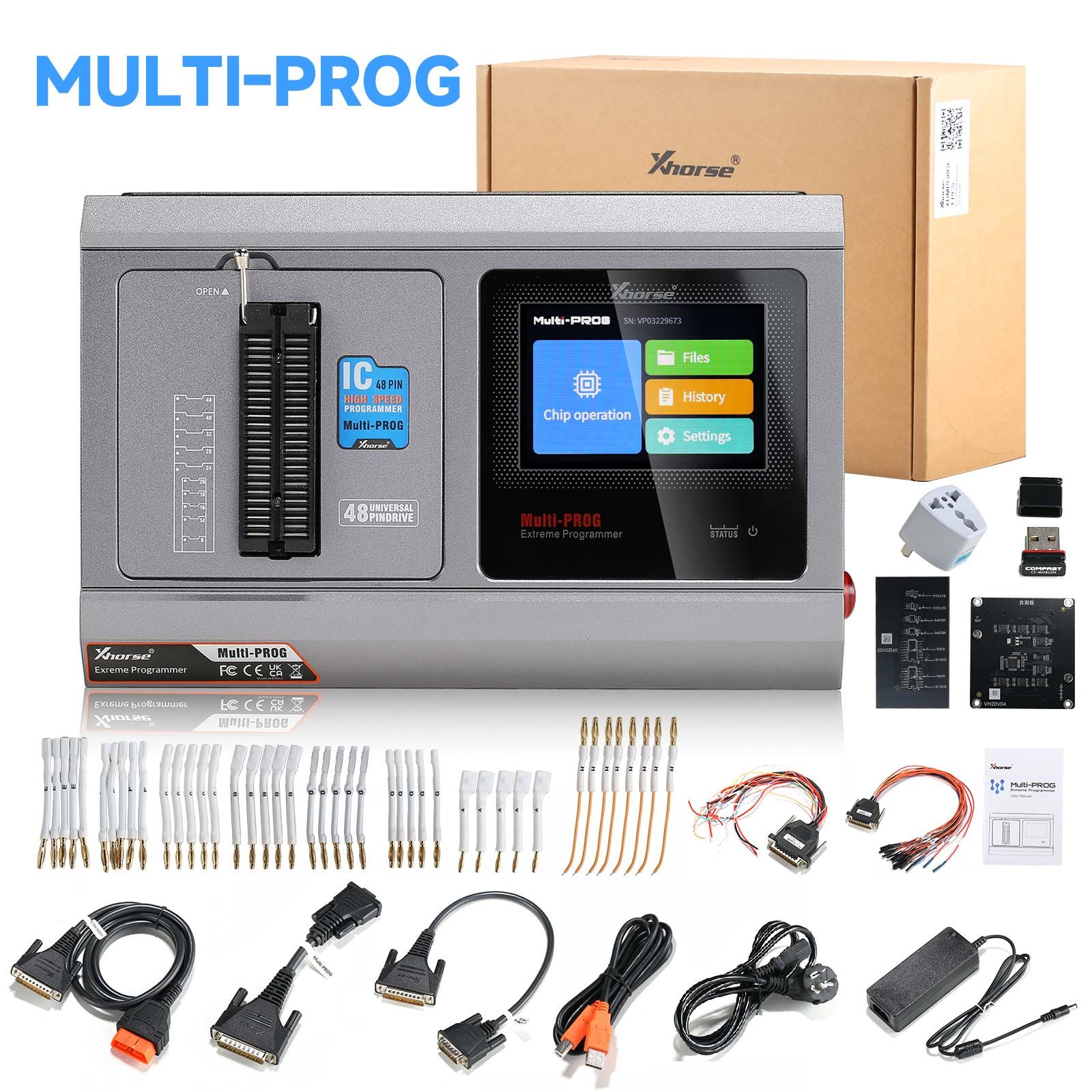

Package Includes
- 1 set x Xhorse Multi-Prog Programmer
- 1 set x Xhorse Multi-Prog Programmer Adapters
