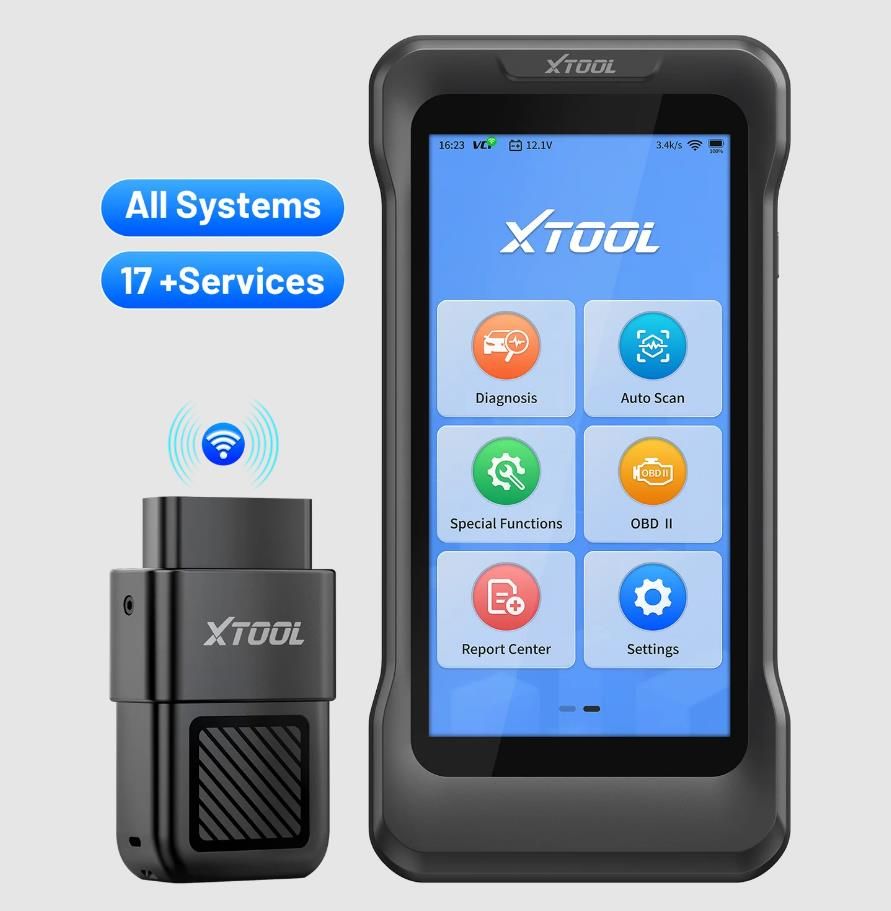

XTOOL TP500 Handheld Automotive TPMS Diagnostic Tool

XTOOL TP500 is a handheld automotive TPMS diagnostic device designed for professional technicians and automotive enthusiasts. With an integrated TP module, XTOOL TP500 provides various TPMS diagnosis functions like sensor check, system diagnostics, XTOOL sensor programming as well as querying OEM sensor info & relearning procedure.

It also supports full OBDII function and automotive diagnostics for all systems for the vehicle, providing the same functionality as D6. XTOOL TP500 also comes with 17 common services functions like Oil Reset, ABS Bleeding, Injector Coding, Throttle, SAS, DPF Regeneration, EPB, VGT Relearn, and much more. It covers over 98% of all models and works on 4,000+ models within different markets.

Product Features

All Functions Lifetime Free Update via Wi-Fi

Users can receive free updates for all software features throughout the life of the device. This avoids users having to pay additional fees to obtain software upgrades or new features, reducing usage costs. One-click Wi-Fi update makes the update process more convenient and seamless.

Professional Complete TPMS Service Tool

TP500 Tire Pressure Scanner is a combination of D6 and TP150, providing a full range of TPMS services such as: TPMS system diagnostics, TPMS relearn/reset, activation/relearn 98% of all known TPMS sensors, TPMS programming (TPMS programming tool is limited to XTOOL TS100PRO sensor). With the XTOOL TP500 scanner you will be able to monitor and repair the TPMS system, check tire pressure, temperature, battery life, read sensor ID, read/clear DTC, reset TPMS to turn off warning lights, activate/program after sensor replacement/relearn sensors, etc., allowing you to drive safely on the road.

All System Diagnostic Scan – Access All Available Vehicle Systems

XTOOL TP500 All System OBD2 scanner can access and scan all available vehicle modules such as ABS/EPB/Airbag/TPMS/braking/body/chassis/transmission/AC/etc. to read/delete DTCs, view live data stream and up to 4 PID graphs to better understand the root cause and make car repair tasks much easier! One simple click gives you accurate, in-depth diagnostics. (NO bi-directional functionality)

17+ Commonly Used Special Functions

XTOOL TP500 TPMS diagnostic tools carries powerful functions such as: DPF Regeneration, EPB, Oil Reset, SAS, ABS Bleeding, Injector Coding, VGT Relearn, Throttle, Suspension Calibration, Gearbox Adaptation, BMS Reset, Crank Sensor Relearn, Windows Initialization, GPF Regeneration, Camshaft Sensor Relearn, Tire Size Setting, Sunroof Initialization, which can help technicians more accurately diagnose problems, optimize vehicle performance, and ensure normal system operation, thereby improving vehicle reliability and safety.

Note: Special Functions do NOT work on all cars.

FCA AutoAuth Functions

XTOOL TP500 scanner supports access to the Security Gateway Module on 2018 and newer Fiat/Chrysler/Dodge vehicles so that diagnostic tools can clear codes, run bi-directional active tests, drive, etc. (No need FCA 12+8 cable).

Note: The buyer is required to register an FCA account; any charges have nothing to do with the seller.

Support CAN FD/DoIP Protocols

XTOOL TP500 automotive diagnostic tool can work on more than 10,000 vehicles in the market, including car brands of America, Asia, Europe, Australia, China and the coverage will keep growing with frequent updates. With CAN FD protocol covers for GM MY2020+ models. No extra CAN FD adapter needed. With DoIP protocol covers for BMW E/F/G chassis, Jaguar, and Land Rover vehicle makes.

Note: Not all vehicles are compatible. Please contact us to check compatibility before your purchase.

Fast Auto VIN + Auto Scan

XTOOL TP500 automotive scanner Auto VIN function reduces manual input and improves overall work efficiency and diagnosis speed by automatically identifying basic vehicle information. The Auto Scan function comprehensively scans the vehicle system to quickly identify and locate faults and provide solutions.

Full 10 OBD2 Functions & DTC Library Lookup

Full OBD2 functions enable comprehensive diagnosis of automotive systems, including engines, transmissions, emission systems, etc., ensuring the detection of all potential fault sources. The DTC Library Lookup function provides detailed fault code descriptions and maintenance suggestions to facilitate the formulation of effective maintenance strategies and improve maintenance efficiency.

4-in-1 Live Data Graph & Data Record, Playback

XTOOL TP500 car diagnostic tools monitor multiple parameters in real time to improve diagnostic efficiency and accuracy. Record and playback vehicle operating data for detailed analysis of fault causes and system status. Analyzing data graphically helps maintenance technicians better understand vehicle performance and failure modes, allowing them to make more accurate maintenance decisions.

22 Kinds of Language, Solving Language Barriers

English, Spanish, French, German, Polish, Portuguese, Russian, Danish, Greek, Finnish, Hungarian, Italian, Japanese, Korean, Dutch, Norwegian, Swedish, Thai, Arabic, Turkish, Vietnamese, Traditional Chinese.

Note: English is default language. If you need another language, please contact seller with S/N.

Extensive Car Coverage, Continuous Development

XTOOL TP500 automotive scanner is equipped with the latest data and software updates to provide you with accurate and up-to-date information on more than 100+ makes and models. Coverage spans 10,000+ vehicles from the US, European, and Asian car markets; for various 12V cars, SUVs, light-duty trucks and more.

Product Functions

All Functions Lifetime Free Upgrade

With the rapid development of automobile technology, XTOOL TP500 car scanner will also keep up with the times. Whether it is new update support, compatibility with the latest protocols, or new special functions, all functions of the XTOOL D6 scanner are upgraded for free for life without any additional fees! Connect to the latest diagnostic protocols and functions without worrying about outdated or incompatible equipment for new models, keeping pace with the industry. Buy once, use it for life. No hidden subscription fees or regular renewal fees, making it truly transparent and cost-effective.

OE-Level Full System Diagnostic on All Available Modules

XTOOL TP500 car diagnostic scanner can access and scan all available modules and systems in your vehicle; such as ECM, TCM, ABS, SRS, BCM, IMMO, BMS, TPMS, SAS, fuel system, light system, wiper system, A/C system, etc. to perform OE-level full diagnostic functions: Read ECU Information, Read Trouble Code, Clear Trouble Code, Live Data, Read Frozen Frame.

Powertrain System Diagnostics

Covers the engine and transmission to ensure normal operation of the powertrain and promptly detect and repair any issues that may affect vehicle performance.

Body Control Module Diagnosis

Including the control of lights, windows, door locks and other systems to ensure the normal operation of each body component.

Safety System Diagnosis

Covers anti-lock braking system (ABS), air bag (SRS), etc., ensuring that the vehicle's safety functions are always in optimal condition.

Vehicle Multimedia System Diagnosis

Diagnose the entertainment system and instrument panel, and solve problems with the multimedia equipment and display in the vehicle.

Braking System Diagnosis

Scan and diagnose faults in the braking system, especially ABS (anti-lock braking system), to ensure normal braking performance and effectively improve driving safety. By monitoring brake fluid pressure, brake pad wear, etc., potential problems can be identified in a timely manner.

Emission System Diagnosis

Check and diagnose the vehicle's emission control system, including key components such as oxygen sensors, catalytic converters and EGR valves, to ensure that the vehicle meets emission standards and avoid environmental problems and warning lights caused by excessive emissions.

Fuel System Diagnostics

Monitor fuel pumps, fuel injectors and fuel pressure sensors to ensure the fuel system is operating properly. Fuel system failure can affect fuel economy and even cause engine failure. This feature helps maintain fuel efficiency and optimize vehicle performance.

Transmission System Diagnosis

Diagnose transmission-related fault codes, monitor transmission hydraulic pressure, shift time and transmission system status to ensure smooth shifting and the best driving experience. This feature is especially important for automatic transmissions to prevent damage to the transmission.

Wiper System Diagnosis

Diagnose the working status of the wiper motor and control module to ensure that the wiper can operate normally in rain or snow. Effectively ensure driving visibility in bad weather and prevent system failures from affecting driving safety.

XTOOL TP500 TPMS Programming Tool

TPMS Sensors Relearn

Relearn 98% TPMS sensors in market including OE sensors and after-market sensors to match with the vehicles' ECU with 3 ways: Stationary Relearn, Automatic Relearn, and OBD Relearn.

TPMS Sensor Information

Quickly retrieve the sensor info: get to know the accurate sensor manufacturer, frequency, part number, printing number, etc. of OEM sensors or XTOOL sensors by rightly putting the sensor close to the TPMS icon of the scanner.

TPMS Sensor Activation

Works as a professional TPMS tool to activate 98% all-known TPMS sensors (315/433MHz) in market: XTOOL TS100PRO sensors, OE sensors, other programmed sensors.

TPMS Sensor Status Check

XTOOL TP500 TPMS Scanner can help you to check the TPMS sensor conditions, including Sensor ID, Sensor Pressure, Sensor Temperature, and Sensor Battery, to locate and pinpoint the sensor issue quickly.

TPMS System Diagnostics

Diagnose the TPMS module, check the TPMS module health, read and clear TPMS trouble codes, turn off the distracting MIL after repairing. Helps you to keep TPMS in good condition, extend tires’ lifetime, improving the overall vehicle safety!

TS100PRO Sensor Programming

Allows you to program the TPMS sensors to replace the broken TPMS sensors. TP500 Scanner is packed with 4 TPMS programming methods: Auto Create, Copy by Input, Copy by Activation, Copy by OBD. (Only support to program XTOOL TS100PRO Sensors)

XTOOL TP500 TPMS Diagnostic Tool: 4 Ways to Program TS100PRO Sensor

XTOOL TP500 TPMS Programming Tool provides 4 convenient and easy to use options to program XTOOL sensors (durable for 3-5 years, the substitution of expensive OEM sensors) to replace broken sensors and meet the specifications of a particular vehicle before new sensor installation and relearn.

Copy ID By Activation

Trigger the original sensor, get the ID and copy the ID to the new sensor. If your original sensor works and can be activated, and the tire/sensor position has not been changed, you can choose this method.

Copy ID By OBD

Diagnose the vehicle TPMS and get the ID, copy it to the new sensor. If your original sensor is missing and the ID can be read after diagnosis on the car, and the tire/sensor position has not been changed, you can choose this method.

Manual Input ID

Input the ID manually into the new installed TS100PRO sensor. You can find the ID on the original sensor. If you know the original sensor ID (the original sensor cannot be activated) and the tire/sensor position has not been changed, you could choose this method.

Automatic ID Generation

Automatically create a new unique ID(s) into TS100PRO sensors. After programming the TS100PRO, you need to perform TPMS relearn to match the new sensor ID to vehicle's ECU. If you don't know the original sensor ID or your original sensor was bad, you could choose this method.

17+ Special Functions for Comprehensive Vehicle Service

DPF Regeneration

Clear PM from the DPF filter through oxidation or combustion to stabilize the filter performance.

SAS

Clear the fault steering angle sensor memories, perform reset steering angle sensor, and turn off steering wheel warning light.

ABS Bleeding

Perform to bleed the brake system to restore ABS braking sensitivity and obtain a firm brake pedal.

Injector Coding

Code a new injector to better identify injectors to accurately control fuel injection.

VGT Relearn

Recalibrate the variable geometry turbocharger (VGT) to optimize turbocharging response and efficiency, ensuring optimal power output and fuel economy.

Throttle

Reset the throttle actuators to accurately regulate throttle (or idle engine) operations, helps keep your idling and acceleration smooth.

BMS Reset

Register the newly replaced car battery into the ECU.

Tire Size Setting

Adjust the on-board computer to accommodate tires of different sizes, recalibrate the vehicle's driving parameters after replacing tires, and ensure the accuracy of the speedometer and odometer display.

Additional Special Functions

Also included: Oil Reset, EPB, Suspension Calibration, Gearbox Adaptation, Crank Sensor Relearn, Windows Initialization, Sunroof Initialization, GPF Regeneration, Camshaft Sensor Relearn, Coolant Replacement.

Note: Special Functions vary across vehicle makes, models, year. Please come to us with VIN number to check compatibility before purchase.

XTOOL TP500 Diagnostic Scanner: Full 10 OBD2 Functions

1. Read Trouble Codes
2. Clear Trouble Codes
3. Live Data
4. Read Freeze Frame
5. Read ECU Information
6. Component Test
7. On-Board Monitor Test
8. O2 Sensor Monitoring Test
9. I/M Readiness
10. Read Vehicle Information

Support FCA & CAN FD & DOIP Protocols

Support FCA AutoAuth

XTOOL TP580 Scanner supports access to the Security Gateway Module on 2018 and For Fiat/Chrysler/Dodge vehicles so that diagnostic tools can clear codes, run bi-directional active tests, drive, etc. (No Need FCA 12+8 Cable).

Note: The buyer is required to register an FCA account, any charges have nothing to do with the seller.

Support CAN FD Protocols

Compatible with CANFD Protocol and supports the latest For GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience.

• Supports For Chevrolet Onix 2020-2021 year
• Supports For Chevrolet Tracker 2020 year
• Supports For Chevrolet Suburban 2021 year
• Supports For Chevrolet Tahoe 2021 year
• Supports For Buick
• Supports For Cadillac Escalade 2021 year
• Supports For Cadillac Escalade 2021 year
• Supports For GMC Yukon 2021 year
• Supports For GMC Yukon XL 2021 year
• Supports For Holden
• Supports For DAEWOO
• Supports For Alpheon
• Supports For Ravon
• Supports For Pontiac
• Supports For Saturn
• Supports For Hummer

Support DOIP Protocols

With DOIP protocol covers for BMW E/F/G Chassis/Jaguar/Land Rover vehicle makes.

Note: Not all vehicles are compatible. Please come to us and check the compatibility before your purchase.

Why Choose XTOOL TP500?

4-in-1 Live Data Graph

XTOOL TP500 Automotive Scanner graphically displays four different real-time data streams simultaneously on one screen. These data streams typically come from multiple sensors or systems in the vehicle, such as engine rpm, vehicle speed, accelerator position, and fuel injection volume. Display data in the form of graphs or charts for easy real-time monitoring and analysis.

Fast Auto VIN Auto Scan

Automatically identify the vehicle's unique identification number (VIN, Vehicle Identification Number). By scanning the vehicle's VIN code, the XTOOL TP500 diagnostic tool can automatically read the vehicle's basic information, such as manufacturer, model, engine type and year of production. Simplifies the vehicle identification process, avoids errors in manually entering vehicle information, and improves diagnostic accuracy and efficiency.

Diagnostic Report Share & Print

XTOOL TP500 car scanner not only quickly diagnoses and solves vehicle problems, but also easily generates detailed diagnostic reports. Whether you are a maintenance technician or a car owner, the reporting function provides you with intuitive and detailed fault information for further processing or record keeping.

TP500 Scanner supports sharing diagnostic reports through multiple methods (email, mobile phone or tablet) to facilitate communication with customers, colleagues or maintenance teams. Use an external printer to quickly print diagnostic reports into paper files, suitable for archiving or providing physical copies to customers. The printed report is neat and professional, making it easy for car owners or technicians to refer to during repair.

Note: The TP500 does not support direct printer connection.

Battery Voltage Test

The XTOOL TP500 car diagnostic tools helps you measure the static voltage of the battery and the voltage at engine start-up to assess the health of the battery. Battery Voltage Monitor to check vehicle battery voltage status in real-time. Timely understand whether the battery needs to be replaced or charged. Provide necessary battery maintenance and replacement recommendations for car owners to extend battery life.

99% Wide Vehicle Coverage

Europe: For ABARTH, For ALFA ROMEO, For ASTONMARTIN, For AUDI, For BENTLEY, For BENZ, For BENZ TRANSPORIER, For BMW, For BUGATTI, For CITROEN, For DACIA, For FERRARI, For FIAT, For FORD, For GAZ, For IZH, For Jaguar, For LAMBORGHINI, For LANCIA, For LANDROVER, For MAYBACH, For MINI, For OPEL, For PAZ, For PEUGEOT, For PORSCHE, For RENAULT, For ROLL-ROYCE, For SAAB, For SEAT, For SKODA, For SMART, For UAZ, For VOLVO, For VW, For VW-CV, For ZAZ

America: For Buick, For CADILLAC, For CHEVROLET, For Chrysler, For DODGE, For FORD, For GM, For GMC, For HUMMER, For JEEP, For LINCOLN, For PONTIAC, For SATURN

Asia: For ACURA, For DAEWOO, For DAIHATSU, For HONDA, For HYUNDAI, For HYUNDAICV, For INFINITI, For ISUZU, For KIA, For LEXUS, For LUXGEN, For MAZDA, For MITSUBISHI, For NISSAN, For NISSAN GT-R, For PERODUA, For PROTON, For RENAULTSAM, For SCION, For SSANGYONG, For SUBARU, For SUZUKI, For TOYOTA

Australia: For FORD, For HOLDEN

China: For AEOLUS, For BAIC MOTOR, For BAOJUN, For BYD, For CHANGAN, For CHERY, For EXEED, For FENCON, For FORTHING, For GEELY, For GWM, For JAC, For JETOUR, For JMC, For MAXUS, For MG, For ROEWE, For SENOVA, For SGMW, For SOKON

Note: Not all models are supported, please contact the seller to check compatibility before purchasing.

Supports 22 Kinds of Language

The device only can install 2 languages, one is English, the other one you can choose from the following:

English, Spanish, French, German, Polish, Portuguese, Russian, Danish, Greek, Finnish, Hungarian, Italian, Japanese, Korean, Dutch, Norwegian, Swedish, Thai, Arabic, Turkish, Vietnamese, Traditional Chinese.

Steps to Set the Language

1. Activate the device with email
2. Send the serial number to the seller to authorize the language
3. Switch language in settings
4. Click Update Device

Note: English is default language, if you need other language, please send me the S/N number when you receive it (please register account and activation the S/N number first), I will help you change it.

Package Includes:

• 1pc x TP500
• 1pc x VCI Box
• 1pc x Power Supply (5A 3V)
• 1pc x Charging Adapter (EU)
• 1pc x Charging Adapter (UK)
• 1pc x Charging Adapter (AU)
• 1pc x Data Cable (Type-A to Type C)
• 1pc x Packing List
• 1pc x Certificate of Quality
• 1pc x Quick Start Guide
• 1pc x Lanyard
• 1pc x Carton
