GODIAG VAG Test Platforms Full Package: GT110, GT111, GT112, and GT114

GODIAG Bundle Package:

The GODIAG bundle package includes the following test platforms for Volkswagen, Skoda, and Seat vehicles with 2nd, 3rd, 3.5th, and 4th generation dashboards.

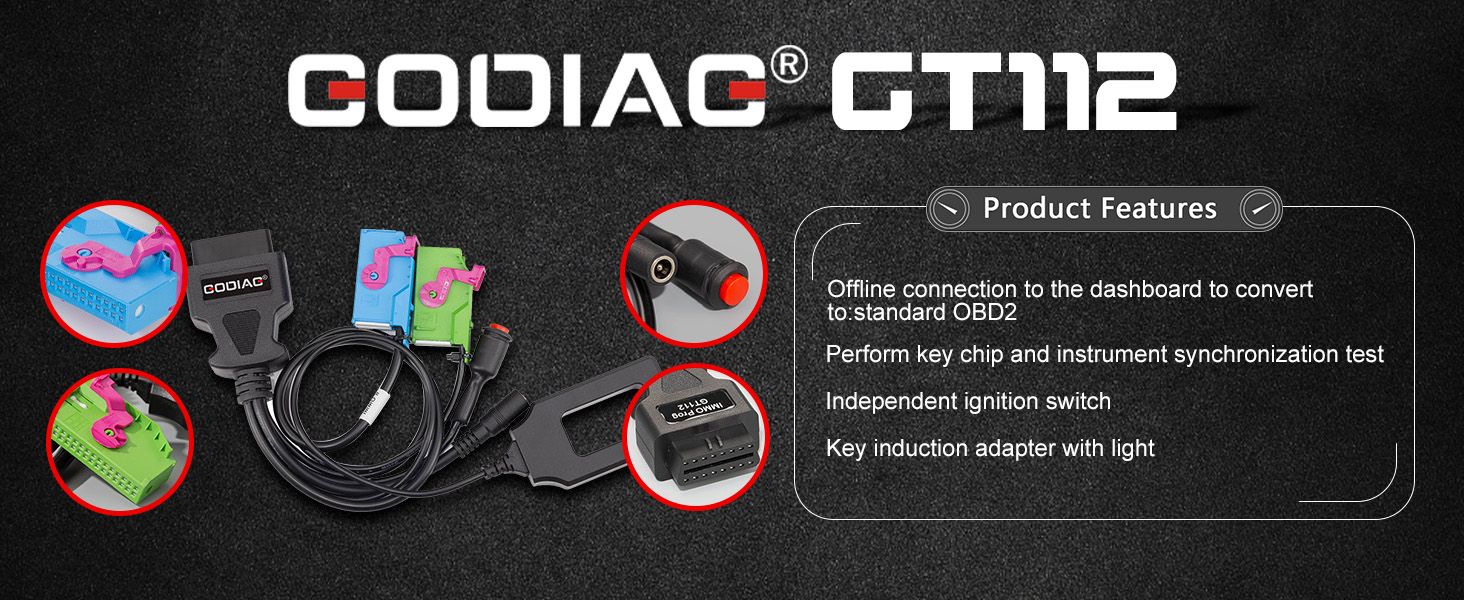

GODIAG GT112

K-Line for VW Skoda Seat 2nd & 3rd Generation Dashboard IMMO Key Matching Test Platform Cable:

• Performs offline key and IMMO instrument synchronization test
• Intelligent IMMO system emergency start area sensing detection
• IMMO dashboard offline diagnosis
• Instrument IMMO data reading and writing
• Instrument mileage repair
• Key matching supported

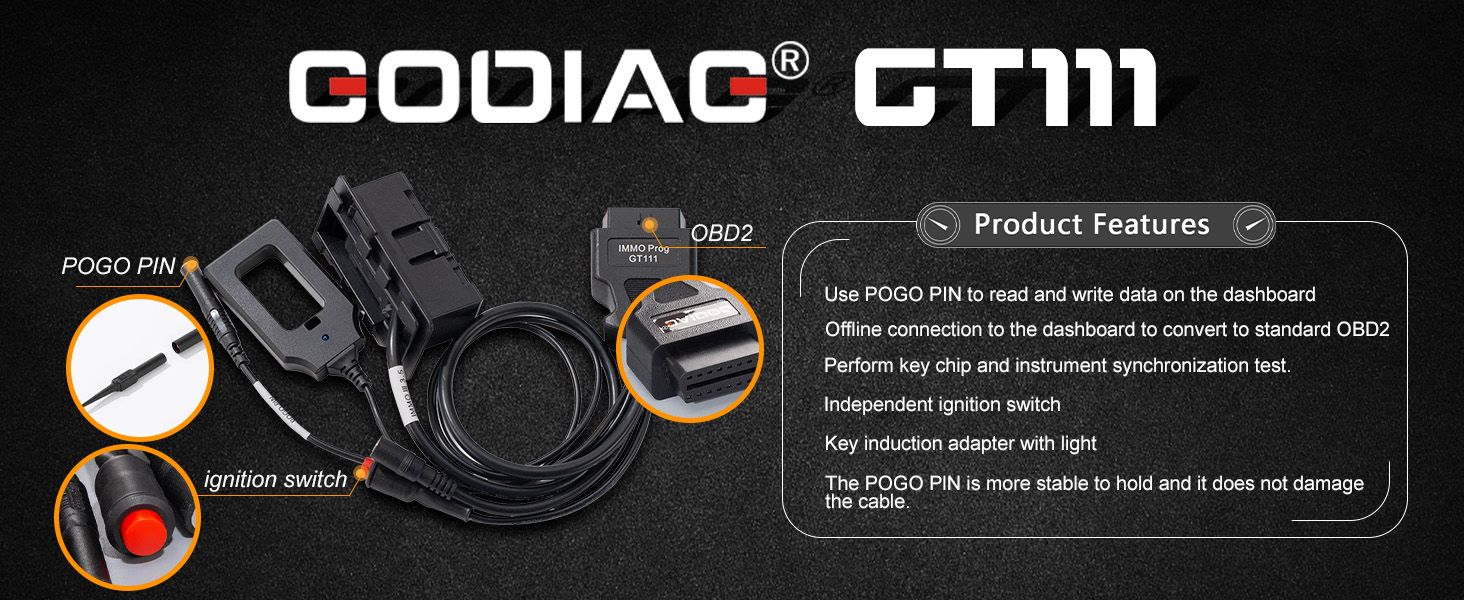

GODIAG GT111

CAN-Bus 3rd & 3.5th Generation Dashboard IMMO Key Matching Test Platform Cable:

• Supports VW, Skoda, Seat and other models
• POGO PIN for offline data reading and writing
• Synchronization testing of keys and IMMO instruments
• Intelligent IMMO system emergency start area sensing detection
• IMMO combination instrument offline diagnosis
• Instrument IMMO data reading and writing supported
• Instrument mileage repair supported
• Key matching supported

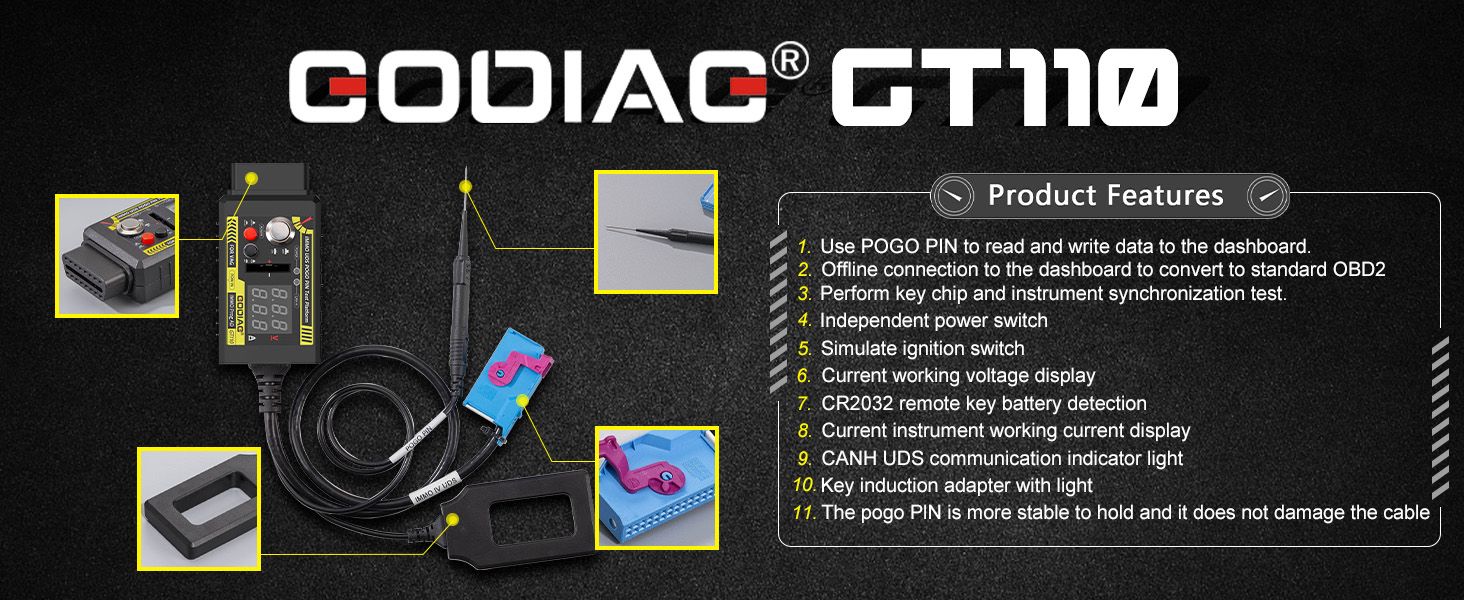

GODIAG GT110

CAN-Bus UDS 4th Generation IMMO System Test Platform Cable:

• Supports VW Skoda Seat and other models
• Offline POGO PIN data reading and writing
• Dashboard key programming (including Boot Probe)
• All UDS systems of Volkswagen, Skoda, and Seat supported
• Displays current working voltage and current
• Power switch included
• Simulation ignition switch available
• Buzzer to prompt ignition start and shut down
• CANH UDS communication indication
• CR2032 remote key battery detection
• Key and IMMO instrument synchronization test supported
• Intelligent IMMO system emergency start area induction detection
• IMMO combination instrument offline diagnosis
• Instrument IMMO data reading and writing supported
• Instrument mileage repair supported
• Key matching supported

GODIAG GT114

Audi K-Line IMMO Cable:

• Performs offline key and IMMO instrument synchronization test
• Intelligent IMMO system emergency start area sensing detection
• IMMO dashboard offline diagnosis
• Instrument IMMO data reading and writing supported
• Instrument mileage repair supported
• Key matching supported

Suitable for Audi A6 C5 from 2000-2006.

GODIAG GT114 Features:

• Offline connection to the dashboard to convert to standard OBD2
• Key chip and instrument synchronization test supported
• Independent power switch included
• Independent ignition switch available
• Key induction adapter with light

The GODIAG Test Platform can be used with devices like HEX V2, VAGCOM VCDS 5053, VAS5054A, VAS6154, SUPER VAG K+CAN, Obdstar, Lonsdor, AVDI, ZEDFULL, VVDI2, Key Tool Plus, X300 DP Plus, etc.

Test Platform Features:

• Use POGO PIN to read and write data to the dashboard
• Offline connection to convert to standard OBD2
• Key chip and instrument synchronization test supported
• Independent power switch included
• Simulate ignition switch available
• Current working voltage display
• CR2032 remote key battery detection
• Current instrument working current display
• CANH UDS communication indicator light
• Key induction adapter with light
• The POGO PIN is more stable, does not damage the cable

Intelligent IMMO System Emergency Start Area Induction Detection:

Press the vehicle's start switch and bring the device's key identifier close to a certain area. If the key identifier light flashes or lights up, it means that the area is the vehicle's key emergency start sensing area. If the customer's smart key is out of power, just put the dead smart key in the key emergency start sensing area to start the vehicle.

Car IMMO Start and Start Key Chip Detection:

Test Result Analysis:

• The light of the key identifier flashes then goes out: Indicates that the IMMO chip and the chip key are working properly
• The light of the key identifier flashes for a long time: Indicates that the chip key and the vehicle's IMMO system do not match, need re-matching
• The light of the key identifier does not flash: Vehicle's IMMO system is faulty; check it

Package List:

• 1pc x GODIAG GT112 Test Platform Cable
• 1pc x GODIAG GT111 Test Platform Cable with POGO PIN
• 1pc x GODIAG GT110 Test Platform Cable with POGO PIN
