OBDSTAR MS50 Intelligent Motorcycle Diagnostic Tool
OBDSTAR MS50 Intelligent Motorcycle Diagnostic Tool
OBDSTAR MS50 Intelligent Motorcycle Diagnostic Tool
OBDSTAR MS50 Intelligent Motorcycle Diagnostic Tool
OBDSTAR MS50 Intelligent Motorcycle Diagnostic Tool

OBDSTAR MS50 Intelligent Motorcycle Diagnostic Tool

  • Quantity
OBDSTAR MS50 is a portable tablet which has super performance and industrial appearance design. It is a new generation of intelligent motorcycle diagnostic equipment tailored for customers. Based on RK3128 Quad-Core processor and equipped with a 5.0-inch capacitive touch screen, brings customer professional diagnosis experience.
Specifications
  • Item No.
  • COBD27112
  • Weight
  • 4.30KG
  • Package
  • 44.8cm*13.2cm*34cm
Description
OBDSTAR MS50 Intelligent Motorcycle Diagnostic Tool

OBDSTAR MS50 is a portable tablet which has super performance and industrial appearance design. It is a new generation of intelligent Motorcycle diagnostic equipment tailored for customers. Based on RK3128 Quad-Core processor and equipped with a 5.0-inch capacitive touch screen, brings customer professional diagnosis experience;

OBDSTAR MS50 Features:

1. New Android 5.1.1 operation system
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding, etc.;
4. Menu Arbitrary selection is more convenient and quick;
5. Record and play back real-time data streams, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the Internet, one-click software upgrade;
7. One-Click remote function, OBDSTAR technical staff remote assistance;
8. Support most of the Asia and Europe models;

OBDSTAR MS50 Advanced Function:

1. The first fault guidance, Help data, technical bulletin, diag socket, etc. help you diagnose accurately and efficiently;

2. Diversified data stream display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;

3. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting , EOL mode, transmission memory reset, clear computer memory, etc.

Motorcycle/Snowmobile/ATV/UTV Support Car Series:

Asia:
Honda、Kawasaki、Kymco、Suzuki、SYM、Yamaha、PGO、HardFORD、AEON;

Europe:
Benelli、KTM、Piaggio、Vespa

More functions under developing...
Different configurations include different software. For details, please contact OBDSTAR.

Function Display:

1) Main Page/Brand Supported

2) Help Data/Technical Bulletin/Fault Guidance

3)Supported System List/ Manual Service Function

4) Manual maintenance reset

5) Diag socket/Diag Connector Location

6) Data Flow Text/ Waveform Diagram/Instrument Diagram

7)Special Function-Benelli

8) Special Function-KTM

9) Special Function-Piaggio

10) Special Function-Vespa

Product Parameters

Operation System: Android 5.1.1
CPU: Exynos4418 Dual Core ARM Cortex A9
Battery: 2500mA, rechargeable polymer lithium battery
Extension memory card: 32G Micro SD (TF) card supported
Storage capacity: 16GB
LCD:5.0 inch
LCD resolution: 800*600
Touch screen: capacitive touch screen
Wifi: supported
Camera: 5 mega rear view camera
Working temperature: -20℃~55℃(14℉~131℉)
Storage temperature: -20℃~70℃(-4℉~158℉)
Weight: 700g(Main Unit)
Dimension: 140mm*89mm*18mm

Package includes:

1pc x M001 Main Cable
1pc x M002 Power Cable
1pc x M003A Multi functional jumper
1pc x M004 APRILIA/DUCATI/HONDA/KTM/PIAGGIO/VESPA/YAMAHA
1pc x M005 KAWASAKI
1pc x M012 SUZUKI
1pc x M015A HONDA/HONDA MONTESA
1pc x M018 YAMAHA
1pc x M019 KTM
1pc x M021 AEON/BENELLI/BENELLI DSK
1pc x M026 SYM
1pc x M027 KYMCO/KAWASAKI
1pc x M028 PGO
1pc x M030 HARTFORD
1pc x M041 EURO V
1pc x 12V2A CHARGER

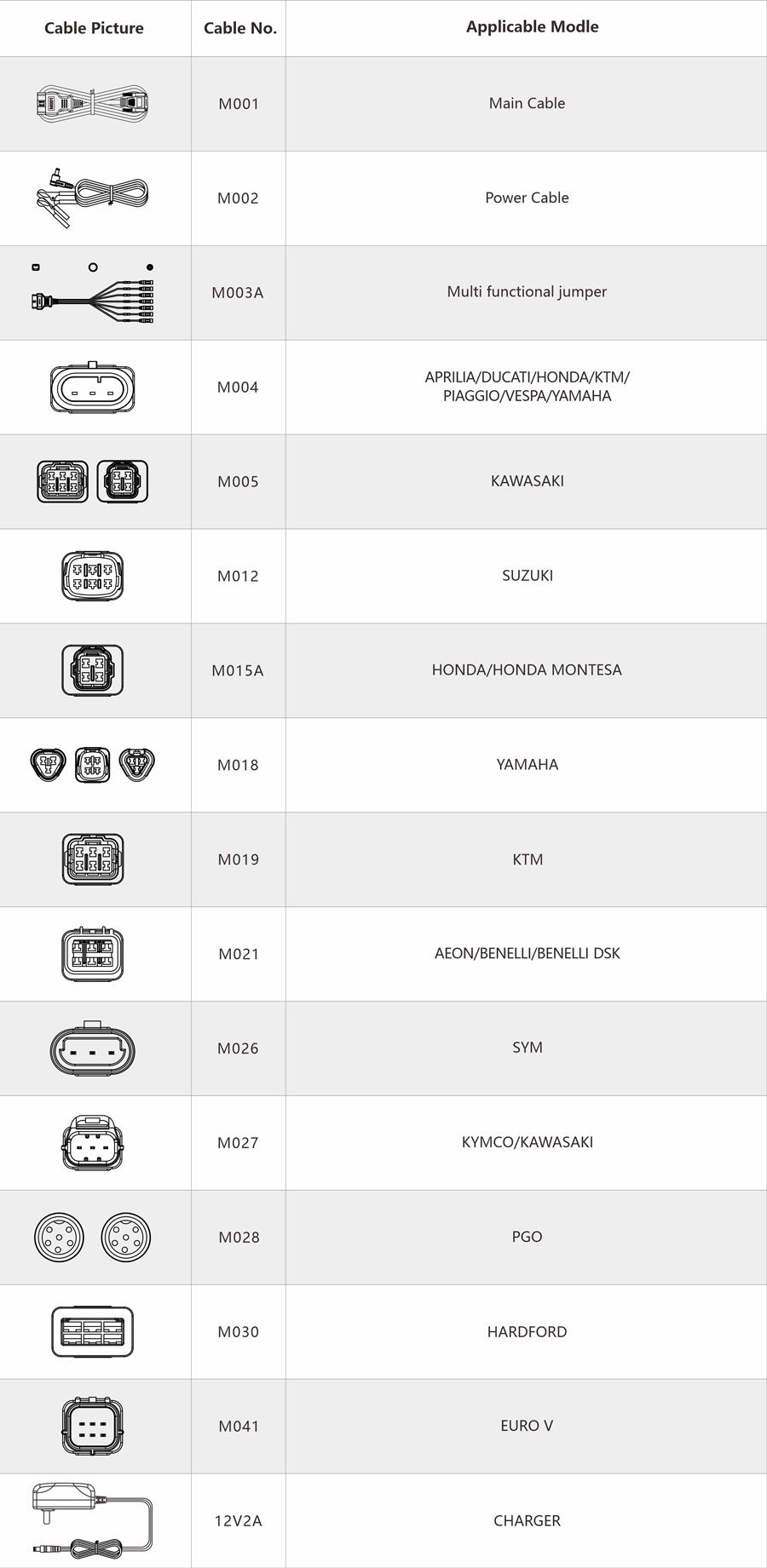

OBDSTAR MS50 Package List
