OBDSTAR ISCAN Marine Diagnostic Scanner for Hidea

Supports real-time data flow, coding, and action tests for Hidea marine systems.

Key Functions

1. New Android 5.1.1 operating system.
2. Simple and intuitive menu guidance allows you to quickly master the equipment's operation.
3. Provides complete diagnostic functions including code reading, code clearing, data flow, action tests, settings, coding, and more.
4. Menu arbitrary selection is more convenient and quicker.

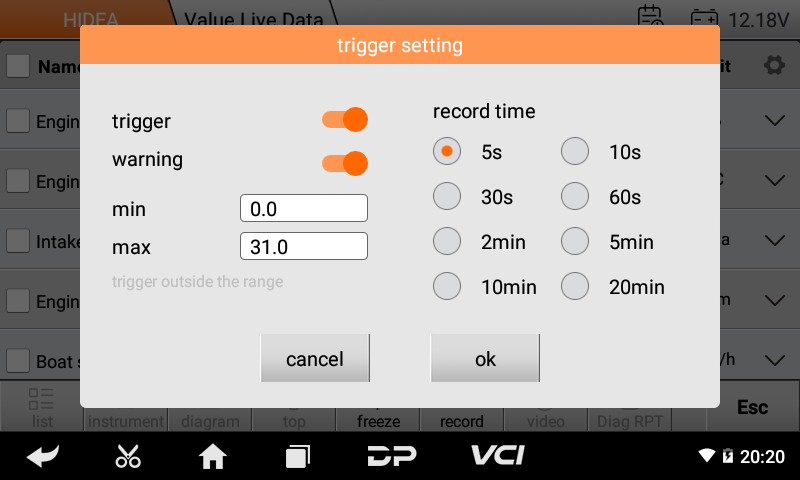

5. Record and play back real-time data flow to quickly and accurately locate sensor and component faults.
6. Wi-Fi connection to the internet for one-click software upgrades.
7. One-click remote function for OBDSTAR technical staff remote assistance.

Advanced Features

1. The OBDSTAR mobile APP integrates functions such as diag socket location, flash code query, technical bulletins, manual service functions (service lamp reset), basic parameters, etc. It works with the ISCAN to make marine diagnosis more accurate and efficient.
2. Various data flow display modes such as text, waveform diagrams, and instrument diagrams allow you to easily analyze faults.

Supported Hidea Models

Provides diagnostic support for HDEF115, HDEF130, HDEF40, HDEF40 SK, HDEF50, HDEF60, and other outboard models.

Function Display (from OBDSTAR Mobile App)

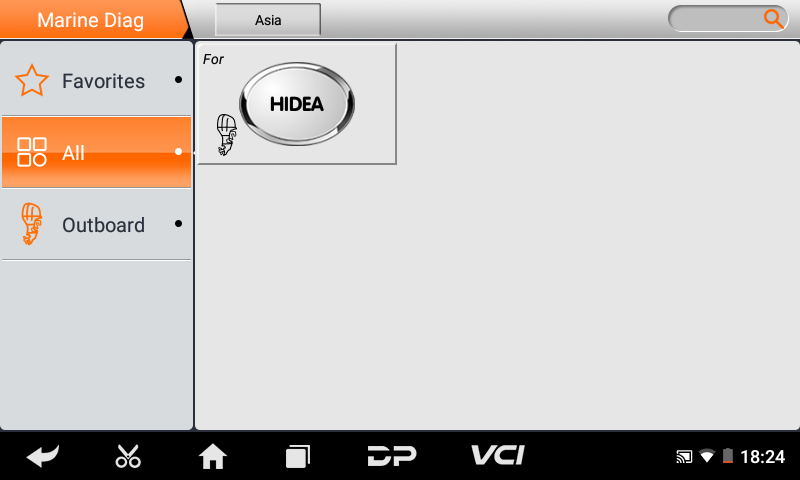

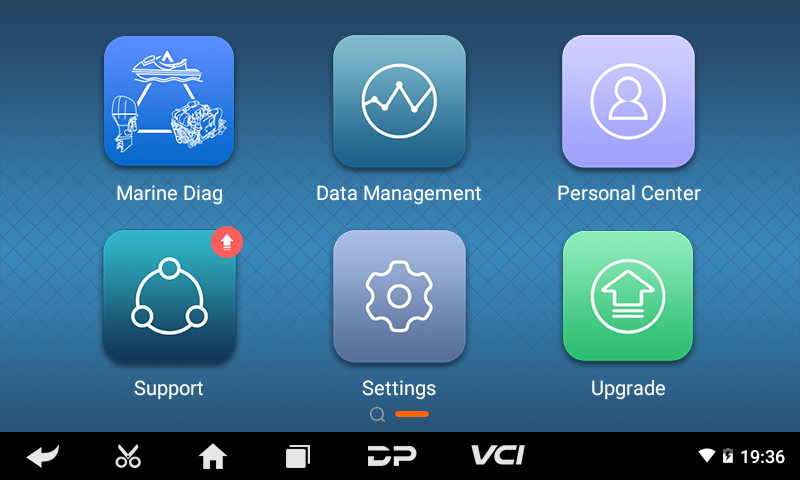

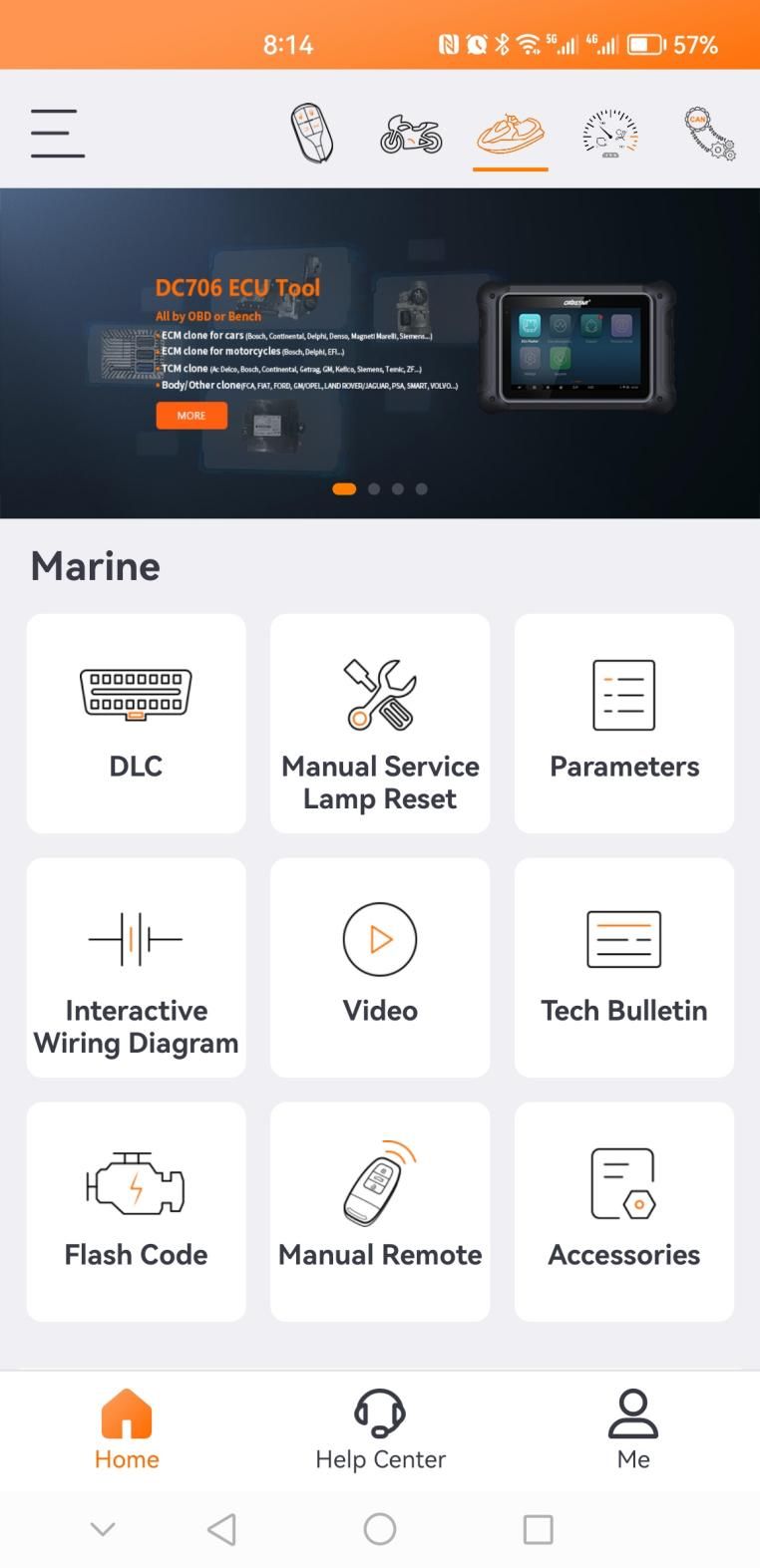

Main Page & Brand Support

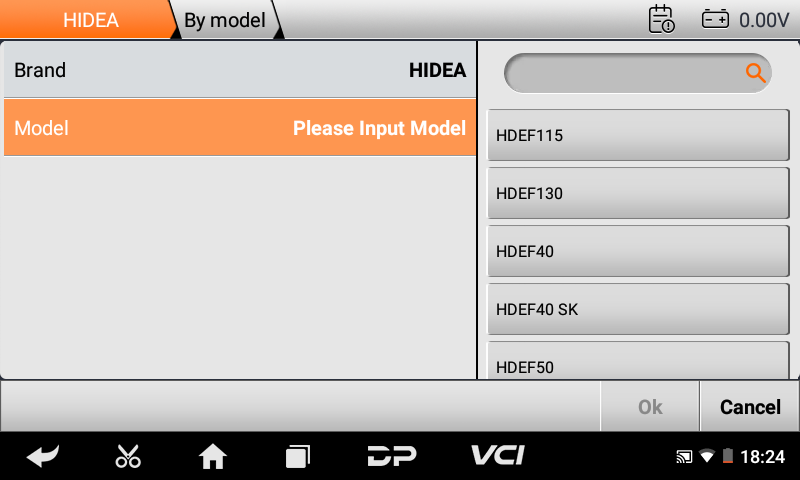

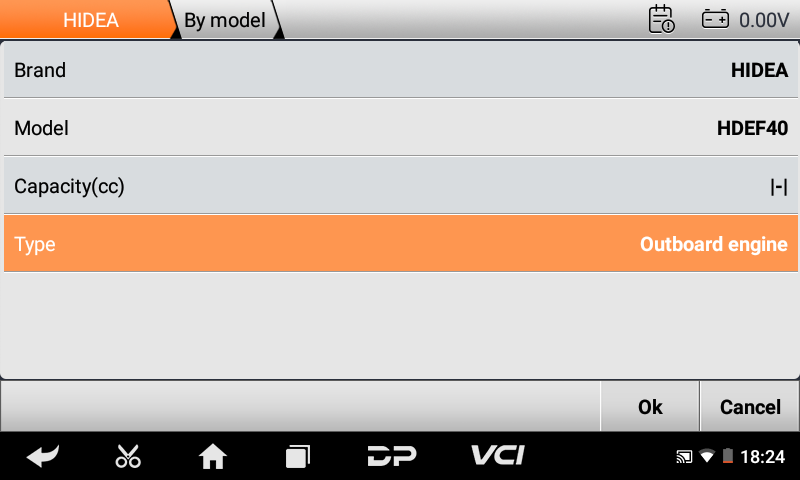

Supported Model Selection

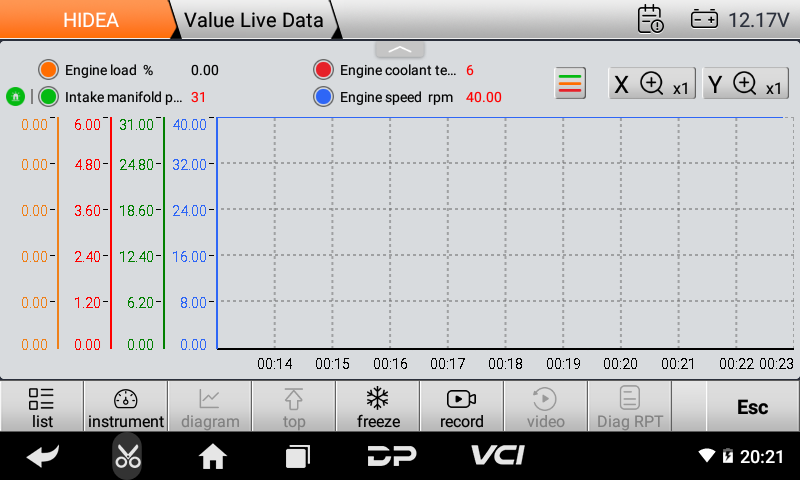

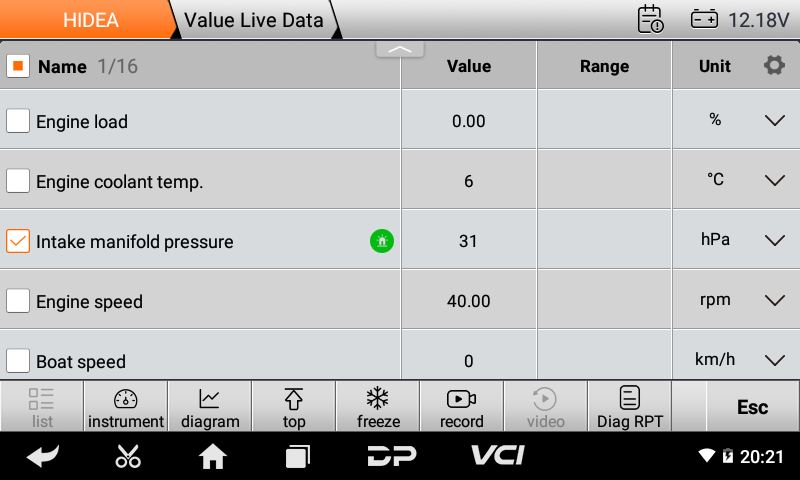

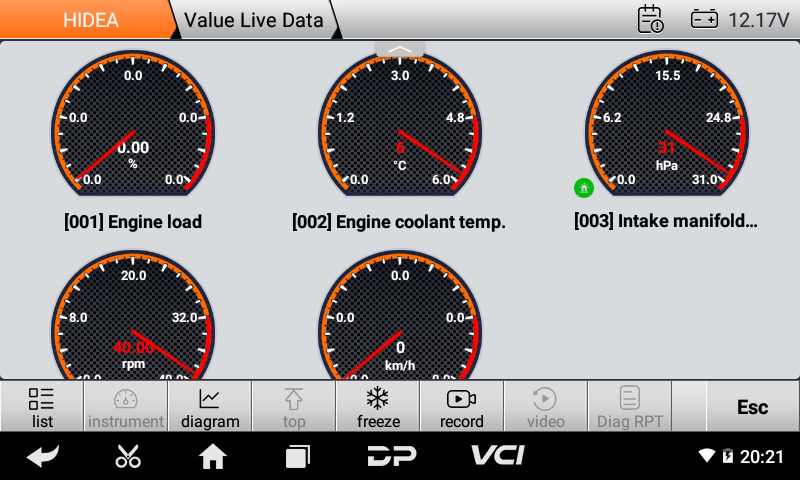

Data Flow Display Modes (Text/Waveform/Instrument)

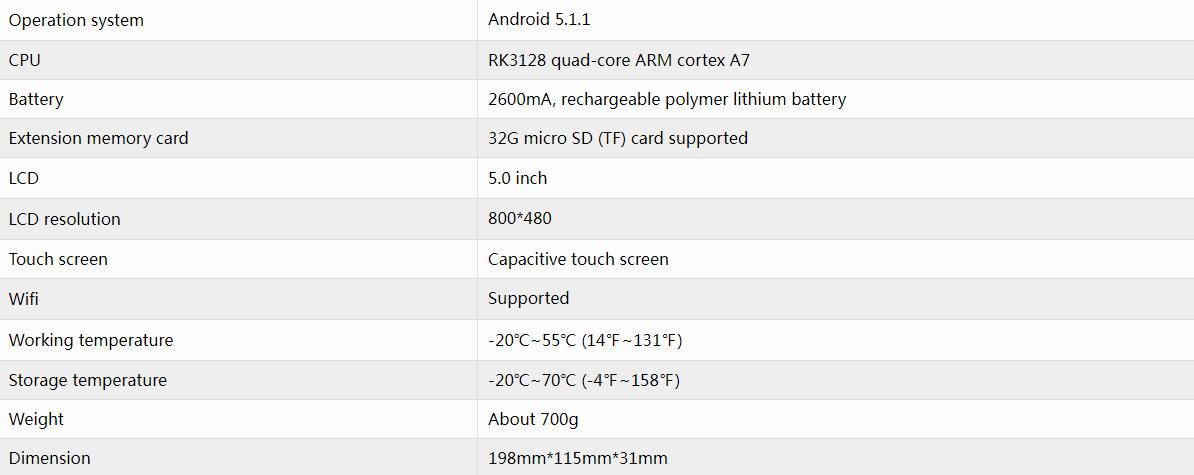

Technical Specifications

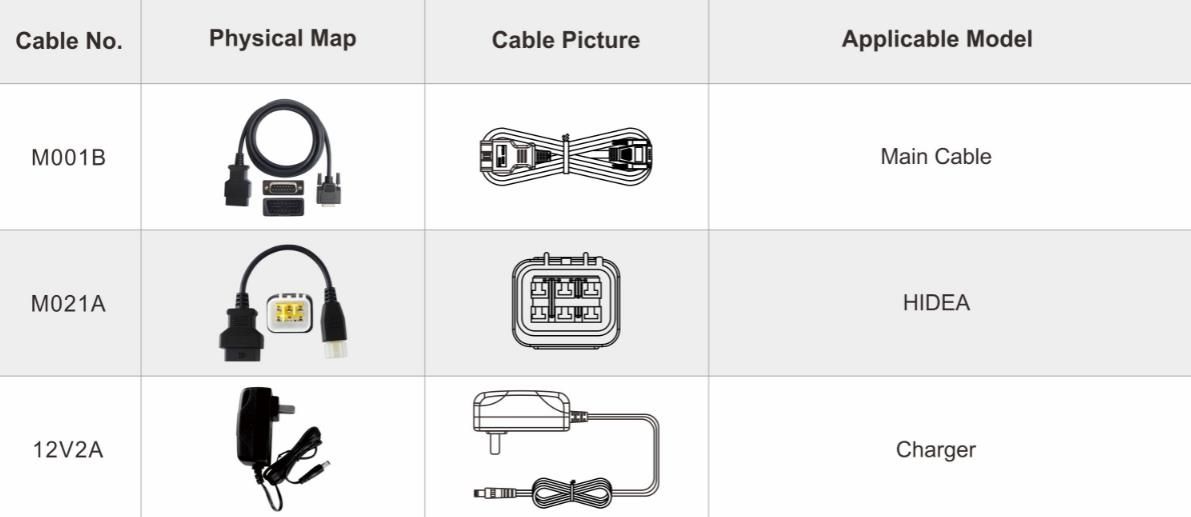

Package Includes

• 1pc x ISCAN Marine Diagnostic Scanner for Hidea
• 1pc x M001B main cable
• 1pc x M021A HIDEA cable
• 1pc x 12V2A charger
