Yanhua ACDP-2 VW MQB48/49 5A 5C Package with Module 34 for MQB RH850 5A IMMO Key Programming & 5C KM Cluster Correction

This module supports 93 /24/ 25 / 35/ 95 Series EEPROM in-circuit programming (ICP) and on adapter board programming (OBP). It is a necessary basic configuration for the package.

#MQB-34 Module with License A609

Supports VW RH850 series R7F7xx0x chip model instruments, 5A IMMO and mileage correction (5A/5C).

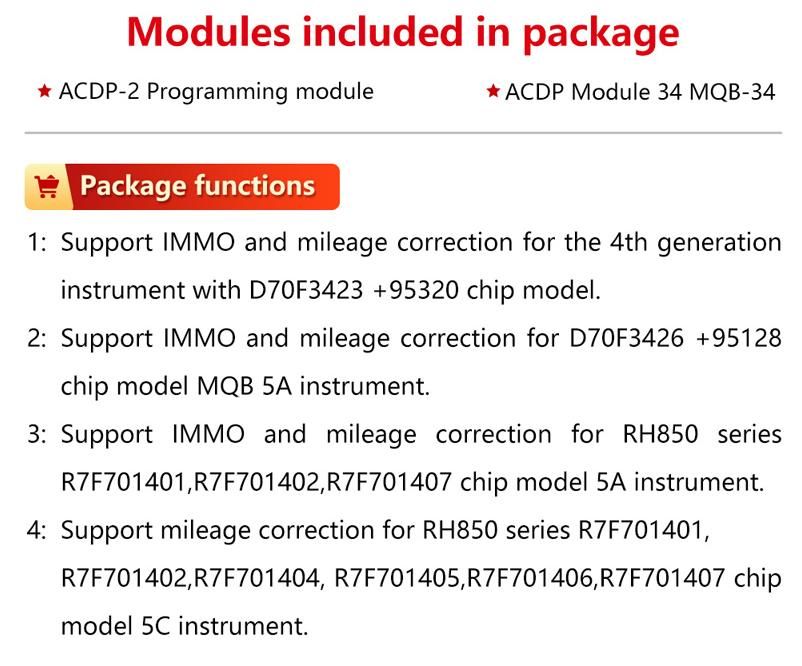

Module Functions:

1. SUPPORTS IMMO and mileage correction for the 4th generation instrument with D70F3423 +95320 chip model.
2. SUPPORTS IMMO and mileage correction for D70F3426 +95128 chip model MQB 5A instrument.
3. SUPPORTS IMMO and mileage correction for RH850 series R7F701401, R7F701402, R7F701407 chip model 5A instruments.
4. SUPPORTS mileage correction for RH850 series R7F701401, R7F701402, R7F701404, R7F701406, R7F701407 chip model 5C instruments.

Supported Odometer Numbers (Not Limited to):

5A:

• 83A920700B, 83A920700, 8V0920740B, 81A920740L, 51G920640D, 55G920790, 2GD920790A, 5GD920790, 5NG920640C, 5NG920650C, 5ND920650C, 5NG920654, 2GG920640, 3GB920640, 3GB920790, 56G920790, 3VD920740B

5C:

• 3GB920640A, 3GB920640B, 3GB920640C, 3GD920640D, 19G920640B, 19G920640C, 19D920640B, 19D920640C, 17G920640A, 2GD920640B, 2GD920640C ,5GD920640D, 5ED920860C, 19G920650B, 19G920650C, 55G920650A, 55G920650B ,55G920650C,5HG920340 ,5HG920340A ,5HG920340B, 5HG920340C, 5NG920640D, 5NG920650D, 2GG920640A, 51G920640E

D70F3423 +95320:

• 31G920850B, 18G920860B, 31G920850A, 18G920860A, 31G920850F, 34D920850C, 31G920850C,
  34D920850E, 31G920860A, 34D920850G

D70F3426 +95128:

• 5GG920640, 5GG920860, 5GG920860A, 5G0920861A

Package List:

• 1pc x ACDP-2 Master Basic Module
• 1pc x ACDP-2 Module 34
