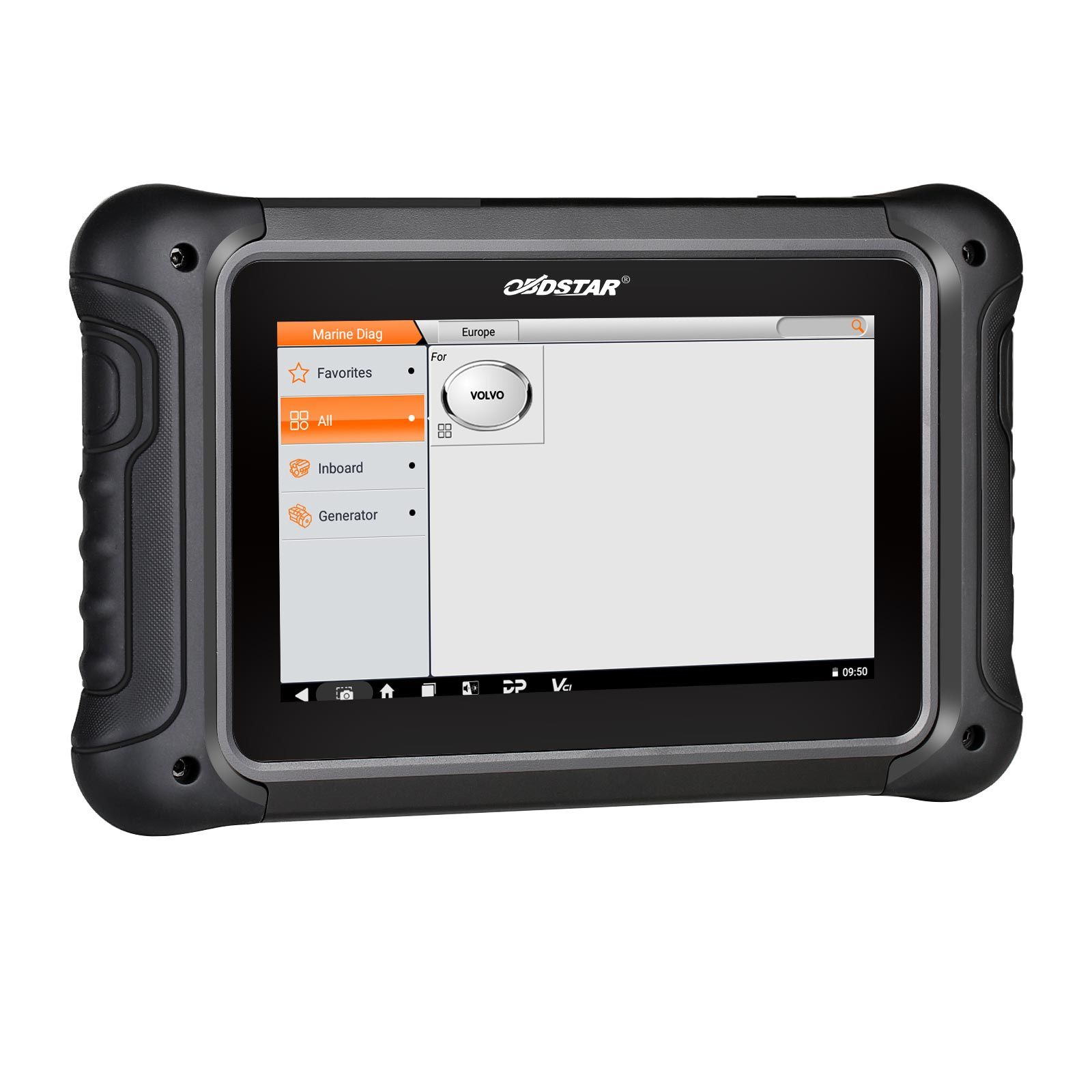

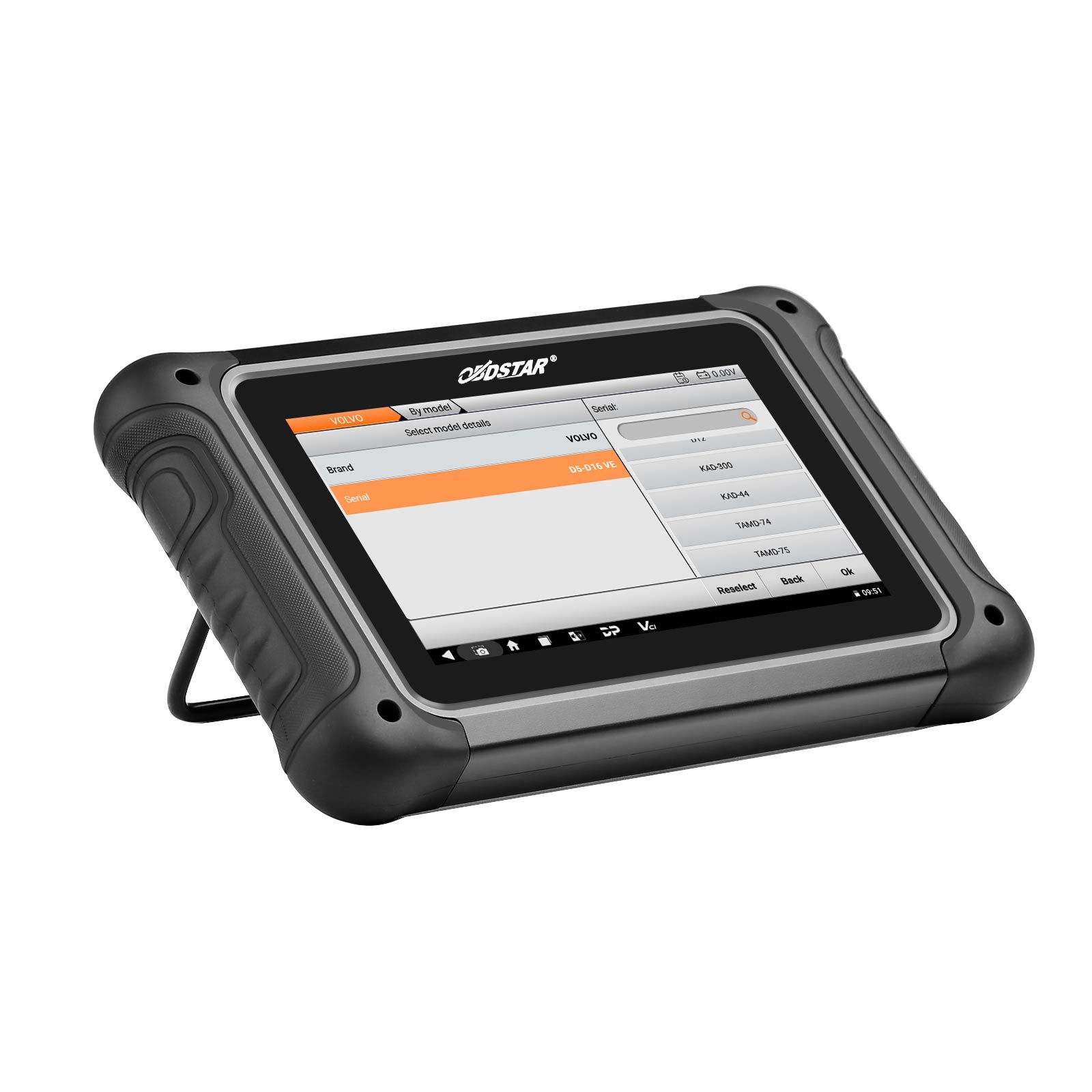

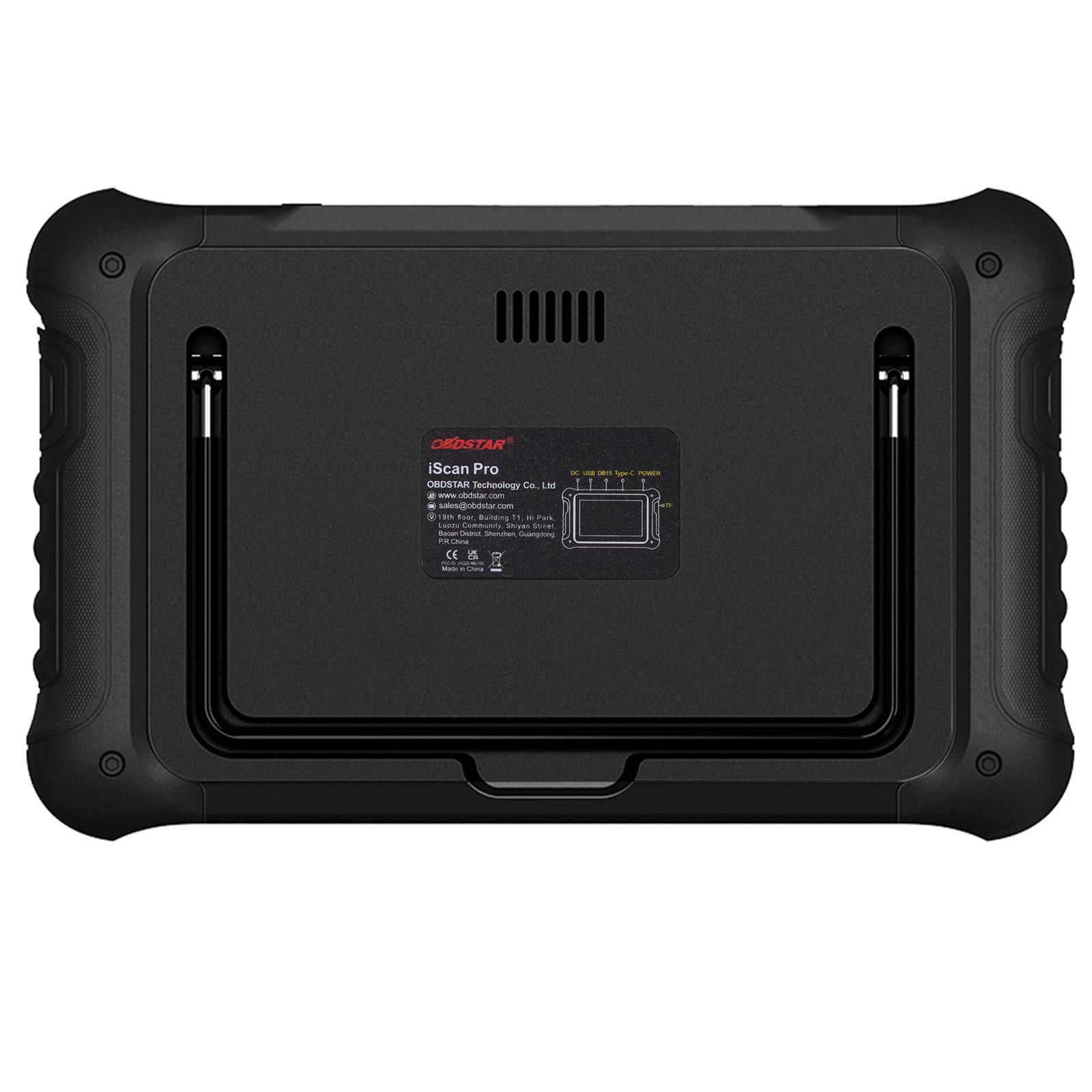

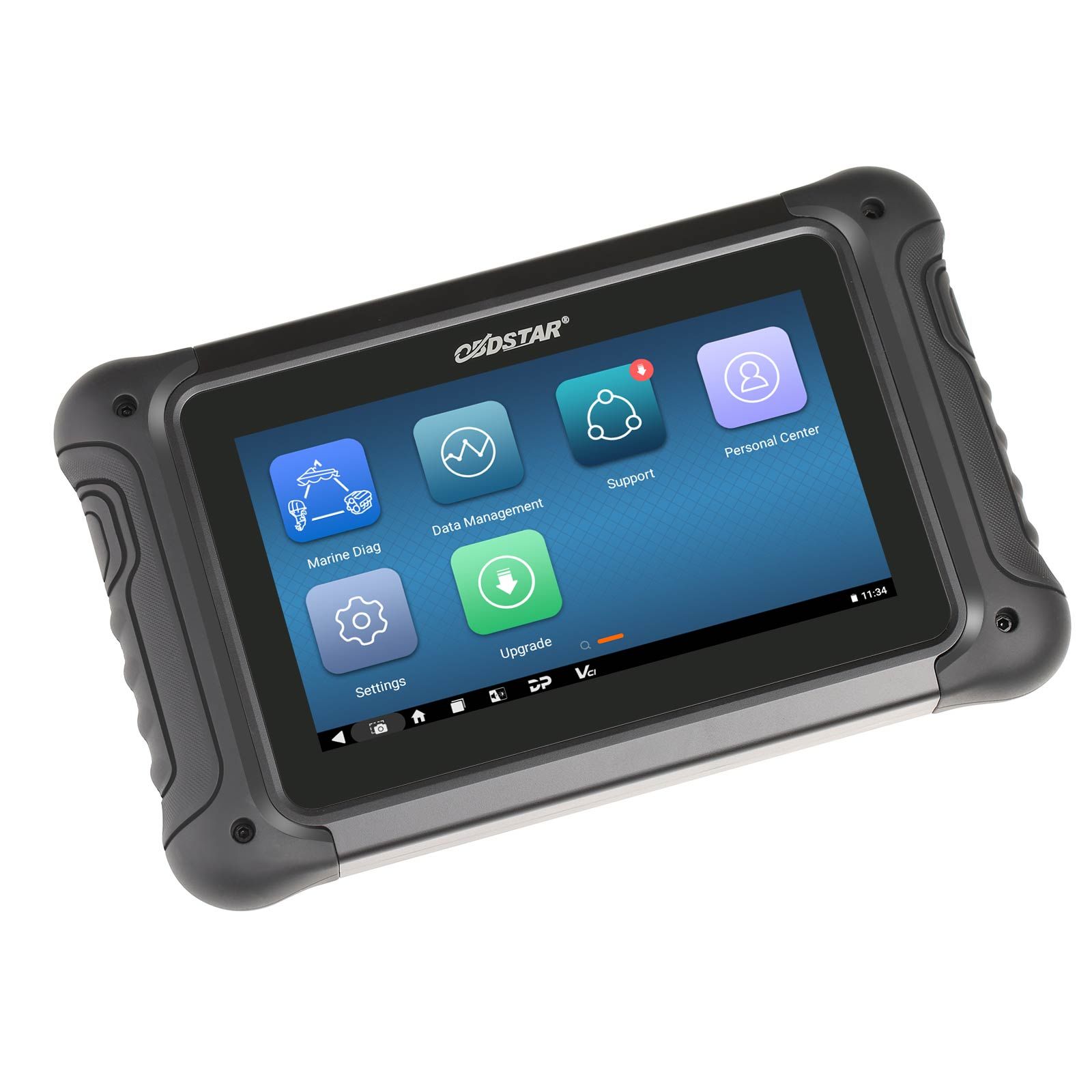

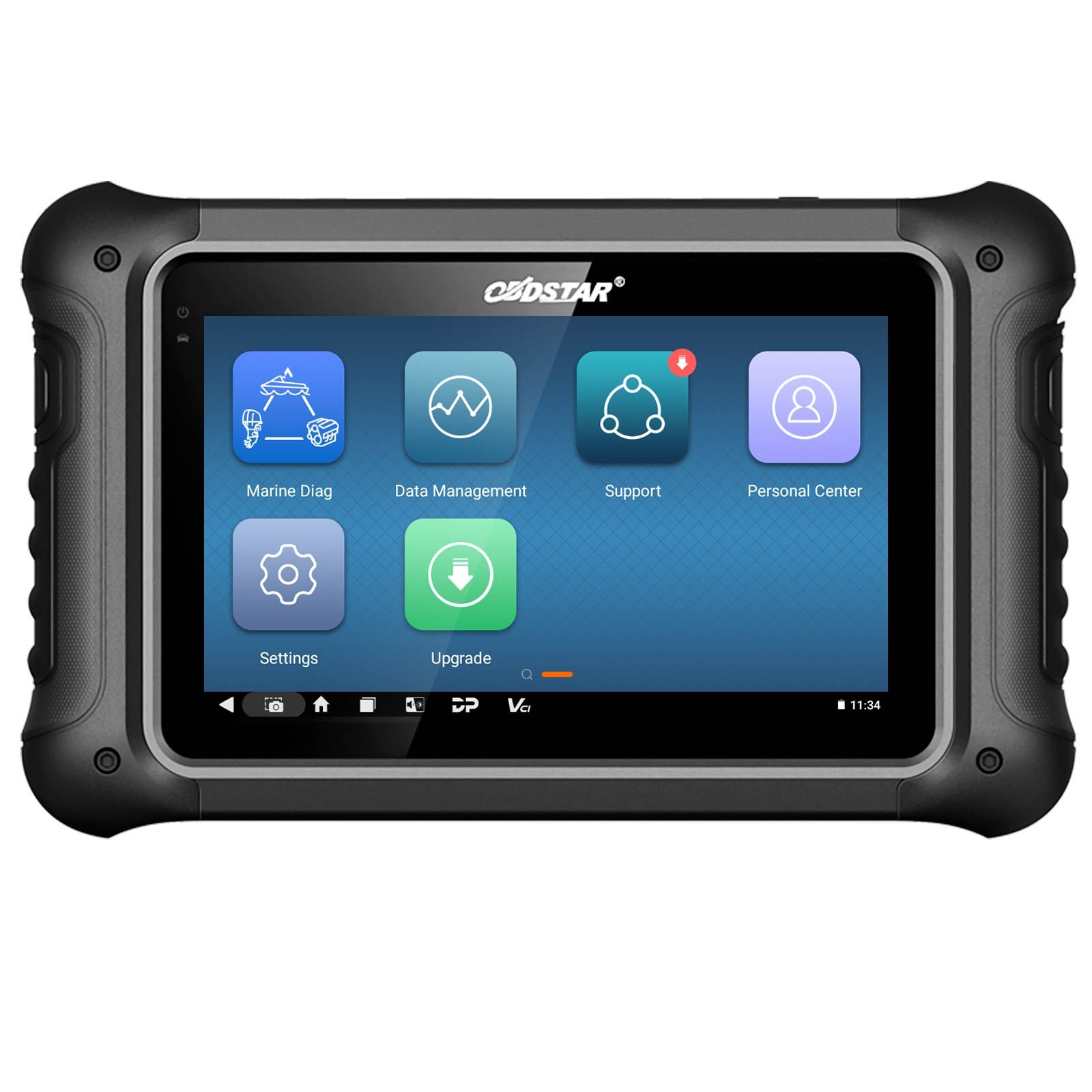

OBDSTAR ISCAN PRO SERIES VOLVO Marine Scanner

Coverage and Documentation

ISCAN PRO VOLVO (MARINE) COVERAGE
ISCAN PRO SERIES (MARINE) User Manual

iScan Pro Marine Features

1. Android 5.1.1 operating system;
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provides complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding, etc.;
4. Menu arbitrary selection is more convenient and quicker;
5. Record and play back real-time data flow to quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the internet enables one-click software upgrade;
7. One-click remote function for OBDSTAR technical staff remote assistance;
8. 2 Years Free Update.

Diagnostic Support Series

Supports D3, D4/D6, D5-D16 GE, D5-D16 VE, D8/D13-1000, D9-D16, Gasoline, QL EST, D12, KAD-300, KAD-44, TAMD-74, TAMD-75, V6 - V8 and other models.

Advanced Functions

1. The OBDSTAR mobile APP integrates functions such as diag socket location and technical bulletin, working with ISCAN PRO to make marine diagnosis more accurate and efficient;
2. Various data flow display modes—text, waveform diagram, and instrument diagram—allow easy fault analysis;
3. Supports Parameter Programming, Station Configuration, Gain and Stability Calibration, ACP History test, Engine hours programming 1–4, AdBlue Dosing System tests, Engine Run-up test, Injectors shut off manual 1–2, Spark shut off test, Fuel pump relay test, Idle Air Control reset test, Throttle activation test, Cylinder Compression mode, Injector control test, Idle speed control test, Spark Fire test, O2 sensor test, Misfire reset test, and other special functions;
4. Supports DC24V input.

Function Display – From OBDSTAR Mobile App

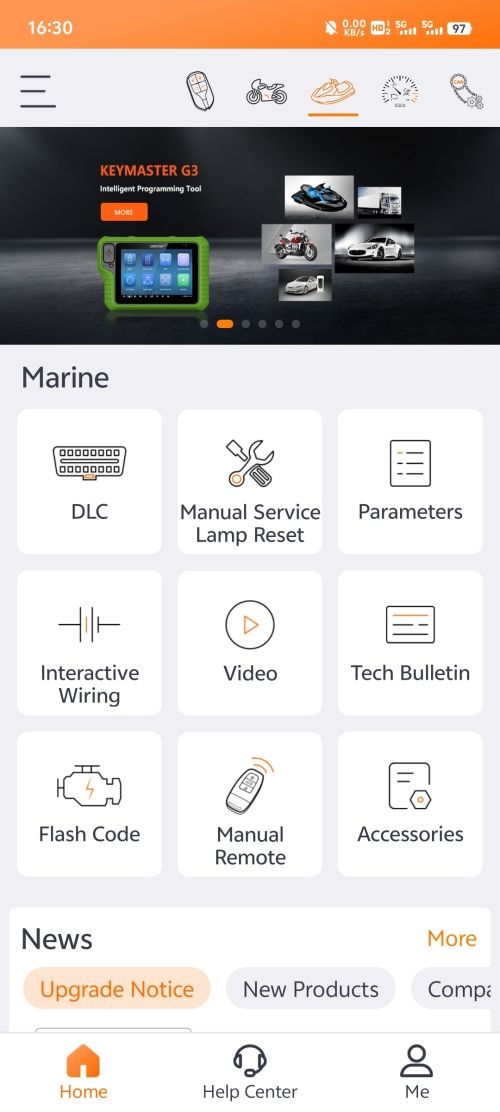

1) Main Page

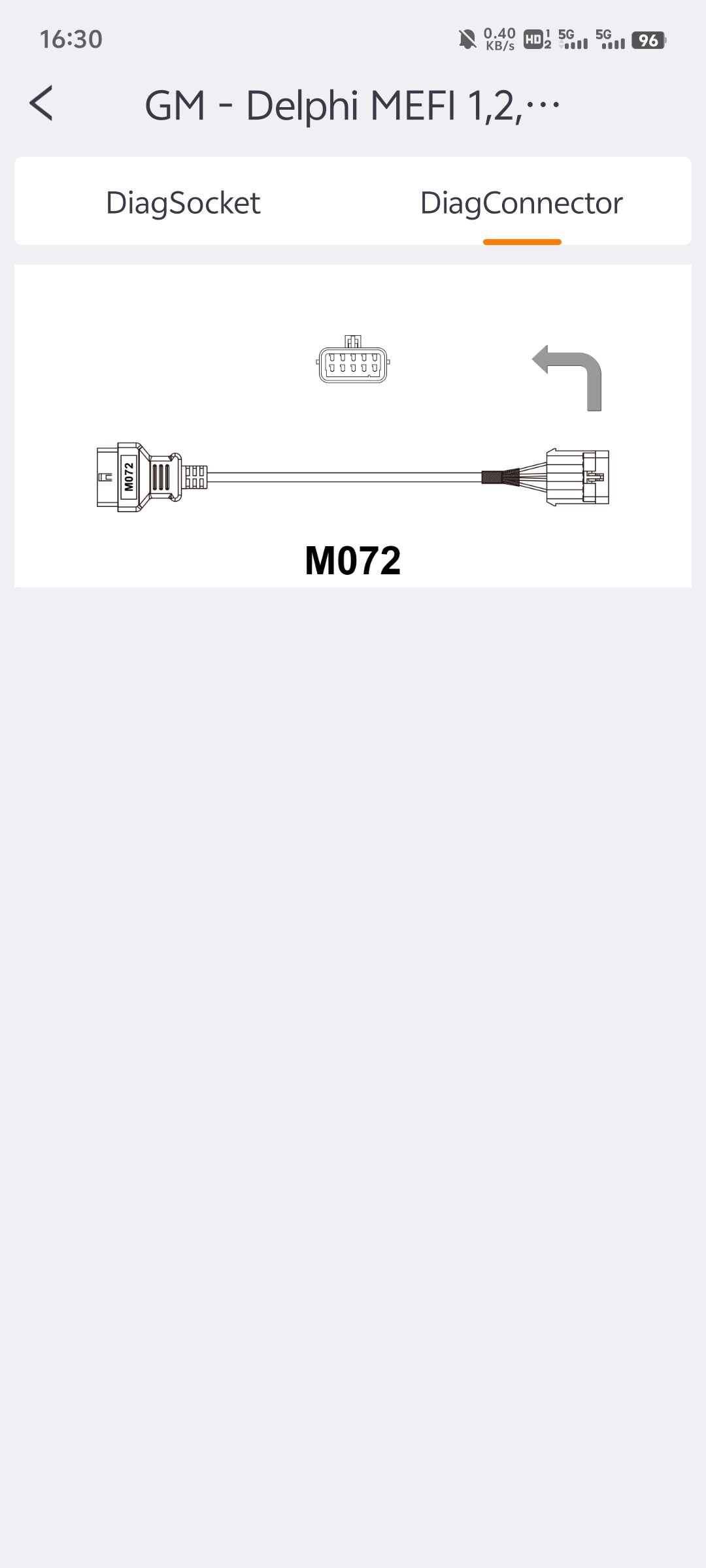

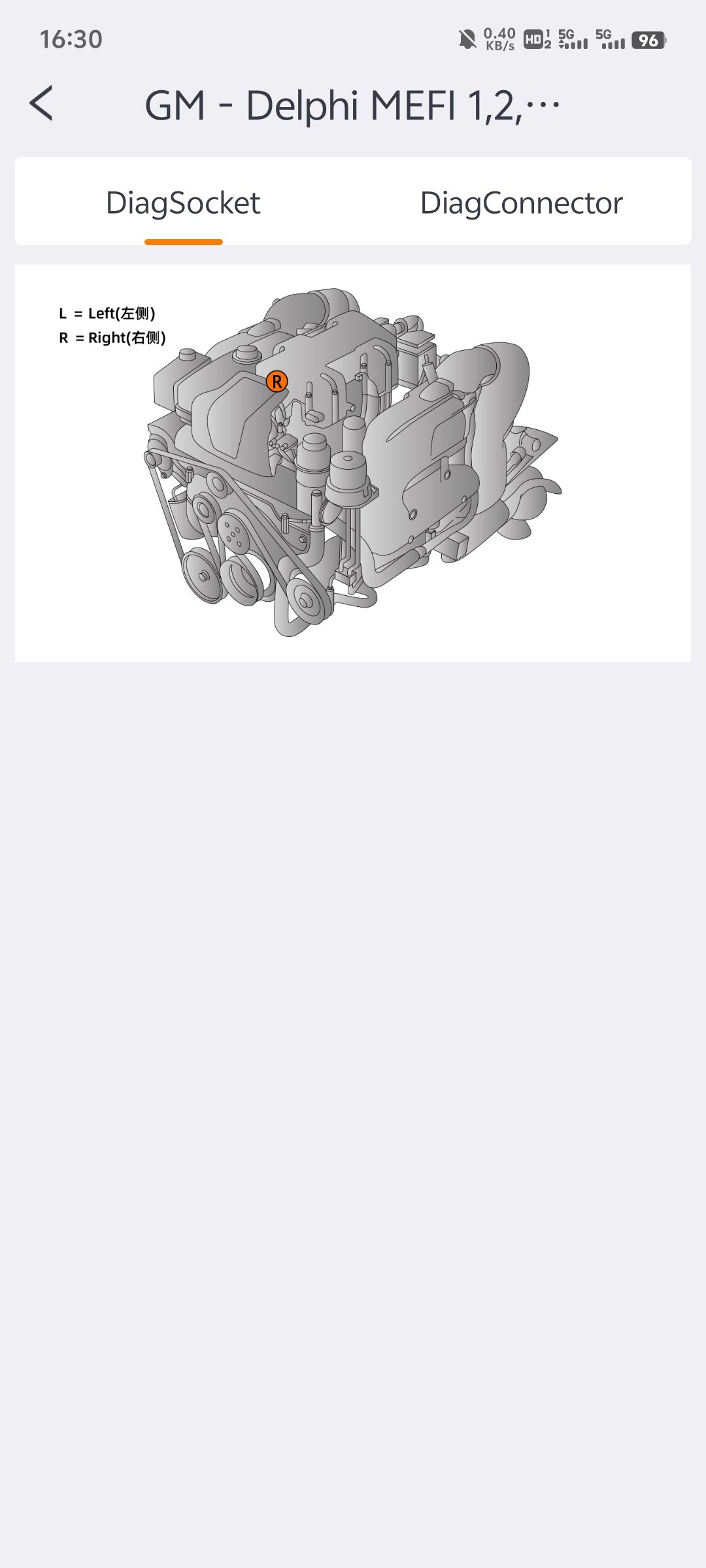

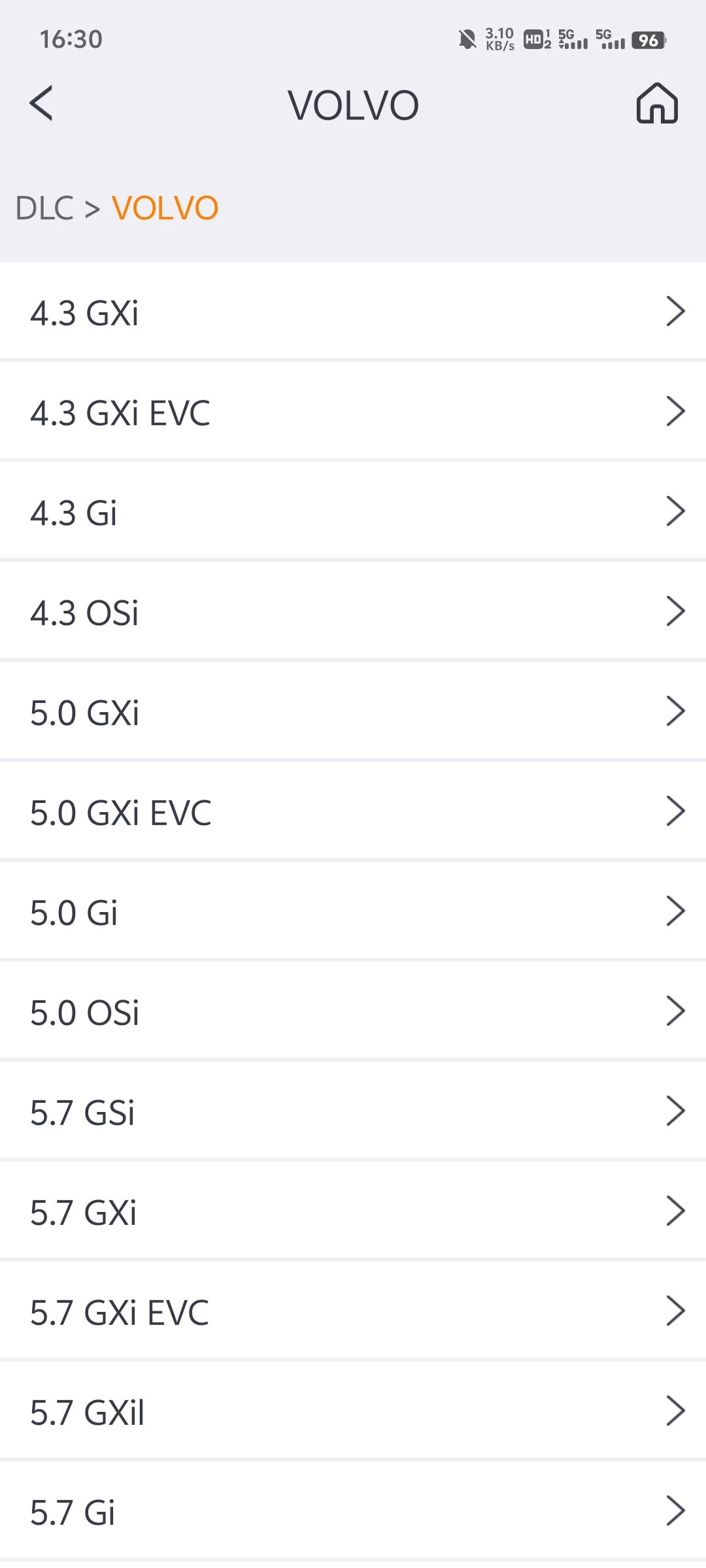

2) Diag Socket / Diag Connector Location

Function Display – From ISCAN PRO

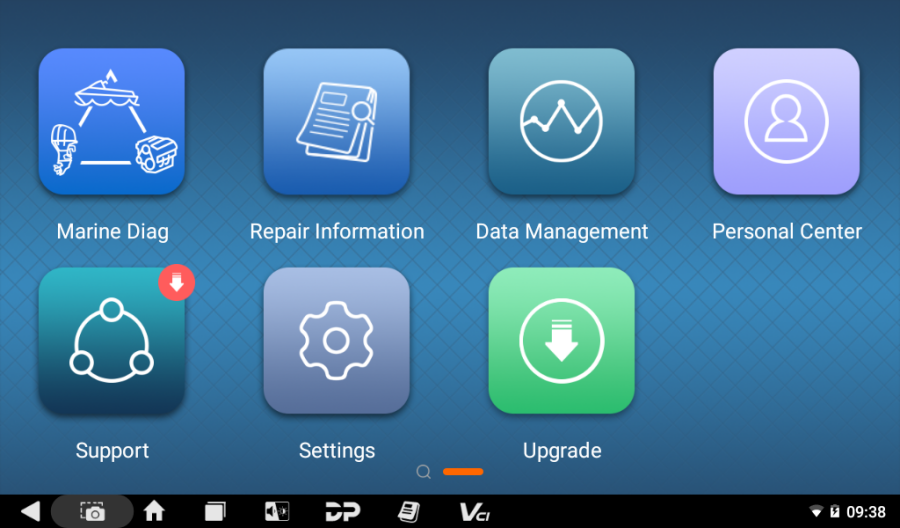

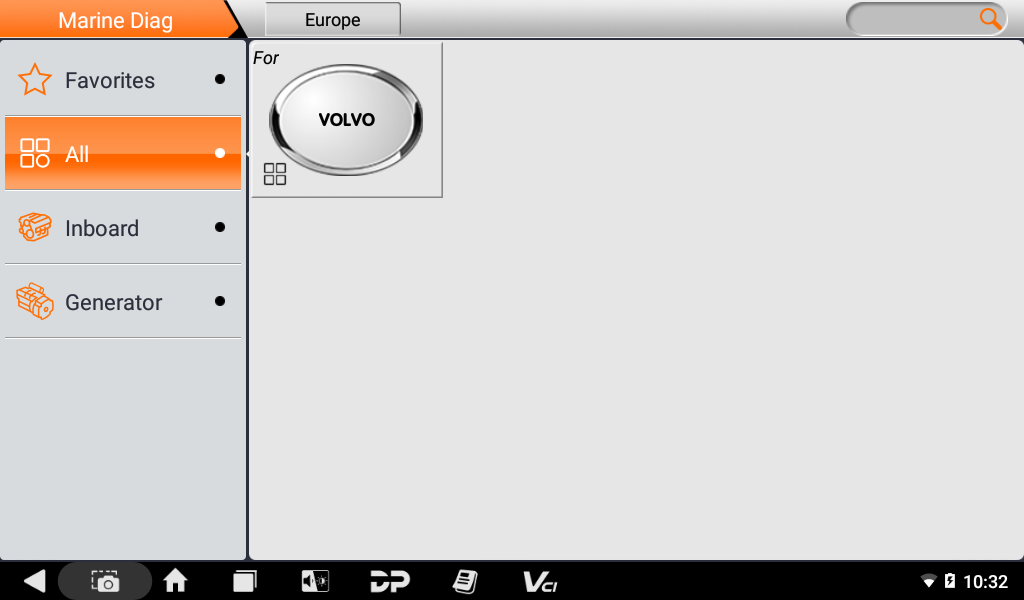

1. Main Page / Brand Supported

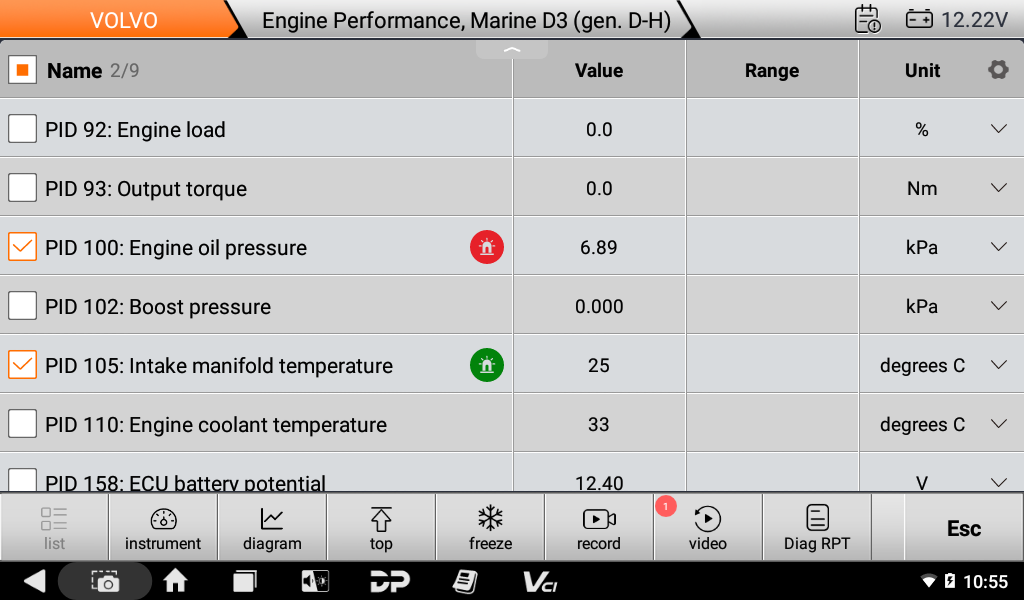

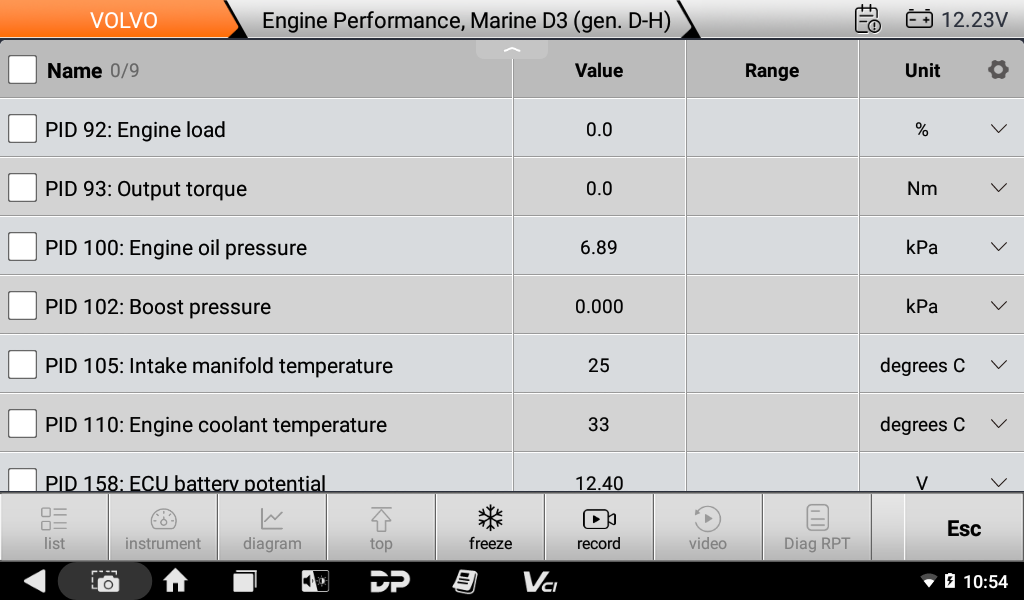

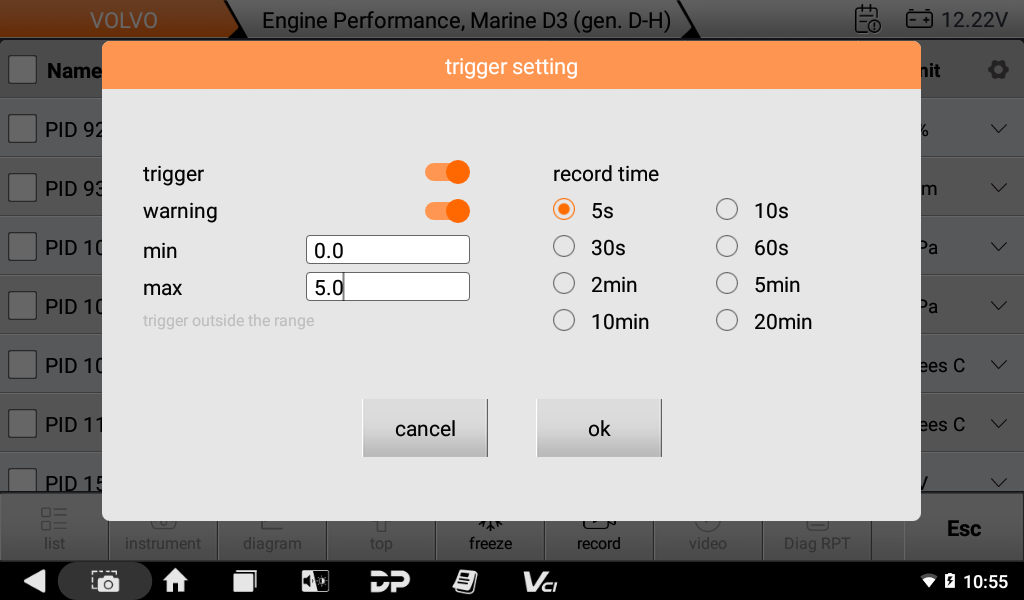

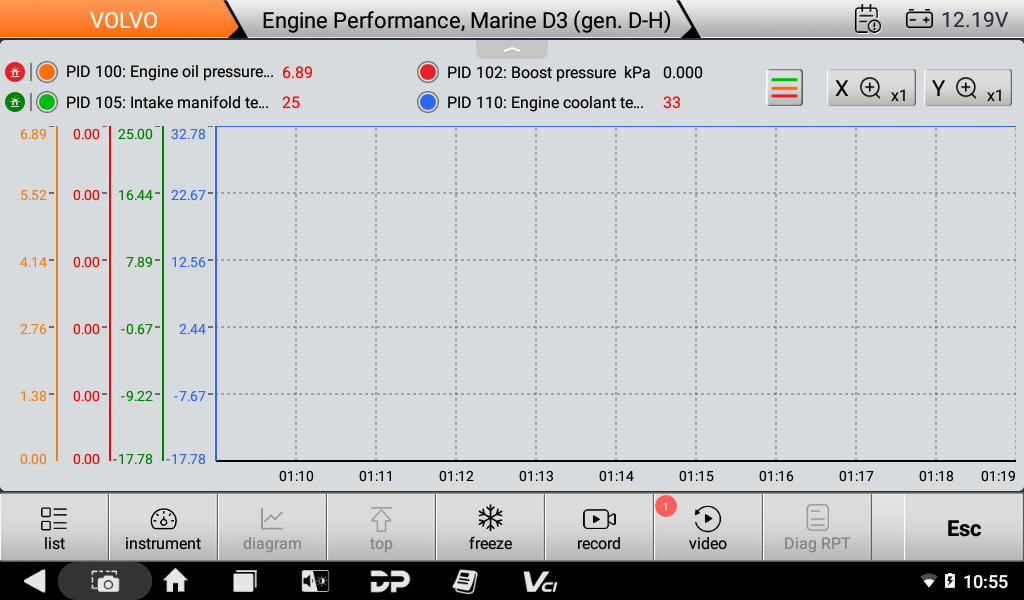

2. Data Flow Text / Waveform Diagram

3. Advanced Function

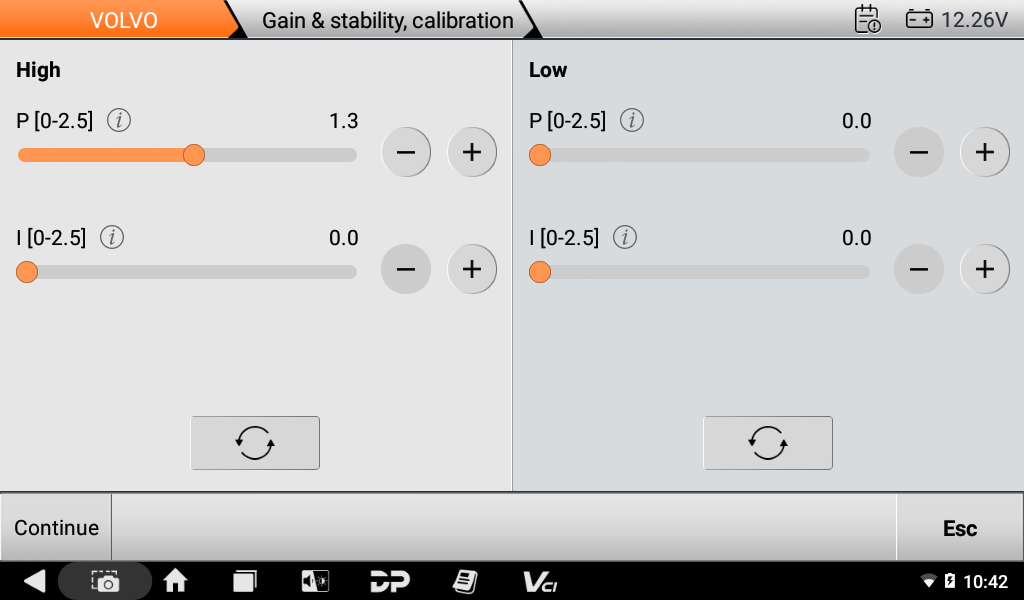

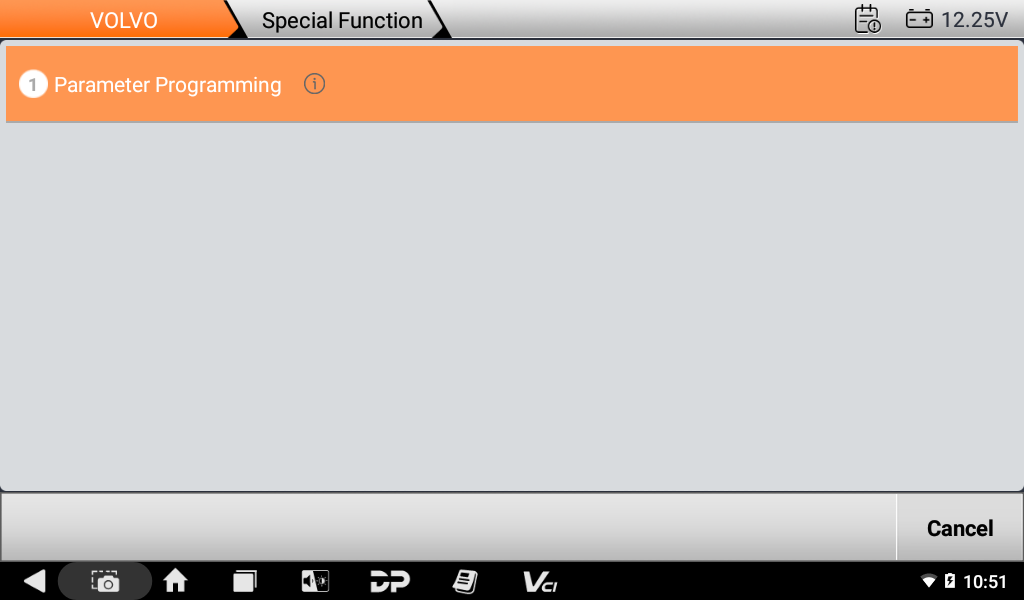

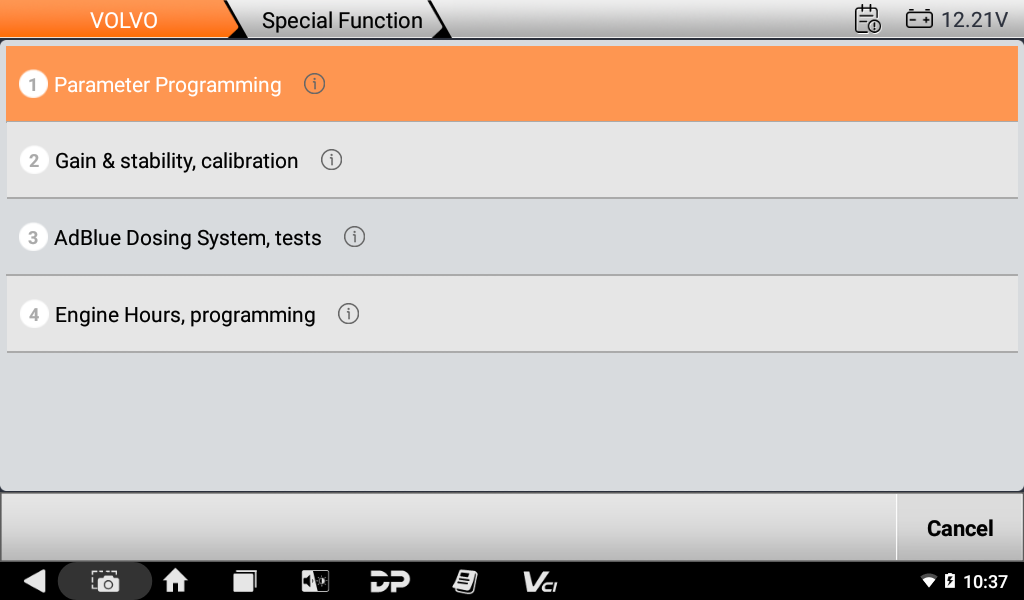

4. Special Functions

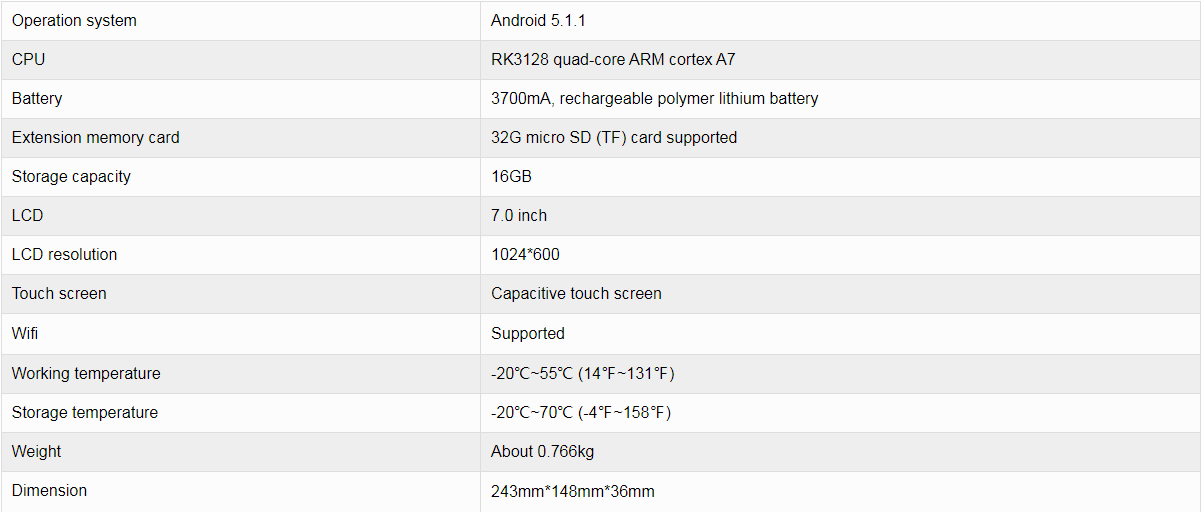

Specifications

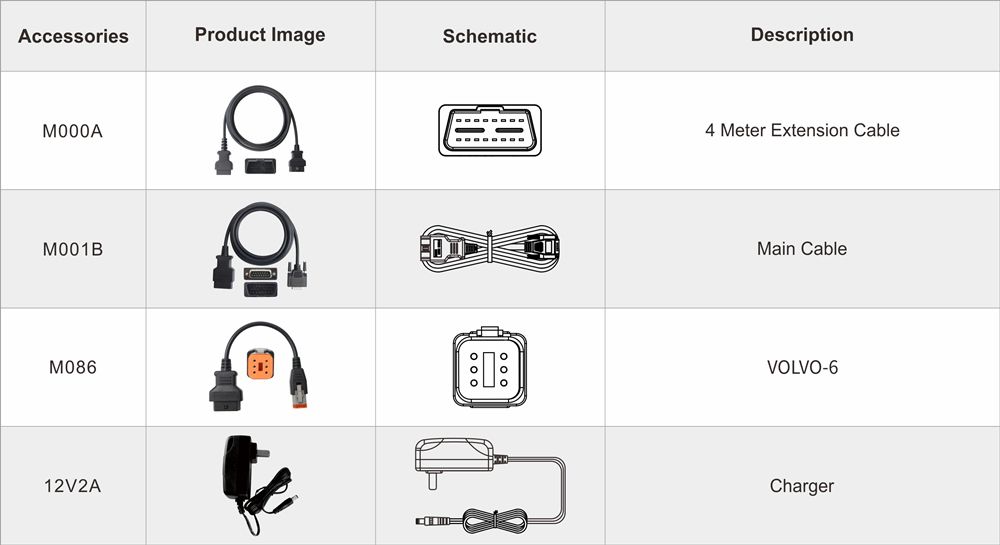

Accessories

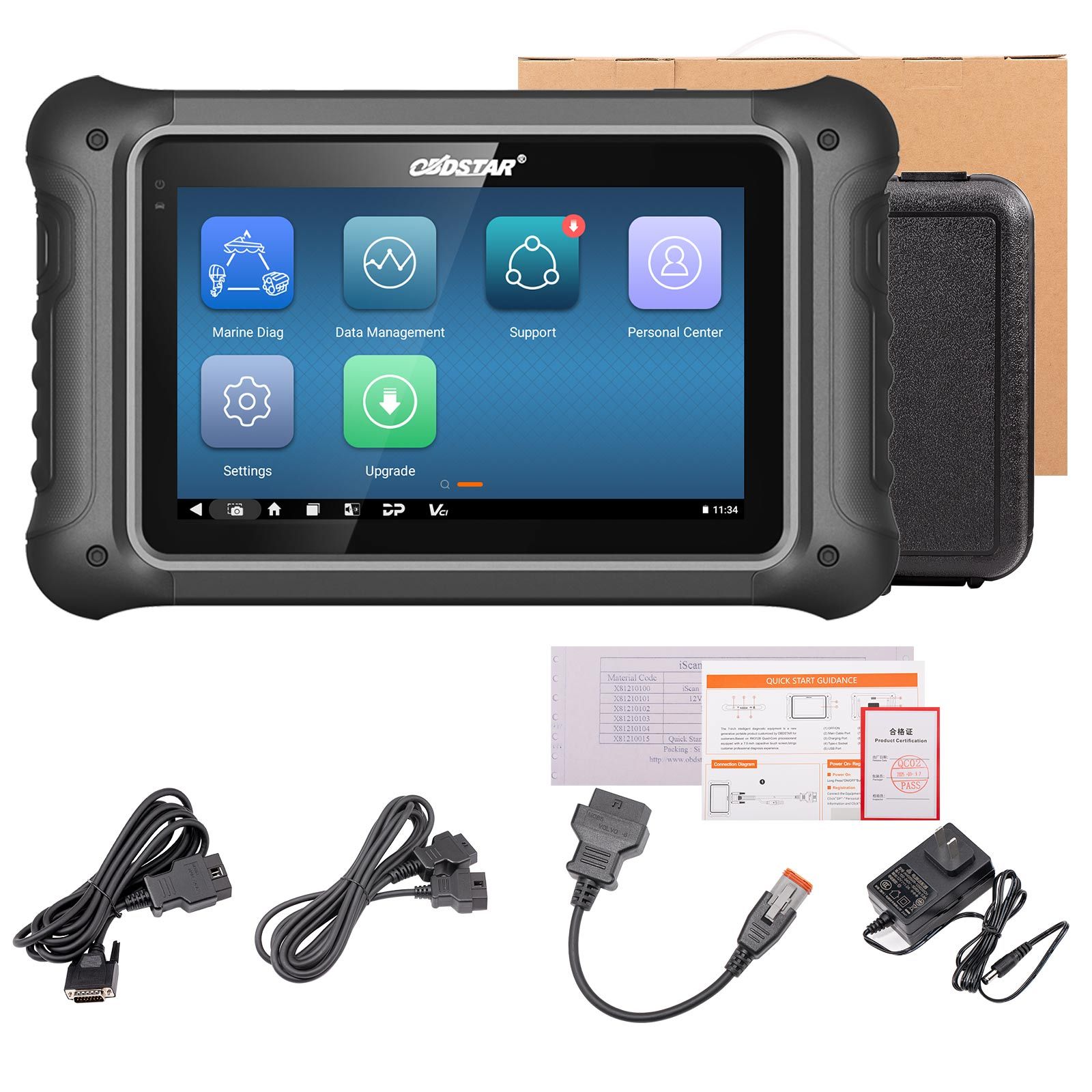

Package Includes

1pc x OBDSTAR ISCAN PRO SERIES VOLVO Marine Scanner
