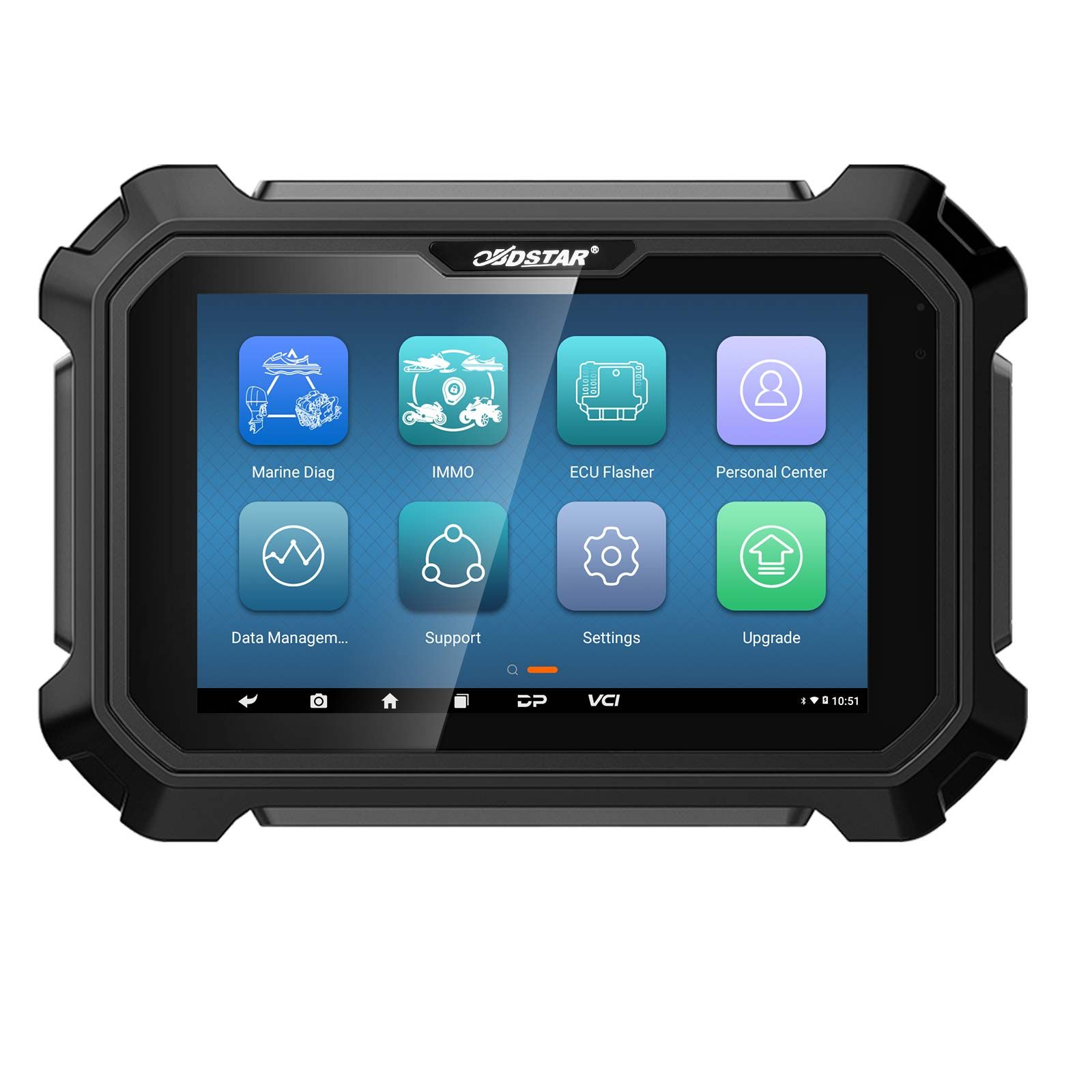

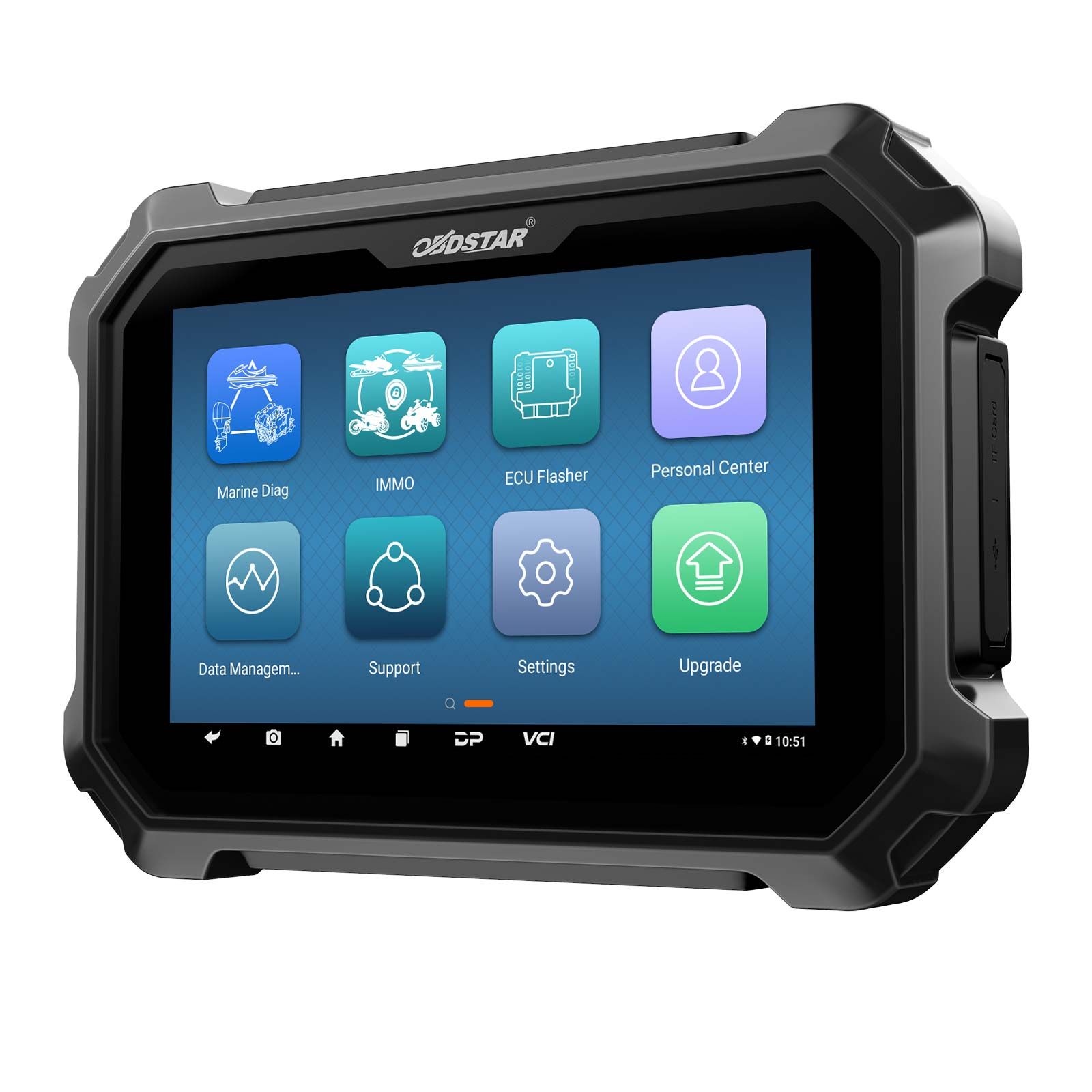

OBDSTAR D800 Configuration B for Marine (Jet Ski / Outboard) Intelligent Diagnostic Scanner

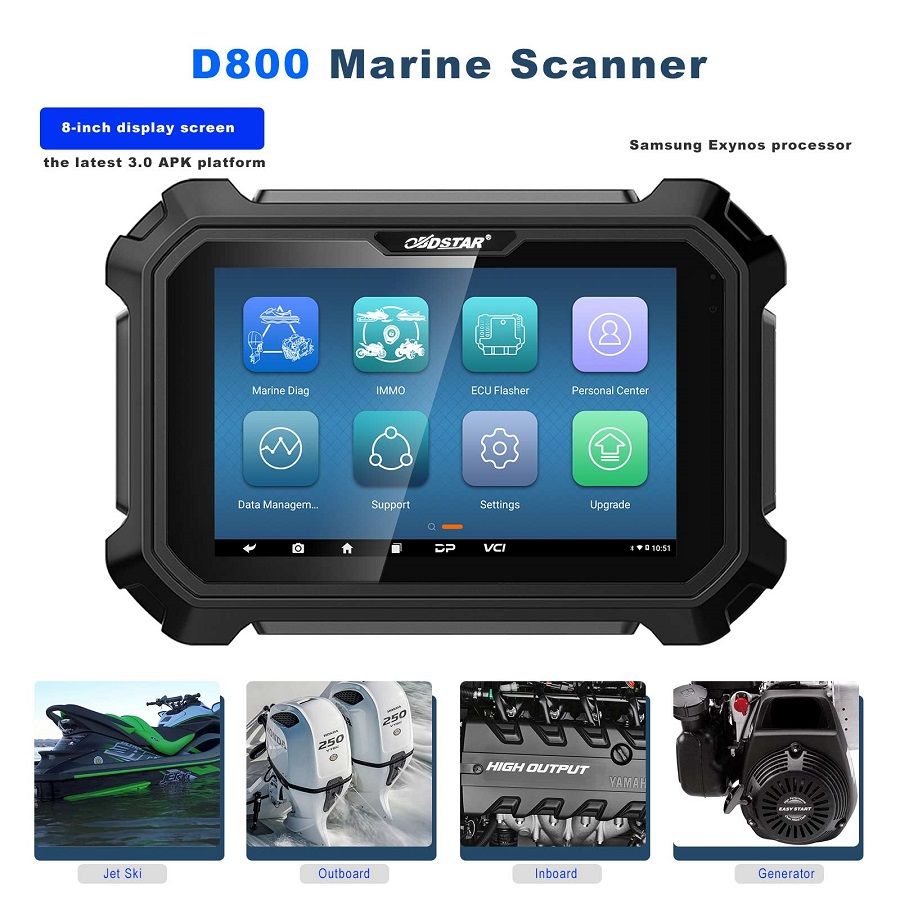

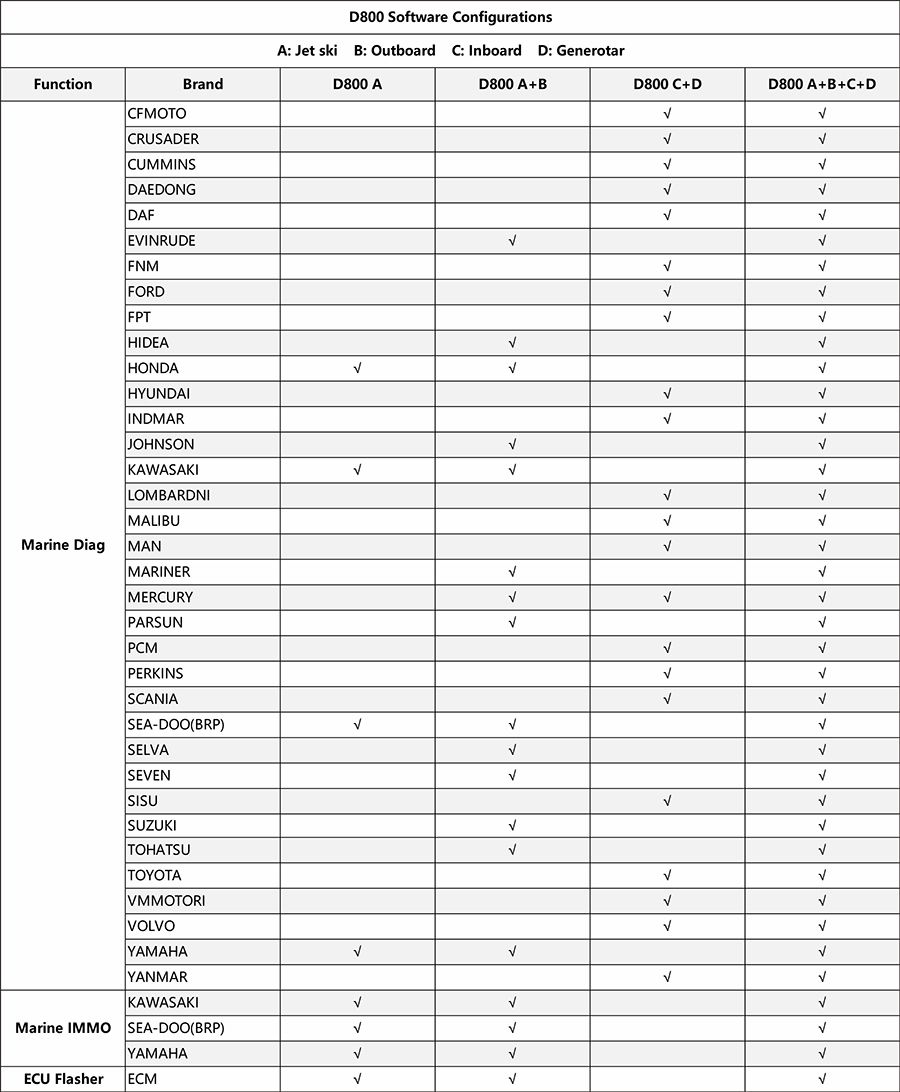

D800 Configuration Options

• D800 A: Jet Ski
• D800 A+B: Jet Ski, Outboard
• D800 C+D: Inboard, Generator
• D800 A+B+C+D: Jet Ski, Outboard, Inboard, Generator

Key Functions

1. New Android 5.1.1 operating system;
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;

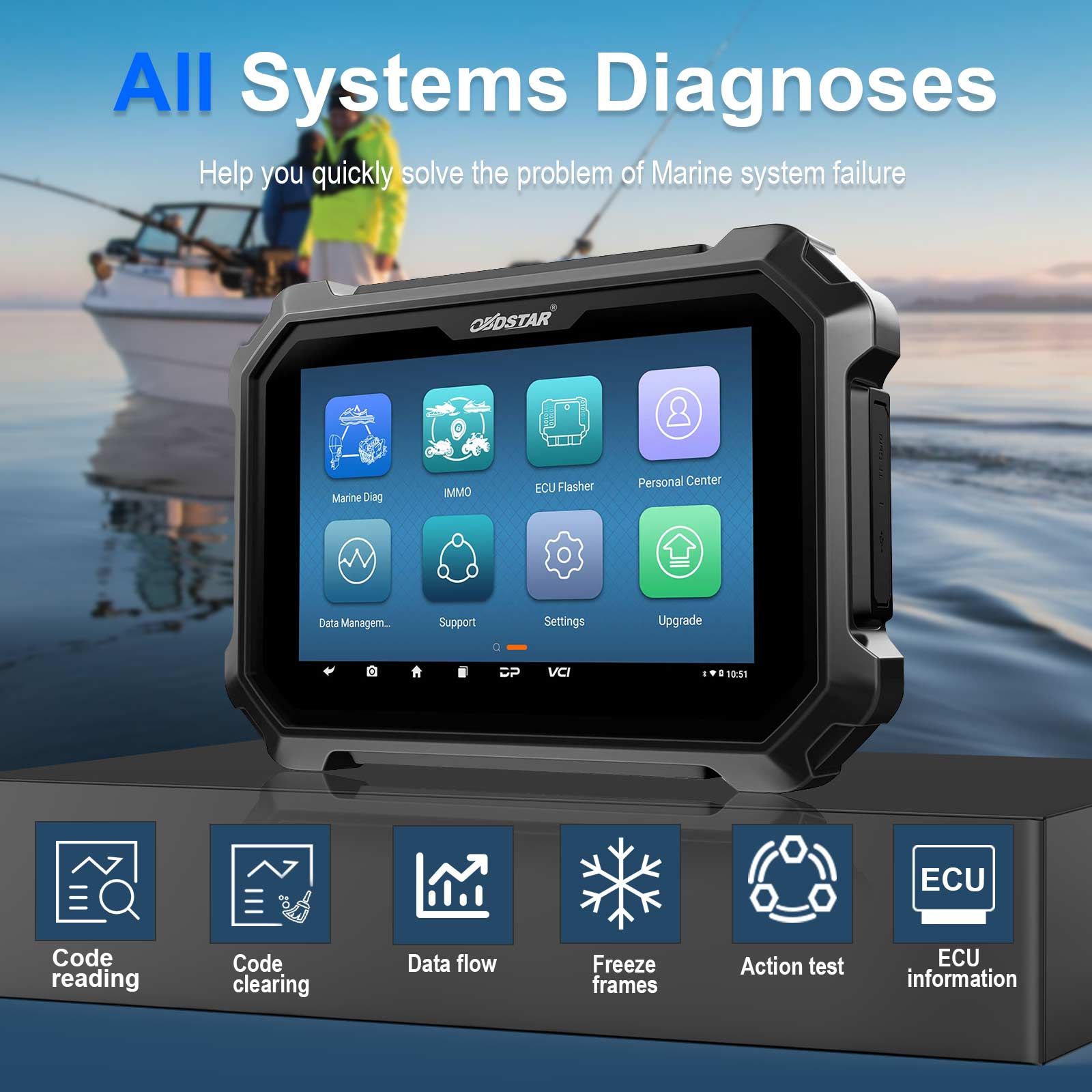

3. Provides complete diagnostic functions including ECU information, code reading, code clearing, data flow, freeze frames, action test, setting, coding, etc.;
4. Record and play back real-time data flow to quickly and accurately locate sensor and component faults;
5. Wi-Fi connection to the internet enables one-click software upgrades;
6. One-click remote function allows OBDSTAR technical staff to provide remote assistance.

Advanced Features

1. The OBDSTAR mobile app integrates functions such as diag socket location, flash code query, technical bulletin, manual service function (service lamp reset), basic parameters, etc., working with D800 to make marine diagnosis more accurate and efficient (some functions are only available for D800 users to check for free);
2. The exclusive interactive wiring diagram and electrical appliance description query function make your diagnosis worry-free;

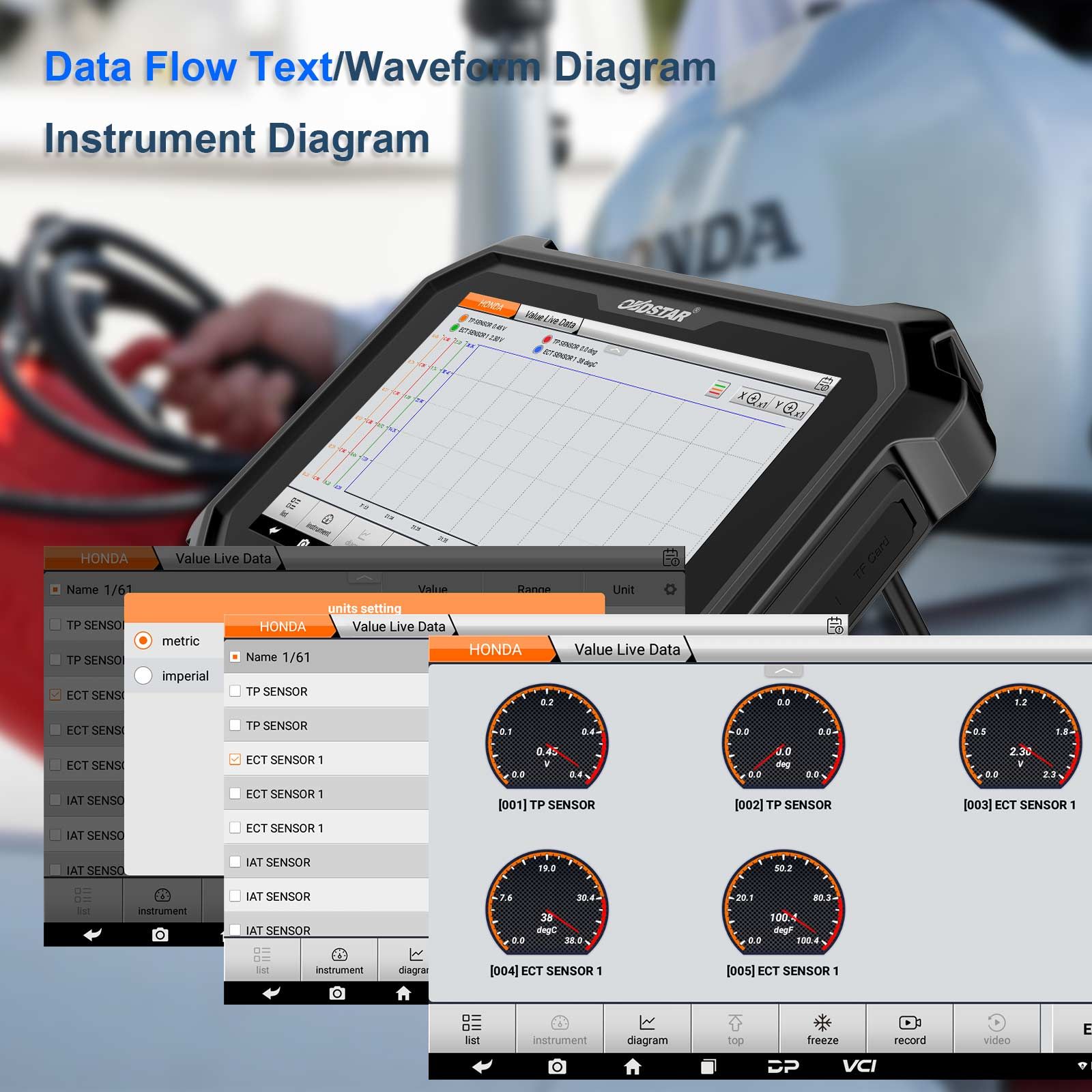

3. Various data flow display modes—such as text, waveform diagram, and instrument diagram—allow you to easily analyze faults;

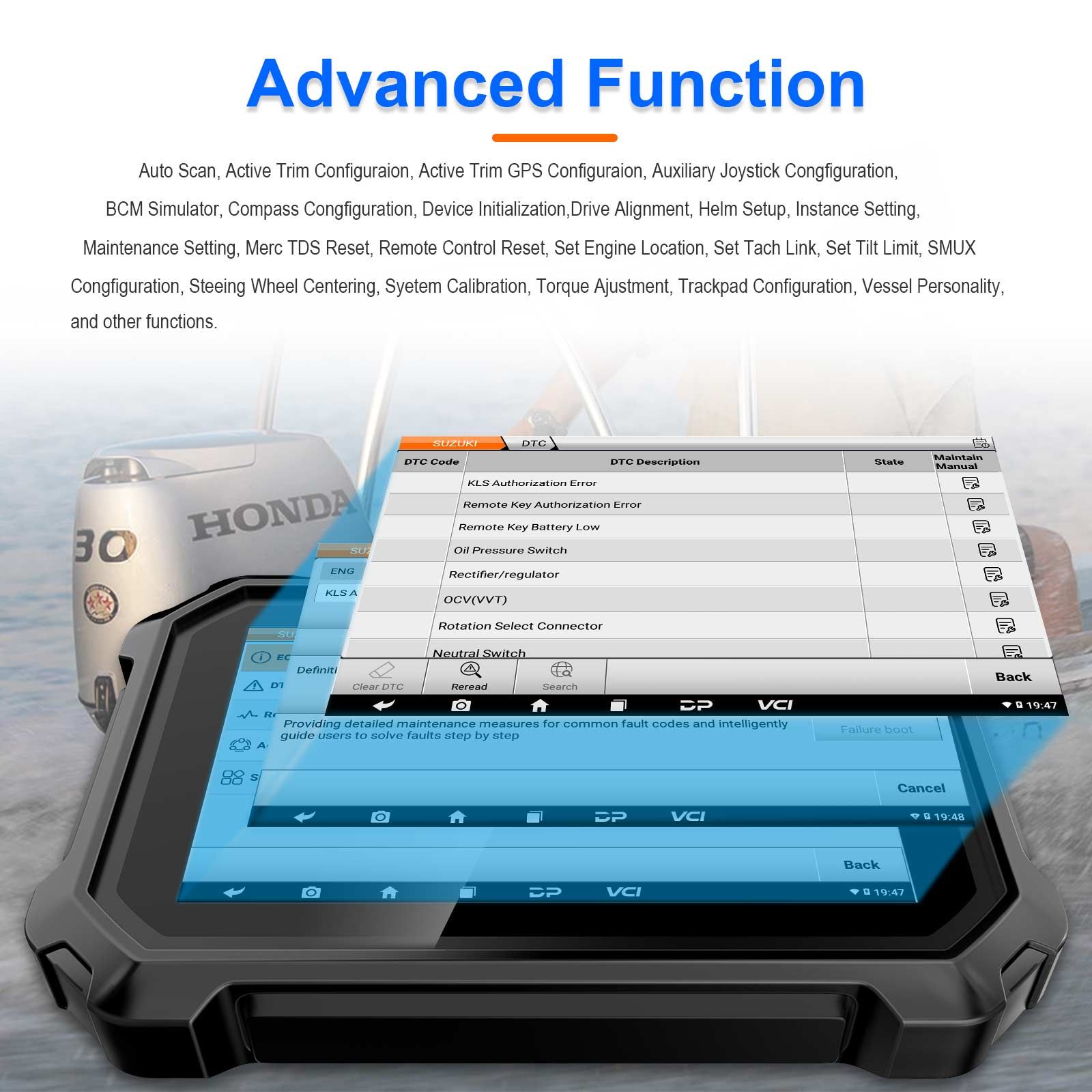

4. Supports Auto Scan, Active Trim Configuration, Active Trim GPS Configuration, Auxiliary Joystick Configuration, BCM Simulator, Compass Configuration, Device Initialization, Drive Alignment, Helm Setup, Instance Setting, Maintenance Setting, Merc TDS Reset, Remote Control Reset, Set Engine Location, Set Tach Link, Set Tilt Limit, SMUX Configuration, Steering Wheel Centering, System Calibration, Torque Adjustment, Trackpad Configuration, Vessel Personality, and other functions.

Supported Brands

EVINRUDE, Honda, JOHNSON, KAWASAKI, MARINER, MERCURY/MERCURY RACING, PARSUN, SEA-DOO (BRP), SELVA MARINE, SEVEN MARINE, SUZUKI, TOHATSU, YAMAHA...

Optional Brands

CATERPILLAR, CFMOTO, CRUSADER ENGINES, CUMMINS MARINE, CUMMINS MERCRUISER DIESEL, DAEDONG, DAF MARINE, FNM MARINE, FORD MARINE, FPT (Fiat Powertrain Technologies), HYUNDAI SEASALL, ILMOR, INDMAR, JOHN DEERE MARINE, KODIAK MARINE, KOHLER POWER SYSTEMS, LOMBARDINI MARINE, MAN MARINE, MARINE POWER, MTU, PANTHER AIRBOATS, PCM Marine Engines, PERKINS, SCANIA MARINE, SISU, STEYR MOTORS, TOYOTA MARINE, VM MOTORI, VOLKSWAGEN MARINE, VOLVO PENTA, YANMAR...

More functions are under development...

Technical Specifications

Operating System

Android 5.1.1

CPU

Exynos4418 quad-core ARM Cortex A9

Battery

3700mAh, rechargeable polymer lithium battery

Extension Memory Card

32GB micro SD (TF) card supported

Storage Capacity

32GB

LCD

8.0 inch

LCD Resolution

1280 × 800

Touch Screen

Capacitive touch screen

Wi-Fi

Supported

Camera

5-megapixel rear view camera

Working Temperature

-10℃ to 55℃ (14℉ to 131℉)

Storage Temperature

-20℃ to 70℃ (-4℉ to 158℉)

Weight

1kg (main unit)

Dimensions

254mm × 174mm × 35mm

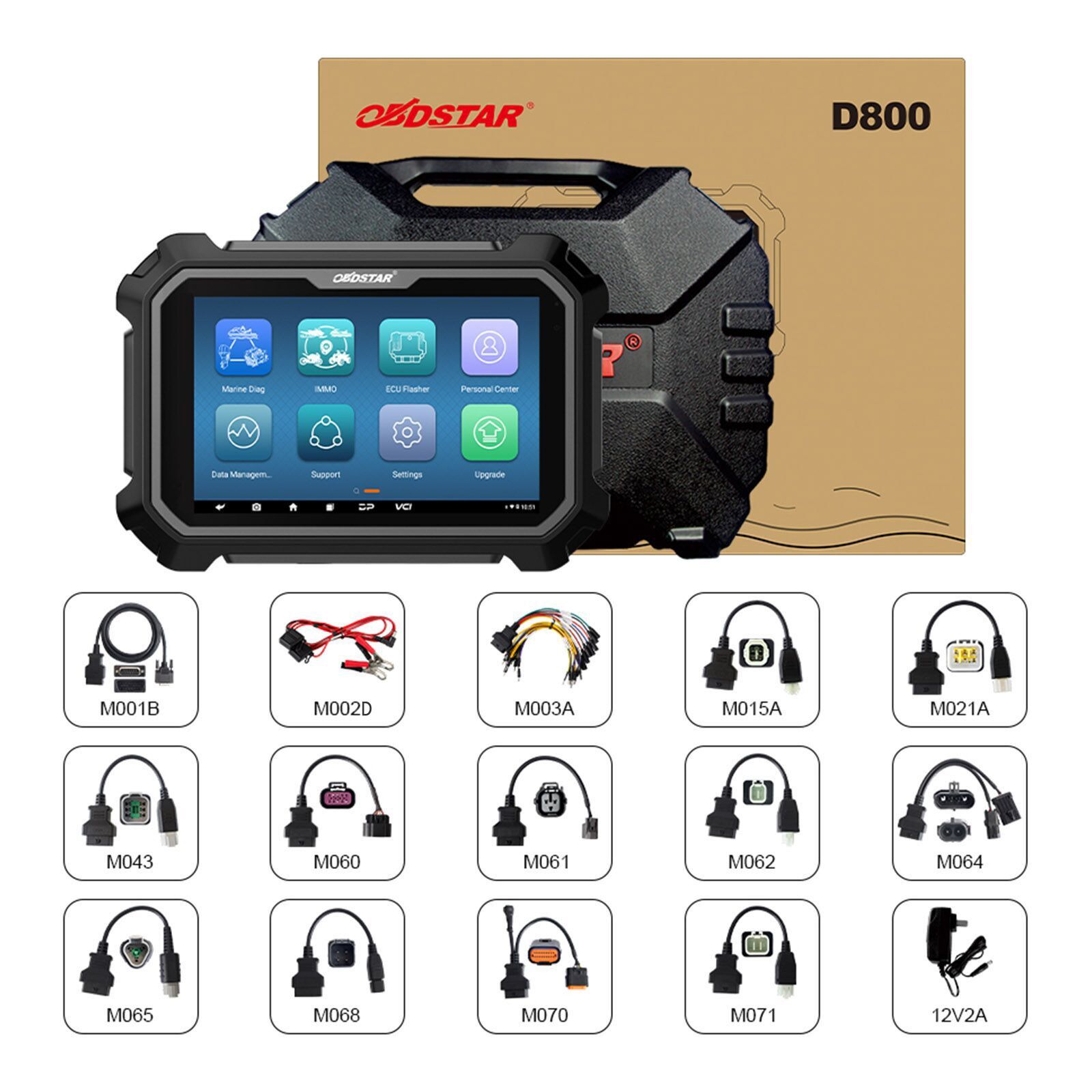

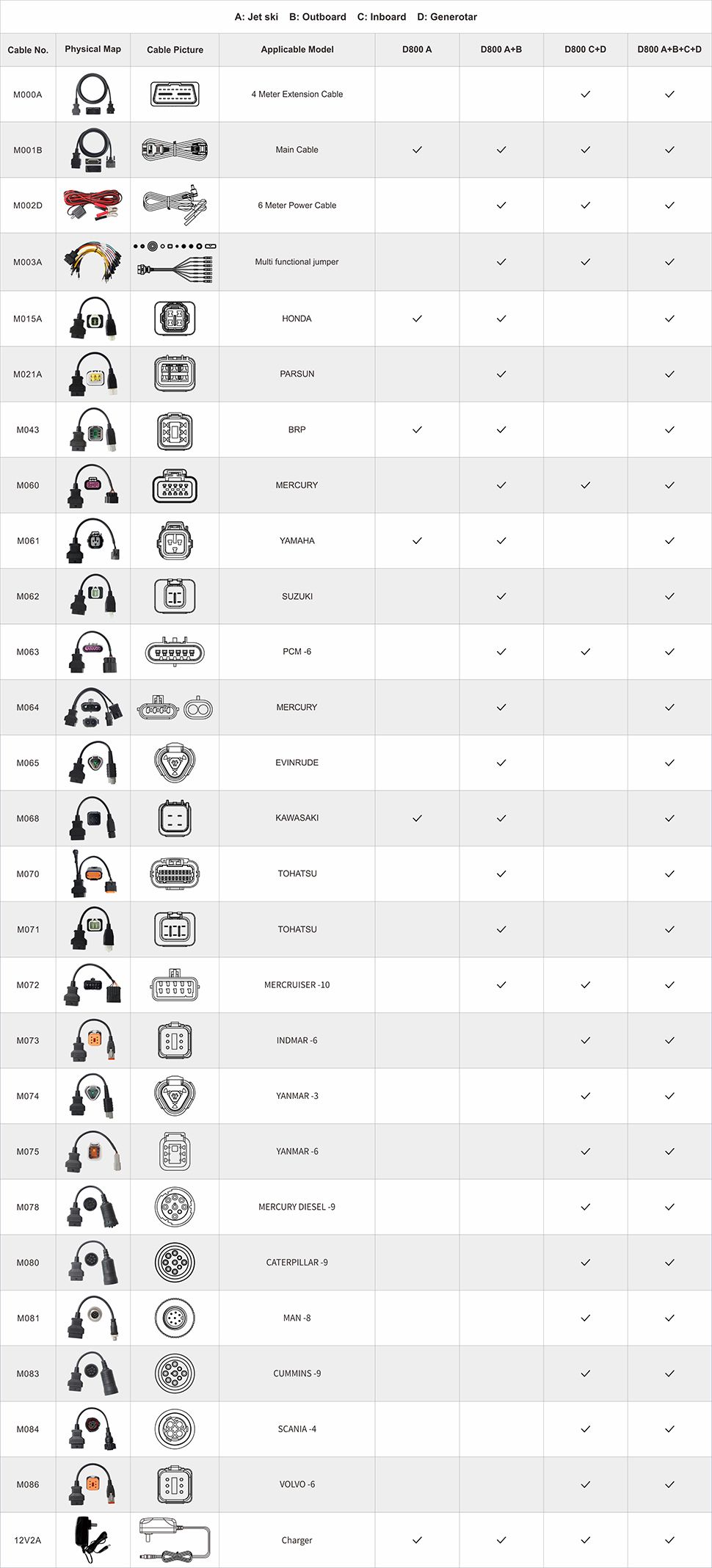

Package Contents

• 1pc × M001B main cable
• 1pc × M002D 6 meters power cable
• 1pc × M003A Multi-functional jumper
• 1pc × M015A Honda
• 1pc × M021A Parsun
• 1pc × M043 BRP
• 1pc × M060 Mercury
• 1pc × M061 Yamaha
• 1pc × M062 Suzuki
• 1pc × M064 Mercury
• 1pc × M065 Evinrude
• 1pc × M068 Kawasaki
• 1pc × M070 Tohatsu
• 1pc × M071 Tohatsu
• 1pc × 12V 2A charger
