XTOOL D7 OBD2 Automotive All System Diagnostic Tool Code Reader Key Programmer Auto Vin with 36+ Reset Functions Active Test
XTOOL D7 OBD2 Automotive All System Diagnostic Tool Code Reader Key Programmer Auto Vin with 36+ Reset Functions Active Test
XTOOL D7 OBD2 Automotive All System Diagnostic Tool Code Reader Key Programmer Auto Vin with 36+ Reset Functions Active Test
XTOOL D7 OBD2 Automotive All System Diagnostic Tool Code Reader Key Programmer Auto Vin with 36+ Reset Functions Active Test
XTOOL D7 OBD2 Automotive All System Diagnostic Tool Code Reader Key Programmer Auto Vin with 36+ Reset Functions Active Test
XTOOL D7 OBD2 Automotive All System Diagnostic Tool Code Reader Key Programmer Auto Vin with 36+ Reset Functions Active Test

XTOOL D7 OBD2 Automotive All System Diagnostic Tool Code Reader Key Programmer Auto Vin with 36+ Reset Functions Active Test

  • US$510.00 US$408.00 20%
  • In Stock
  • Quantity
8-In-1 Graphing,More Comprehensive Live DataThe original 4-in-1 graph is changed into 8-in-1 graph,Allow you to customize specific PID, and merge graphs for up to 8 data PIDs combined at one time in one graph
Specifications
  • Item No.
  • COBD27539
  • Weight
  • 5.83KG
Description

2023 Upgraded Version XTOOL D7 ALL-IN-ONE Service Tool, Cost effective Purchase,Best Choice on Aliexpress!

 OE-Level Full Systems Diagnostics

D7 auto scanner with complete capabilities for read & clean codes, live data, active test, ECU information, adaptation, matching, etc. Powerful OE level diagnostics for more than 80 US, Asian and European makes and models.

36+ Advanced Maintenance Services,Over 10 Kinds of Advanced Functions New Added: (Available above APP V4.27.4)

Covers all common maintenance functions like Oil Reset, ABS Bleeding, Injector coding, Fuel Trim Learn, Transmisson Reset, Language Change, A/F Settings, Stop/Start Reset, SAS Reset, TPMS Reset
New added in 2023:
HVAC Control Module Calibrate, Hybrid Control Compression Test, Language change, A/F Settings, Stop/Start Reset, Air Suspension, Headlight, Transport Mode, Tire Upgrade, Crankshaft Position Sensor learning, Zero Point Calibration, SWS Calibration, Yaw Rate Sensor calibration, Fuel Trim Reset, Fuel Alcohol Composition Reset, Air/Fuel Reset, EVAP Test, Idle learn Reset, etc. more functions are still under development……

 Enhanced Bi-directional Control(Active Test):

Perform various active tests to check the integrity of systems or components and the operating conditions of various car systems or sub-systems without using the vehicle controls to test ABS motor, window, door, solenoids, relay, switch, valves, sunroof, headlamps and etc to check its functionality.

8-In-1 Graphing,More Comprehensive Live Data

The original 4-in-1 graph is changed into 8-in-1 graph,Allow you to customize specific PID, and merge graphs for up to 8 data PIDs combined at one time in one graph.

PDF Diagnostic Report & Remote Suppport

D7 auto diagnostic scan tool enables diagnostic tech or mechanics to generate history diagnostic reports for sharing with customers by printing it out or sending it to customers via PDF.If you encounter problems and are not able to solve them, you could come to us to reserve remote assistance from XTOOL TECH TEAM.

Upgraded Android 10.0 OS,7-inch LED capacitive screen with 1024×600 resolution.

The 2023 new version of D7 has been upgraded the Android 10 operating system, bringing you a faster, smoother and more consistent experience.

Buying with 3-Year Software Free Update & Lifetime Perfessional Technical Service

Most scanner in the market within same price range comes only 1 year update, XTOOL D7 scanner comes 3 years free software update. You can added car models coverage, improve performance and capabilities within its fold for 3 years. You can still use the scanner normally even when the free updates period expires.

Wider Coverage for More Vehicles(still expanding in 2023)

Add more models in 2021 and 2022, expand to 140+Brands, and 10000+Models for EU,ASIA,US domestic cars to perform OE level diagnostics,Active test... XTOOL technical team is still adding new models.

>>>OE-LEVEL Full System Diagnostic Scanner Tool,Professional Tool for Auto Mechanic

XTOOL D7 is an full system diagnostic scanner as it can scan all available systems of car to read and clear codes, view live data stream of various sensors and graph it, retrieves freeze frame, perform active tests to check the work status of modules, providing you with a Dealership-Level only diagnosis, getting the accurate and in-depth diagnosis across all automotive systems.
Include : ABS System, engine System, SAS System , TPMS System , IMMO System , Battery System ,Oil Service System , SRS System ,DPF System ,Air Conditioning System,Transmission System, etc...

>>>Active Test / Bi-directional Scan Tool

XTOOL D7 is a bi-directional scan tool, allow you to request information or command a module to perform specific tests and functions, while observing the resulting data to troubleshoot and fast repair. Bi-directional Control (also referred to as Active Tests/Component Tests) function can save the mechanic/workshop loads of time and help them get through more jobs every day.
D7 can perfrom EVAP Test, Fuel Trim Reset, Fuel Composition Reset, Injector Buzz Test, Fuel Pump, Window/Mirror/Door Lock Test, Pump and Value Tests, etc.

Attention: Active tests function varies by vehicle system. Please come to us with vehicle Make/Model/Year/VIN to check before purchase.

>>>36+ Hot Service Functions Accessible for Complete Car Maintenance[Continuously Updates......],Save You Tons of Money!

1.Oil/Service/Maintenance Light Reset: Close the oil service light and reset service mileage & service interval after replacing the engine oil.

2.EPB Reset:Reset the new electronic parking brake for braking wheels safely again.

3.Throttle Relearn: Allows to reset the throttle actuators to accurately regulate throttle (or idle engine) operations, helps keep your idling and acceleration smooth.

4.TPMS Reset: Relearn TPMS sensors so that new sensors can be recognized by ECU.

5.ABS Bleeding: Get a firm brake pad after air exhaustion.

6.IMMObilizer: Allows to disable a lost vehicle key to protect the vehicle from being stolen and add the new key.

7.DPF Regeneration: Allows to clear PM from the DPF filter through oxidation or combustion to stabilize the filter performance.

8.Injector Coding: Code the new injectors after replacement for accurate fuel injecting control and improve fuel efficiency.

9.SAS Calibration: Erase the fault steering angle sensor memories and make calibration for the Steering Angle Sensor.

10.BMS Reset: Register the newly replaced car battery into the ECU.

11.Window Initialization, Gearbox Match, Instrument Cluster, Headlight, Air Suspension, Gear Learning, EEPROM Adapter, Airbag Repair, Cylinder, Seat Configurations, Electronic Pump Activation, Disabled Transportation, Performance Tire Upgrade, A/F Setting, Stop/Start Reset, Language Change and Reset Control Unit, Rain/Light Sensor, A/C Relearn, HV Battery, VGT Relearn, FRM Reset, EGR Relearn, SRS, Clutch Adaptation, Speed Limit etc…

More...

2023 Newest Add Functions(Available above APP V4.27.4):

HVAC Control Module Calibrate, Hybrid Control Compression Test, Language change, A/F Settings, Stop/Start Reset, Air Suspension, Headlight, Transport Mode, Tire Upgrade, Crankshaft Position Sensor learning, Zero Point Calibration, Fuel Trim Reset, Fuel Alcohol Composition Reset, Air/Fuel Reset, EVAP Test, Idle learn Reset, Reset Control Unit, etc.

Attention:Service Functions vary by vehicles,NOT work on all vehicles. Please check with us before purchase.

>>>More Enhanced Functions on D7 That Every Workshop needed.

IMMO Key Programming Functions:

Disable a lost vehicle key and program the replacement key fob for specific vehicles.Note: Check the key type with us before buying.

Auto VIN SCAN for Quick Diagnosis:

D7 diagnostic tool will start auto-detected process and you can scan your car’s detailed version information with one click. You can always navigate your vehicle manually to perform diagnostics if the AuoVIN do not work in some cases.

8 IN 1 Live Data Graphing Functions:

D7 can diagnostic all trouble codes and live data stream of full electrical control units and view Freeze Frame.Display live data stream in text or graphs like cylinder misfires data, transmission fluid/Oil temperature, fuel trim, ATF temperature, cylinder balance rates, engine rpm, O2 sensors, mass air flow sensor data, fuel pressure, actual fuel temperature vs desired fuel temperature and etc;

(New Added)Export Live Data as CSV: Exporting live data as CSV file to track vehicle performance over time.
(New Added)8-In-1 Graphing: Allow you to customize specific PID, and merge graphs for up to 8 data PIDs combined at one time in one graph.
(New Added)Graph up to 8 sensors individually on the same screen.

One-click Online Update:

Just connect to the network, you can enjoy updates anytime and anywhere throughout the year, download the latest models, update the latest functions, and avoid the complex update mode of USB connection!

>>>Extensive Vehicle Coverage

XTOOL D7 car diagnostic tablet works on 80+ Makes, 140+ Brands, and 10,000+ Models, US domestic and abroad up to 2021, 2020 to perform OE level diagnostics……XTOOL technical team is still adding new models

Europe Cars:

for DEMO,for VW,for MINI,for LANDROVER,for SEAT,for FERRARI,for FORD,for OPEL,for ALFA for ROMEO,for VOLVO,for ABARTH,for SMART,for BMW,for FIAT,for LANCIA,for RENAULT,for ASTONMARTIN,for GAZ,for MASERATI,for MEREDES,for UAZ,for SKODA,for CITROEN,for DACIA,for AUDI,for JAGUAR,for PORSCHE,for PEUGEOT

America Cars:

for DEMO,for GM,for FORD,for CADILLAC,for CHEVROLET, for GMC,for HUMMER,for JEEP,for SATURN,for PONTIAC,for LINCOLN,for DODGE,for Chrysler,for Buick

Asia Cars:

for Demo,for TOYOTA -LEXUS ,for ISUZU,for MAZDA,for KIA,for INFINITI,for ACURA,for NISSAN,for RENAILTSAM,for HYUNDAICY,for HYUNDAI,for HONDA,for SUBARU,for SUZUKI,for MITSUBISHI,for SSANGYONG

Australia Cars:

For Demo ,for FORD

China Cars:

for DEMO,fro JAC,for CHERY,for GEELY,for GREAT WALL ,for BYD,for LIFAN

Work with 8+12 Cable Adapter (Package NOT Included) :

Support for Chrysler 2018 and later vehicles.

Work with CAN FD Adapter (Package NOT Included) :

Support for GM / GMC / Cadillac / Chevrolet / Buick Cars after 2020.

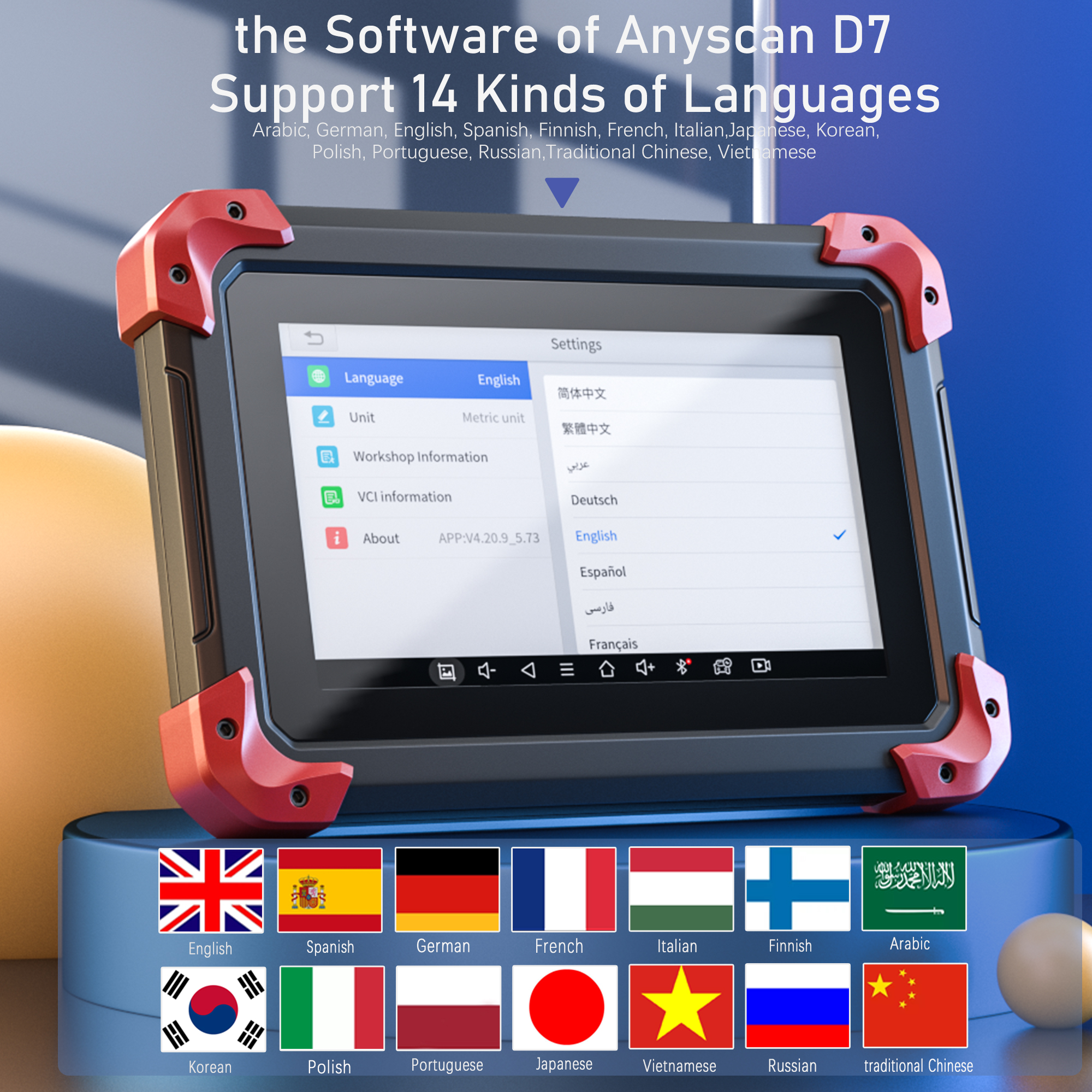

>>>15 Languages Supported,No Languages Barrier Anymore!

XTOOL D7 has 15 languages menu options,but default in English. If you want to change the language to Spanish, German, French, Italian, Finnish, Arabic, Japanese, Korean, Polish, Portuguese, Vietnamese, Russian, Simplified Chinese and traditional Chinese etc. Kindly come to us with the S/N.

>>>How to Change the Language?

Step 1. Leave a Message about your SN and tell us what Language you need.Q: Where is the SN?
Step 2. "Settings"-> "Language"-->Choose Language
Step 3. "Settings"-->”System settings”-> Language & input -->Choose Language
Step 4. Reboot and Ready to Update,Click to Update,Download Software

>>>Packing List

D7 Smart Diagnostic Tablet * 1
VGA Main Cable * 1
OBD II-16 Connecter * 1
Micro USB Cable * 1
Charger for Tablet * 1
EU Charger Adapter * 1
US Charger Adapter * 1
User Manual * 1

>>> D7 Parameter

Operating System:Android 10.0 O.S.
Display:7.0 inch touch screen with 1024 X 600 resolution
Power and Battery:4000mAh, 3.7V
Memory:2GB+32GB
Power Consumption:8W
Power Voltage:5V
Processor:Quad-core 1.6GHz ProcessorConnectivity:Micro USB+WIFI(2.4Ghz & 5Ghz)
Dimension (L*W*H):218*150*29mm
Sensors:Gravity sensor, light sensor
