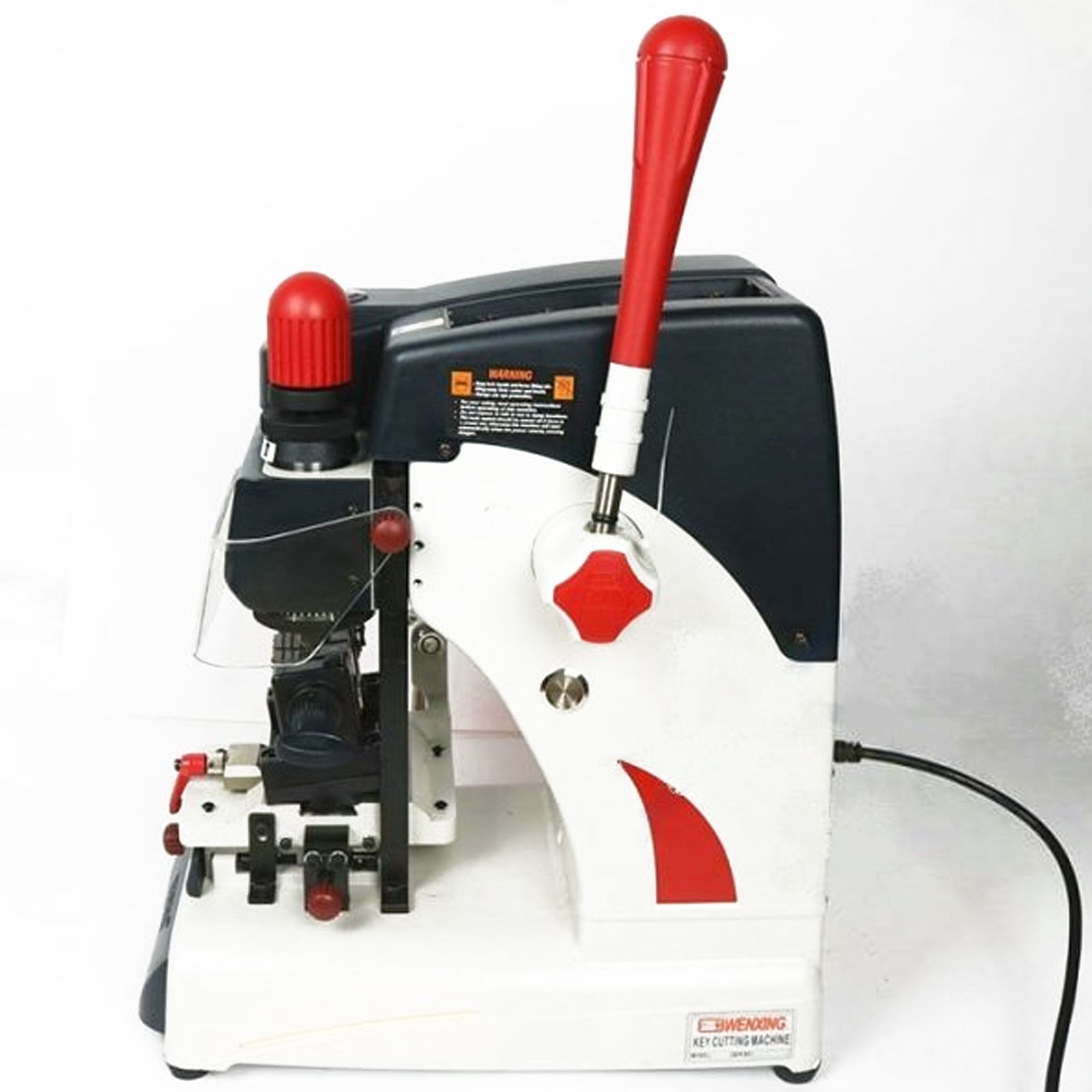

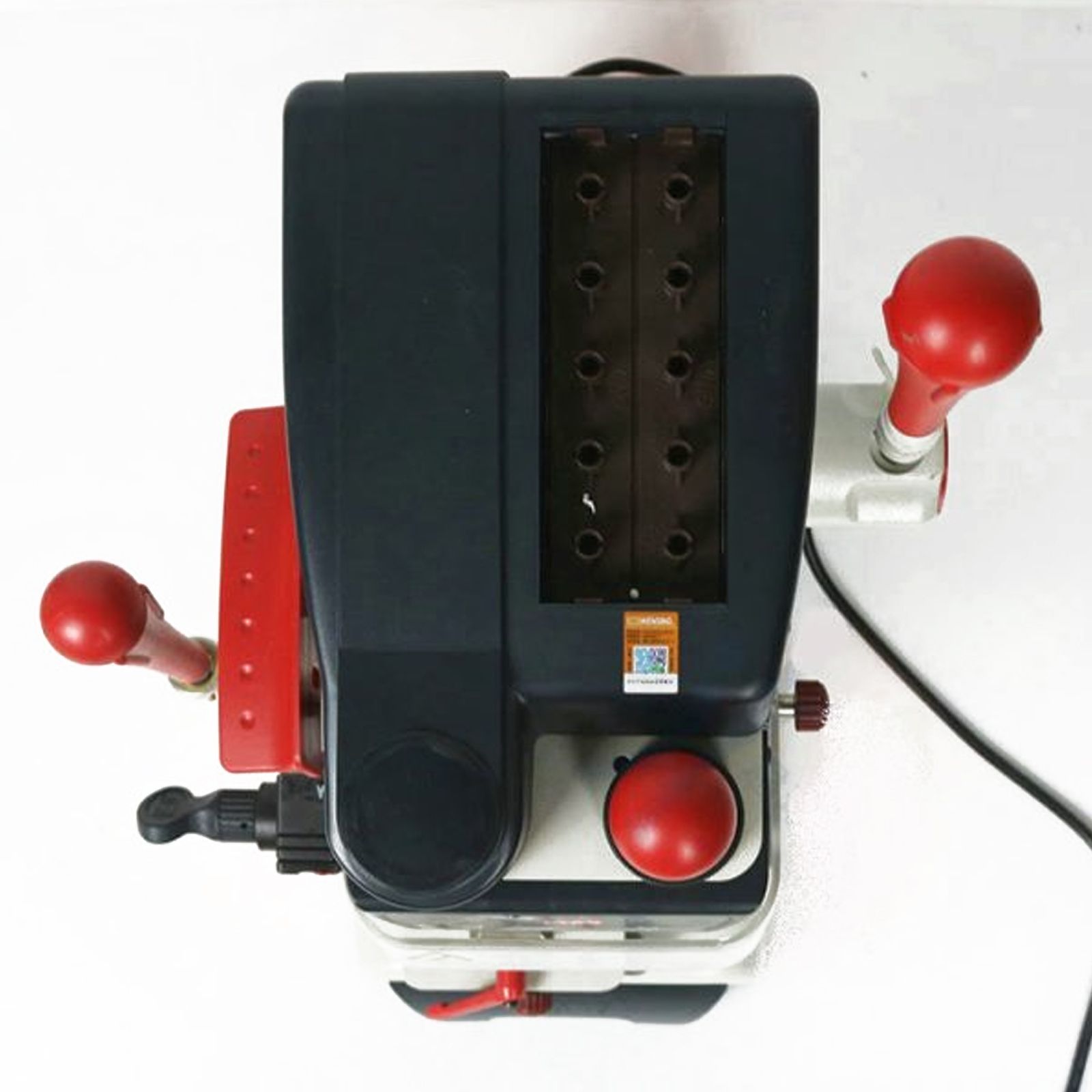

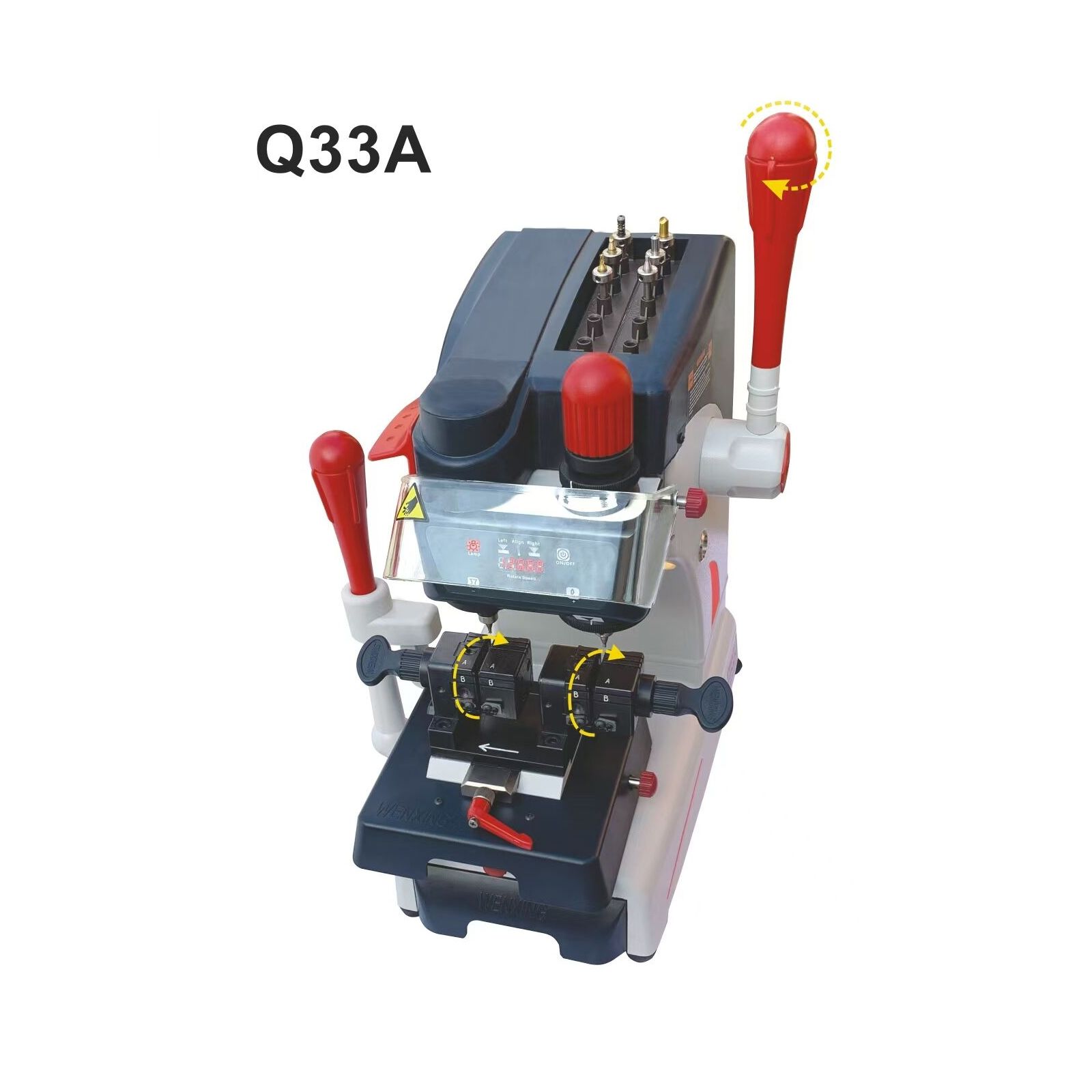

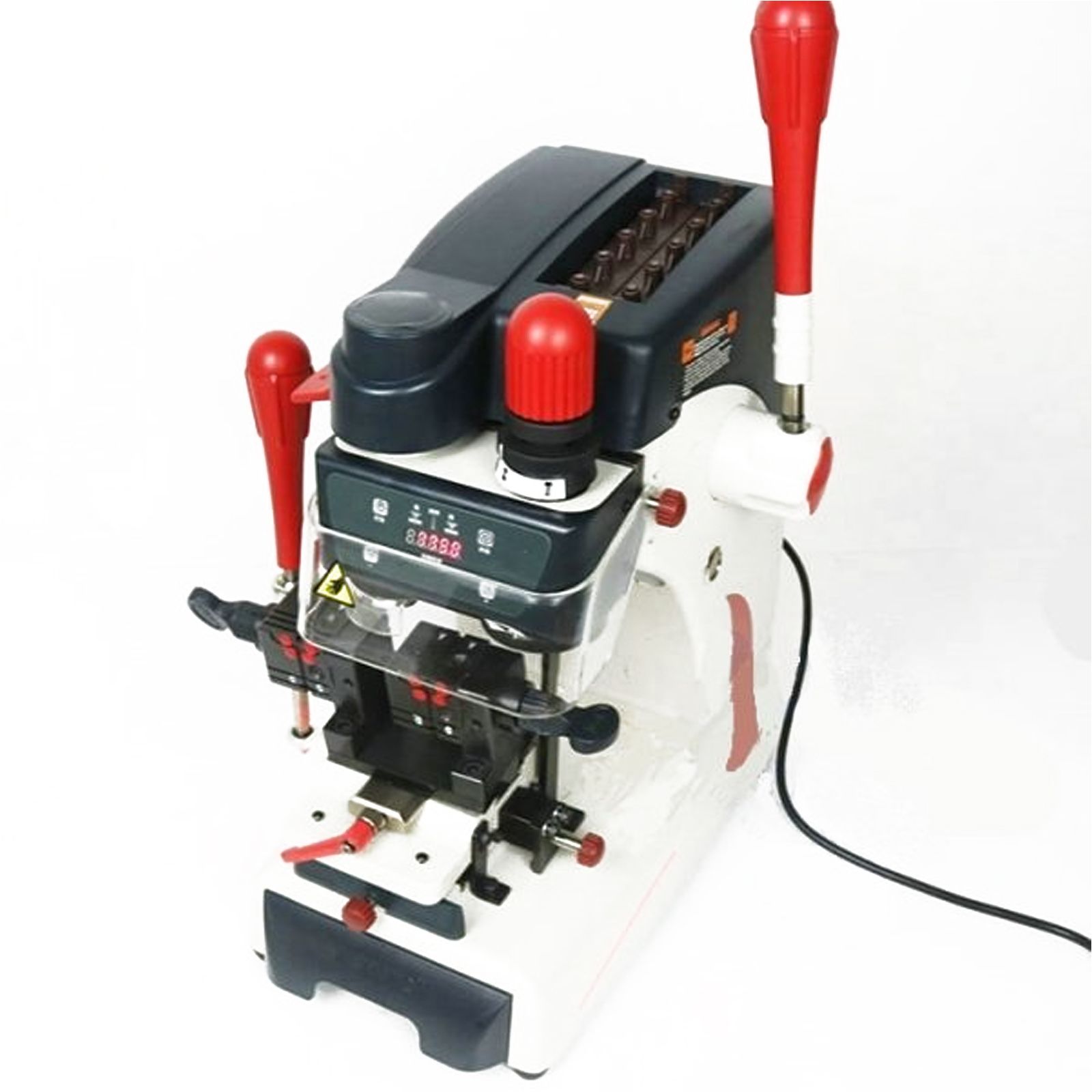

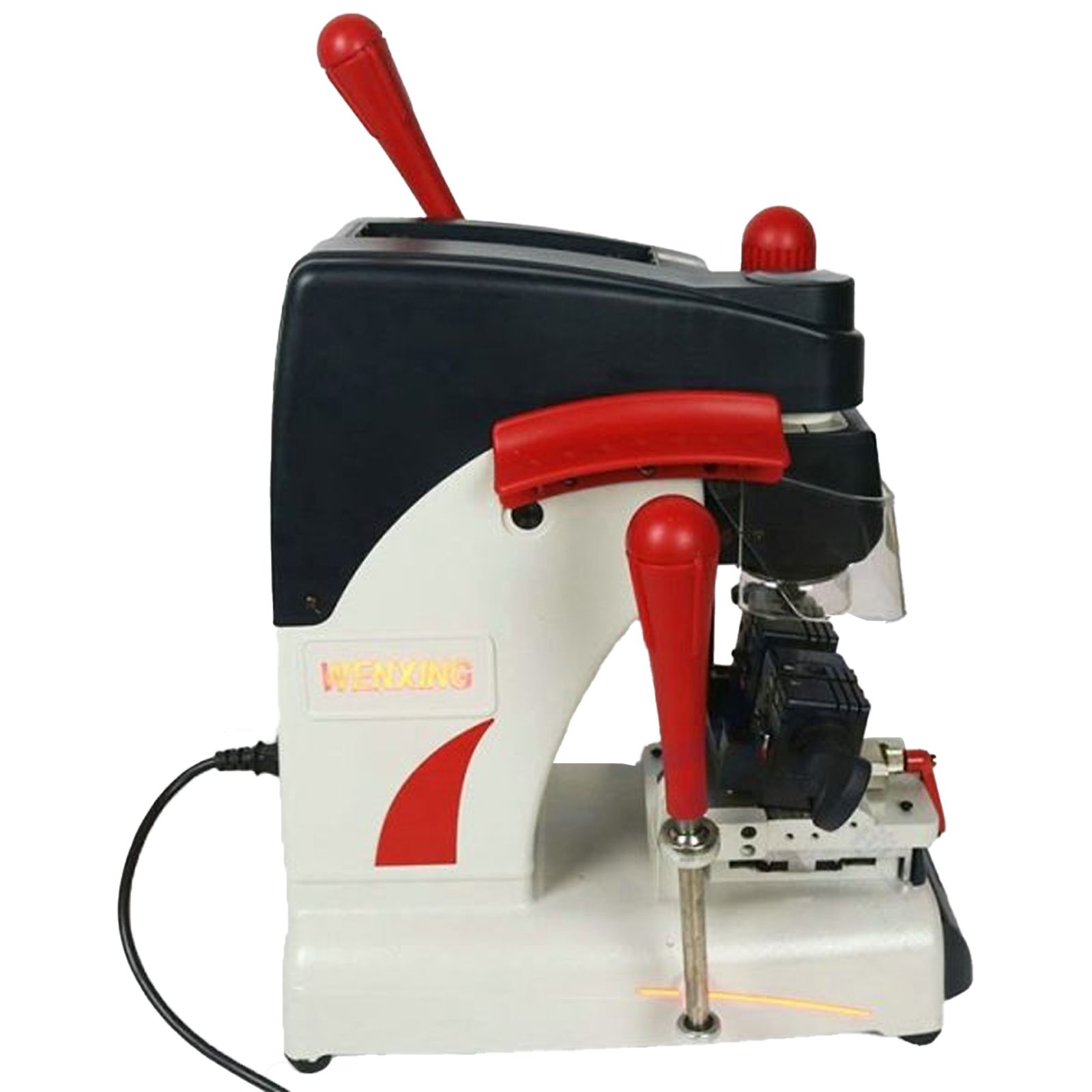

WENXING Q33A Advanced Multi-function Vertical Manual Key Cutting Machine
Notice:
Shipping by sea, 30–45 days delivery time.
Product Introduction
The WENXING Q33A vertical Key Cutting Machine features a vertical feed self-lock fixed hand shank, enabling single-hand operation with consistent feeding depth during key duplication. It includes a guide pin feeding fine adjustment unit and a patented four-sided (A/B/C/D) rotational gripper, allowing duplication of keys with complex profiles—such as high-security keys with slots and Israeli tech keys with concave and convex beads. The machine comes equipped with six grippers offering different clamping methods, a 12V vehicle-mounted power supply, wide-angle LED lighting, and extra-large upper and lower lockers.
Product Features
Utility Model Patented Product
Capable of copying thin inner and outer wavy anti-theft high-grade C-lock keys, including complex, high-security keys with slots and Israeli tech keys featuring concave and convex beads.
Patented Four-Sided (A/B/C/D) Rotational Gripper
One clamping fixture functions as four, enhancing versatility and efficiency.
Light-Touch Computer Control and Four-Sided Rotating Fixture
Delivers high-speed performance with a tool speed of up to 12,000 RPM.
Enables one-to-one copying of car and household keys without the need for manual CNC key code selection, tool proofreading, or probe zeroing—saving significant time and reducing required operator skill while maintaining high precision.
Intelligent Tool Proofreading with Digital Computer Display
Features full-function electronic induction for precise tool and guide pin depth calibration.
The digital display shows real-time tool speed, and the key copying process runs uninterrupted. Users can adjust cutting speed between 5,000 RPM and 12,000 RPM to minimize tool wear and damage.

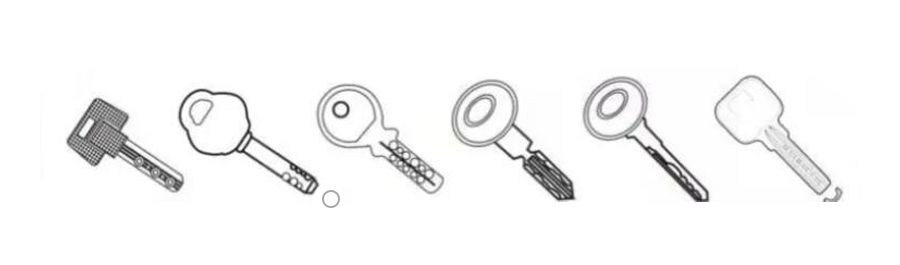

Cuttable Key Types
Package Includes
1 pc × WENXING Q33A Advanced Multi-function Vertical Manual Key Cutting Machine
