SUPER MB PRO M6+ Pro Full Version with 512G SSD Pre-installed on Lenovo T440P Laptop - I7 CPU, 8GB Memory Ready to Use

Highlights:

Equipped with a Lenovo T440P laptop featuring an Intel I7 CPU and 8GB of memory, the device is pre-installed with software ready for use.
Built on Super MB PRO M6+, it features enhanced product functions and compatibility. It now includes real-time vehicle voltage display and LAN ethernet cable connection, fully compatible with original Mercedes-Benz software.
Super MB Pro M6+ Pro Full Version combines MB Star full functionality, BMW F+G series coding, and other DoIP protocols.
The front label incorporates a design with trademark rights and art copyrights for improved product recognition. It features a multi-function switch button to easily switch to BMW test mode.
Communication can be established via USB3.0 cable or Ethernet cable, enhancing the product's compatibility with various computers and tablets without needing old-fashioned ones with network ports.
M6+ Pro supports remote C-side operations. No special diagnostic software is required for the client; a local computer with Internet access suffices for remote diagnosis and vehicle failure testing.
Supports BMW E-SYS, Aicoder, wired and wireless programming/coding of F and G series, as well as activation of hidden functions.
Built-in support for BMW APP software, including English versions of Bimmercode (coding), Bimmerlink (diagnostics codes clearing), MHD, Bimmergeeks, XHP Flashtool, ODIS-e., XDelete, THOR, M Flasher.PRO-Tool.
Supports vehicles with DOIP communication protocol like new Volkswagen, Audi, Skoda, Bentley, and Lamborghini. A dedicated transition button is provided.
Suitable for models such as W223 c206 213 167.

Product Functions:

Function	M6	M6+	M6+ Pro
XENTRY	✔	✔	✔
XENTRY Truck	✔	✔	✔
DTS	✔	✔	✔
VIDEO	✔	✔	✔
MB DOIP	✔	✔	✔
MB WIFI	✔	✔	✔
PC USB	x	✔	✔
PC RJ45	✔	x	✔
Vehicle Voltage Real-time Display	x	x	✔
BWM Aicoder	x	✔	✔
BWM E-SYS	x	✔	✔

M6+ Pro Connection Instructions:

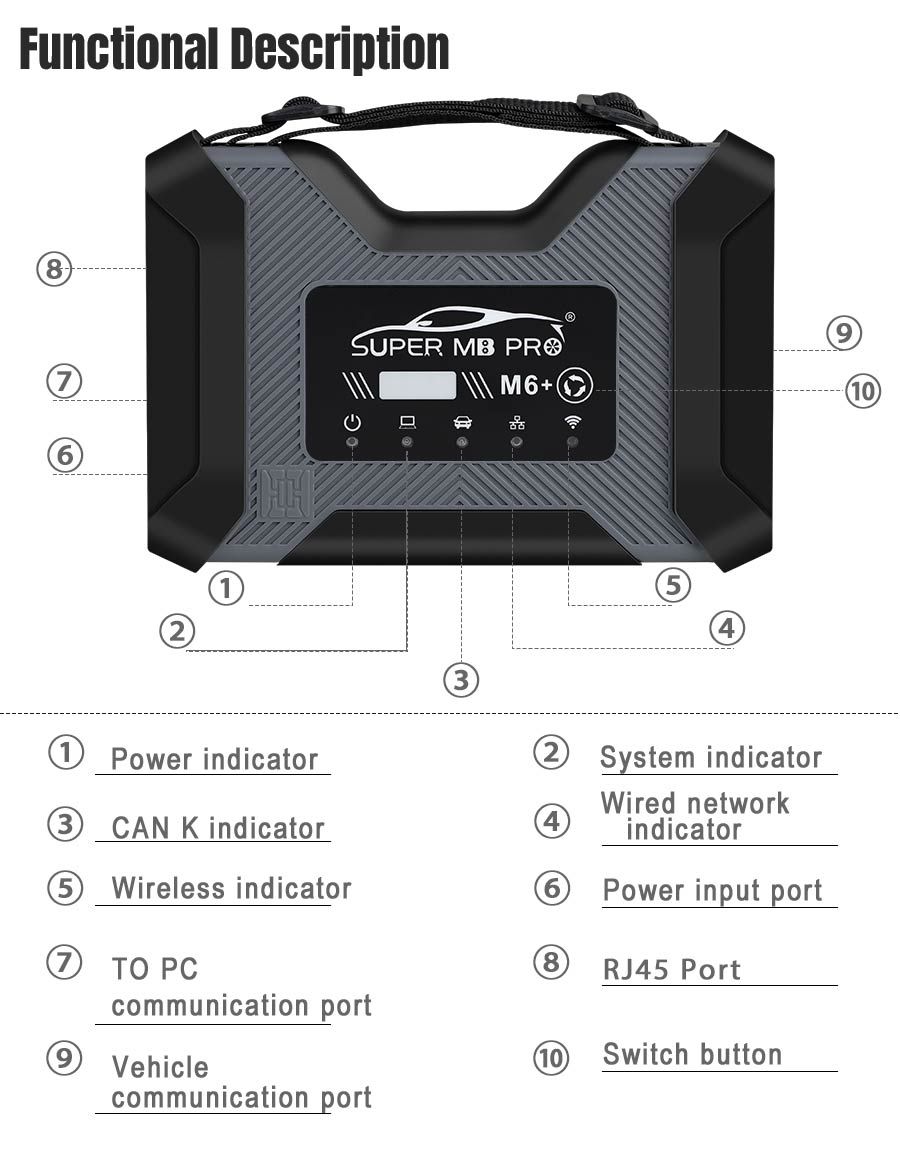

SUPER MB PRO M6+ PRO Diagnosis Tool Full Package

M6+ PRO Mercedes-Benz and BMW configuration:

Plug the M6+PRO into the power supply or connect the OBD to the test vehicle, then plug in the USB/LAN cable of the M6+PRO.
Turn on the computer and plug in the computer's USB/LAN cable.
Open the network configuration interface of the computer and locate the Realtek USB FE Family Controller network/the PC's network adapter.

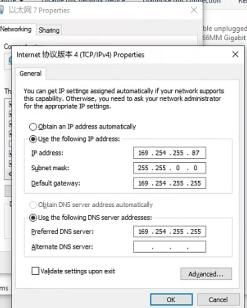

Click "Properties" > TCP/IPV4, and set the IP address as shown in the figure below.

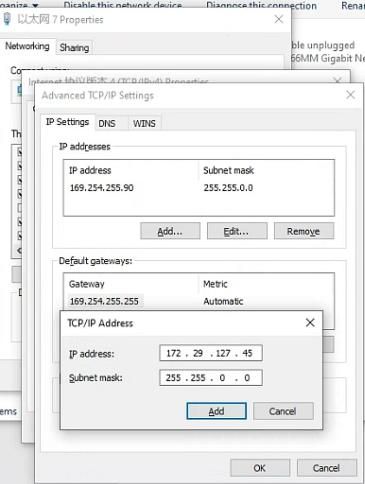

Click "Advanced", add a group of network IP addresses, and proceed as shown in the figure below.

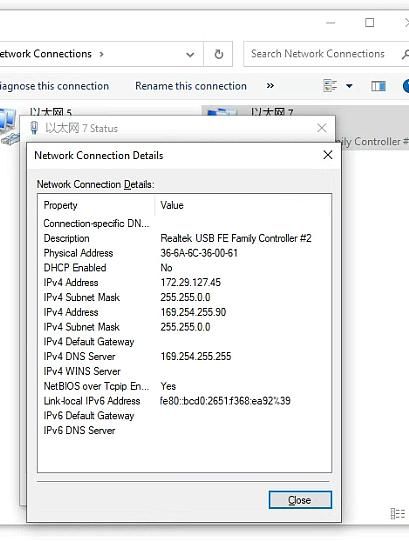

After clicking "OK", the configuration will be successful. The display should appear as shown in the figure below.

Note: For a new M6+PRO on the same computer, reset the IP address. After successful configuration, no need to set it again for wired and wireless Internet access.

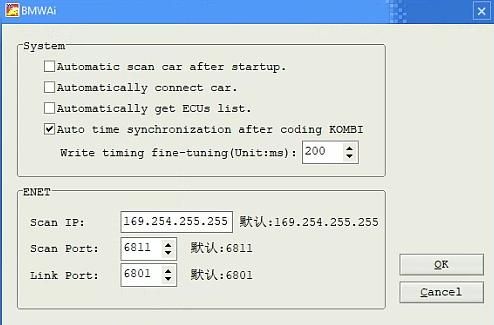

BWM Wireless BMWAiCode Configuration (F+G chassis only):

Connect to the M6+PRO -***, password: 123456789. Press and hold the M6+PRO switch button for 3 seconds.

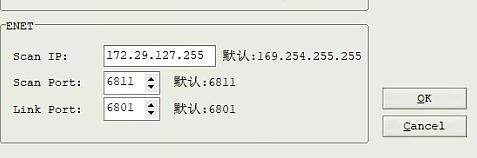

BWM Wired BMWAiCode Configuration (F+G chassis only):

Connect the USB/LAN cable, press and hold the M6+PRO switch button for 3 seconds.

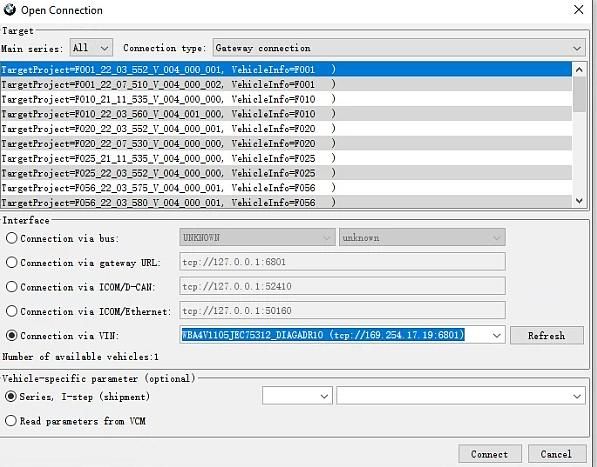

BWM E-SYS Configuration (F+G chassis only):

Connect to the M6+PRO -*** wirelessly, press and hold the switch button for 3 seconds.

BWM Wireless ISTA Configuration (F+G chassis only):

Connect to the M6+PRO -*** wirelessly, press and hold the switch button for 3 seconds.

Supported BMW Models and Years:

Model Year	2019	2018	2017	2016	2015	2014	2013	2012	2011	2010	2009
X1	✔	✔	✔	✔	✔	✔	✔	x	x	x	x
X3	✔	✔	✔	✔	✔	✔	✔	✔	x	x	x
X4	✔	✔	✔	✔	✔	✔	✔	✔	x	x	x
X5	✔	✔	✔	✔	✔	✔	x	x	x	x
X6	✔	✔	✔	✔	✔	x	x	x
1 Series	✔	✔	✔	✔	✔	✔	✔	✔	x	x
2 Series	✔	✔	✔	✔	✔	✔	✔	✔	x	x
3 Series	✔	✔	✔	✔	✔	✔	x	x
4 Series	✔	✔	✔	✔	✔	✔	x	x
5 Series	✔	✔	✔	✔	✔	x	x	x	x
6 Series	✔	✔	✔	✔	x	x	x
7 Series	✔	✔	✔	✔	x	x	x	x
