OBDSTAR ISCAN PRO INDMAR (Marine) Diagnostic Tool

Supports INDMAR Marine Diagnosis, BLM Reset, Camshaft Phaser Cleaning, and Oil-Life Monitor Reset

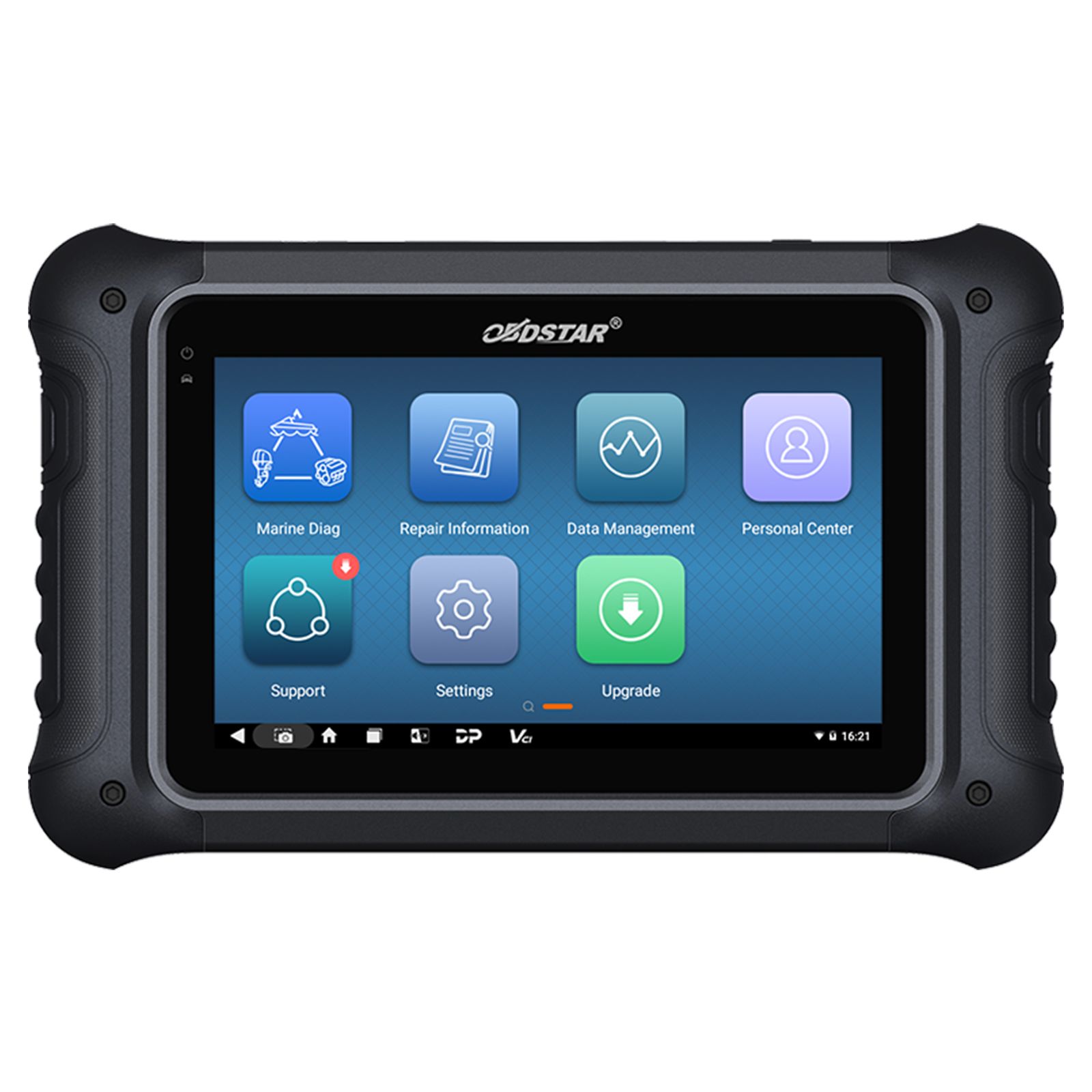

ISCAN PRO INDMAR (MARINE) is a portable tablet with high-performance capabilities and an industrial design tailored specifically for INDMAR marine engines. As a new generation of intelligent marine diagnostic equipment, it delivers a professional diagnostic experience powered by an RK3128 quad-core processor and a 7.0-inch capacitive touch screen.

Product Features

• Supports INDMAR marine diagnosis
• Supports BLM (Block Learn Multiplier) reset, camshaft phaser cleaning, oil-life monitor reset, misfire data clearing, fuel adaptation value liquidation, speedometer calibration, engine temperature sensor calibration, engine control strategy, and other special functions
• Compatible with 2.4L, 3.0L, 4.3L, 5.0L, 5.7L, 5.7L HO, 5.7L HO SS, 6.0L, 6.0L SS, 6.2L, STEYR 256, and other models

Core Functions

1. Runs on Android 5.1.1 operating system
2. Simple and intuitive menu guidance for quick mastery of equipment operation
3. Complete diagnostic functions: code reading, code clearing, live data stream, active tests, settings, coding, and more
4. Arbitrary menu selection for faster and more convenient navigation
5. Records and replays real-time data flow to quickly and accurately locate sensor and component faults
6. Wi-Fi connectivity enables one-click software upgrades
7. One-click remote assistance from OBDSTAR technical support staff

Advanced Functions

1. OBDSTAR mobile app integrates features like diagnostic socket location and technical bulletins, enhancing accuracy and efficiency when used with ISCAN PRO

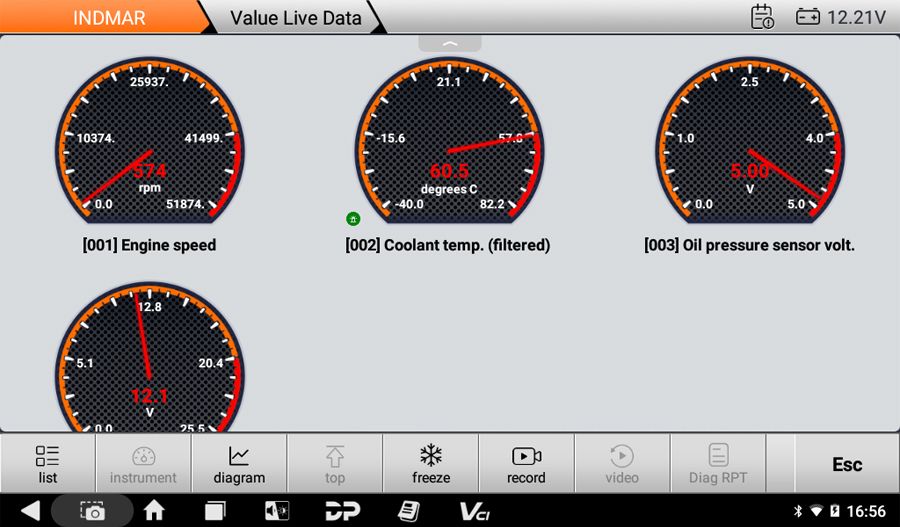

2. Multiple data flow display modes—including text, waveform diagrams, and instrument diagrams—for easier fault analysis
3. Supports BLM (Block Learn Multiplier) reset, camshaft phaser cleaning, oil-life monitor reset, misfire data clearing, fuel adaptation value liquidation, speedometer calibration, engine temperature sensor calibration, engine control strategy, and other special functions
4. Supports DC24V input

Supported Engine Models

2.4L, 3.0L, 4.3L, 5.0L, 5.7L, 5.7L HO, 5.7L HO SS, 6.0L, 6.0L SS, 6.2L, STEYR 256, and other models

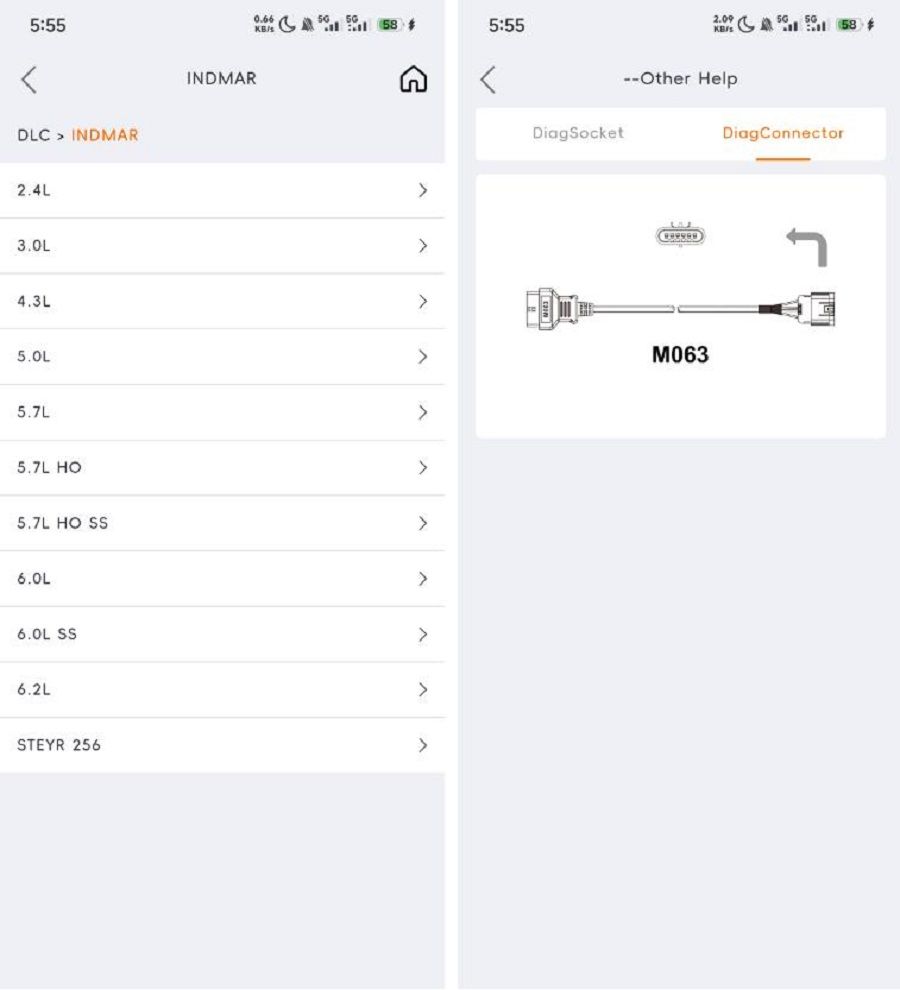

Function Display – From OBDSTAR Mobile App

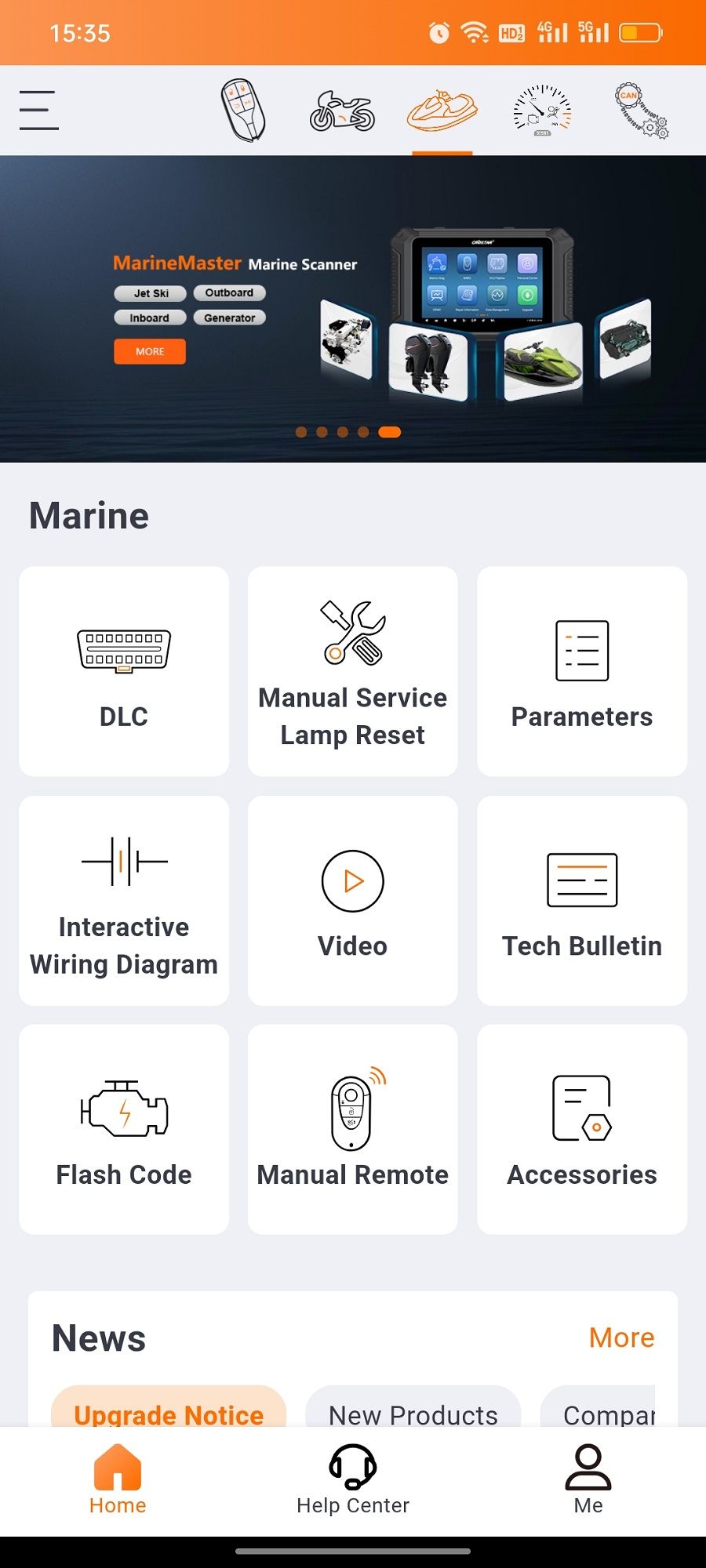

1. Main Page

2. Diag Socket / Diag Connector Location

Function Display – From ISCAN PRO

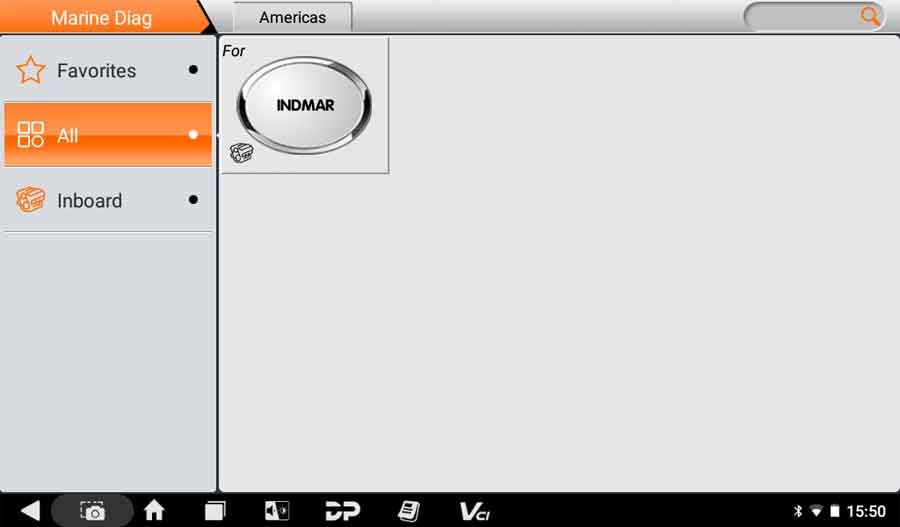

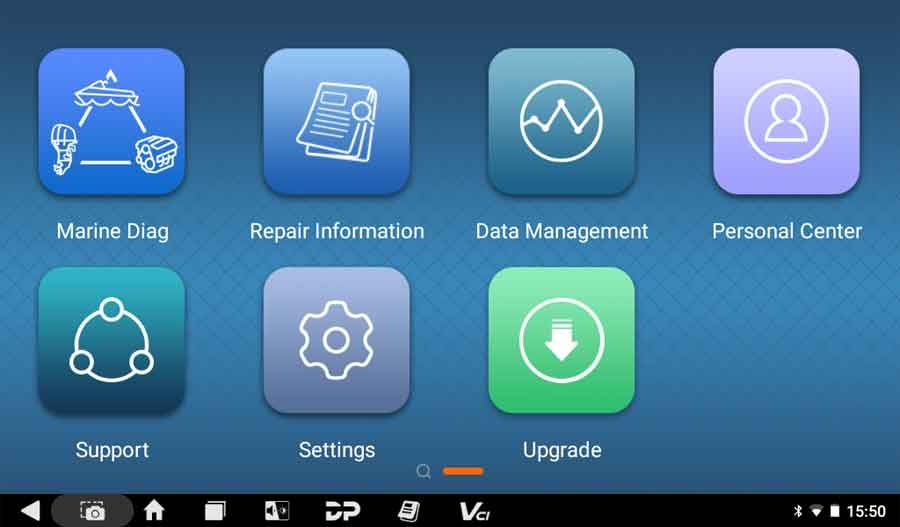

1. Main Page / Brand Supported

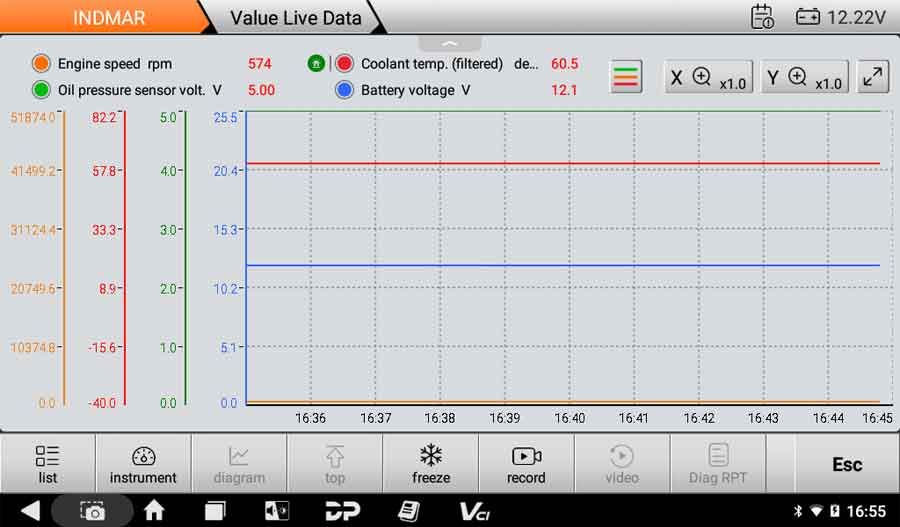

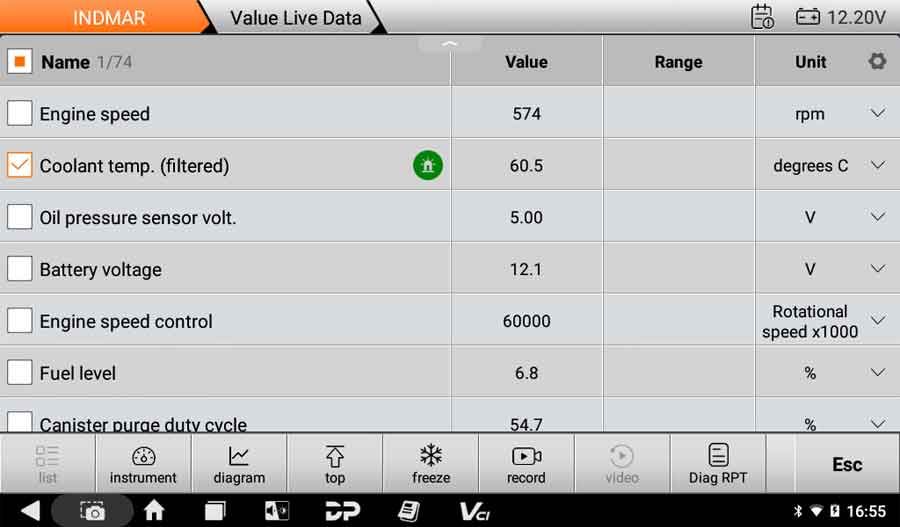

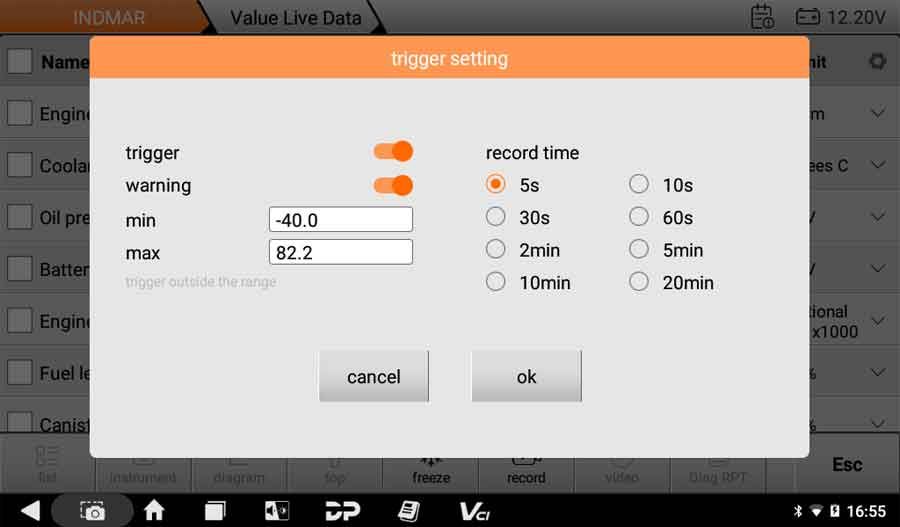

2. Data Flow: Text and Waveform Diagram

Product Specifications

• Operating System: Android 5.1.1
• CPU: RK3128 quad-core ARM Cortex-A7
• Battery: 3700mAh rechargeable polymer lithium battery
• Memory Expansion: Supports up to 32GB micro SD (TF) card
• Internal Storage: 16GB
• LCD: 7.0 inch
• Resolution: 1024 × 600
• Touch Screen: Capacitive
• Wi-Fi: Supported
• Working Temperature: -20℃ to 55℃ (14℉ to 131℉)
• Storage Temperature: -20℃ to 70℃ (-4℉ to 158℉)
• Weight: Approximately 0.766 kg
• Dimensions: 243 mm × 148 mm × 36 mm

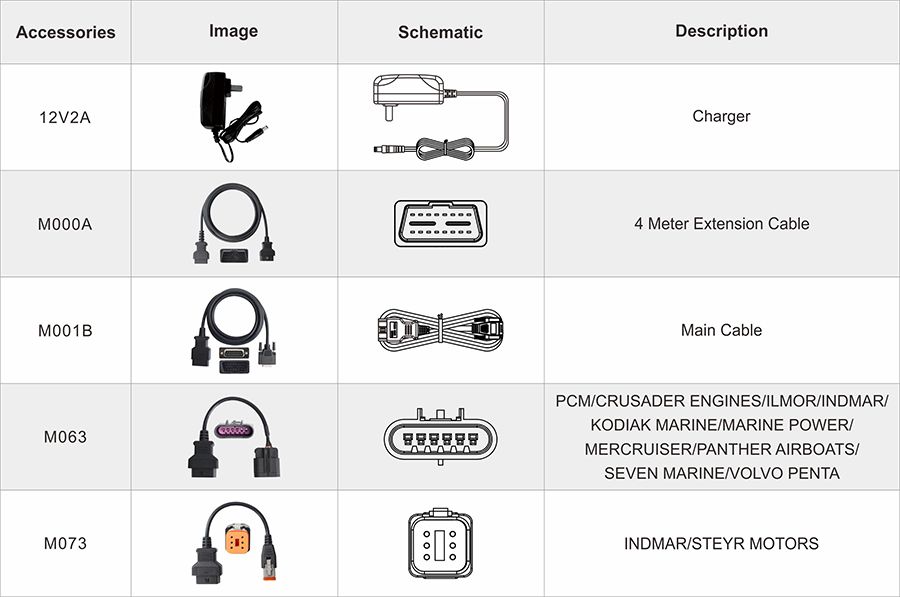

Package Includes

• 1 × Main Unit
• 1 × 12V 2A Charger
• 1 × M00A 4-meter Extension Cable
• 1 × M001B Main Cable
• 1 × M063 Cable
• 1 × M073 Indmar/Steyr Motors Cable
