Description
Due to battery regulatory restrictions, the package of this item does not include batteries.

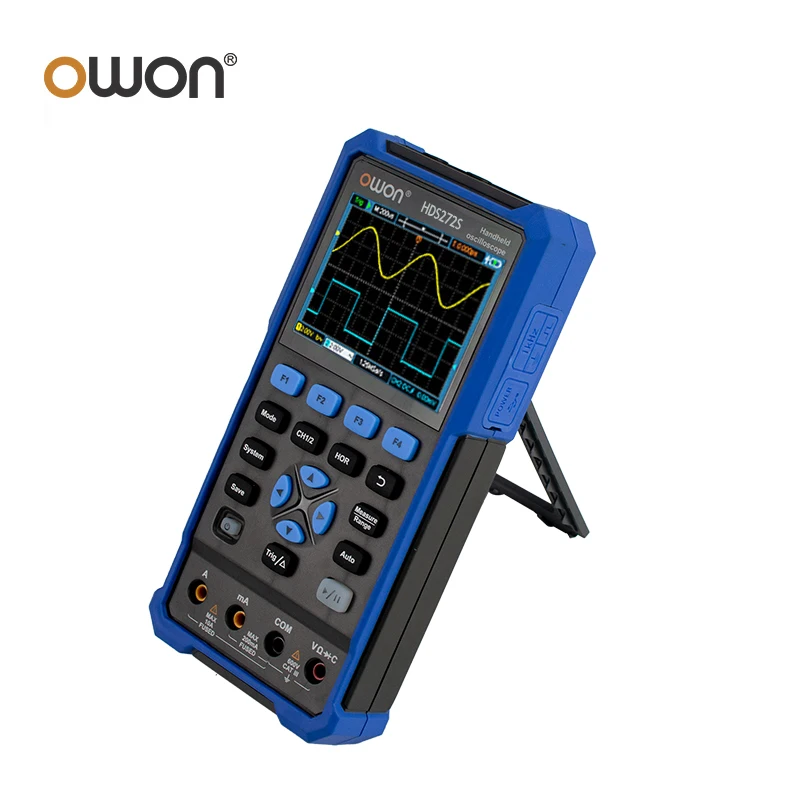

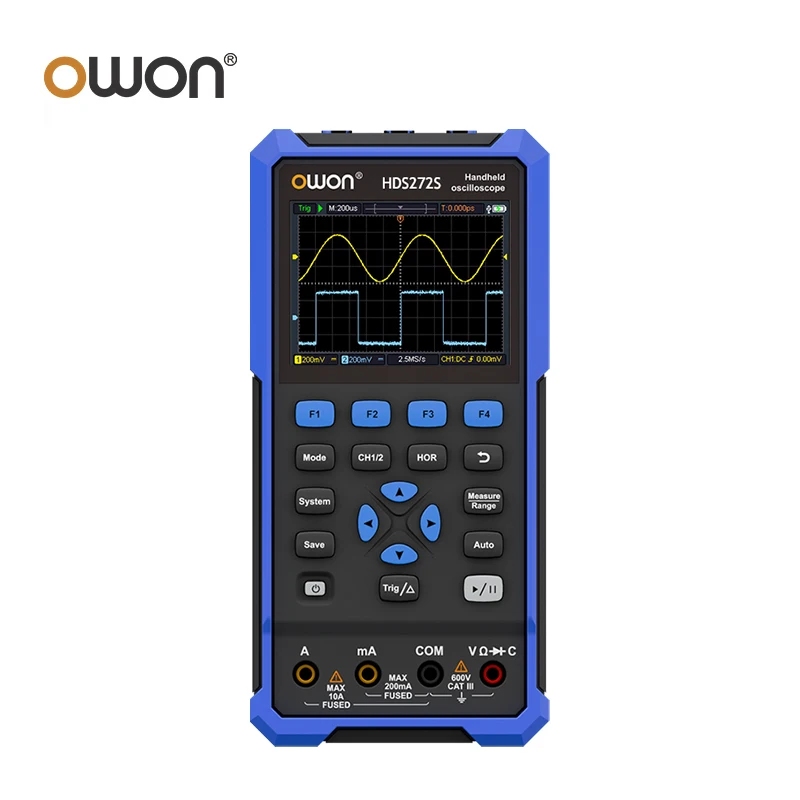

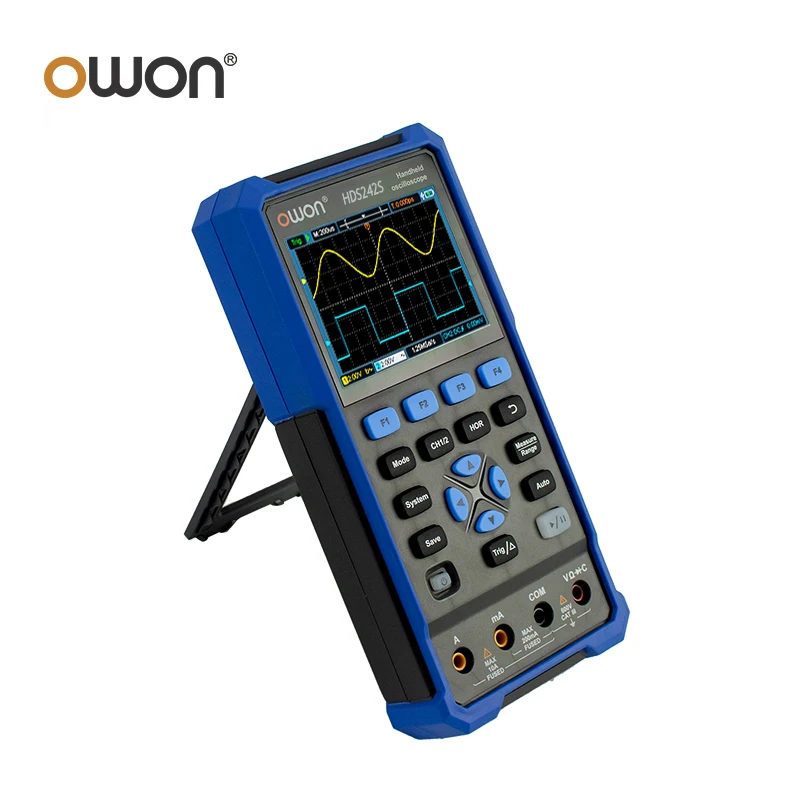

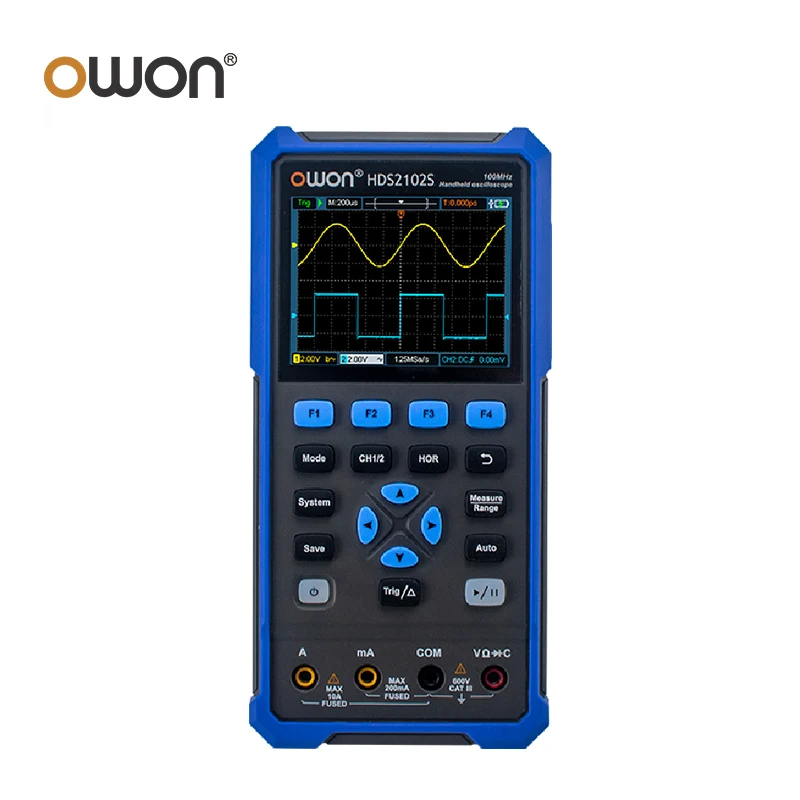

Key Features

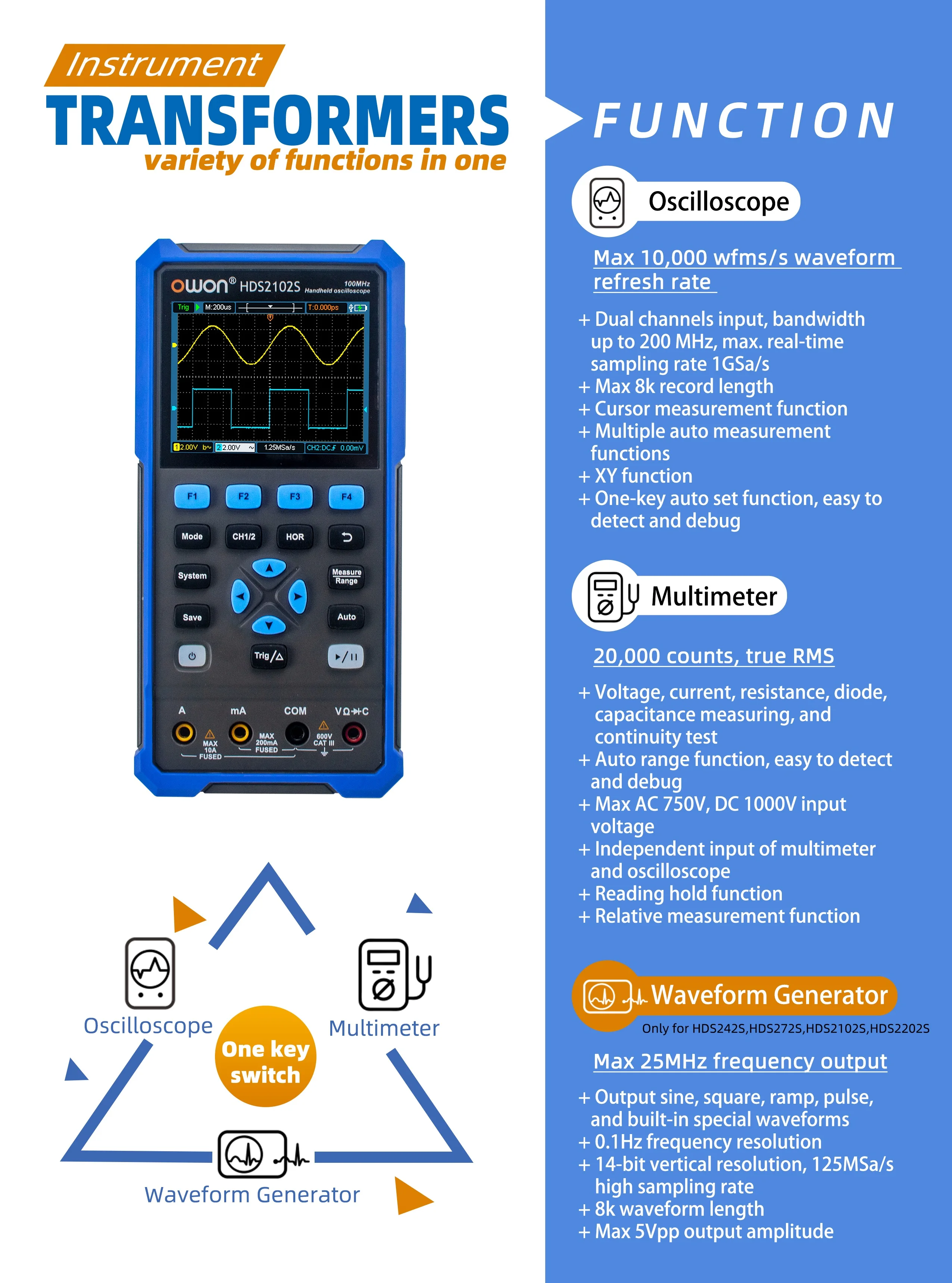

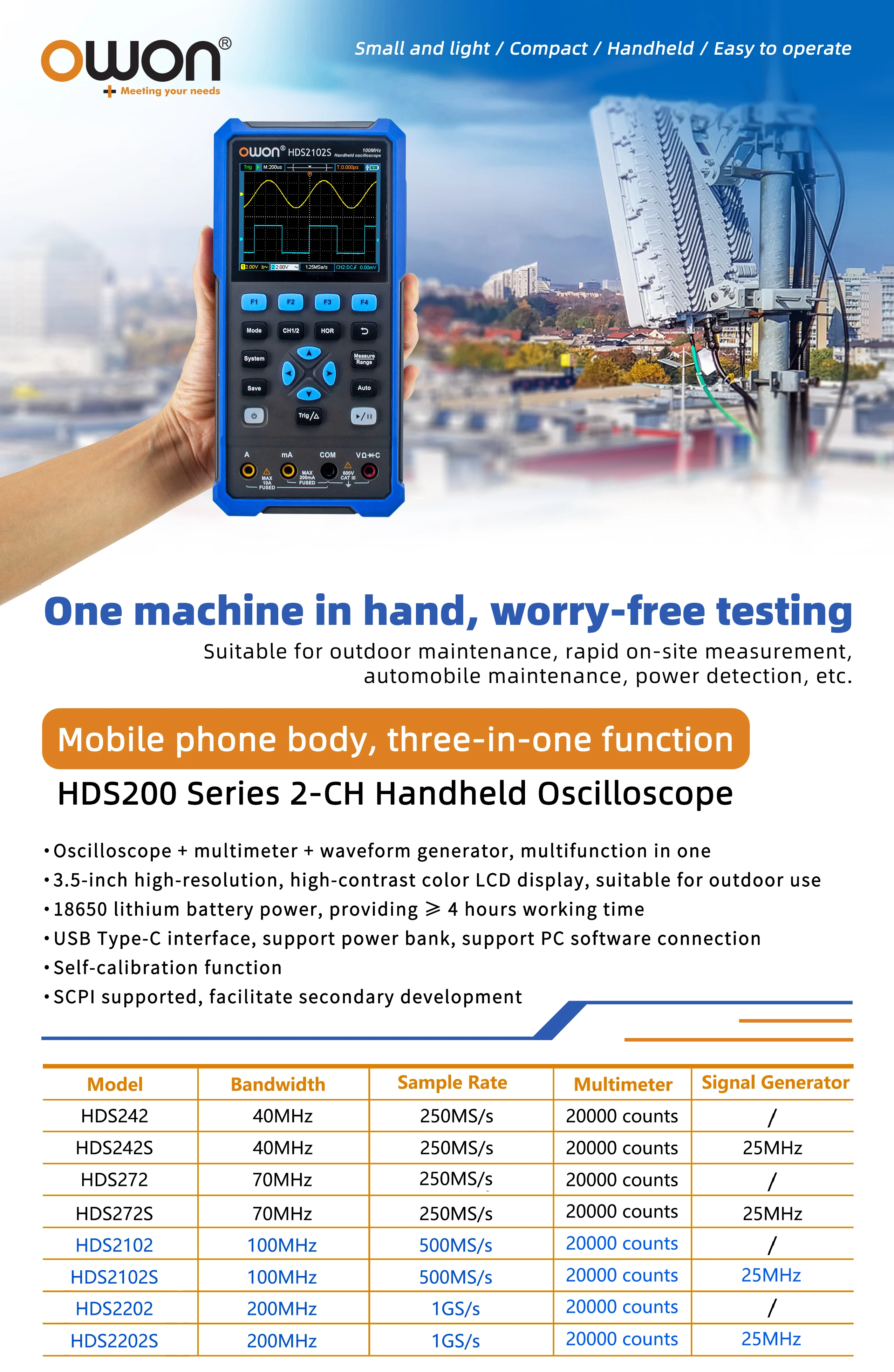

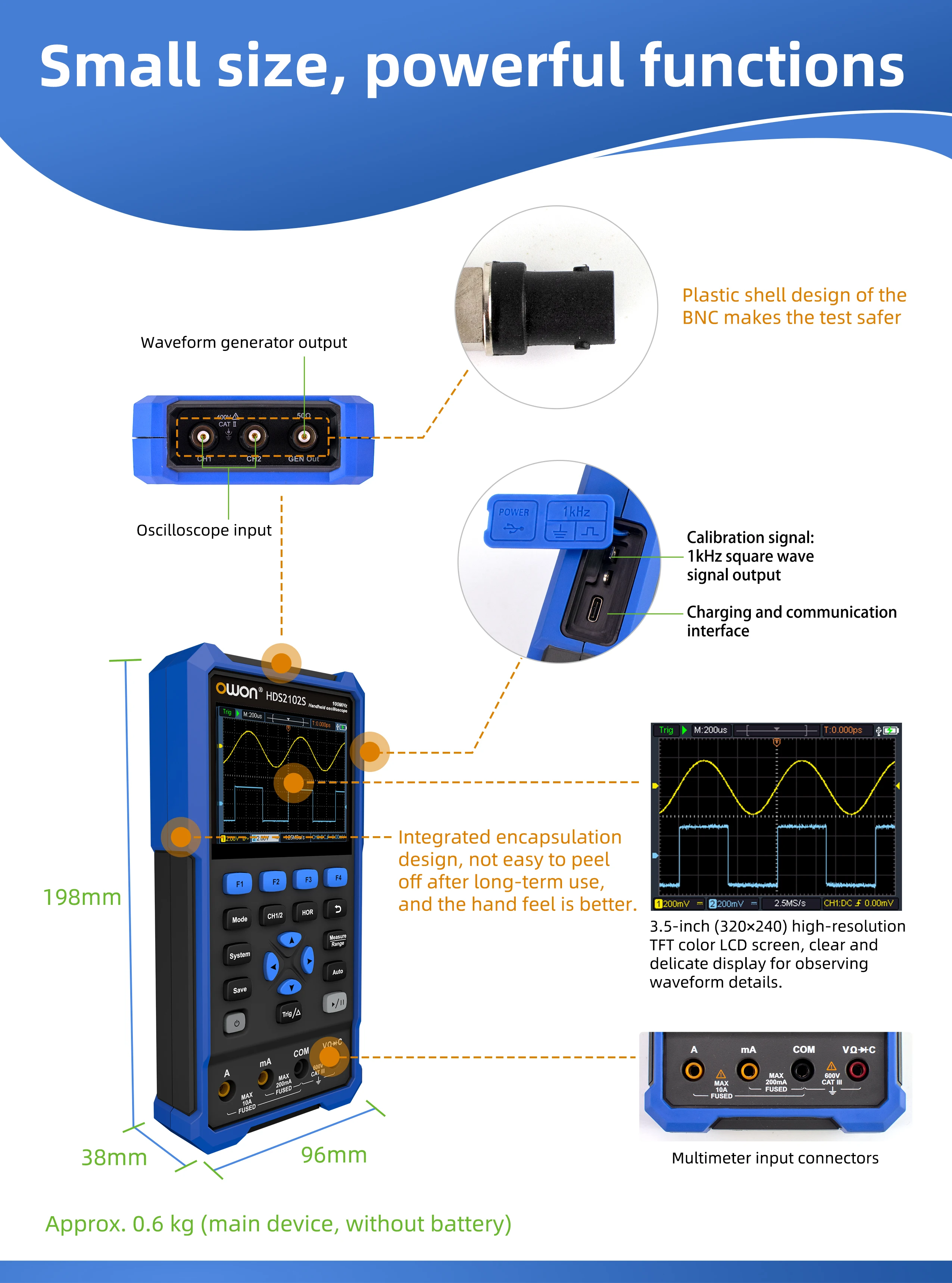

- Oscilloscope + multimeter + waveform generator (Only with S models) — multifunction in one
- 3.5-inch high-resolution, high-contrast color LCD display; can work continuously for about 6 hours

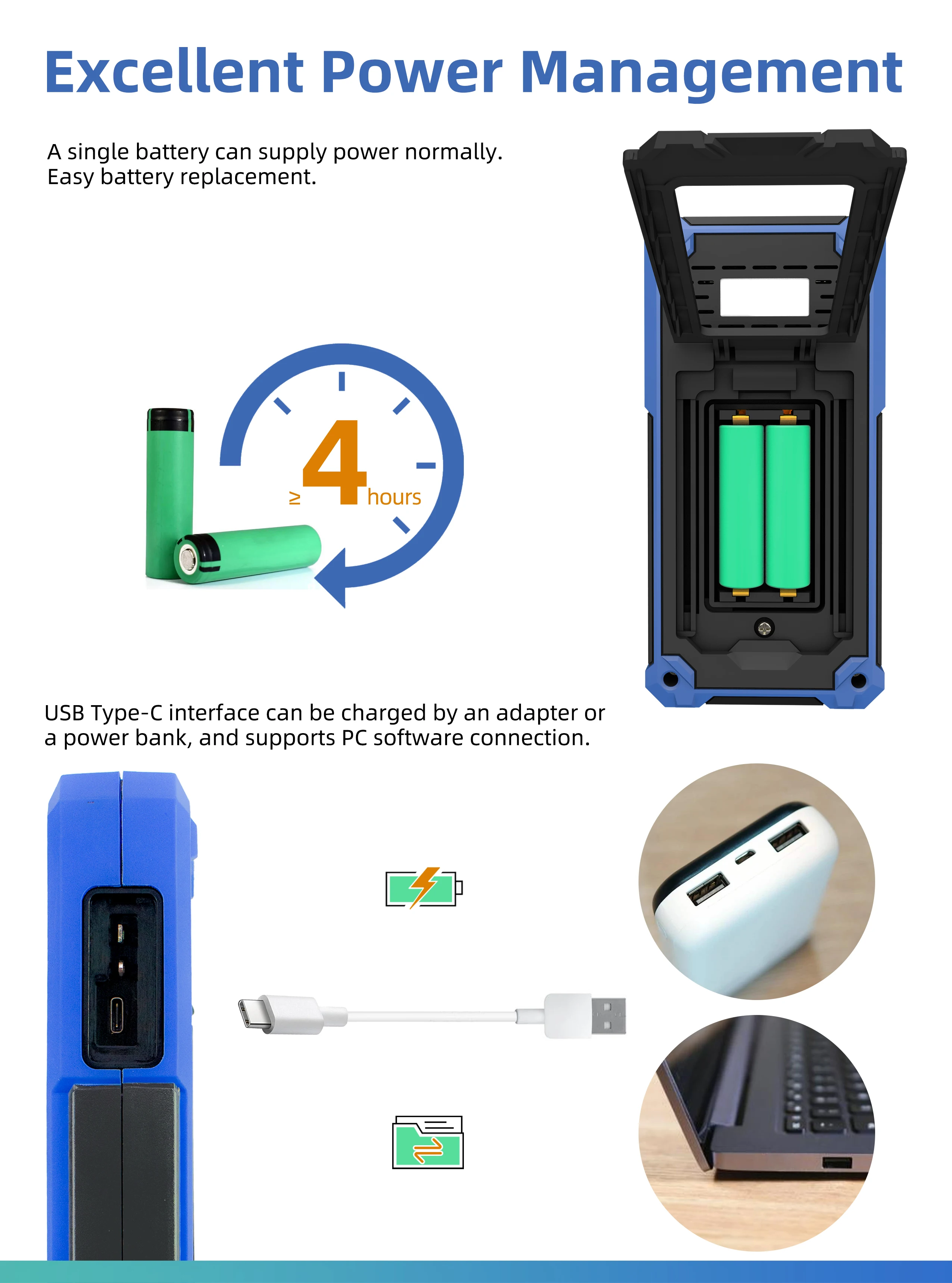

- USB Type-C interface; supports power bank charging
- Self-calibration function
- 18650 lithium battery; comprehensive power consumption ≤3W; supports PC software connection; suitable for outdoor use
- SCPI supported for easy secondary development
Performance Characteristics

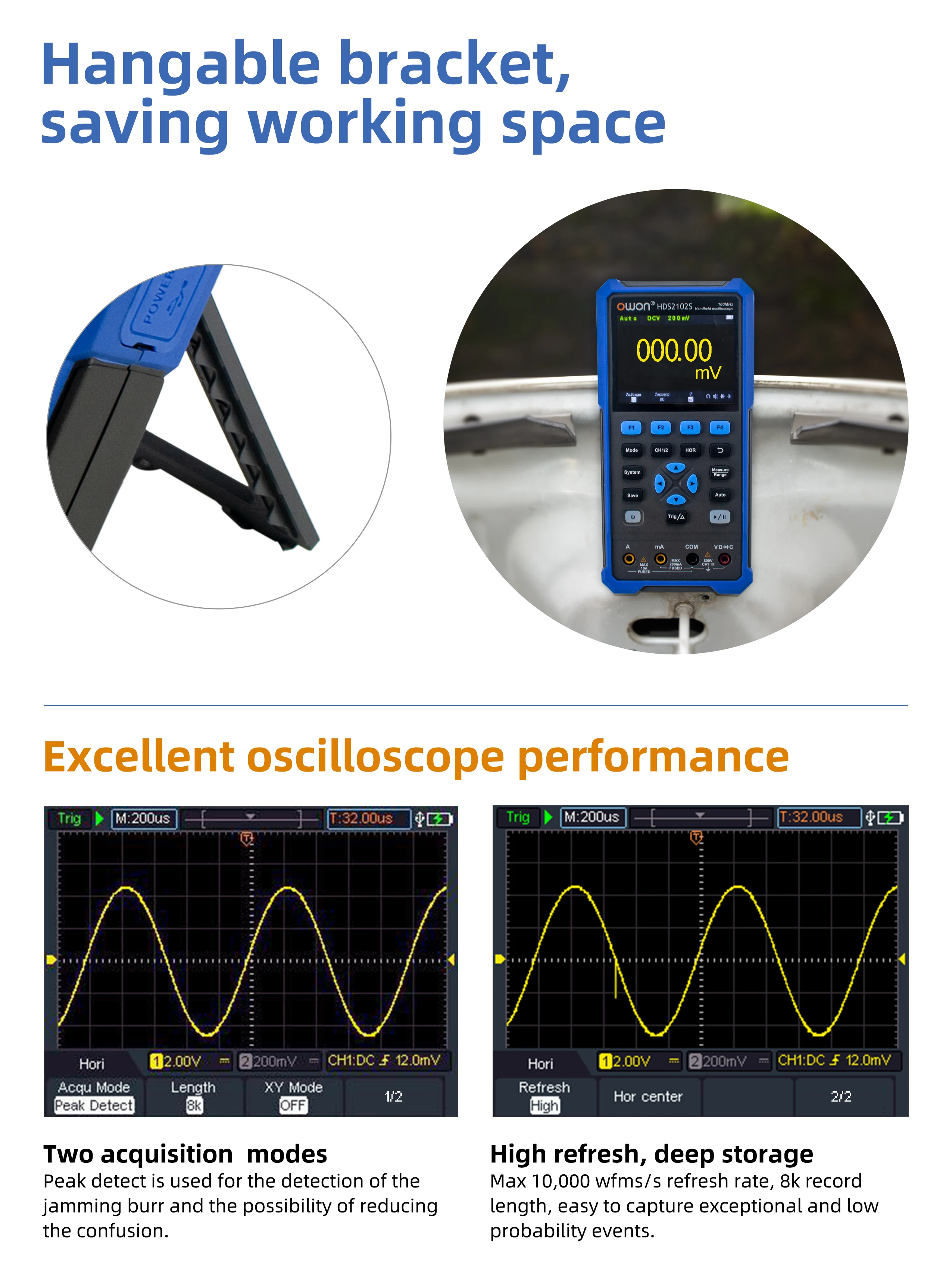

| Specification | HDS242 | HDS272 | HDS2102 | HDS242S | HDS272S | HDS2102S |
|---|---|---|---|---|---|---|
| Bandwidth | 40MHz | 70MHz | 100MHz | 40MHz | 70MHz | 100MHz |
| Channel | 2 | 2+1 (signal generator) | 2 | 2 | 2+1 (signal generator) | 2+1 (signal generator) |
| Sample rate | 250MSa/s | 500MSa/s | 500MSa/s | 250MSa/s | 500MSa/s | 500MSa/s |
| Acquisition mode | Sample, Peak detect | |||||
| Record length | 8K | |||||
| Display | 3.5 inch LCD | |||||
| Waveform refresh rate | 10000 wfrms/s | |||||
| Input coupling | DC, AC, Ground | |||||
| Input impedance | 1 MΩ±2%, in parallel with 16 pF±10 pF | |||||
| Probe attenuation | 1X, 10X, 100X, 1000X, 10000X | |||||
| Max. input voltage | 400V (DC+AC, PK-PK) | |||||
| Bandwidth limit (typical) | 20MHz / Full bandwidth | |||||
| Sampling rate range | 5ns/div ~ 500s/div step by 1–2–5 | 2ns/div ~ 1000s/div step by 1–2–5 | 2ns/div ~ 1000s/div step by 1–2–5 | 5ns/div ~ 500s/div step by 1–2–5 | 2ns/div ~ 1000s/div step by 1–2–5 | 2ns/div ~ 1000s/div step by 1–2–5 |
| Sensitivity Resolution | 10mV/div ~ 10V/div | |||||
| Low Frequency (−3dB) | ≥10 Hz (at input, AC coupling) | |||||
| Rise time (at input, Typical) | ≤8ns | ≤5ns | ≤3.5ns | ≤8ns | ≤5ns | ≤3.5ns |
| Trigger type | Edge | |||||
| Trigger mode | Auto, Normal, Single | |||||
| Trigger level range | ±4 div from the screen center | |||||

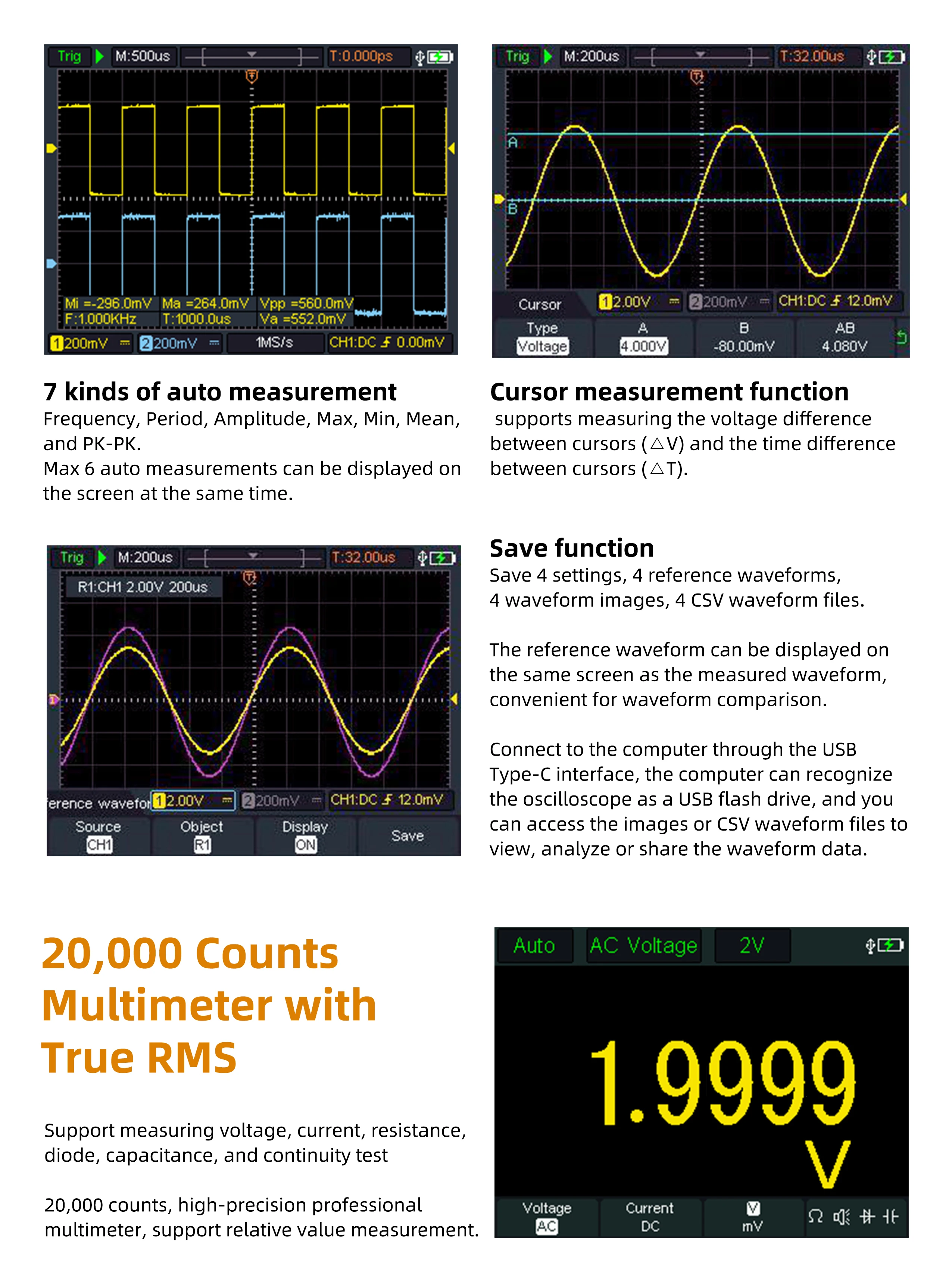

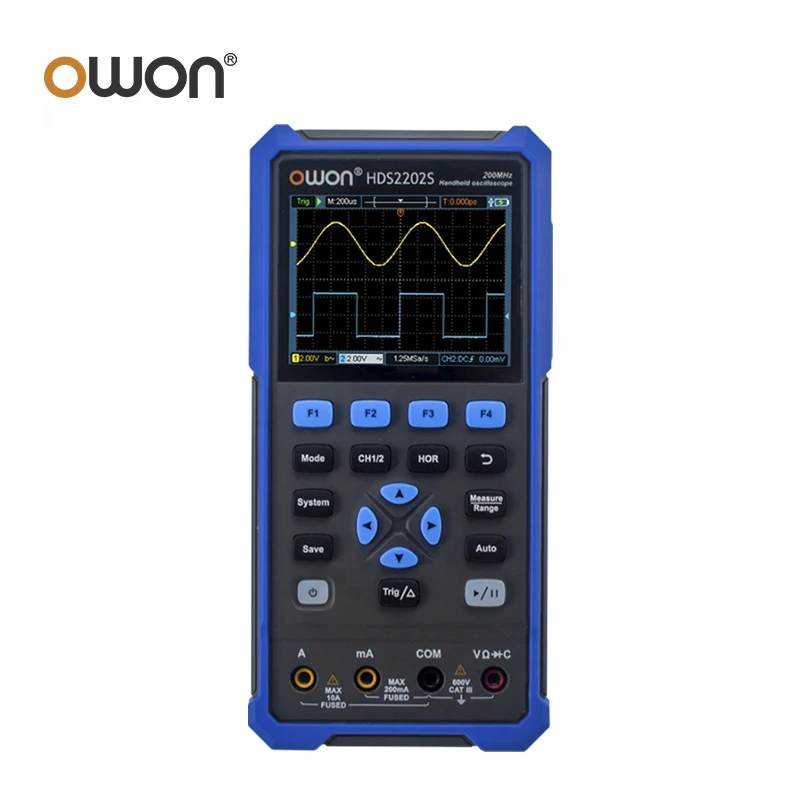

| Automatic measurement | Period, Frequency, Mean, PK-PK, Max, Min, Amplitude | |||||
| Cursor measurement | ΔV, ΔT, ΔT&ΔV between cursors, auto cursor | |||||
| Communication interface | USB Type-C | |||||
| Specification | HDS2202 | HDS2202S |
|---|---|---|
| Bandwidth | 200MHz | 200MHz |
| Channel | 2 | 2+1 (signal generator) |
| Sample rate | 1GSa/s | 1GSa/s |
| Acquisition mode | Sample, Peak detect | |
| Record length | 8K | |
| Display | 3.5 inch LCD | |
| Waveform refresh rate | 10000 wfrms/s | |
| Input coupling | DC, AC, Ground | |
| Input impedance | 1 MΩ±2%, in parallel with 16 pF±10 pF | |
| Probe attenuation | 1X, 10X, 100X, 1000X, 10000X | |
| Max. input voltage | 400V (DC+AC, PK-PK) | |
| Bandwidth limit (typical) | 20MHz / Full bandwidth | |
| Sampling rate range | 2ns/div ~ 1000s/div, step by 1–2–5 | |
| Sensitivity Resolution | 10mV/div ~ 10V/div | |
| Low Frequency (−3dB) | ≥10 Hz (at input, AC coupling) | |
| Rise time (at input, Typical) | ≤1.75ns | |
| Trigger type | Edge | |
| Trigger mode | Auto, Normal, Single | |
| Trigger level range | ±4 div from the screen center | |
| Automatic measurement | Period, Frequency, Mean, PK-PK, Max, Min, Amplitude | |
| Cursor measurement | ΔV, ΔT, ΔT&ΔV between cursors, auto cursor | |
| Communication interface | USB Type-C | |
Digital Multimeter Specification

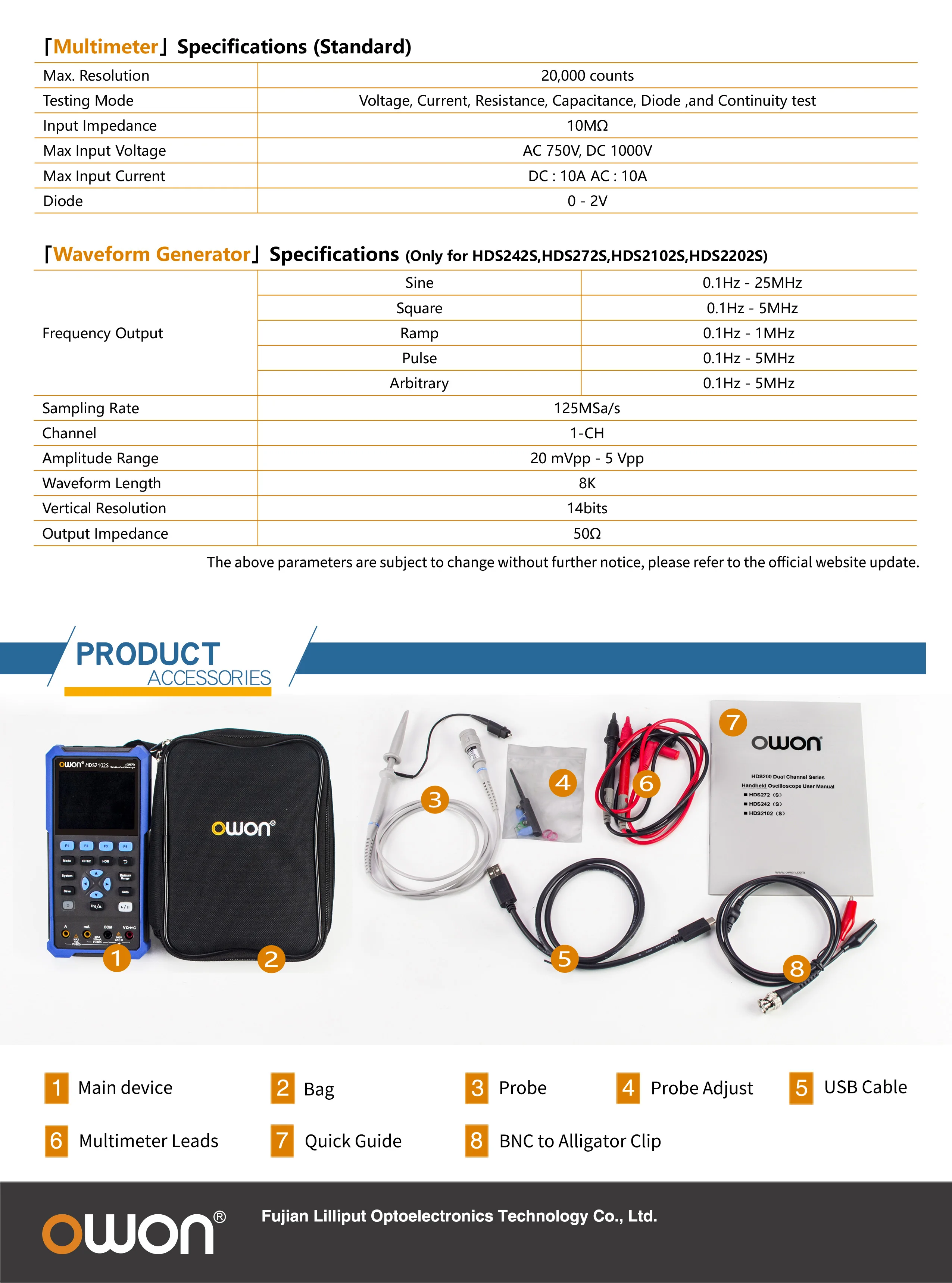

| Parameter | Specification |
|---|---|
| Full scale reading | 4 digits (max 20000 count) |
| Testing Modes | Voltage, Current, Resistance, Capacitance, Diode, Continuity |
| Maximum Input Voltage | AC 750V, DC 1000V |
| Maximum Input Current | DC: 10A, AC: 10A |
| Diode Test Range | 0–2V |
Measurement Range and Accuracy
| Function | Range | Accuracy |
|---|---|---|
| DC Voltage | 200.00mV | ±(0.3% + 10 dig) |
| 2.0000V / 20.000V / 200.00V | ±(0.3% + 5 dig) | |
| 1000.0V | ±(0.3% + 5 dig) | |
| AC Voltage | 200.00mV / 2.0000V / 20.000V / 200.00V | ±(0.8% + 10 dig) |
| 750.00V | ±(1% + 10 dig) | |
| DC Current | 200.00mA | ±(0.8% + 10 dig) |
| 10.000A | ±(2.5% + 10 dig) | |
| AC Current | 200.00mA | ±(1% + 10 dig) |
| 10.000A | ±(2.8% + 10 dig) | |
| Resistance (Ω) | 200.00Ω / 2.0000kΩ / 20.000kΩ / 200.00kΩ / 2.0000MΩ | ±(0.8% + 10 dig) |
| 20.000MΩ | ±(1% + 3 dig) | |
| 100.00MΩ | ±(5% + 10 dig) | |
| Capacitance (F) | 20.000nF / 200.00nF / 2.0000μF / 20.000μF / 200.00μF / 2.0000mF | ±(3.0% + 10 dig) |
| Frequency response (Hz) | (40 – 1000) Hz | — |
Signal Generator Specification
(HDS242S, HDS272S, HDS2102S, HDS2202S)
| Parameter | Specification |
|---|---|

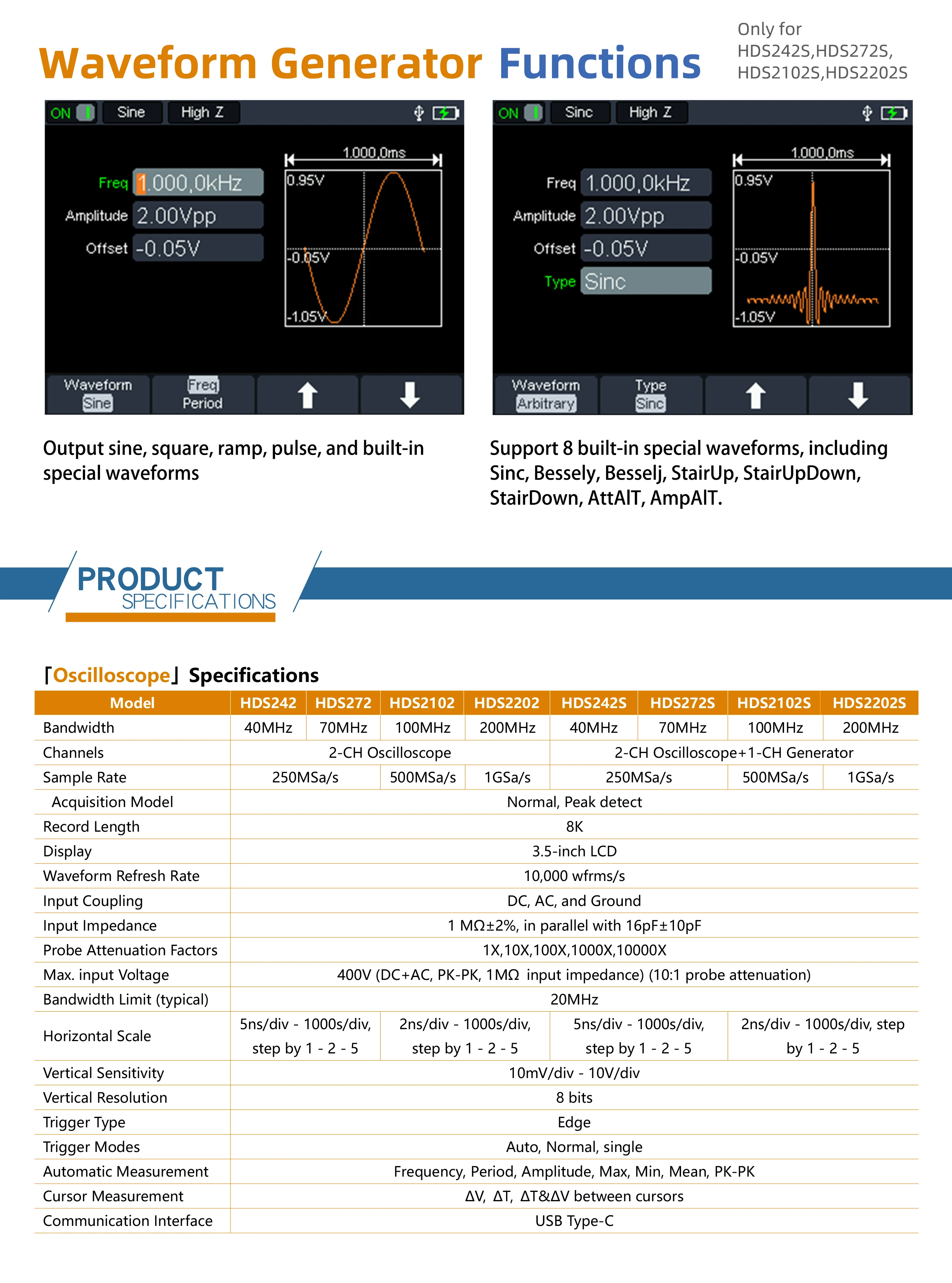

| Frequency Output – Sine | 0.1Hz ~ 25MHz |
| Square | 0.1Hz ~ 5MHz |
| Ramp | 0.1Hz ~ 1MHz |
| Pulse | 0.1Hz ~ 5MHz |
| Arbitrary Waveform | 0.1Hz ~ 5MHz |
| Sample Rate | 125MSa/s |
| Channel | 1 |
| Amplitude | 20mVpp–5Vpp (high impedance), 10mVpp–2.5Vpp (50Ω) |
| Waveform length | 8K |
| Vertical resolution | 14 bits |
| Load impedance | 50Ω |
Power Cord, Probe, Quick Guide, USB Cable, Multimeter Lead, Probe Adjust, Soft Bag, BNC plug to alligator clips cable
