Godiag ECU IMMO Kit GT107 DSG Gearbox Data Read/Write Adapter Plus GT105 ECU IMMO Prog AD for KESS V2 PCMFlash KTMBench

The GODIAG GT107 ECU IMMO Kit is a DSG gearbox connection adapter. DSG Gearbox maintenance engineers can clone, diagnose, and repair DSG Gearbox ECUs, as well as read, write, and adjust data for DSG Gearbox ECUs via PCMFlash, Kess V2, and other compatible tools. This adapter offers both automatic and manual selection modes in PCMFlash software: choose "Auto" for data reading and writing, and "Manual" for diagnosis. For other software such as KESS V2, DQ200, DQ250, and DQ500, the "Manual" mode is also available.

Additionally, with car battery power, the adapter can directly read and write DSG Gearbox data, allowing clear monitoring of communication status during the process.

Key Features

• Read/write DSG Gearbox data
• Compatible with DQ250, DQ200, VL381, VL300, DQ500, DL501
• Works with PCMTuner, KESS V2, PCMFlash, KTMBench, and more
• Easy connection and fast response

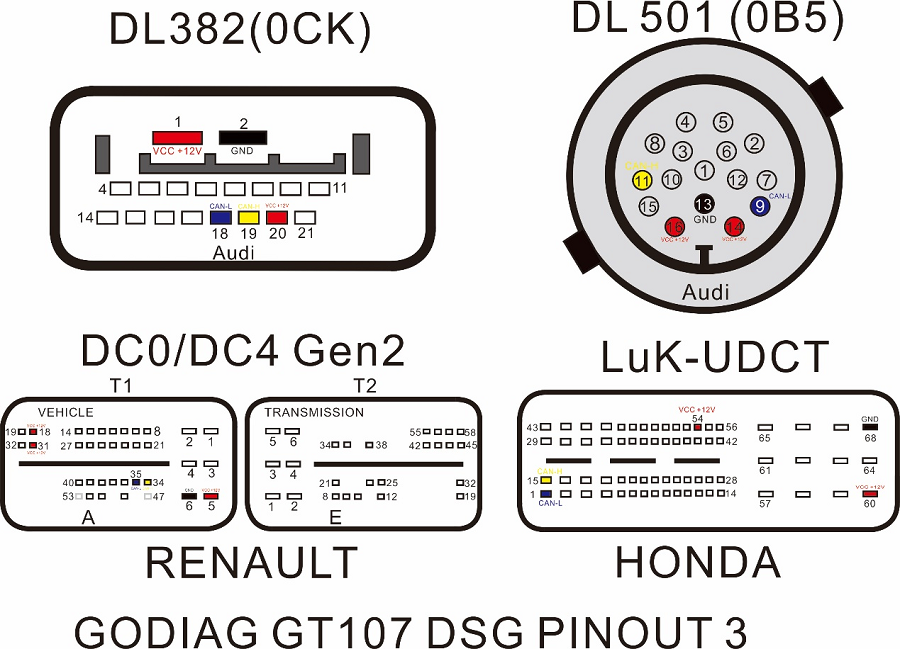

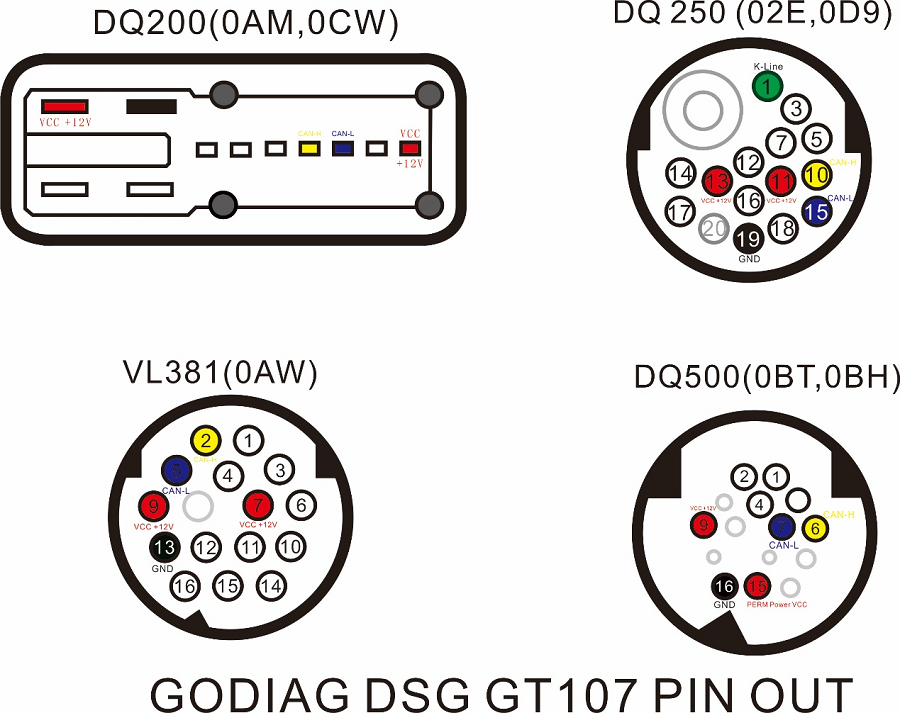

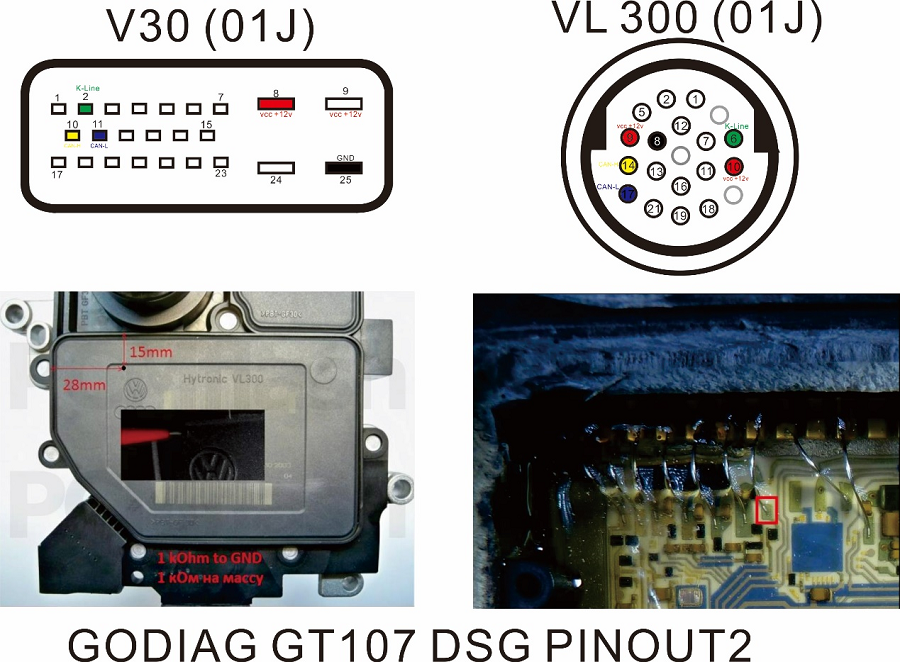

GODIAG GT107 DSG Gearbox Data Adapter Supported Connections

• Renault DC0/DC4 Gen2
• Honda LUK UDCT
• DQ200 (0AM) [WR/CK]
• DQ250C (02E) [RD/WR/CK]
• DQ250E/F (02E) [WR/CK]
• DQ200MQB/G2 (0CW) [WR/CK]
• DQ250MQB (0D9) [WR/CK]
• VL300/V30 (01J/0AN) [WR/CK]
• VL381 (0AW) [WR/CK]
• DL501/G2 (0B5) [WR/CK]
• DQ500 (0BH/0BT) [RD/WR/CK] – reading via direct connection
• DQ200/MQB/G2 Boot (MICRO) [RD/WR/CK]
• DQ200/MQB/G2 Boot (EEPROM) [RD/WR]
• DQ250E/F/MQB Boot (MICRO) [RD/WR/CK]
• DQ250E/F/MQB Boot (EEPROM) [RD/WR]
• VL300/V30 BSL (FLASH) [RD/WR/CK]
• VL300/V30 BSL (EEPROM) [RD/WR/CK]
• VL381 Boot (MICRO) [RD/WR/CK]
• VL381 Boot (EEPROM) [RD/WR]
• DL501/G2 Boot (MICRO) [RD/WR/CK]
• DL501/G2 Boot (EEPROM) [RD/WR]

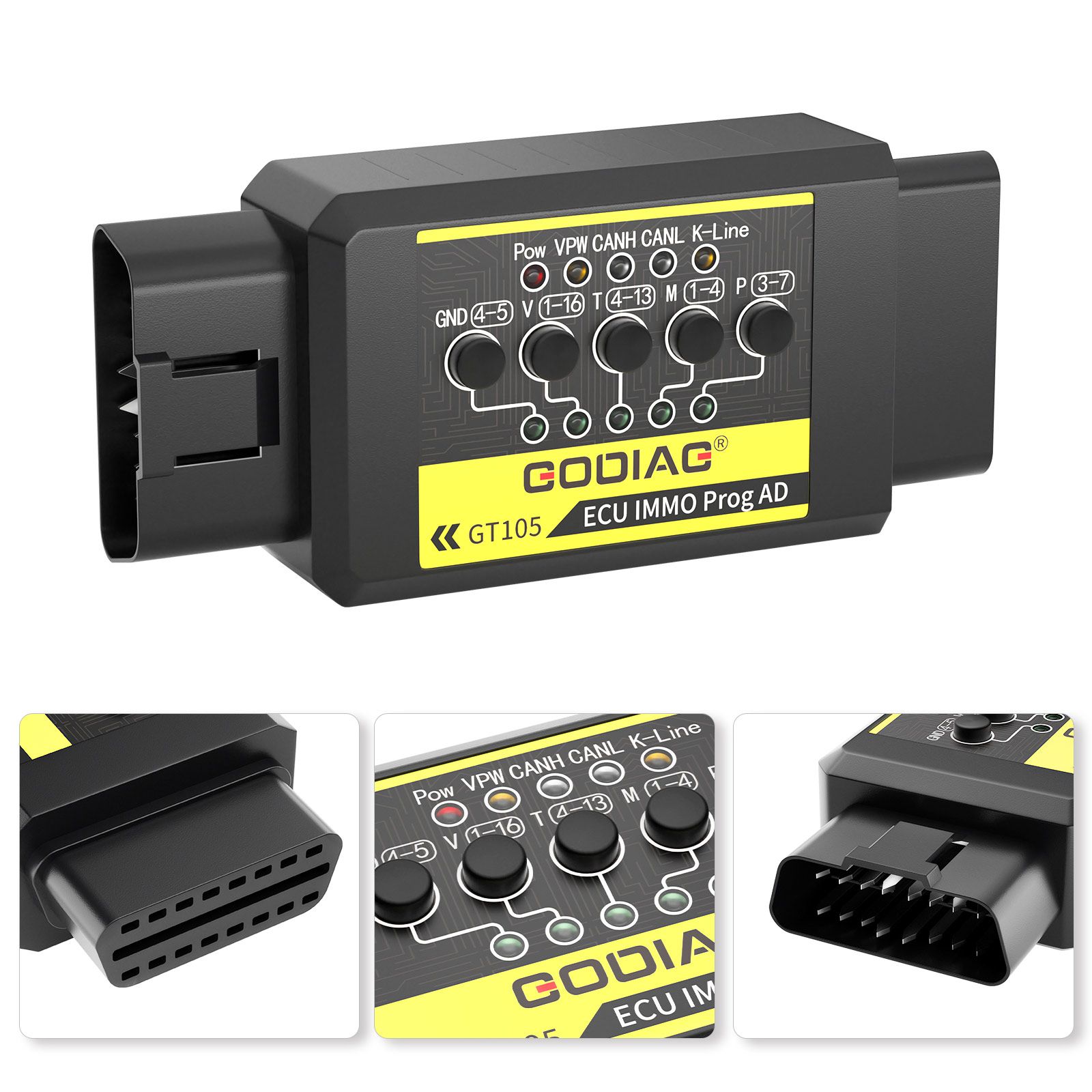

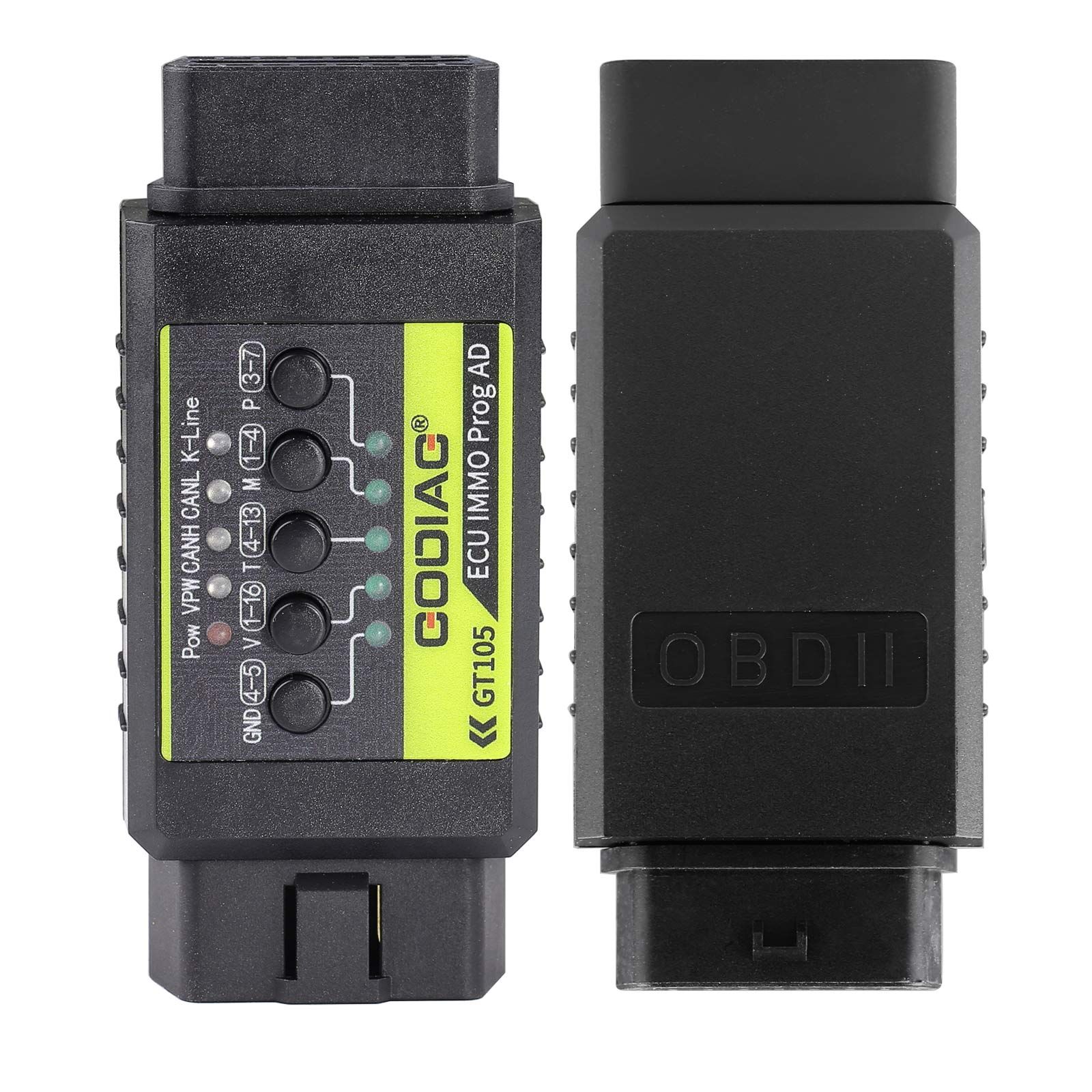

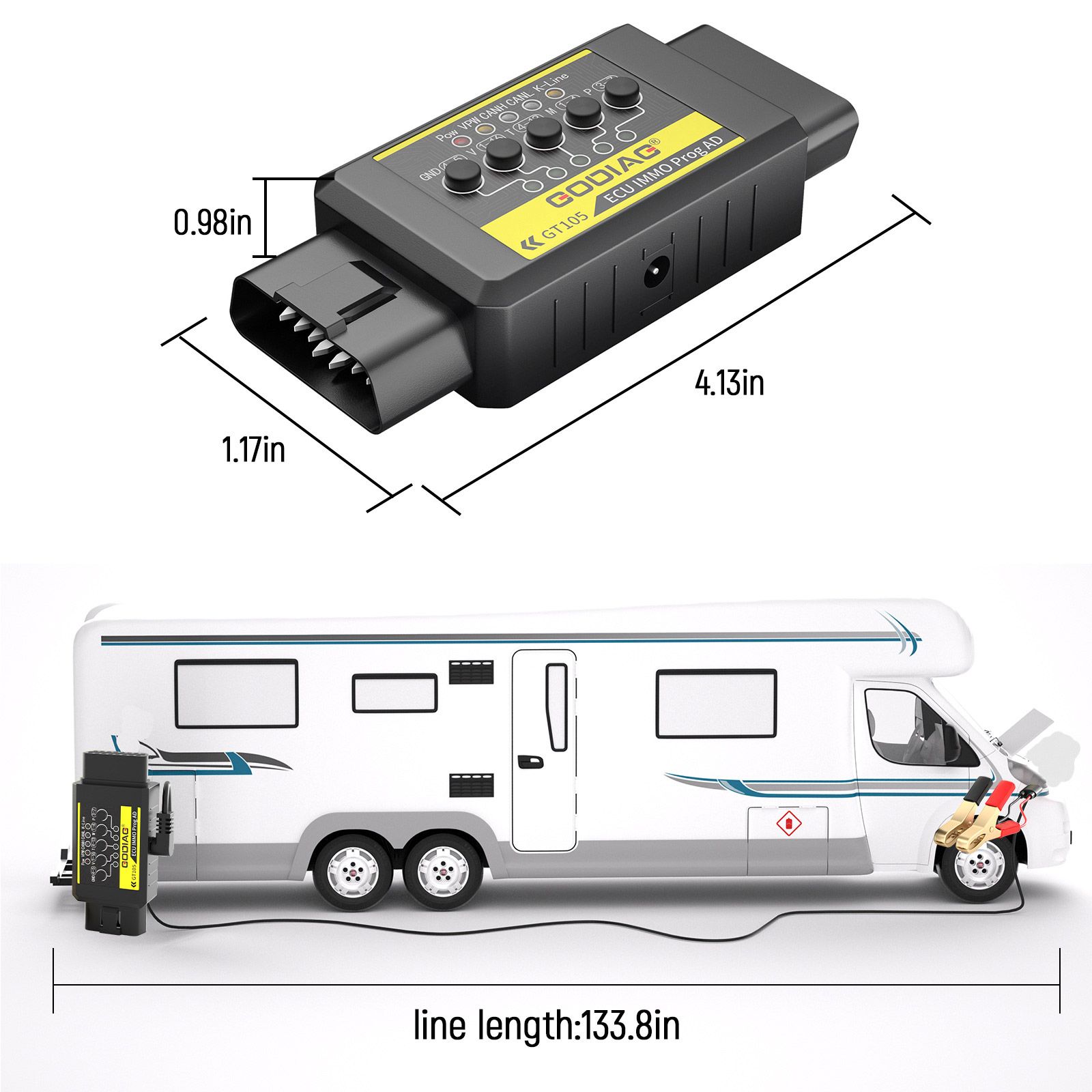

GT105 ECU IMMO Prog Adapter Features

• A full-protocol ECU connection line for ECU programming power adjustment
• OBD2 independent PIN 4 (body GND) and PIN 5 (signal GND) for special programming of certain modules
• PIN 4 and PIN 5 can be switched between short-circuit and non-short-circuit modes
• Standard OBD2 with independent PIN 4 and PIN 5
• Pure copper female socket supports repeated insertion and removal, ensuring long service life
• Battery clip treated with environmentally friendly salt spray, 0.5mm thick
• DC car battery cable uses 0.75mm² 2-core sheathed cable, supporting DC5.5×2.5 / DC5.5×2.1 interfaces
• DC connector includes a resettable 7A fuse
• DC power interface compatible with dedicated laboratory power connectors
• High-quality OBD2 universal jumper

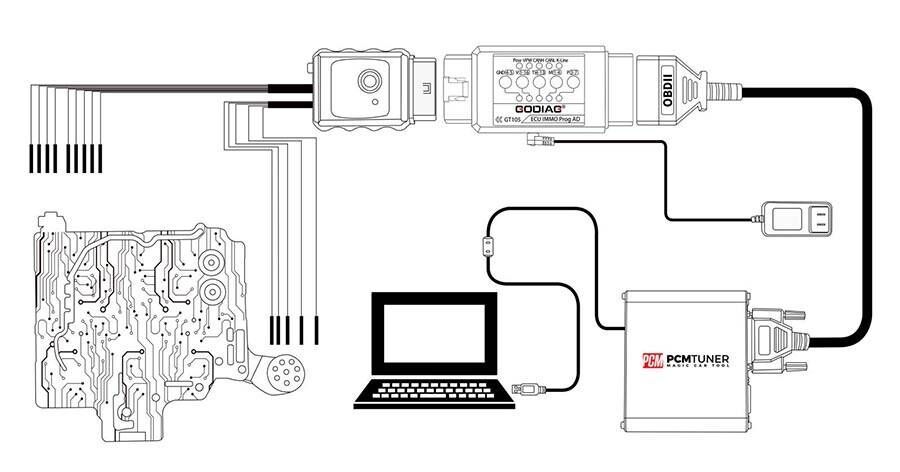

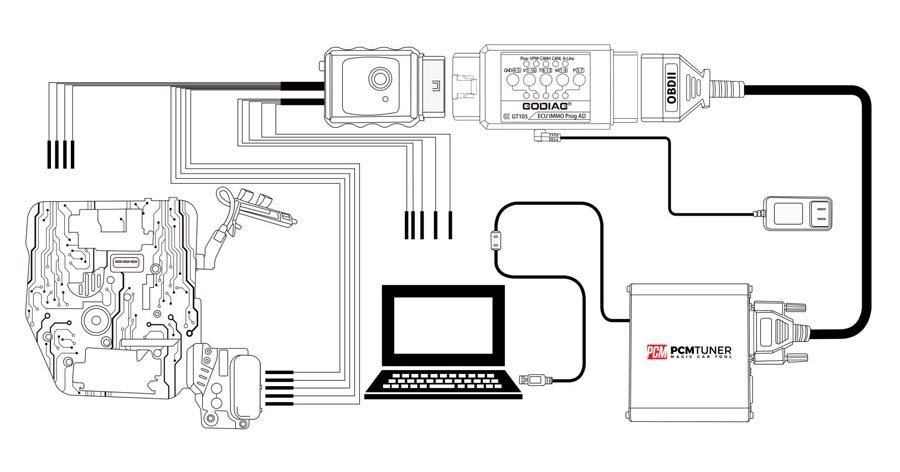

Connection Diagram

Connection & Operation

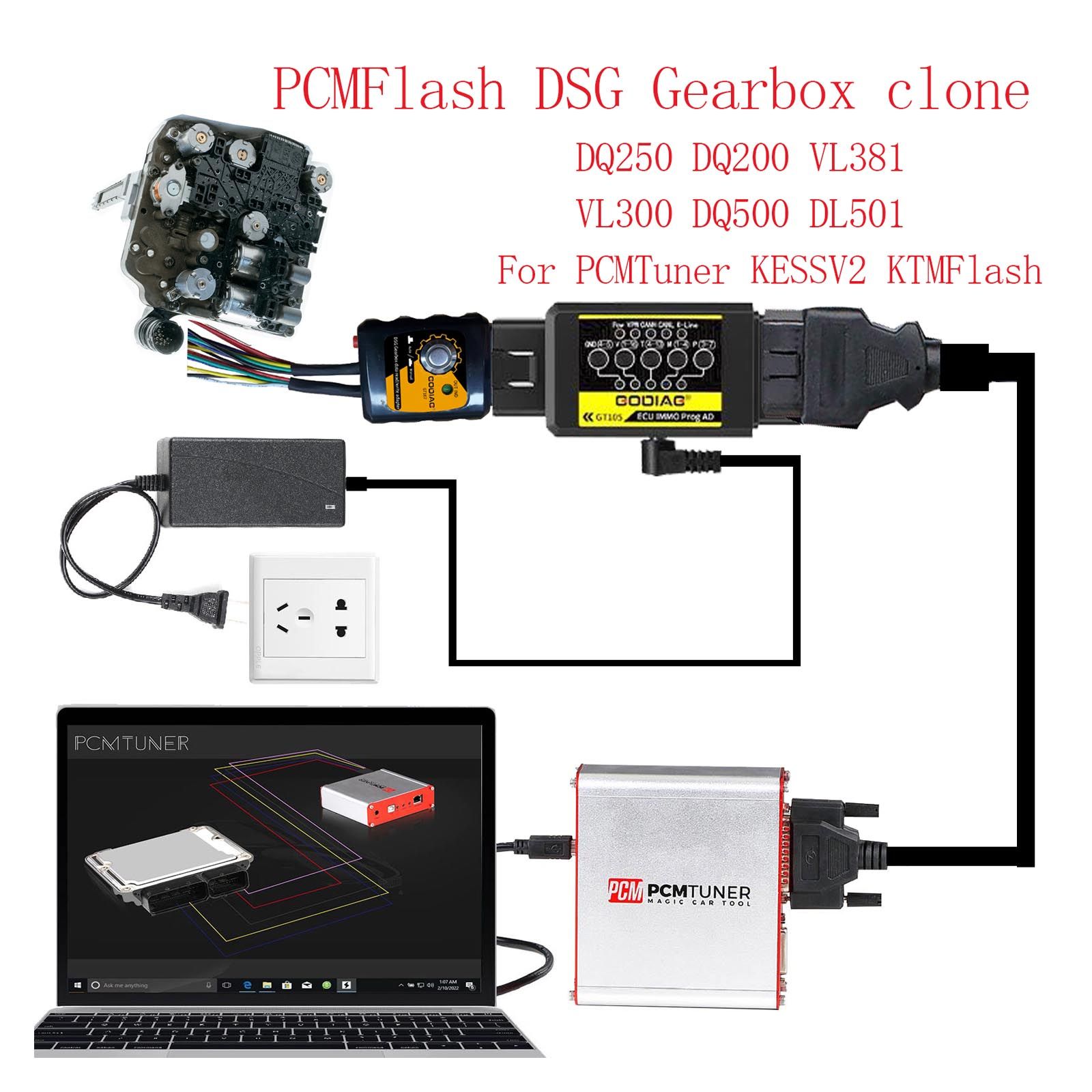

Used with PCMTuner

Easy Operation:

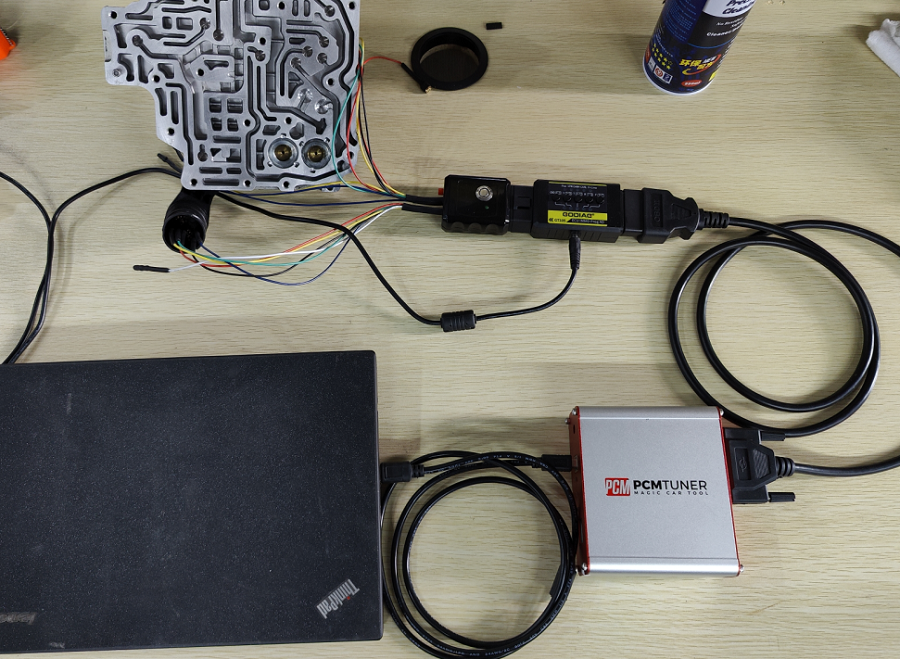

1. Connect Godiag GT107 to the gearbox ECU (DQ250, DQ200, VL381, VL300, DQ500, DL501).
2. Connect Godiag ECU IMMO Prog AD and attach a 12V 2A DC power supply.
3. The GODIAG GT107 analog ignition switch is in “Auto” mode when not pressed, and in “Manual” mode when pressed down. (Note: Select the corresponding mode in the software for data reading.)
4. Connect PCMFlash or PCMTuner J2534 passthru.
5. Connect the computer, open the software, and select “Auto”.

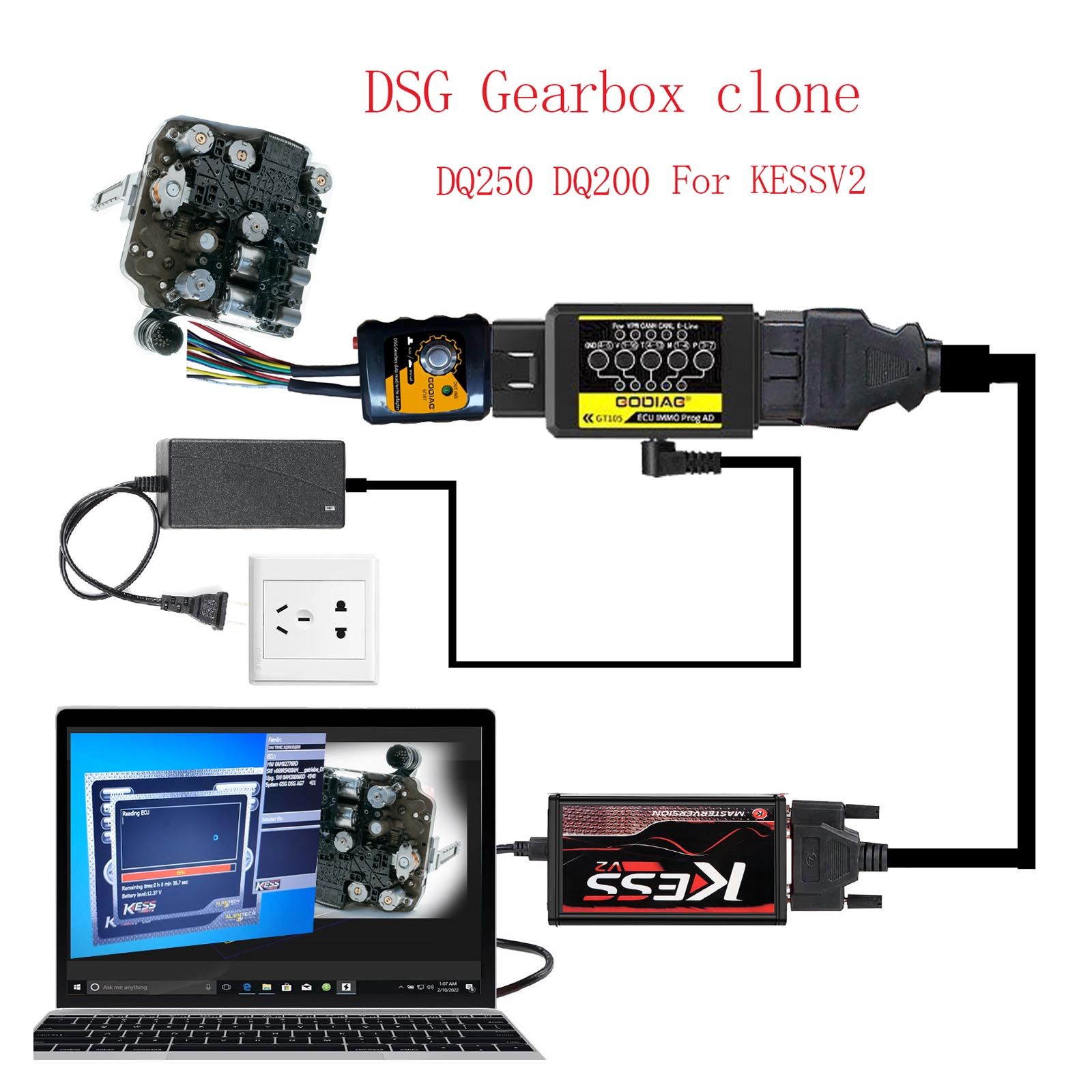

Used with KESS V2 (DQ200, DQ250, DQ500)

Easy Operation:

1. Connect Godiag GT107 to gearbox ECU (DQ250, DQ200, DQ500).
2. Connect Godiag ECU IMMO Prog AD and connect to the vehicle battery or a 12V 3A power supply.
3. Connect the KESS V2 device and press down the GT107’s switch to activate “Manual” ignition mode.
4. Connect the computer and open the software.

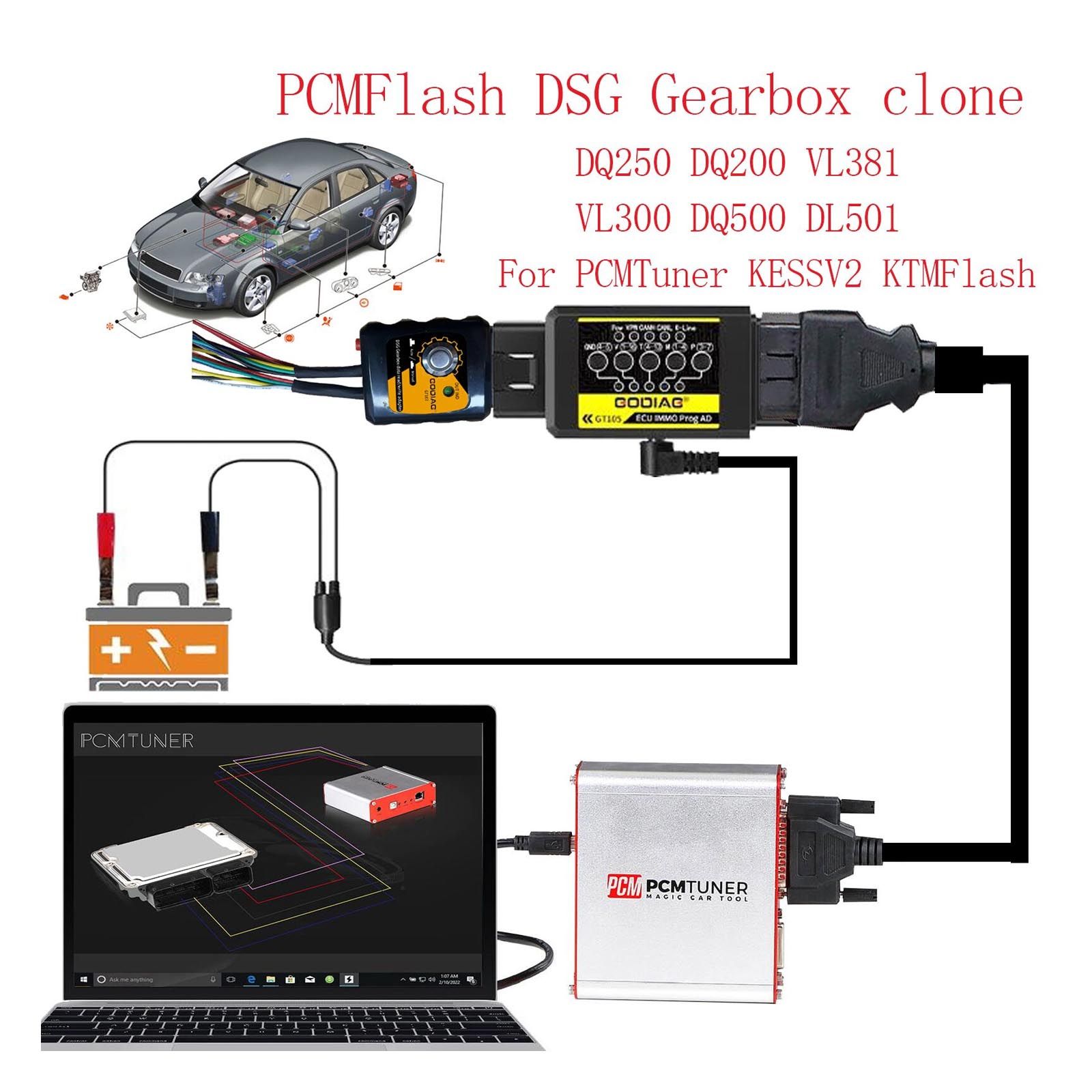

Used on the Vehicle

Easy Operation:

1. Connect Godiag GT107 to the gearbox ECU (DQ250, DQ200, VL381, VL300, DQ500, DL501).
2. Connect the Godiag ECU IMMO Prog AD and attach the vehicle battery.
3. The Godiag GT107 analog ignition switch is in “Auto” mode when not pressed, and in “Manual” mode when pressed down. (Note: Select the corresponding mode in the software for data reading.)
4. Connect PCMFlash or PCMTuner J2534 passthru.
5. Connect the computer, open the software, and select “Auto”.

Package Includes

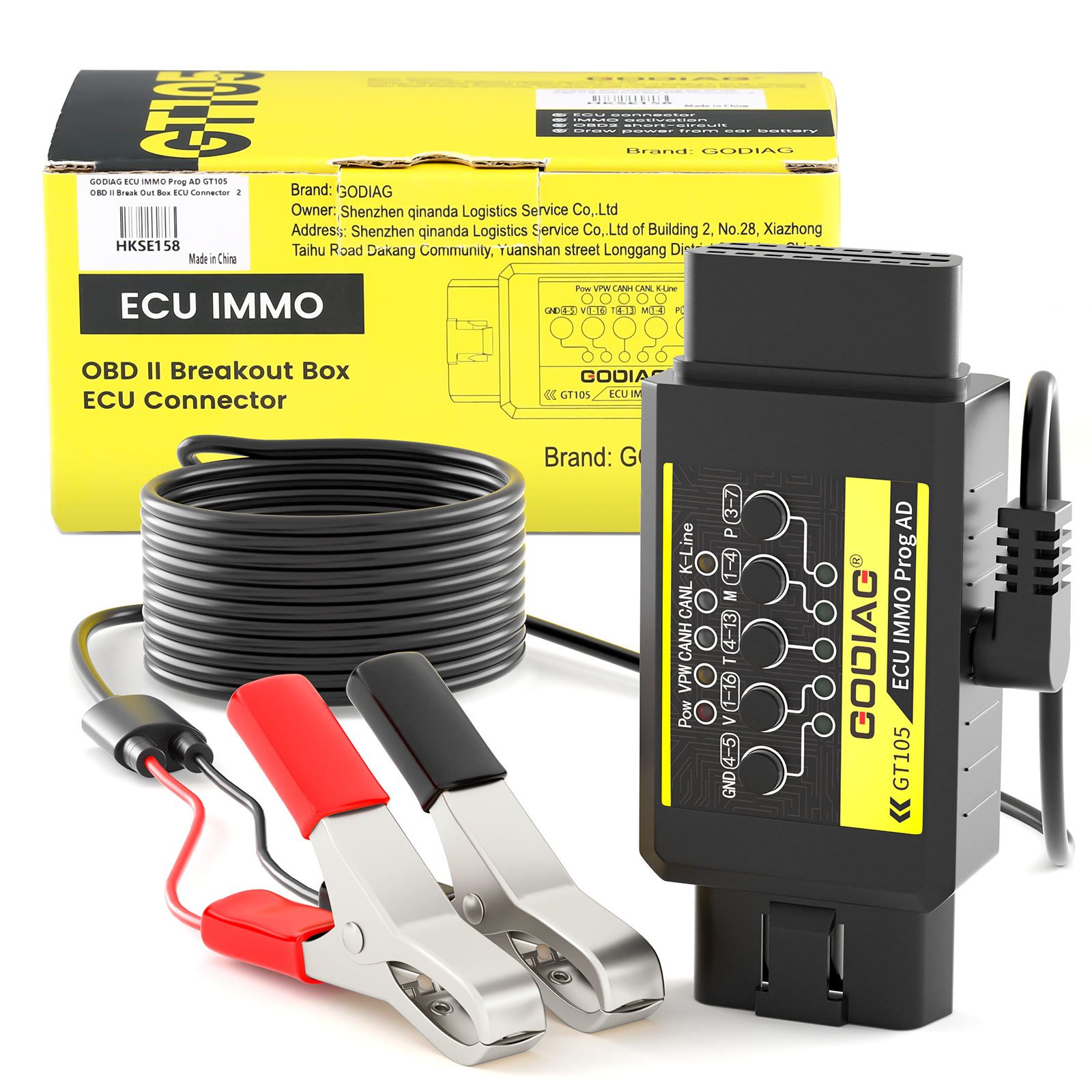

• 1pc × Godiag ECU IMMO Prog AD
• 1pc × DSG Adapter
• 1pc × Power Cord with Battery Clip
• 1pc × Probe
