Yanhua Bench Mode BMW-DME-Adapter X1/X2/X3 Interface Board Set for ACDP-2

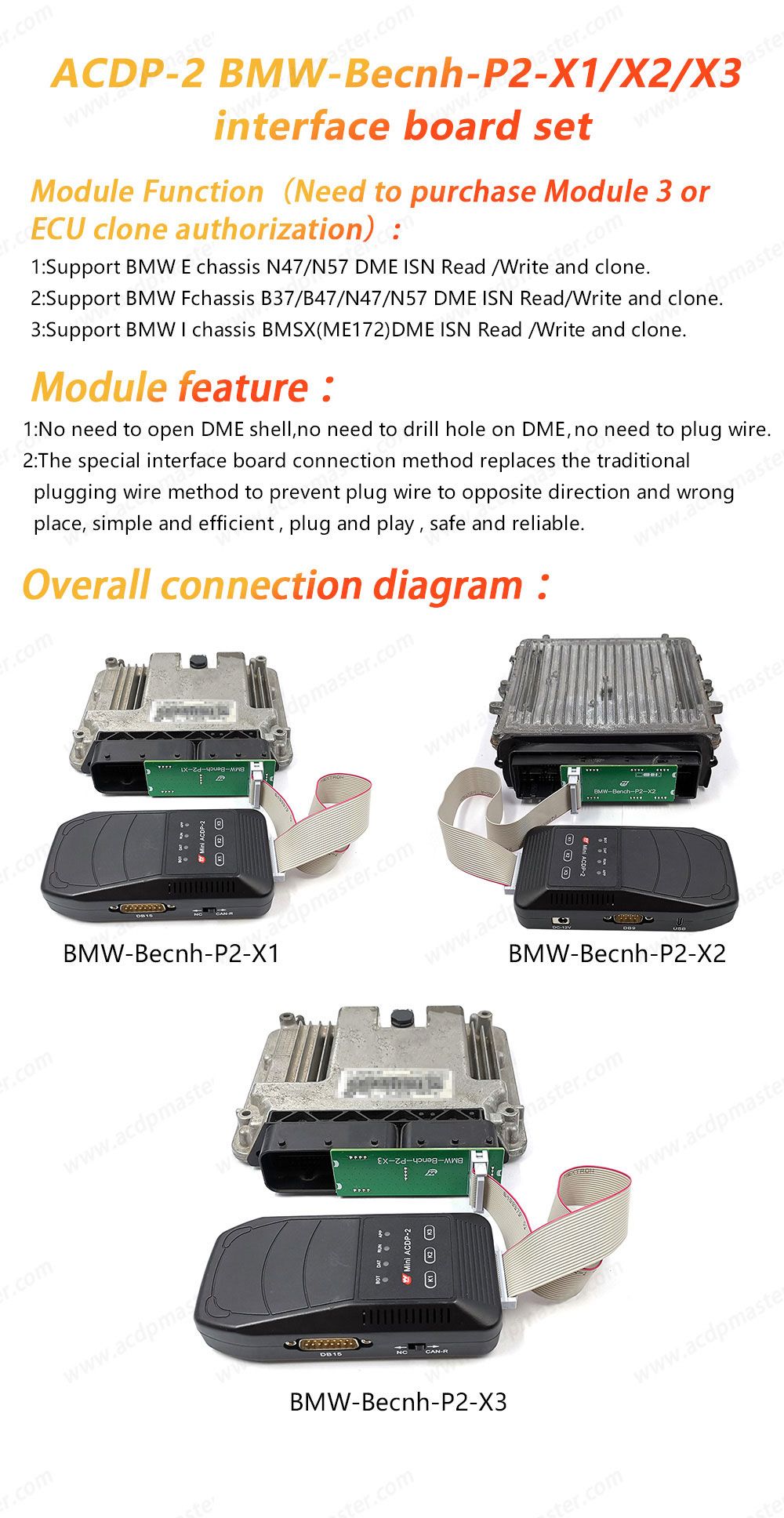

Functions

• Support BMW E chassis N47 / N57 DME ISN Read/Write and clone.
• Support BMW F chassis B37 / B47 / N47 / N57 DME ISN Read/Write and clone.
• Support BMW I chassis BMSX (ME172) DME ISN Read/Write and clone.

Advantages

• No need to open DME shell, no need to drill holes on DME, no need to plug wires.
• The special interface board connection method replaces the traditional plugging wire method to prevent incorrect or reversed connections—simple, efficient, plug-and-play, safe, and reliable.

Important Notice

Read ISN requires Module 3 authorization.
ECU Clone requires ECU Clone authorization.

Yanhua ACDP-2 BMW X1/X2/X3 Bench Interface Board Support List

Interface Board Types

• Exx
• Fxx
• Gxx
• Rxx
• Ixx

BMW-DME-ADAPTER X1

• N47 (ECD17C50)
• B37 (ECD17C50)
• B37 (ECD17C50)
• B47 (EDC17C50)
• B47 (ECD17C50)
• B47 (EDC17CP49)
• N47 (EDC17C50)
• N47 (ECD17C50)
• N47 (ECD17C76)
• N57 (ECD17C76)
• N57 (ECD17C56)
• N57 (ECD17CP49)

BMW-DME-ADAPTER X2

• N47 (ECD17C41)
• N47 (ECD17C41)
• N47 (ECD17C41)
• N57 (ECD17CP45)
• N47 (ECD17CP45)
• N57 (ECD17CP45)

BMW-DME-ADAPTER X3

• BMSX (ME172)

Screenshots

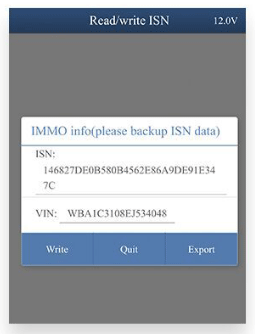

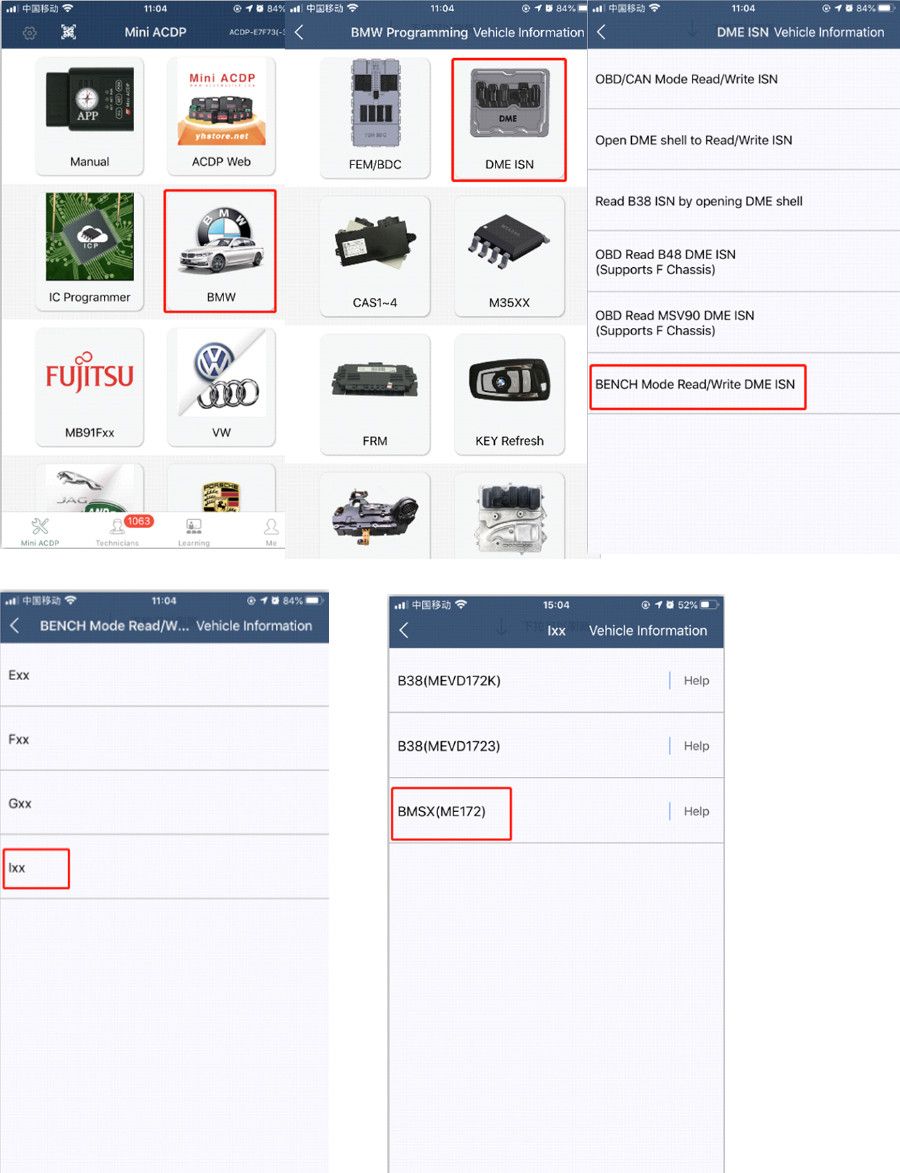

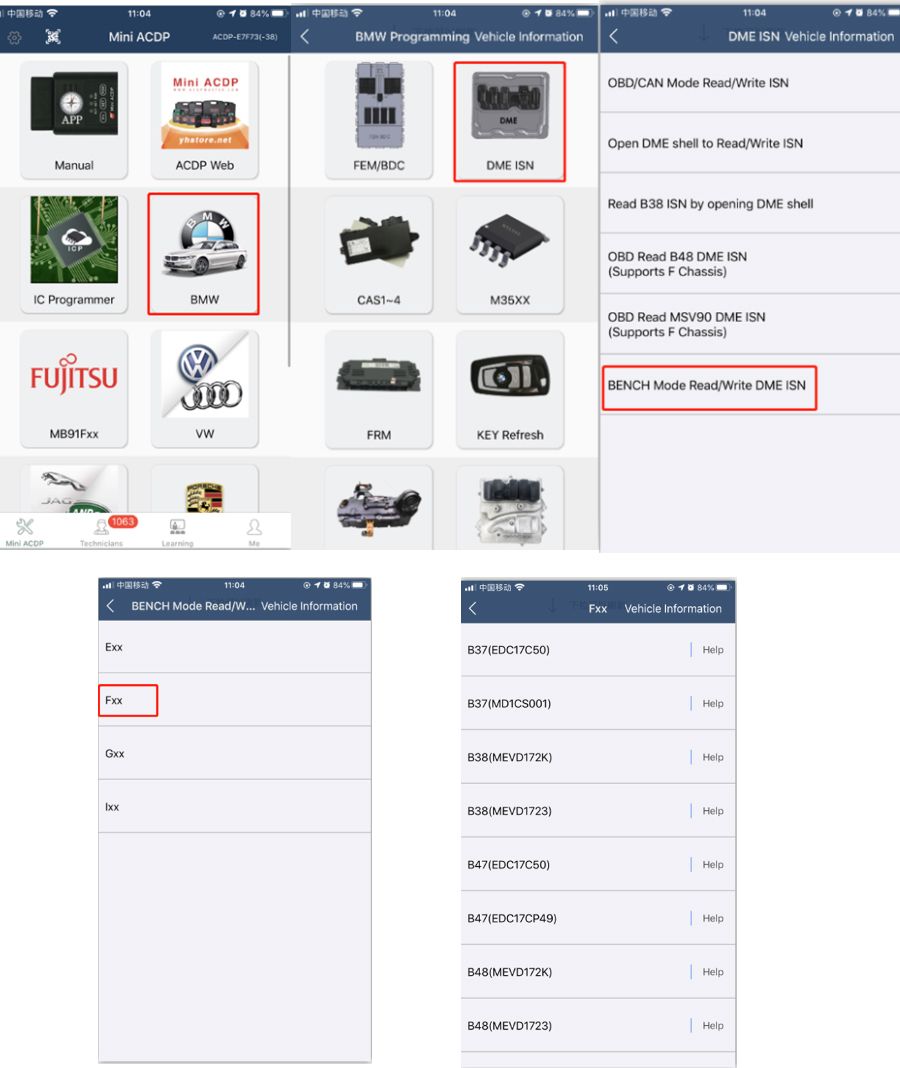

ISN Read/Write Screen

Package Includes

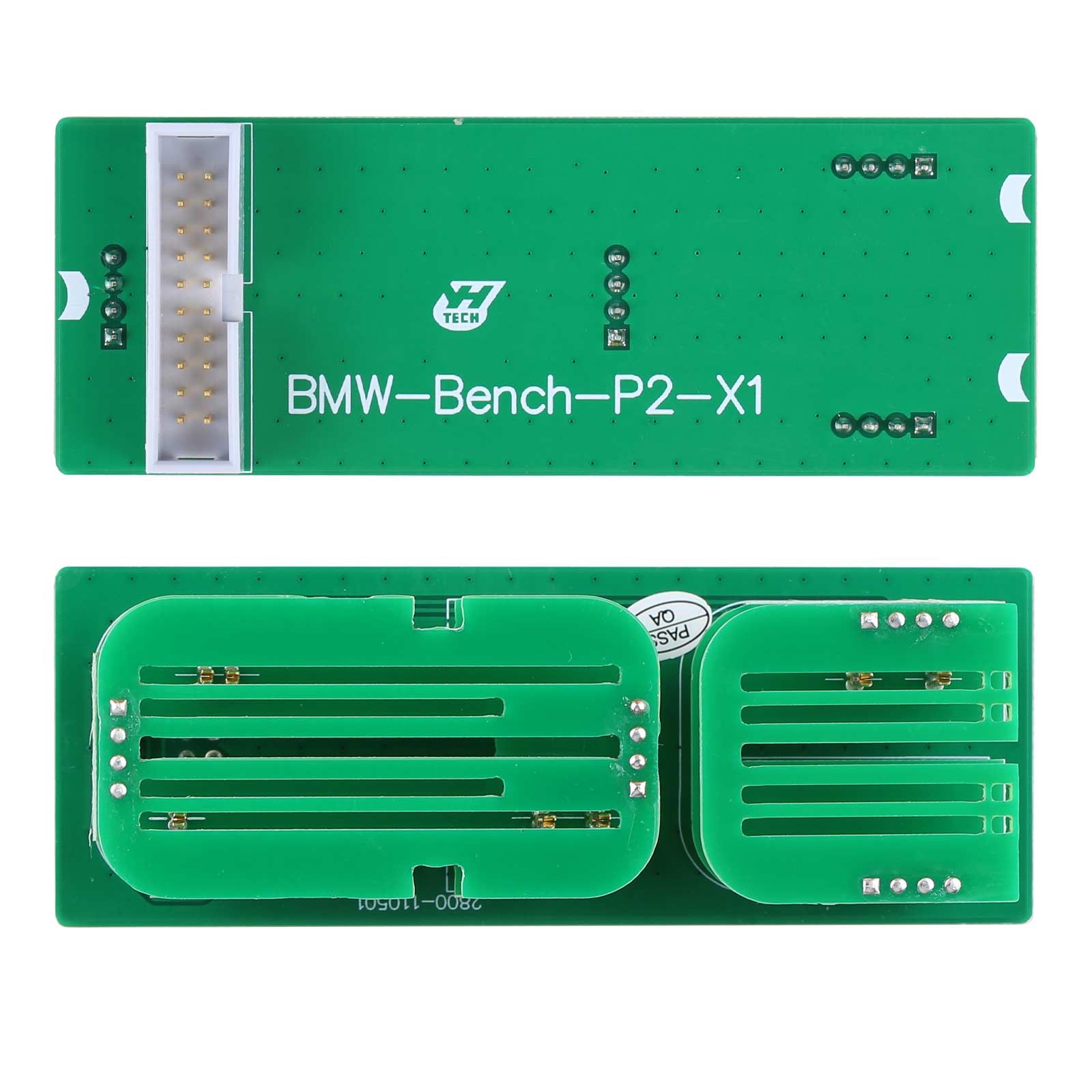

• Bench mode BMW-DME-Adapter X1 interface board

Functions

• Support BMW E chassis N47 DME ISN Read/Write and clone.
• Support BMW F chassis B37 / B47 / N47 / N57 DME ISN Read/Write and clone.

Advantages

• No need to open DME shell, no need to drill holes on DME, no need to plug wires.
• The special interface board connection method replaces the traditional plugging wire method to prevent incorrect or reversed connections—simple, efficient, plug-and-play, safe, and reliable.

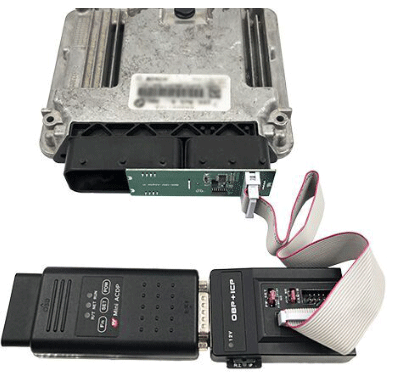

Overall Connection Diagram

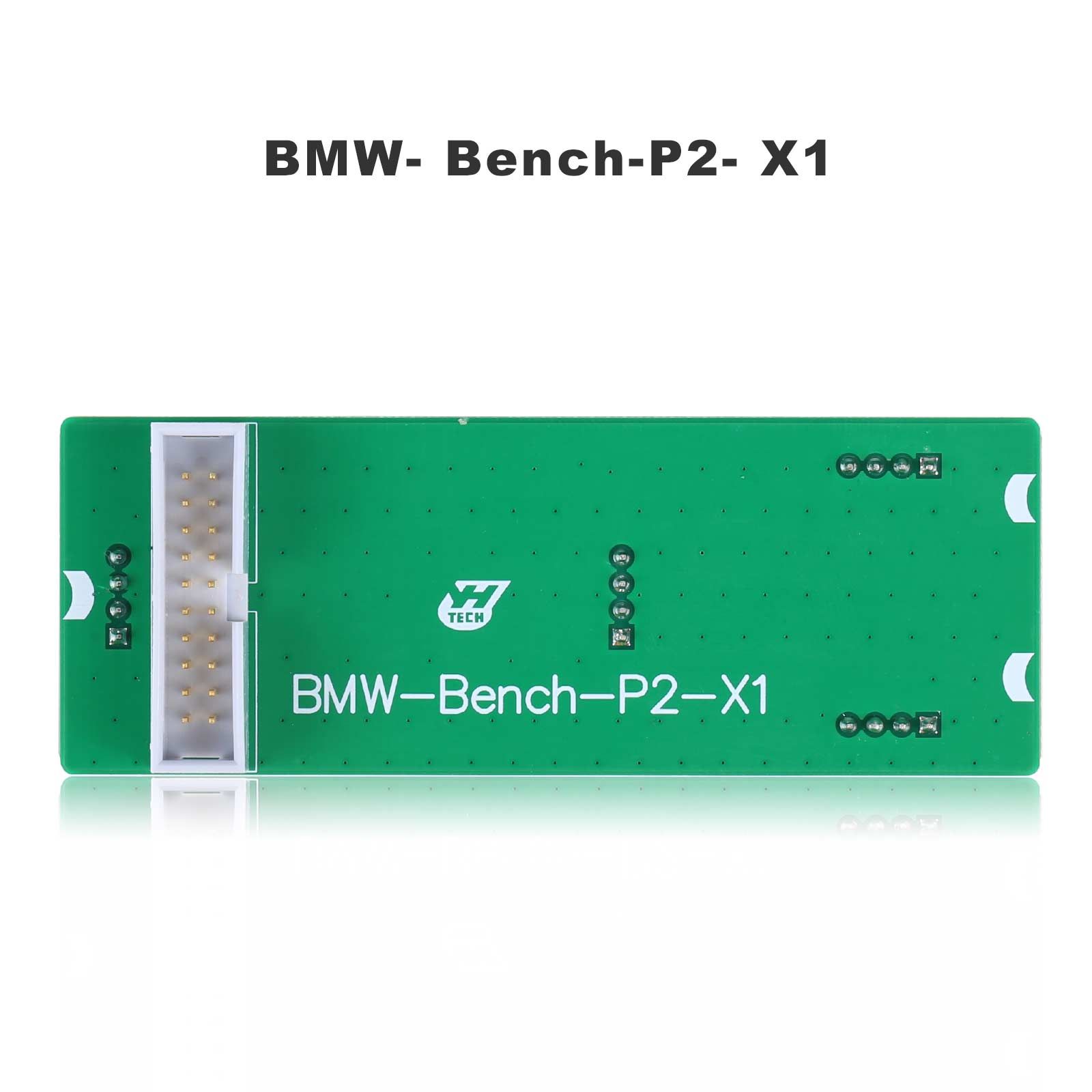

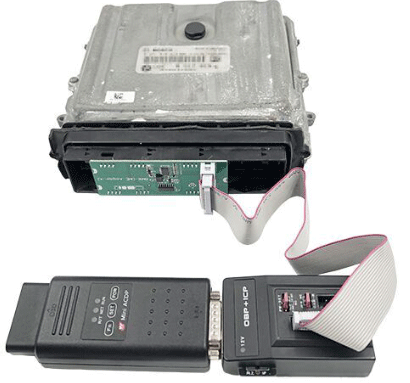

BMW-DME-Adapter X1

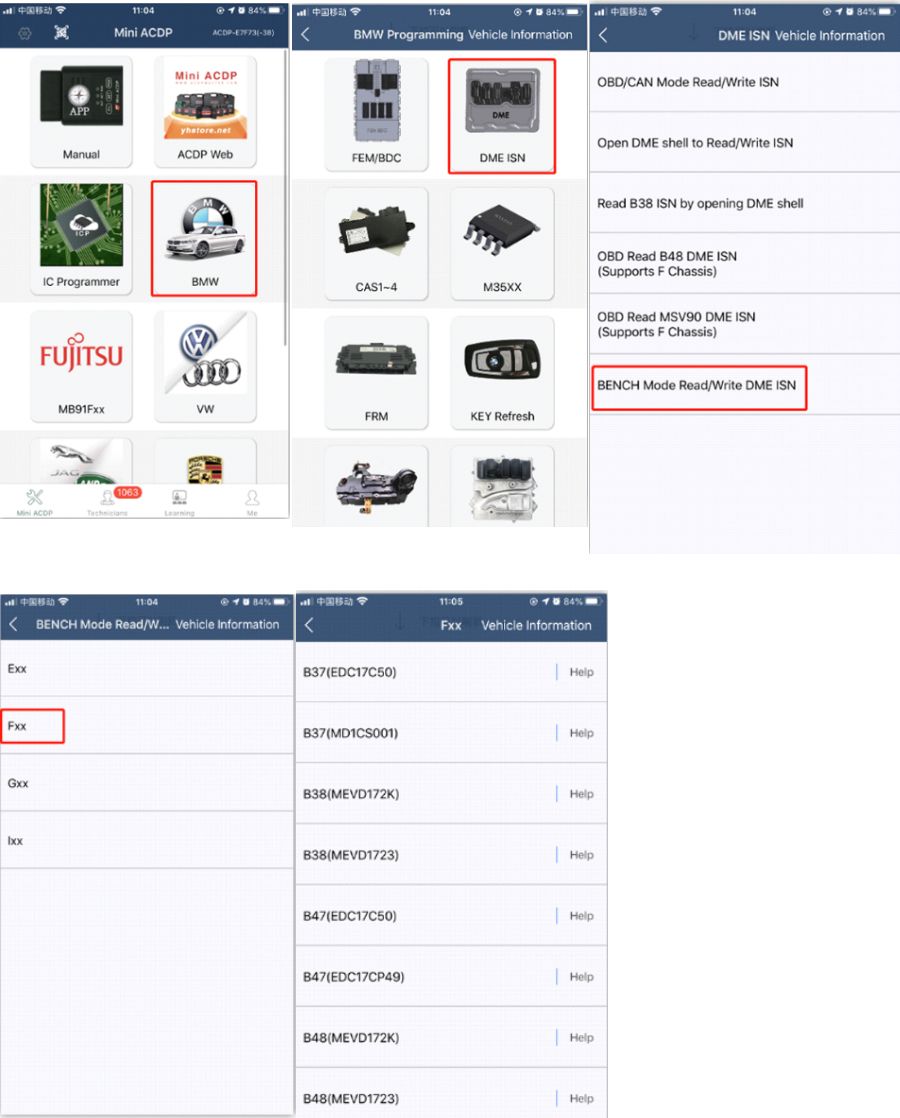

ISN Read/Write Screen

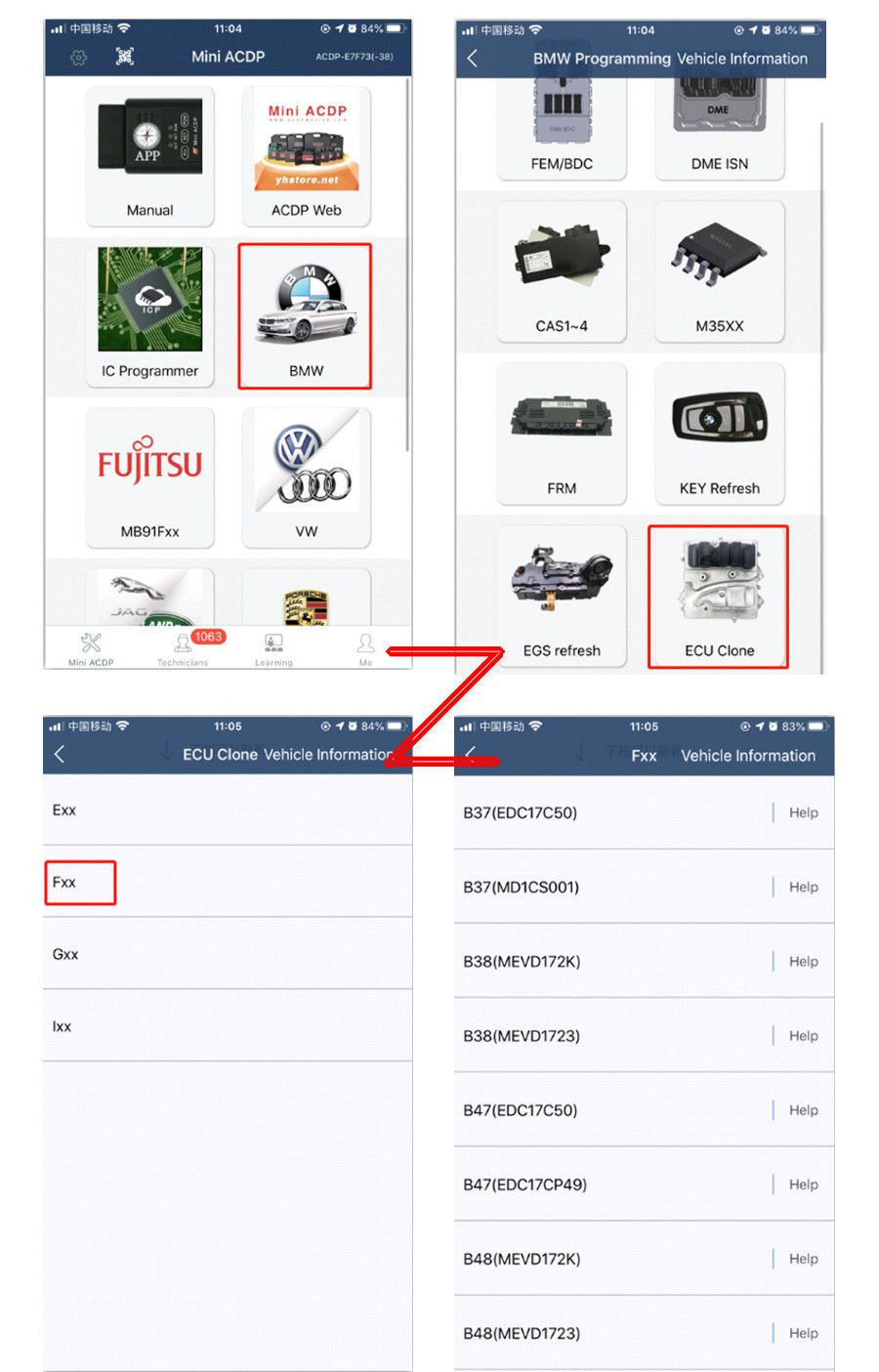

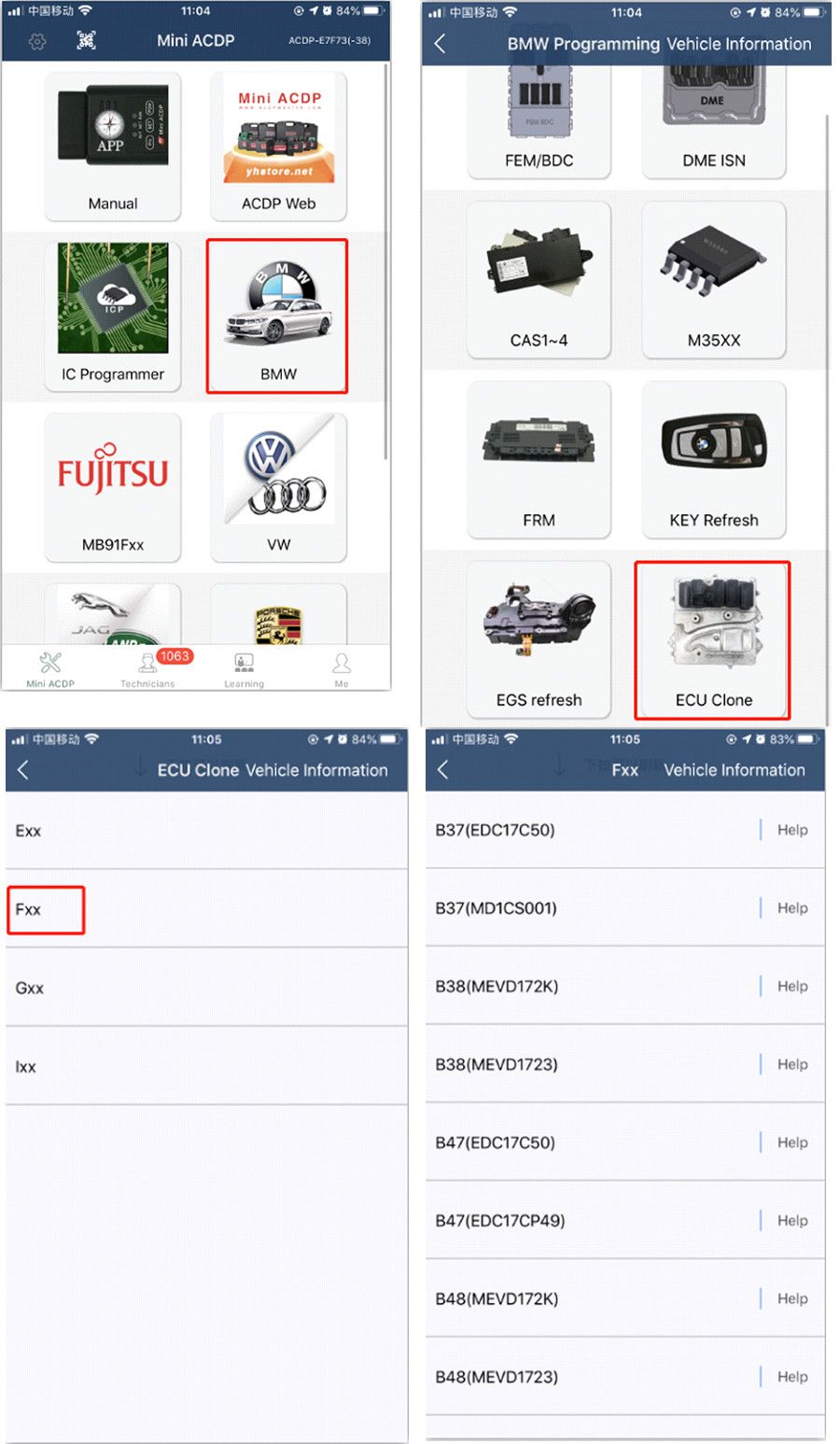

Clone Screen

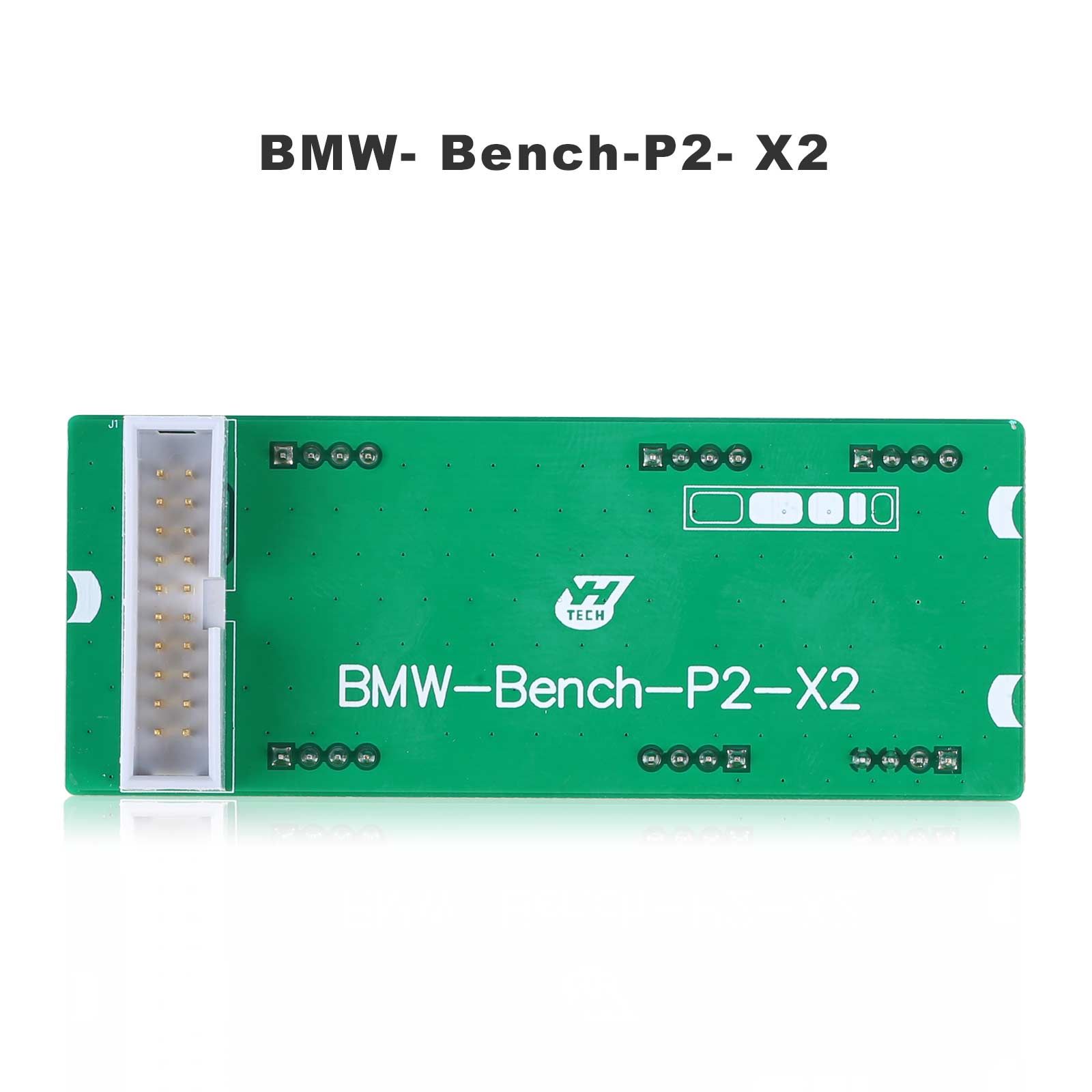

• Bench mode BMW-DME-Adapter X2 interface board

Functions

• Support BMW E chassis N47 / N57 DME ISN Read/Write and clone.
• Support BMW F chassis N47 / N57 DME ISN Read/Write and clone.

Advantages

• No need to open DME shell, no need to drill holes on DME, no need to plug wires.
• The special interface board connection method replaces the traditional plugging wire method to prevent incorrect or reversed connections—simple, efficient, plug-and-play, safe, and reliable.

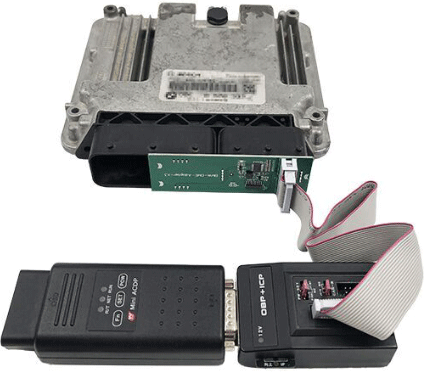

Overall Connection Diagram

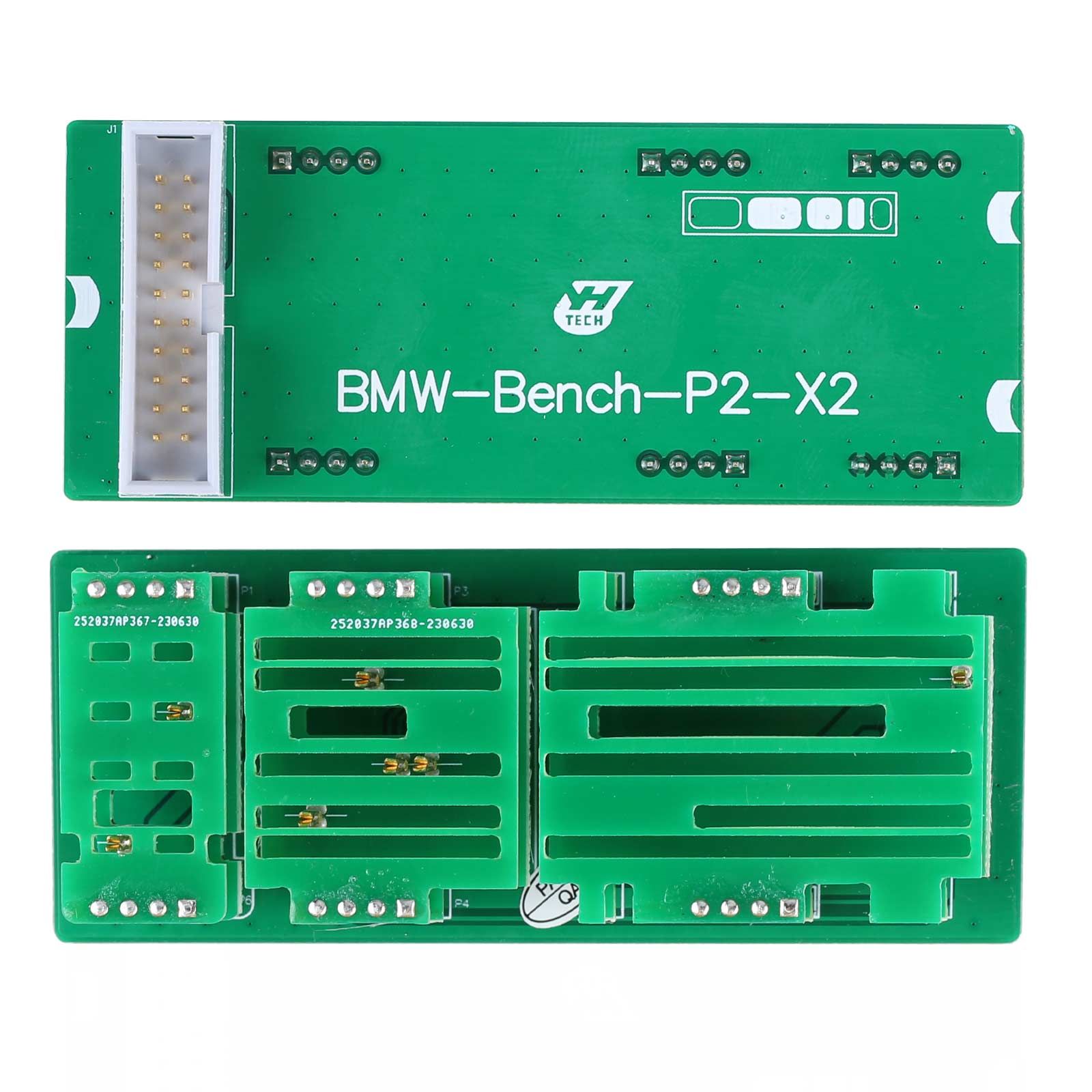

BMW-DME-Adapter X2

ISN Read/Write Screen

Clone Screen

• Bench mode BMW-DME-Adapter X3 interface board

Functions

• Support BMW I chassis BMSX (ME172) DME ISN Read/Write and clone.

Advantages

• No need to open DME shell, no need to drill holes on DME, no need to plug wires.
• The special interface board connection method replaces the traditional plugging wire method to prevent incorrect or reversed connections—simple, efficient, plug-and-play, safe, and reliable.

Overall Connection Diagram

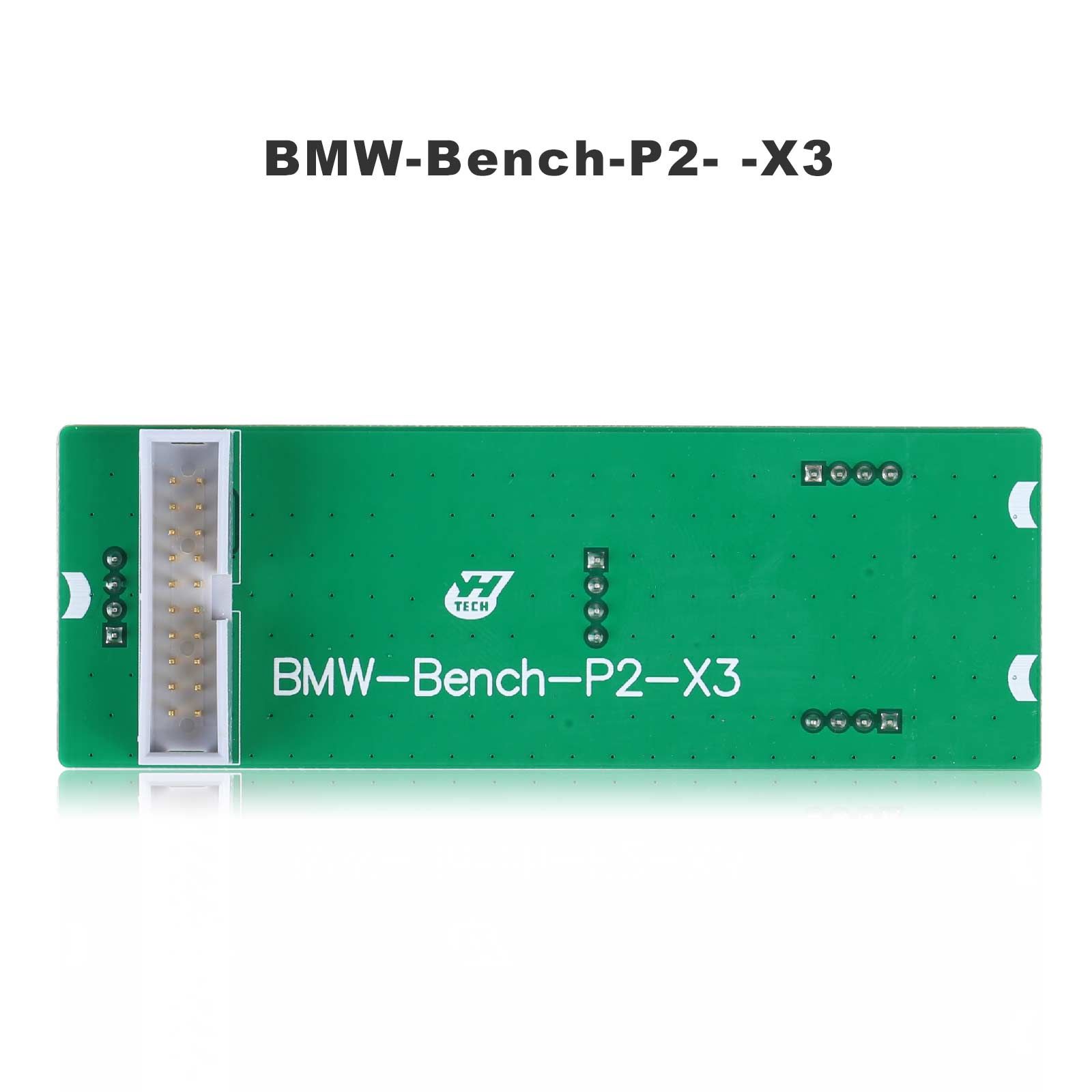

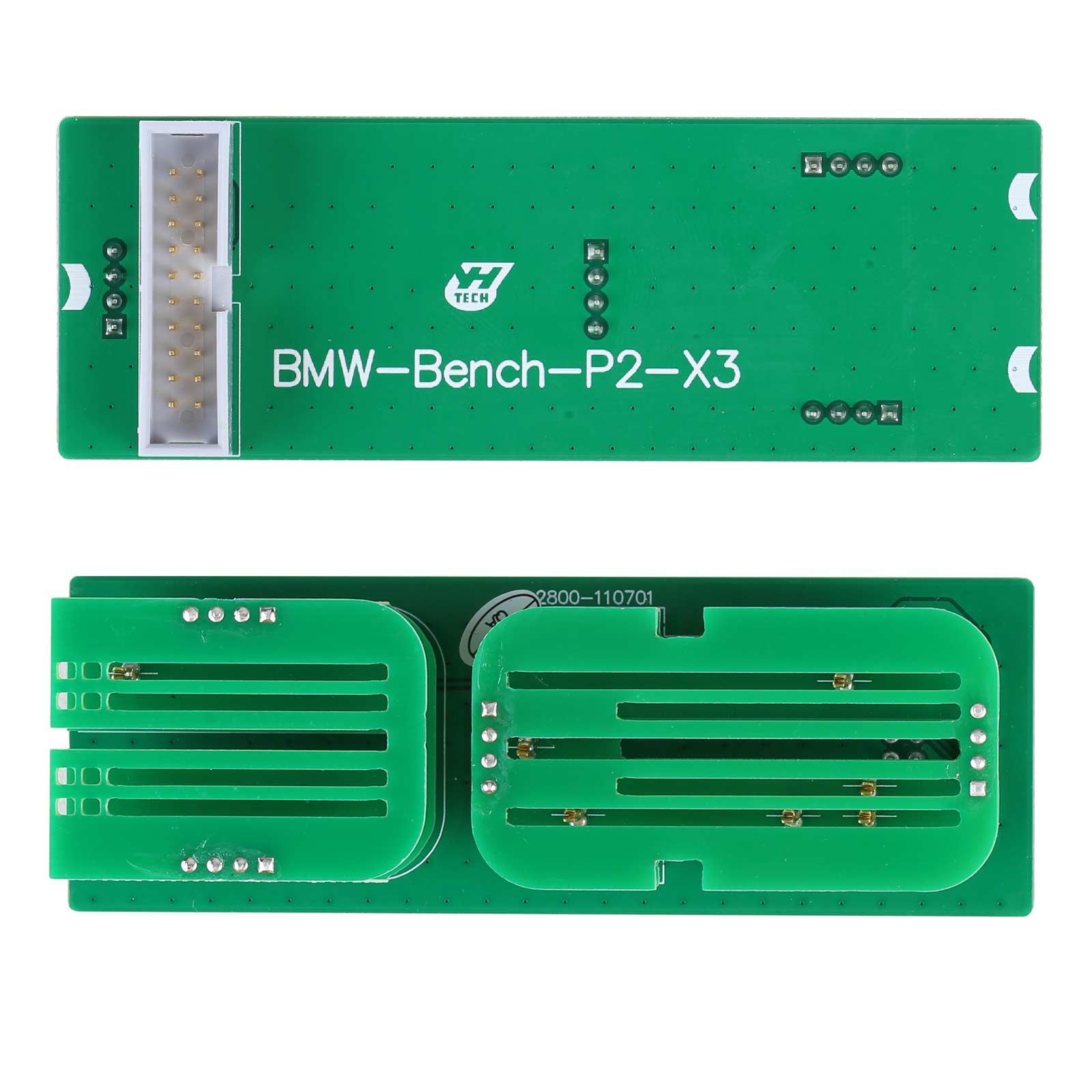

BMW-DME-Adapter X3

ISN Read/Write Screen

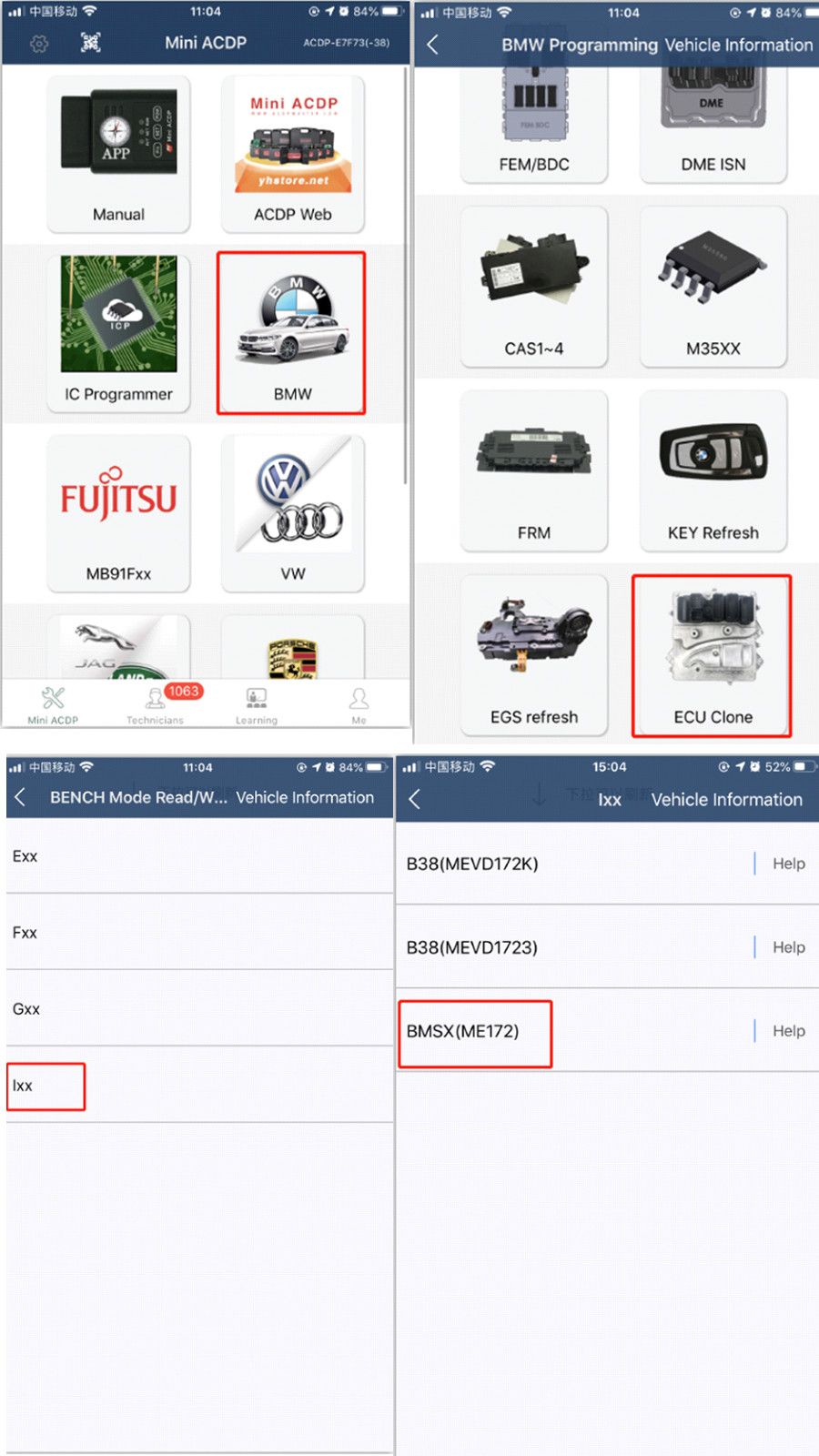

Clone Screen

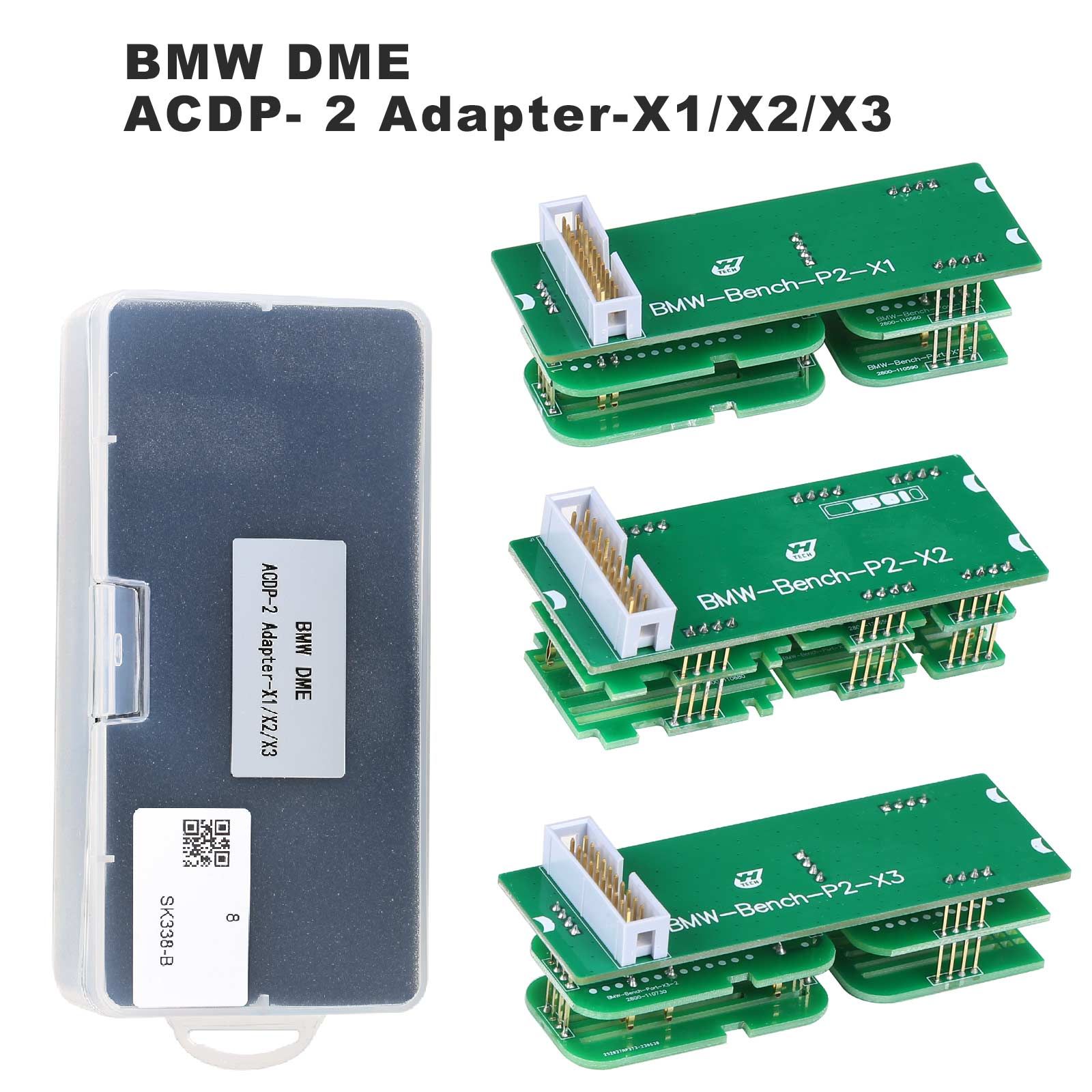

Package Includes

• 1pc × BMW-Bench-P2-X1
• 1pc × BMW-Bench-P2-X2
• 1pc × BMW-Bench-P2-X3
• 1pc × plastic box
