Description

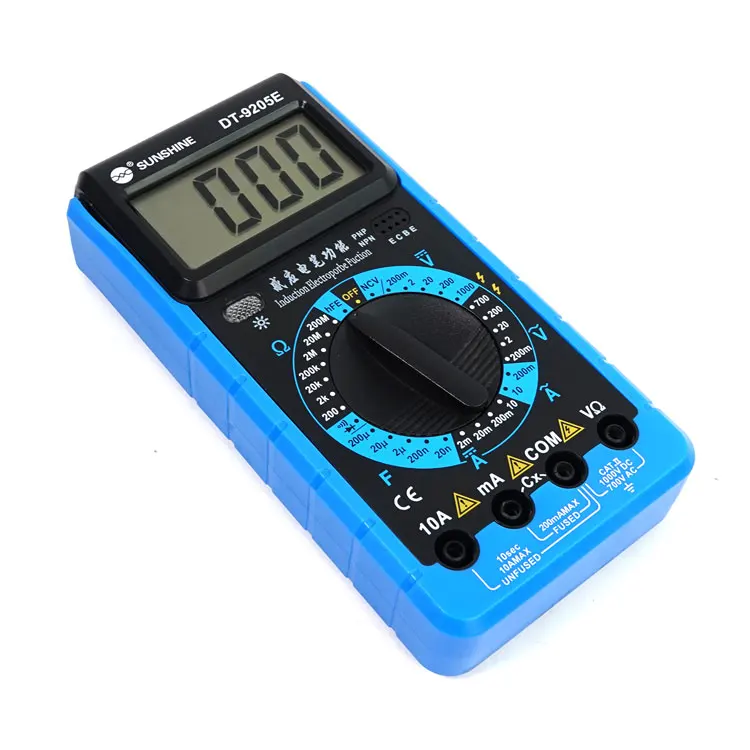

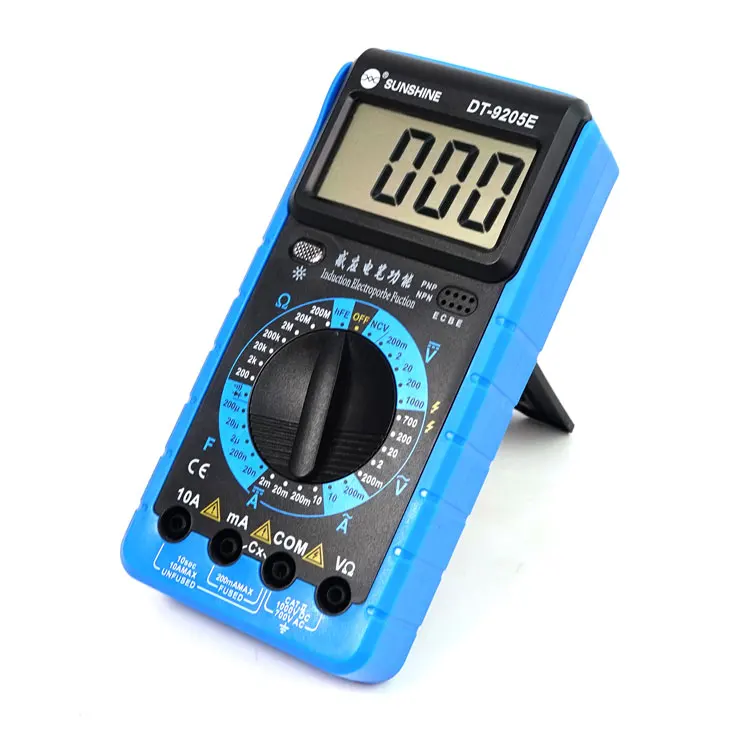

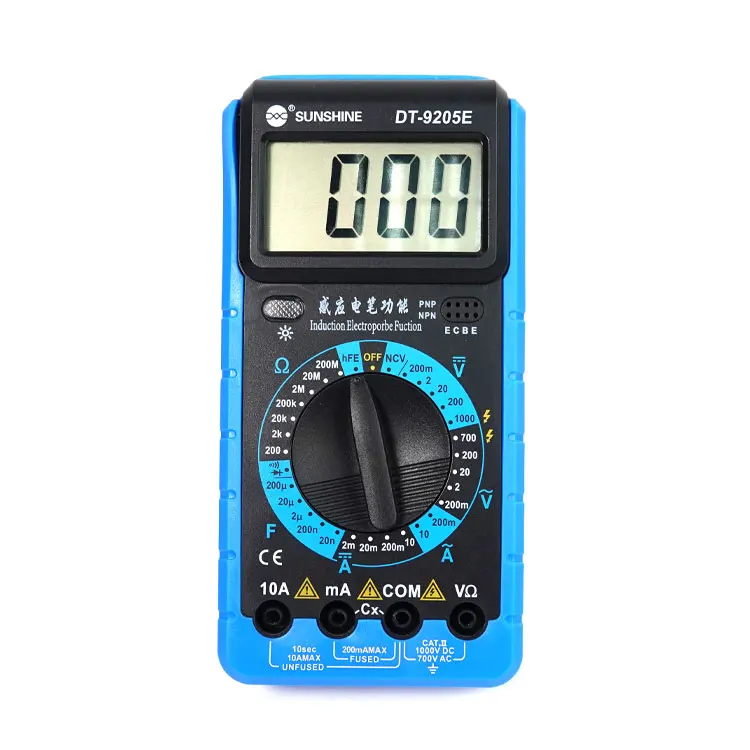

SUNSHINE DT-9205E Digital Multimeter AC/DC Voltage Current Resistance Capacitance Tester Instrument Power Meter
Digital Multimeter for AC/DC Voltage, Current, Resistance, and More
Key Features:

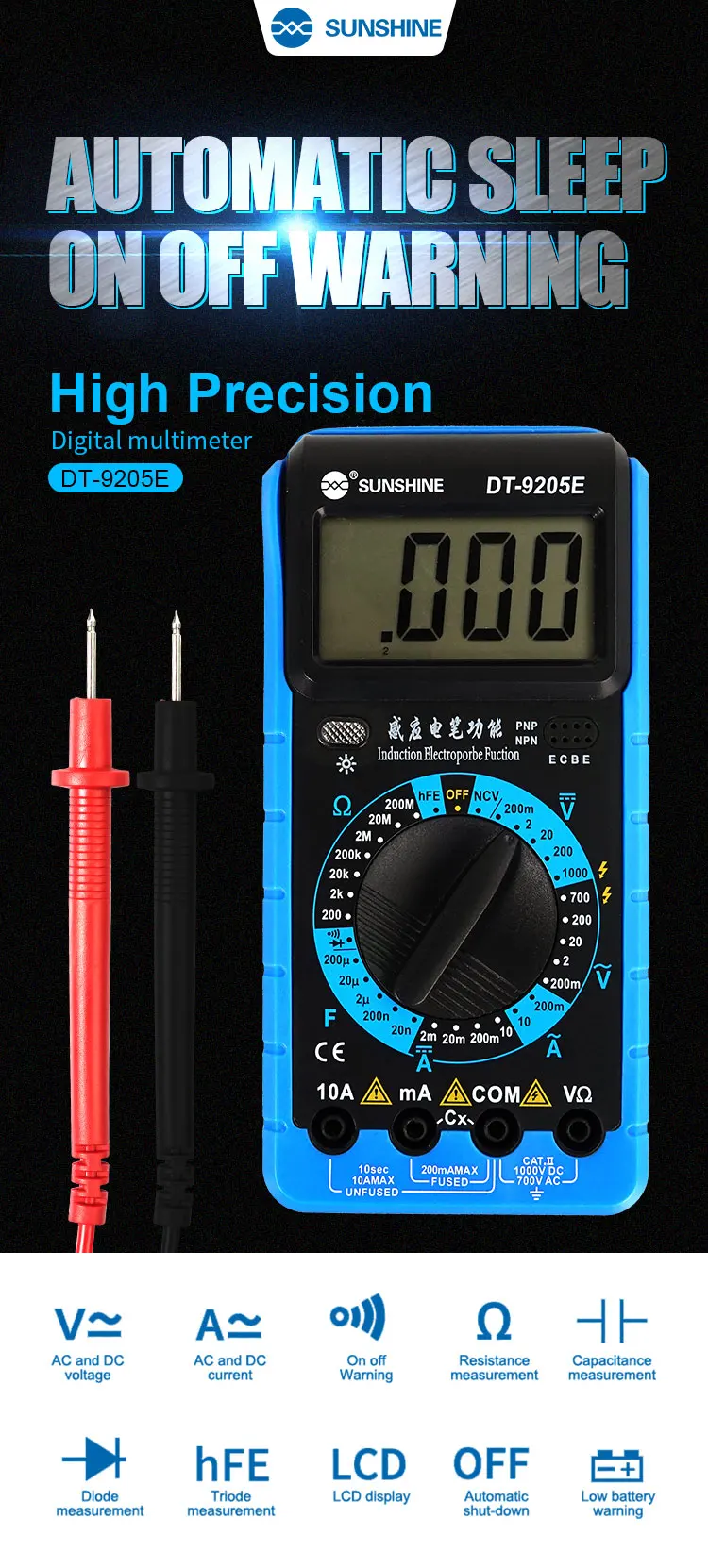

- Automatic sleep/on-off mode
- High precision measurements

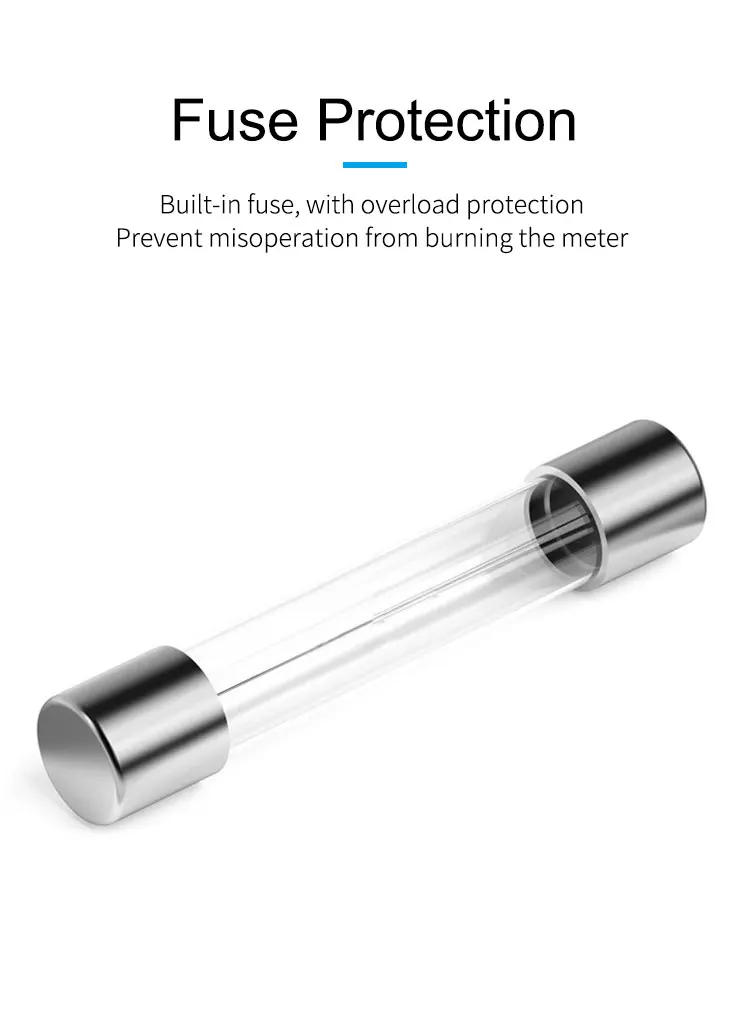

- Fuse protection with overload protection
- Built-in fuse prevents misoperation from burning the meter

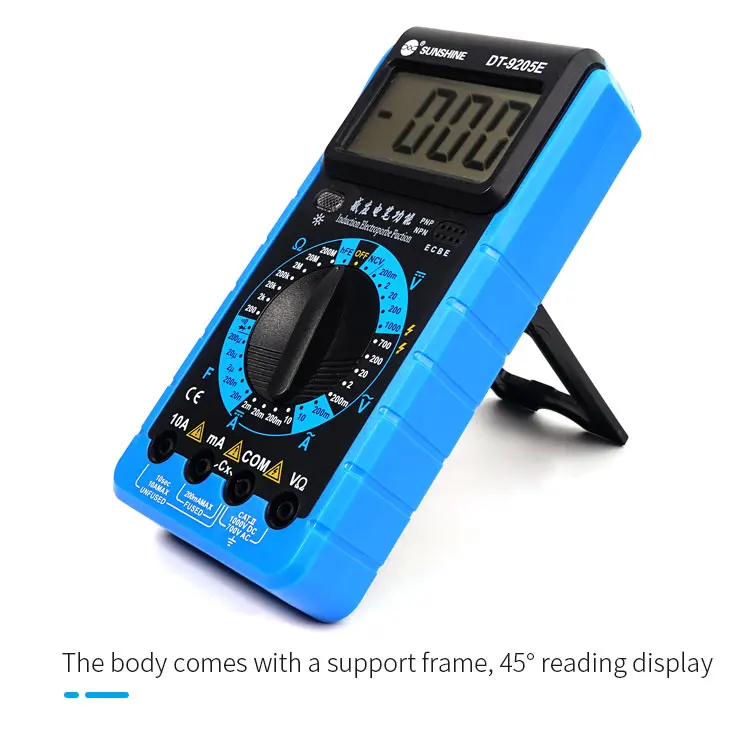

- Support frame and 45° reading display for easy viewing

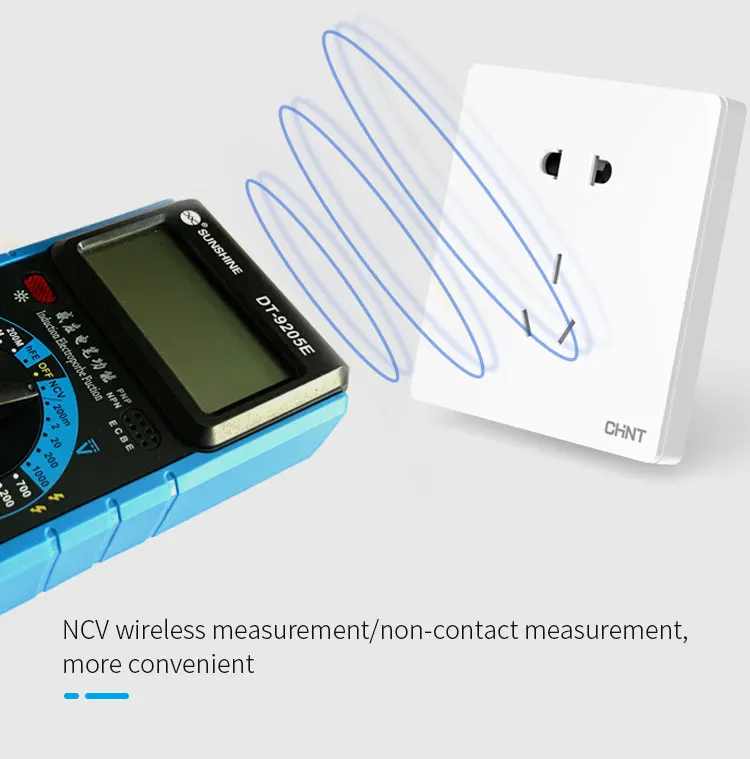

- NCV wireless measurement/non-contact mode for more convenient testing

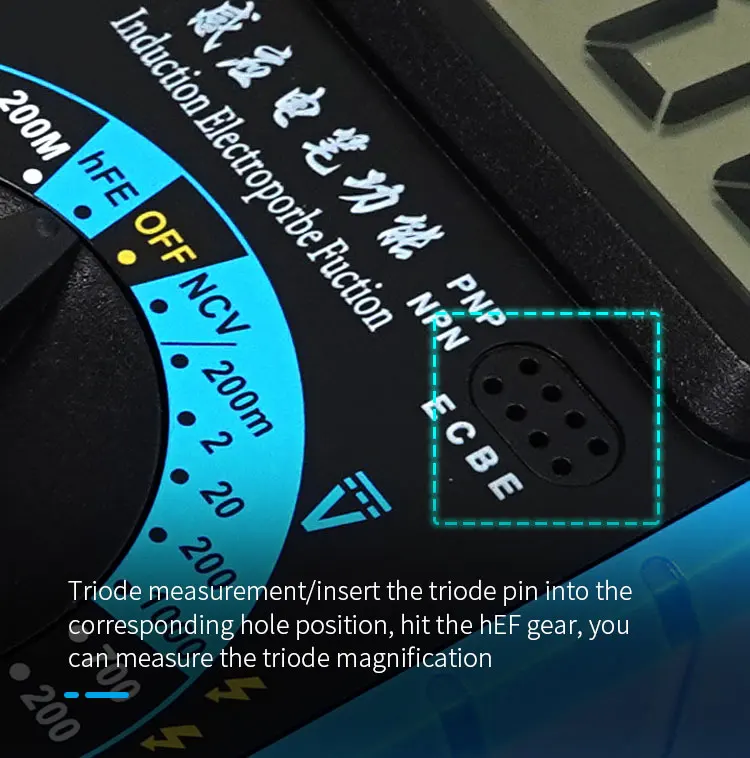

- Triode measurement with dedicated pin positions
Spectacular Specifications:
| Measurement Type | Range | Accuracy |
|---|---|---|
| DC Voltage | 200mV-1000V | ±(0.5%+1dgt) |
| AC Voltage | 2V-750V | ±(0.8%+3dgt) |
| DC Current | 2mA-20A | ±(0.5%+1dgt) |
| AC Current | 20mA-20A | ±(1.0%+3dgt) |
| Resistance | 200Ω-200MΩ | ±(0.8%+1dgt) |
| Capacitance | 20nF-200µF | ±(4.0%+3dgt) |
| Diode Test | Yes | - |
| Transistor Test | Yes | - |
| Temperature Test | -40°C-1000°C | - |
| Hertz Test | 200KHz | - |
| Continuity Buzzer | Yes | - |
| Auto Power Off | Yes | - |
| Power Supply | 9V Battery 6F22 (not included) | - |
| Maximum Display | 1999 | - |
| Product Size | Approx. 190*90*30mm/7.48*3.54*1.18'' | - |
| Net Weight | Approx. 229g | - |
Note: Please allow 1-3mm differences due to manual measurement. Due to different displays and lighting, the pictures may not reflect the actual color of the item.
Package Included:
- 1 x Multimeter (Battery not included)
- 2 x Test Leads
- 1 x Temperature Sensor Cable
- 1 x User Manual
