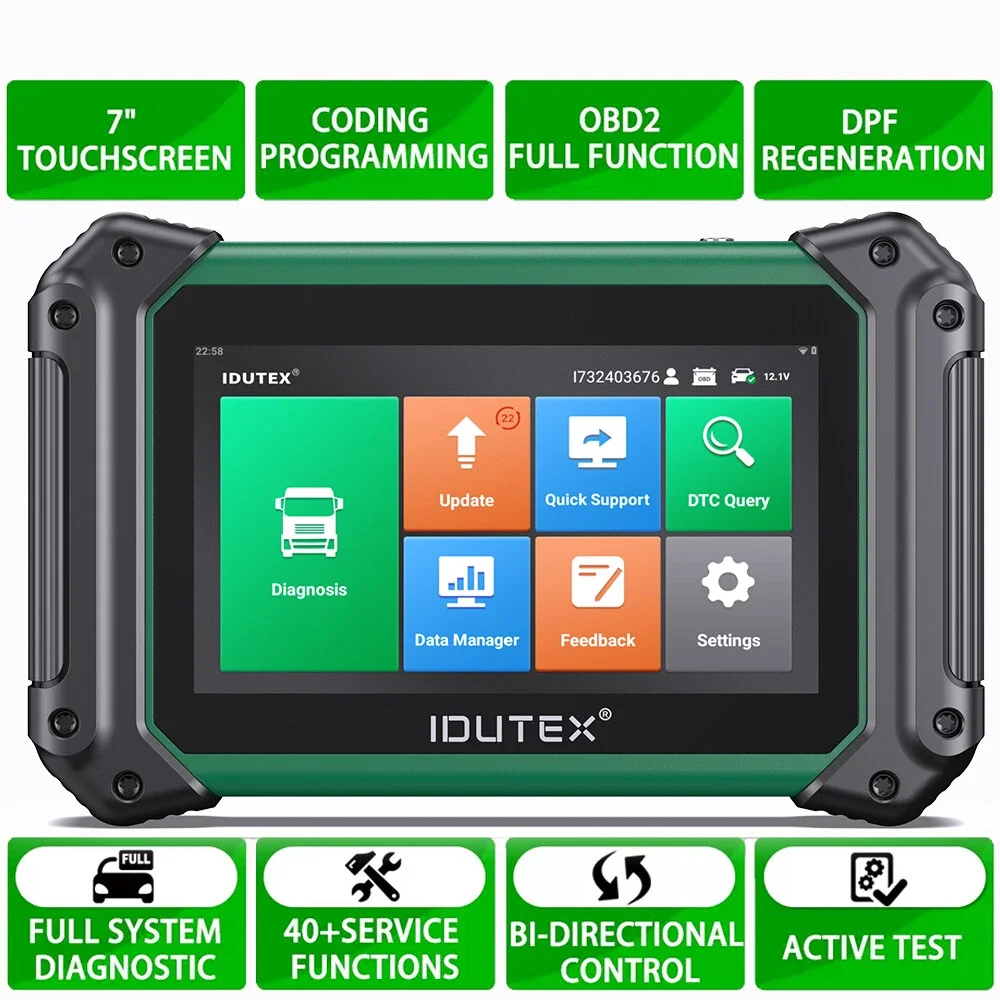

IDUTEX TS710 Heavy Duty Truck Diagnostic Tool with DPF Regen, Bi-directional Scan Functions, 42+ Resets, and DIESEL OBD2 Scanner

About This Item

Why Choose Us

• Official Authorized Agent of IDUTEX: The IDUTEX TS710 Commercial Vehicle Configuration includes software for Trucks, Buses, and Machinery. Please check the software list for specific supported vehicle brands. Note: 12V gasoline car software is not included. Customers may purchase 12V gasoline car software and additional software separately from the Mall.
• Free Software Updates, Diagnostic Feedback & Multi-Language Support: This scan tool comes with a 5-year warranty and offers free online software updates. Features include One-Click Auto VIN Detection, One-Click Wi-Fi Update, and One-Click Graph Generation. It also supports remote diagnostics, diagnostic feedback, and responses. Available languages: English, German, French, Spanish, Russian, and Chinese.
• Free Online & One-Click Updates – No Subscription Fees: Backed by IDUTEX’s commitment to keeping your software current through online updates—exclusively available for official scan tools.

Full System Professional Diagnostic Capabilities

The main diagnostic functions include:

1. Version Information
2. Read Fault Codes
3. Clear Fault Memory
4. Read Data Stream
5. Actuation Test
6. Special Functions

40+ Special Functions

Supported special functions (availability varies by vehicle model) include:

• VIN Read/Writing
• Oil Reset Service
• DPF Regeneration
• Parameter Setting
• Speed Limit Adjustment
• Idle Speed Adjustment
• Nitrogen Oxygen Sensor
• Fan Calibration
• SCR Aftertreatment Test
• ABS Test
• EGR Test
• Injector Shut-off Test
• Injector Code Read/Writing
• Fuel Pump Shut-off Test
• Vehicle Speed Control
• Urea Injection Test
• Adblue Test
• Turbo Control
• Exhaust Pressure Adjustment
• Cylinder Shut-off Test
• Cylinder Compression Test
• Immobilizer
• ECU Reset/Program

Wide Vehicle Compatibility

Supports over 80+ commercial vehicle models from America, Europe, and Asia, with continuously updated software. Equipped with multiple diagnostic interfaces including OBD-16 Pin, 6-Pin OBD, 9-Pin OBD, and additional connectors for major truck brands.

Supports communication protocols: J1939, J1708, J1587, and J27145.

Also provides routine diagnosis for cars, minivans, and light-duty vehicles (1996 to newest) using: ISO9141, ISO14230, ISO15765, ISO11898, SAE-J1850 VPW, SAE-J1850 PWM, UDS, K/L lines, and CAN variants (High, Middle, Low speed, and Single-wire).

IDUTEX TS710 Tablet Specifications

• Operating System: Android 5.1
• Battery: 5000mAh rechargeable polymer lithium
• Memory: 2GB RAM
• Storage Capacity: 32GB
• LCD: 7-inch display with 1920×1200 resolution
• Touch Screen: Capacitive
• Wi-Fi: Supported
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -20°C to 70°C

All Systems Diagnostics

The IDUTEX TS710 supports reading and clearing DTCs, live data stream monitoring, actuation tests, and service functions across all major truck modules, including:

• Engine System
• SRS System
• Retarder System
• Transmission System
• CAB Climate System
• Unit Pump System
• Electronic Control System
• Tail Gas After-Treatment System
• Body System
• ABS (Anti-lock Brake System)
• Instrument System
• Brake Control System
• Suspension System
• Common Rail System
• Natural Gas System

Core Diagnostic Functions

1. Version Information
2. Read DTC
3. Clear DTC
4. Read Data Stream
5. Actuation Test
6. Special Functions
7. Advanced ECM Data
8. Trip Information
9. Features and Parameters

40+ Special Functions (Detailed List)

• VIN Read/Writing
• Oil Reset Service
• DPF Regeneration
• Parameter Setting
• Speed Limit Adjustment
• Idle Speed Adjustment
• SCR Aftertreatment Test
• ABS Test
• EGR Test
• Injector Shut-off Test
• Injector Code Read/Writing
• Fuel Pump Shut-off Test
• Vehicle Speed Control
• Urea Injection Test
• Adblue Test
• Turbo Control
• Exhaust Pressure Adjustment
• Cylinder Shut-off Test
• Cylinder Compression Test
• Immobilizer
• ECU Reset / Program
• Fan Calibration
• Nitrogen Oxygen Sensor

DPF Functions

What is a DPF?

A Diesel Particulate Filter (DPF) is an exhaust aftertreatment device that traps particulate matter like soot and ash. It typically uses a ceramic honeycomb substrate. To reduce emissions, the DPF captures and stores soot, which must be periodically burned off in a process called regeneration (“regen”). This prevents harmful exhaust emissions and the black smoke often seen during DIESEL acceleration.

This heavy-duty truck scanner enables:

• Active (Auto) Regen
• Passive Regen
• DPF-Related Information Reset
• DPR State Reset
• Forced DPR Regen
• Differential Pressure Test
• DPD Forced Regen

Passive Regen

Occurs during extended high-speed driving (20–30 minutes at 70 mph or above), where exhaust temperatures naturally rise enough to burn off trapped soot. However, many drivers do not drive under these conditions frequently enough for passive regen to be effective.

Active Regen

Triggered automatically when soot accumulation reaches ~45% of DPF capacity. The system initiates post-combustion fuel injection to raise exhaust temperatures, enabling soot burn-off even during low-speed or stop-and-go driving.

How Long Does a DPF Regen Take?

A full DPF regeneration cycle takes approximately 1.5 hours and can be performed as part of routine maintenance.

Bidirectional (Actuation Test) Capabilities

For heavy-duty trucks, the TS710 supports advanced bidirectional controls such as (varies by model and year):

• Cylinder Cut-out Test
• Compression Test
• Injector Volume Commands
• Injector Programming
• SCR Commands
• Rail High Pressure Test
• SCR Catalyst Regen
• Cylinder Balance Test
• DPF Regen
• VGT Calibrations
• Aftertreatment Reset
• Parameter Changing
• Glow Relay Activation Check
• DPF Filter Reset

Full OBD2 Functionality for All Cars & Trucks

• Reading Codes: Displays detailed descriptions of Diagnostic Trouble Codes (DTCs).
• Erasing Codes: Turns off the Check Engine Light (MIL), clears codes, and resets monitors.
• Data Stream: Reads and displays live ECU/PCM data, plots graphical waveforms, and stores freeze frame data.
• I/M Readiness Status: Indicates whether emissions-related systems are ready for inspection and maintenance testing.
• Live Data Stream: Shows real-time vehicle data in live graphical (waveform) format.
• Freeze Frame Data: Captures vehicle conditions recorded by the onboard computer at the moment an emission-related fault occurs.
• O2 Sensor Test: Retrieves and displays results from the most recent O2 sensor monitor tests.
• On-Board Monitor Test: Shows test results for emission-related powertrain components and systems.
• Vehicle Information: Displays VIN (Vehicle Identification Number), CID (Calibration ID), CVN (Calibration Verification Number), and more.

Additional Advantages of the IDUTEX TS710 Heavy Truck Diagnostic Tool

• Smart AutoVIN Technology: Automatically identifies vehicles with a single touch to scan ECUs, retrieve vehicle information, and run diagnostics on selected systems—saving time and improving accuracy.
• Live Data Stream: Displays real-time sensor data with intuitive graphing capabilities to monitor vehicle performance and help users analyze abnormal parameters effectively.
• Automatic Diagnostic Report Print & Share: Performs a comprehensive health scan of all vehicle modules and generates a detailed status report. Reports are automatically saved in PDF format to internal memory and can be shared via email using the tablet’s built-in Wi-Fi.
• One-to-One Online Feedback for Instant Problem Solving: Includes a feedback function that allows users to report issues encountered during diagnostics. LAUNCH commits to prompt resolution and continuous product improvement based on user input to enhance the overall experience.
• Remote Diagnosis: Enables the LAUNCH X431 PROS V+ to function as an instant messaging (I/M) tool, facilitating convenient exchange of repair expertise and remote technical assistance among technicians.
• View History: Records every detail of each diagnostic session, including live data. Users can review, replay, or resume diagnostics from their last operation without starting over.
• Maintenance Help Resources: Provides access to how-to videos, operational tips, user manuals, FAQs, and quick-start guides to support efficient troubleshooting and usage.

Vehicle Coverage

Europe

• Mercedes-Benz
• MAN
• Volvo
• Scania
• Iveco
• DAF
• Renault

United States

• Freightliner
• International
• Kenworth
• Peterbilt
• Sterling
• Western Star
• Mack
• Detroit
• Cummins

Asia

• Hino
• Fuso
• Isuzu
• UD
• Hyundai

Tablet Specifications

• Display Screen: 7” G+G capacitive screen, 1024×600 resolution
• Operating System: Android 5.1, multi-language support
• CPU: A33 ARM Cortex-A7, Quad-Core at 1.3 GHz
• GPU: Mali-400 MP2, 400 MHz
• ROM: 32 GB
• RAM: 1 GB LPDDR3
• Battery: Polymer lithium-ion battery; 3.7V / 5000 mAh, up to 5 hours of battery life
• Speaker: Dual speakers, 8Ω / 1W each
• Interface: USB Type-C, TF card slot (supports SDHC/SDXC)
• Network: Wi-Fi 802.11b/g/n
• Bluetooth: Bluetooth 2.1 / 4.0
• Input Voltage: 5V / 2A
• Working Temperature: -10°C to 70°C (14°F to 158°F), relative humidity <90%
• Storage Temperature: -30°C to 120°C (-22°F to 248°F), relative humidity <90%
• Dimensions (W×H×D): 270 mm (10.63 in) × 193 mm (7.60 in) × 38 mm (1.50 in)
• Weight: Net weight: 1.20 kg (2.65 lb); Gross weight: 3.00 kg (6.61 lb)
• Supported Protocols: ISO 9141-2, ISO 14230-2, ISO 15765-4, K/L-Line, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, High-speed, Middle-speed, Low-speed and Single-speed CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN, and more

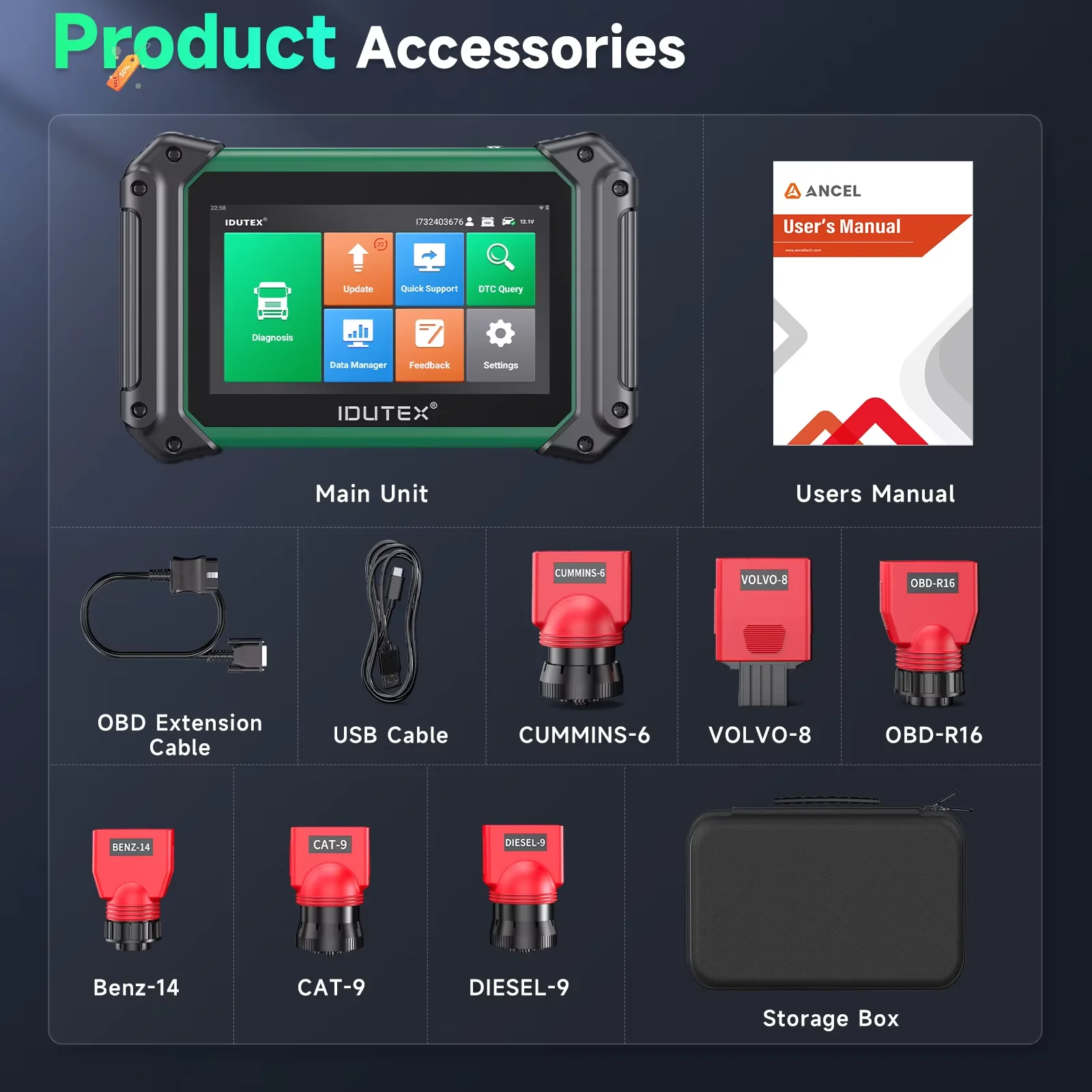

Packing List

• 1 × User Manual
• 1 × IDUTEX TS710 Diagnostic Tool
• 1 × Storage Box
• 1 × OBD Extension Cable
• 1 × USB Cable
• 1 × BENZ-14 Adapter
• 1 × CAT-9 Adapter
• 1 × DIESEL-9 Adapter
• 1 × CUMMINS-6 Adapter
• 1 × VOLVO-8 Adapter
• 1 × OBD-R16 Adapter
