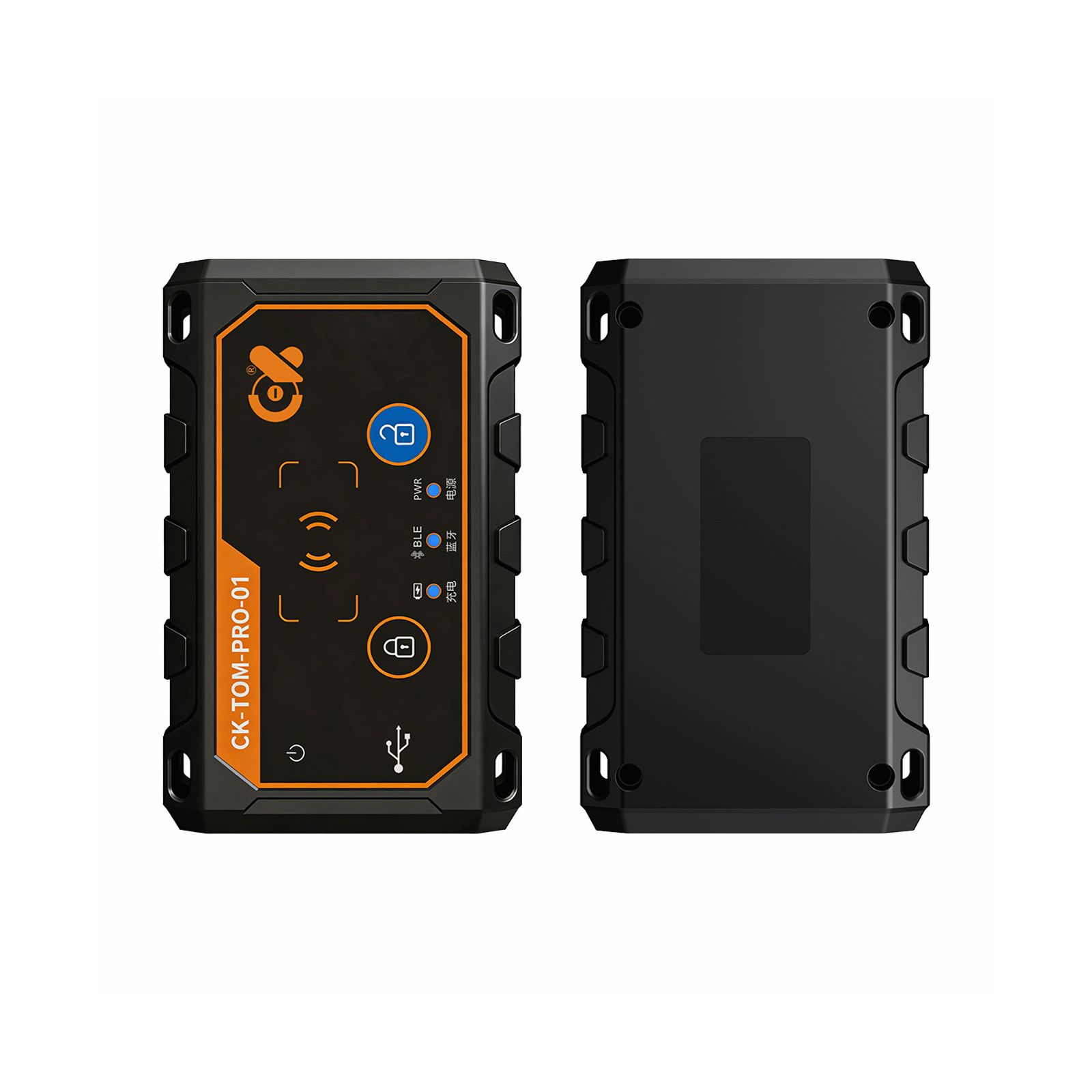

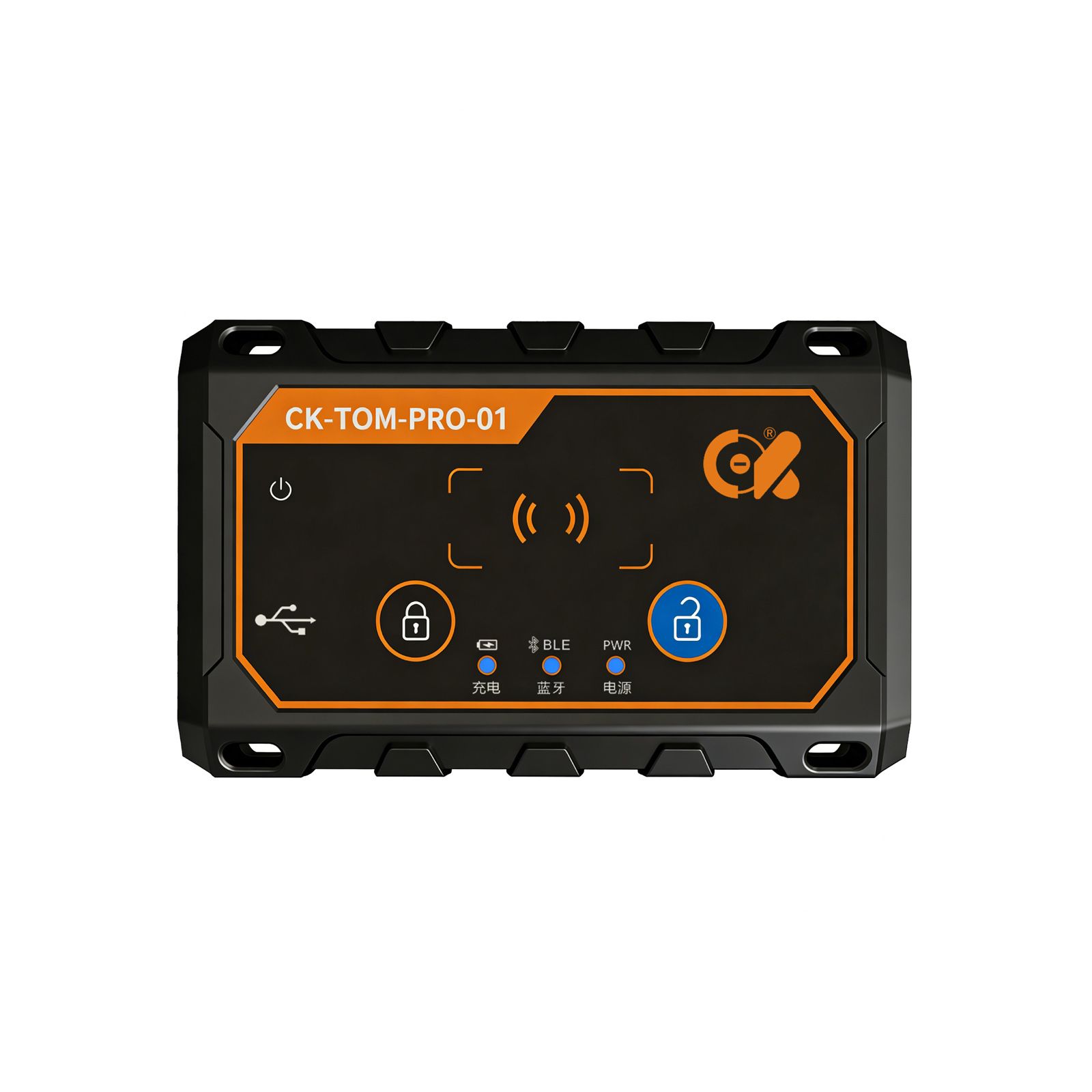

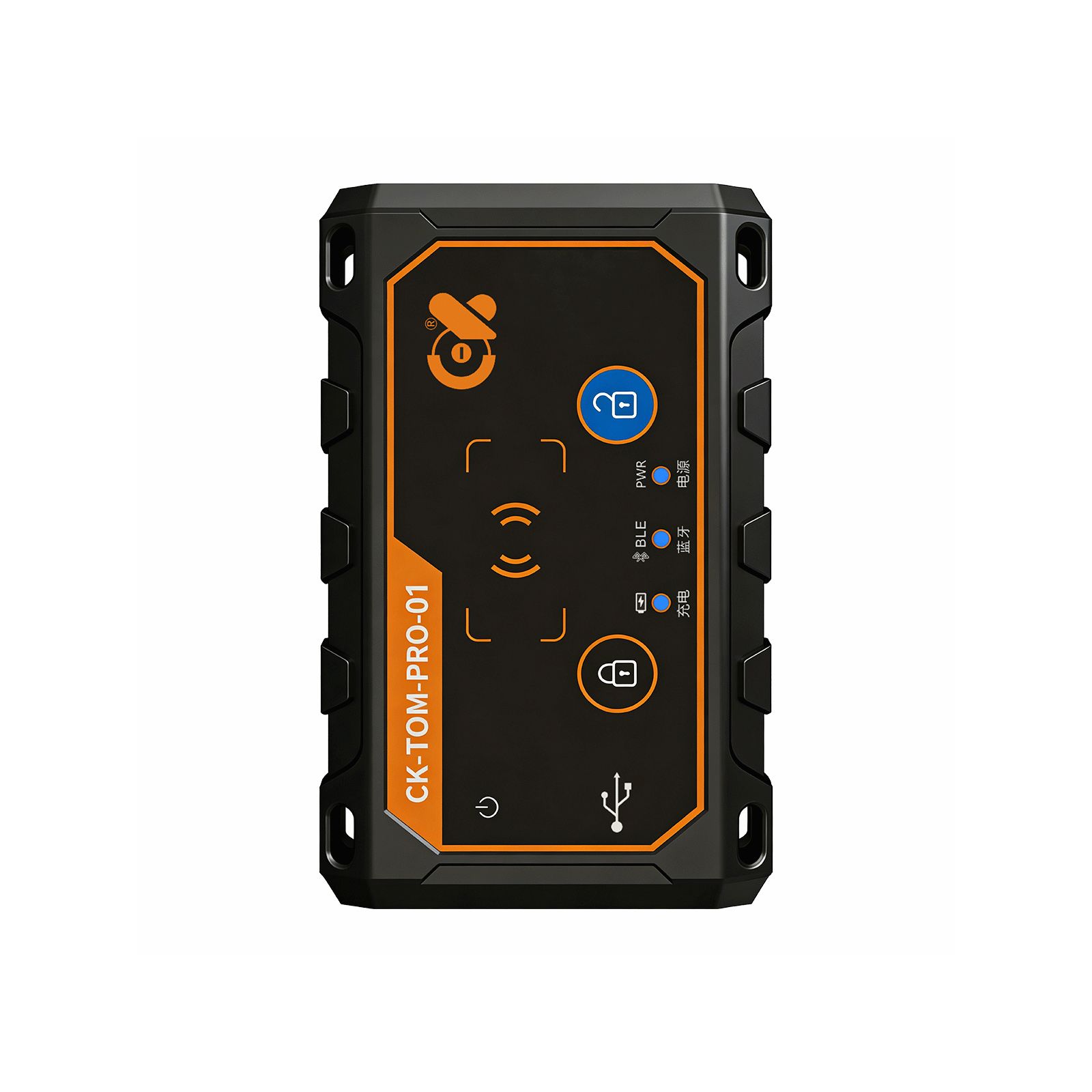

CK-TOM-PRO-01 Key Matching Device for Toyota/Lexus – Supports 8A-AA, 8A-BA
The CK-TOM-PRO-01 is a specialized key matching device designed for Toyota and Lexus vehicles. By connecting to the 'Huidao CK' app via Bluetooth, it can read key information, match the vehicle, and write key data. It also functions as a temporary key. With its simple operation and high stability, it serves as a professional, portable tool for Toyota/Lexus vehicle key repair and matching.
Supported Key Models
8A-AA, 8A-BA
Product Advantages
The 8A-AA and 8A-BA keys for Toyota and Lexus use a proprietary encryption architecture, making them incompatible with traditional resetting methods. This solution overcomes those technical barriers, offering broad compatibility with various tools on the market. The process uses a non-destructive operation mode—no disassembly, welding, or cracking is required—preserving the original form of the keys. The workflow is standardized and straightforward, requiring no professional training. Additionally, the device can be used as a temporary key.

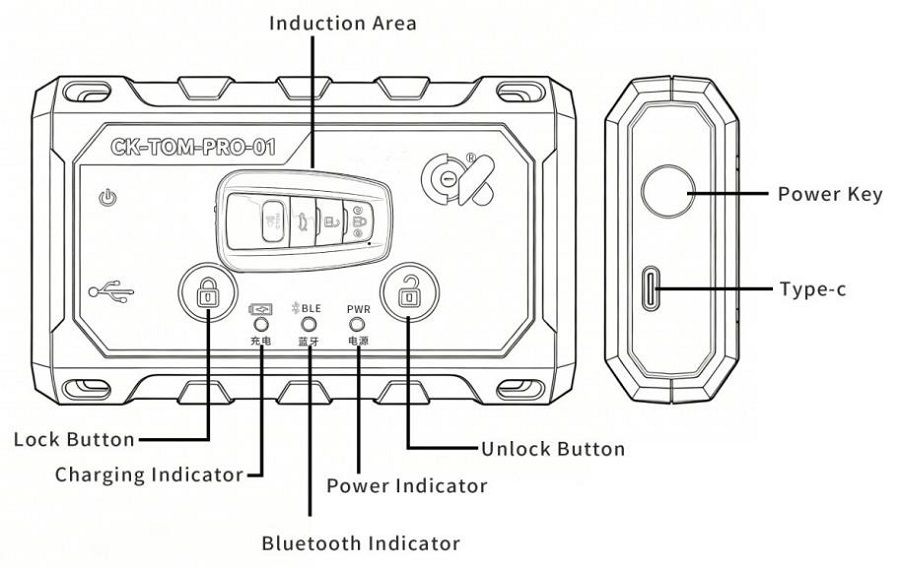

Product Structure
- Power key: Press for three seconds to turn on/off
- Charge status indicator: Turns green when charging
- Bluetooth light: Blue light indicates Bluetooth is connected
- Power indicator: Red light on = device powered on; red light off = device powered off
- Locking key: Locks the vehicle when used as a temporary key
- Unlock key: Unlocks the vehicle when used as a temporary key
How to Use the CK-TOM-PRO-01
- Connect the device.
- Read the original car key information.
- Match the vehicle.
- Write new key data (optional).
Product Parameters
- Input interface: USB Type-C
- Core chip: Dual cores based on 32-bit ARM Cortex-M4F + Cortex-M0 + BLE 5.0 Bluetooth chip
- Battery capacity: 3.7V, 600mAh
- Bluetooth: Single-mode BLE 5.0
- Wireless Band: 2.4GHz and 134.2kHz
- Input voltage: 5V DC, 500mA
- 2.4GHz RF transceiver: High receiver sensitivity (-92dBm@BLE)
- Programmable transmitter power: up to +3dBm
- Operating Temperature: -10°C to 50°C
- Storage Temperature: -15°C to 60°C
- Exterior dimensions: 110 × 68 × 27 mm
- Material: ABS eco-friendly material
Package Includes
1 pc × CK-TOM-PRO-01 Toyota Key Matching Device
